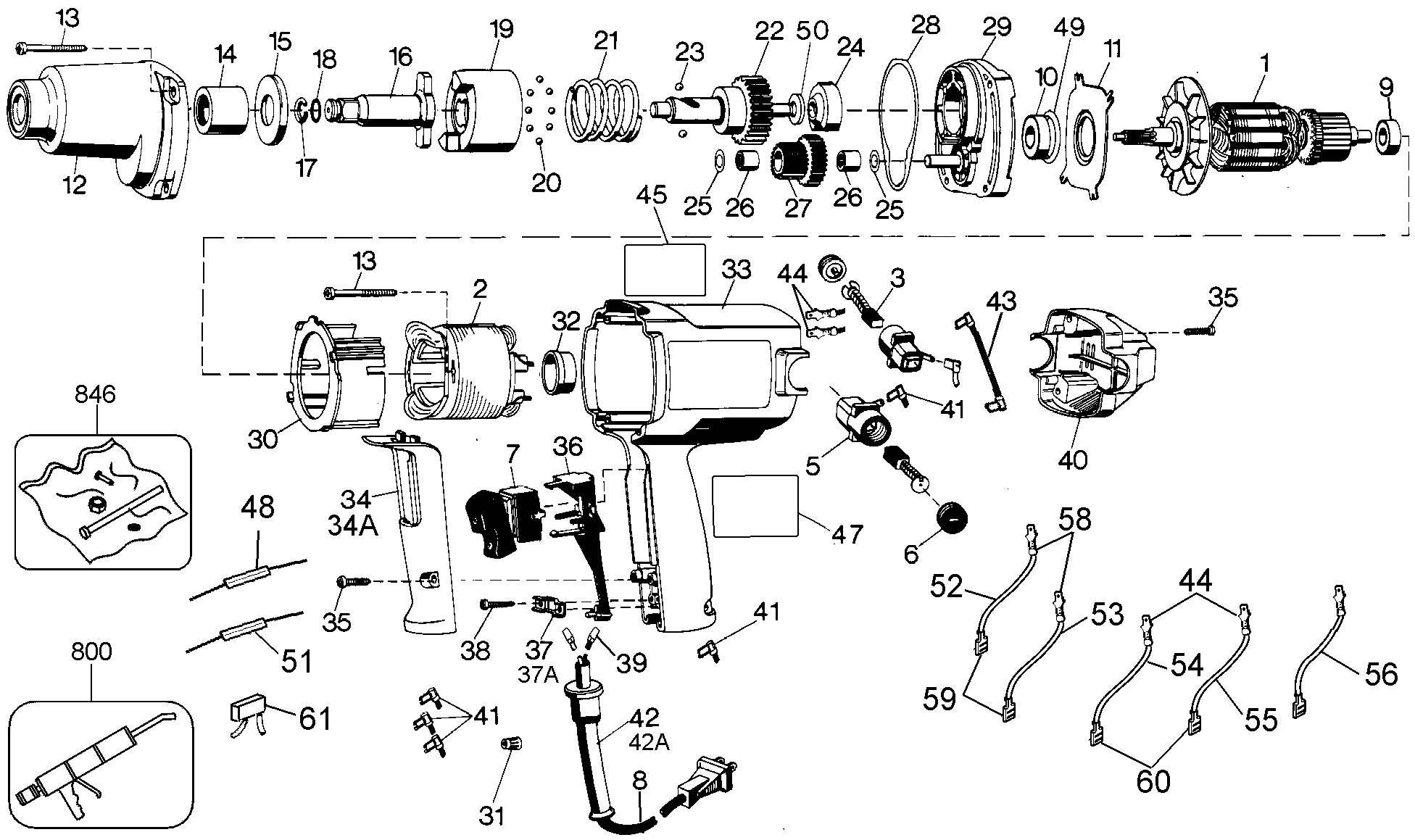

DW291 IMPACT WRENCH Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 450807-00SV | 1 | ARMATURE & FAN | 8 teeth incl.9,10,11 | B4 |  |
|
| 2 | 450379-71SV | 1 | FIELD | B4 | |||
| 3 | 450374-12 | 2 | BRUSH & SPRING | B4 | |
||
| 5 | 448083-01 | 2 | BRUSHBOX SA | B4 | |
||
| 6 | 448084-01 | 2 | BRUSH CAP | B4 |  |
||
| 7 | 449524-00 | 1 | SWITCH | NPP | B4 | |
|
| 8 | 330064-02 | 1 | CORDSET | B4 | |
||
| 9 | 330003-04 | 1 | BEARING | B4 | |||
| 10 | 605040-20 | 1 | BEARING | 12 x 28 x 8mm | B4 | |
|
| 11 | 448079-00 | 1 | PLATE | B4 | |||
| 12 | 449448-00 | 1 | GEARCASE | incl. 14 | B4 | |
|
| 13 | 330019-18 | 6 | SCREW | M4.55 x 50 PLASTIC THD FMG | B4 | ||
| 14 | 450544-00SV | 1 | BEARING & SEAL | B4 | |||
| 15 | 616859-00 | 1 | WASHER THRUST | B4 | |
||
| 16 | 616834-00SV | 1 | ANVIL | incl. 17,18 | B4 | |
|
| 17 | 086947-00 | 1 | CIRCLIP | B4 | |
||
| 18 | 050056-00 | 1 | O RING | B4 | |
||
| 19 | 448298-00 | 1 | IMPACTOR | B4 | |||
| 20 | 000475-00 | 25 | BALL STEEL | B4 | |
||
| 21 | 135065-00 | 1 | SPRING | B4 | |
||
| 22 | 449759-01 | 1 | GEAR SA | B4 | |
||
| 23 | 005190-00 | 2 | BALL STEEL | 9/32 inch | B4 | |
|
| 24 | 450736-00 | 1 | BEARING | B4 | |
||
| 25 | 135089-00 | 2 | WASHER | B4 | |
||
| 26 | 330004-02 | 2 | BEARING NEEDLE | B4 | |
||
| 27 | 135093-01SV | 1 | GEAR & PINION | incl.26 17/37 teeth | B4 | |
|
| 28 | 135082-00 | 1 | GASKET | B4 | |
||
| 29 | 449452-00SV | 1 | COVER-GEAR CASE | incl. 24 | B4 | ||
| 30 | 447786-00 | 1 | BAFFLE FAN | B4 | |
||
| 31 | 32114-00 | 1 | CONNECTOR | B4 | |||
| 32 | 445217-02 | 1 | SLEEVE | B4 | |
||
| 33 | 392275-02 | 1 | FIELD CASE | B4 | |
||
| 34 | 5140004-77 | 1 | HANDLE COVER | B4 | |
||
| 35 | 330019-13 | 6 | SCREW | M4X19 T20 | B4 | |
|
| 36 | 449472-00 | 1 | SWITCH SUPPORT | B4 | |
||
| 37 | 450877-00 | 1 | CORD CLAMP | B4 | |
||
| 38 | 330013-03 | 2 | SCREW | B4 | |
||
| 40 | 449460-01 | 1 | END CAP | B4 | |
||
| 41 | 135110-00 | 6 | TERMINAL | B4 | |||
| 42 | 330005-01 | 1 | CORD PROTECTOR | B4 | |
||
| 43 | 158491-00 | 1 | LEAD | 6-3/4 INCH BLACK | B4 | ||
| 44 | 448172-00 | 2 | TERMINAL | B4 | |||
| 45 | 610200-00 | 1 | NAMEPLATE | B4 | |
||
| 47 | 627212-00 | 1 | BRAND LABEL | DEWALT | B4 | ||
| 49 | 99180-24 | 1 | SEAL | B4 | |
||
| 50 | 450667-00 | 1 | WASHER | B4 | |
||
| 134 | 392274-03 | 1 | HANDLE COVER | FROM DCODE 0020 | B4 | |
|
| 800 | 429698-00 | 1 | GREASE | BD-L 2 | B4 | |
|
| 846 | 761950-00 | 1 | KIT SA | incl. 17,18 | B4 | |
