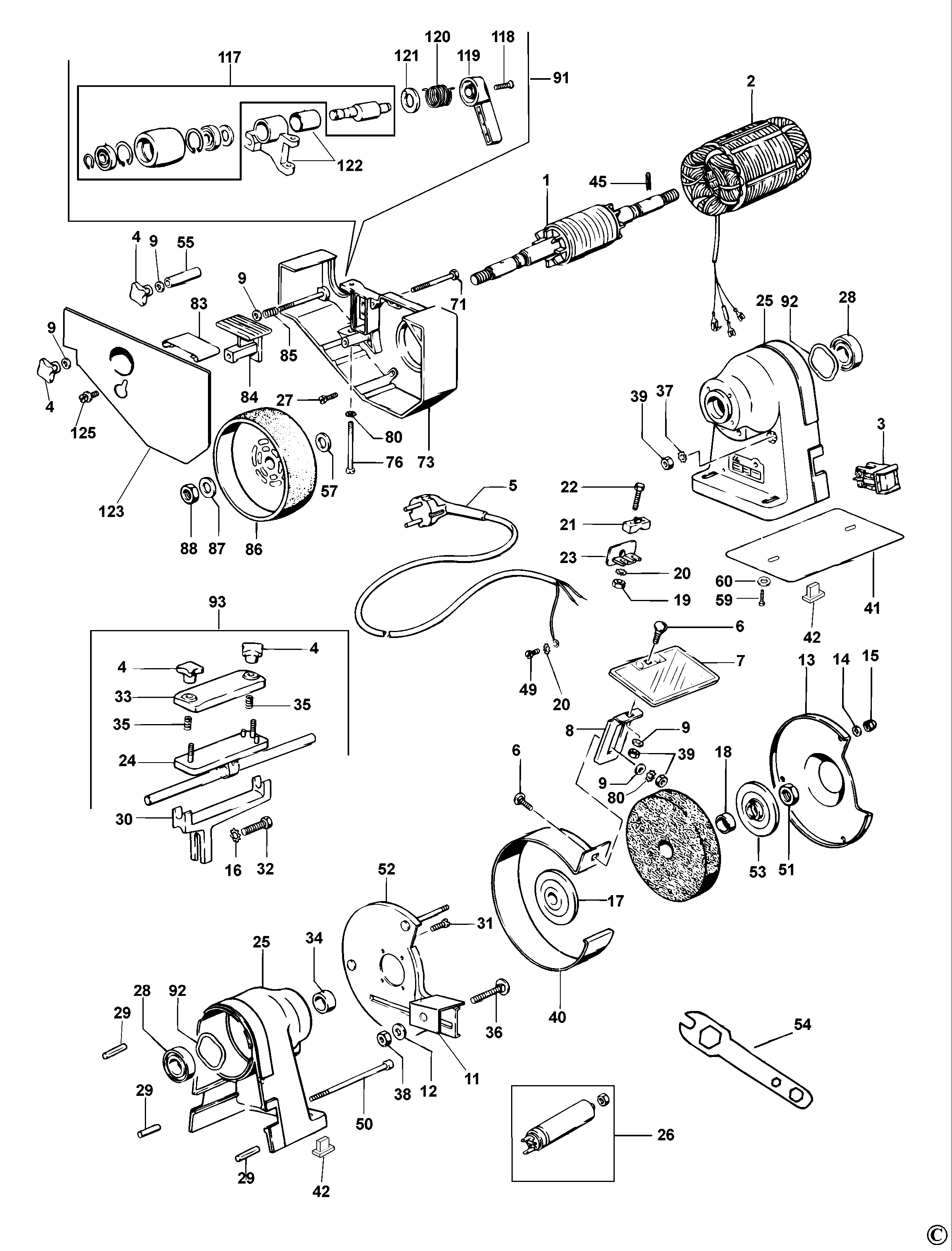

DW753 BENCH GRINDER Type 2 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 378881 | 1 | ROTOR | GB |  |
||
| 2 | 378891 | 1 | STATOR | GB |  |
||
| 3 | 378787-03 | 1 | SWITCH | Black | GB | |
|
| 4 | 744324 | 4 | KNOB SA | GB | |||
| 5 | 378893-01 | 1 | CORDSET | GB | |||
| 6 | 725184 | 2 | SCREW | GB | |
||
| 7 | 742133 | 1 | VISOR | GB | |
||
| 8 | 744188 | 1 | BRACKET | GB | |||
| 9 | 880391 | 5 | WASHER | GB | |||
| 11 | 379710 | 1 | SUPPORT RH | GB | |
||
| 12 | 742172 | 1 | WASHER | GB | |
||
| 13 | 379009 | 1 | GUARD | GB | |||
| 14 | 725269 | 3 | WASHER | GB | |
||
| 15 | 146823100 | 3 | LOCK-NUT | GB | |
||
| 16 | 742046 | 1 | WASHER M8 | GB | |
||
| 17 | 742298 | 1 | CLAMP | GB | |||
| 18 | 742053 | 1 | PIN | GB | |
||
| 19 | 725698 | 4 | NUT | GB | |
||
| 20 | 725163 | 3 | WASHER | GB | |
||
| 21 | 379684 | 1 | CABLE CLAMP | GB | |||
| 22 | 742041 | 2 | SCREW | GB | |
||
| 23 | 742125 | 1 | CABLE CLAMP | GB | |||
| 24 | 744232 | 1 | SUPPORT | GB | |
||
| 25 | 378791-20 | 2 | HOUSING | GB | |||
| 26 | 378892 | 1 | CAPACITOR | GB | |||
| 27 | 378788 | 4 | SCREW | GB | |
||
| 28 | 107301 | 2 | BEARING | GB | |||
| 29 | 742168 | 3 | PIN | GB | |
||
| 30 | 744230 | 1 | HOLDER | GB | |||
| 31 | 378795-01 | 4 | SCREW | GB | |
||
| 32 | 742047 | 1 | SCREW | GB | |
||
| 33 | 744231 | 1 | STRIP | GB | |
||
| 34 | 742153 | 1 | BUSH | GB | |||
| 35 | 742243 | 2 | SPRING | GB | |
||
| 36 | 379712 | 1 | SCREW | GB | |
||
| 37 | 743415 | 2 | WASHER | 6mm | GB | ||
| 38 | 725187 | 1 | NUT | M8 | GB | |
|
| 39 | 725125 | 4 | NUT | GB | |||
| 40 | 379711 | 1 | RING | GB | |
||
| 41 | 378841 | 1 | PLATE | GB | |
||
| 42 | 378738 | 1 | FOOT | GB | |||
| 45 | 742053 | 1 | PIN | GB | |
||
| 49 | 378795-01 | 1 | SCREW | GB | |
||
| 50 | 378907 | 2 | SCREW | GB | |
||
| 51 | 742887 | 1 | NUT | GB | |
||
| 52 | 744228 | 1 | COVER RH | GB | |||
| 53 | 742066 | 1 | CLAMP OUTER | GB | |||
| 54 | 742511 | 1 | SPANNER | GB | |
||
| 55 | 742228-10 | 1 | SPACER | GB | |
||
| 57 | 743185 | 1 | WASHER | GB | |
||
| 59 | 726430 | 2 | SCREW | GB | |
||
| 60 | 725165 | 2 | WASHER | GB | |
||
| 71 | 742055 | 1 | SCREW | GB | |
||
| 73 | 379708 | 1 | HOUSING | GB | |||
| 76 | 742231 | 1 | SCREW | GB | |
||
| 80 | 742040 | 2 | WASHER | GB | |
||
| 83 | 742232 | 1 | SPRING | GB | |
||
| 84 | 742227 | 1 | SUPPORT | GB | |
||
| 85 | 742233 | 1 | SPRING | GB | |
||
| 86 | 742199 | 1 | PULLEY | GB | |
||
| 87 | 742054 | 1 | WASHER | GB | |
||
| 88 | 742140 | 1 | NUT LH | GB | |
||
| 91 | 744371 | 1 | LEVER SA | GB | |
||
| 92 | 113933000 | 2 | WASHER | GB | |
||
| 93 | 744253 | 1 | CLAMP KIT SA | GB | |||
| 117 | 742212 | 1 | REPAIR KIT | GB | |
||
| 118 | 744308 | 1 | SCREW | GB | |
||
| 119 | 744245 | 1 | LEVER | GB | |
||
| 120 | 742222 | 1 | SPRING | GB | |
||
| 121 | 742218 | 1 | WASHER | GB | |
||
| 122 | 743814 | 1 | BRACKET SA | GB | |||
| 123 | 379686 | 1 | COVER | GB | |||
| 125 | 379713 | 1 | SCREW | GB | |
