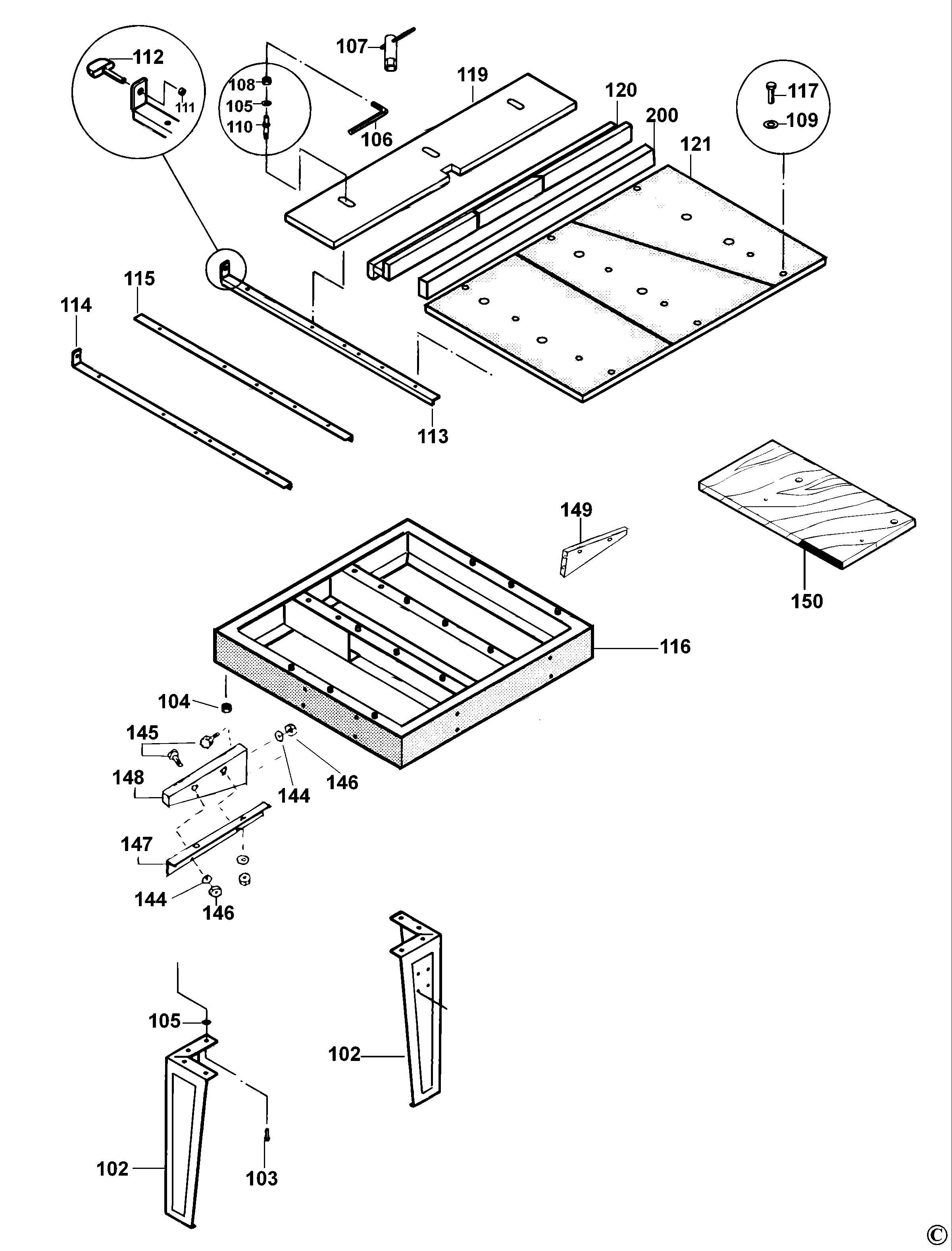

DW729 RADIAL ARM SAW Type 2 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 2 | 863929-00 | 1 | AUTO SAFETY RETURN | GB |  |
||
| 2 | 863929-00 | 1 | AUTO SAFETY RETURN | GB | |
||
| 3 | 860098-04 | 1 | WRENCH 6 MM | GB | |
||
| 4 | 860098-05 | 1 | HEX KEY 8 MM | GB | |
||
| 5 | 860093-14 | 2 | SCREW | GB |  |
||
| 6 | 860093-02 | 3 | SCREW | GB | |
||
| 7 | 860088-07 | 2 | SCREW | GB | |
||
| 8 | 949702-05 | 5 | SCREW | GB | |
||
| 9 | 949702-09 | 1 | BOLT | GB | |
||
| 10 | 860083-06 | 5 | NUT | GB | |
||
| 11 | 860073-05 | 3 | WASHER | GB | |
||
| 12 | 860074-03 | 2 | WASHER | GB | |
||
| 13 | 860074-05 | 4 | WASHER | GB | |
||
| 14 | 949700-06 | 1 | CLIP | GB | |
||
| 15 | 33024 | 1 | PROTECTOR | GB | |
||
| 16 | 863900-00 | 2 | SCREW | GB | |
||
| 17 | 863901-00 | 1 | PROTECTOR | GB | |
||
| 18 | 863909-00 | 2 | INSERT | GB | |
||
| 19 | 860073-05 | 2 | WASHER | GB | |
||
| 20 | 860074-05 | 1 | WASHER | GB | |
||
| 21 | 862069-00 | 2 | HANDLE | GB | |
||
| 22 | 862047-00 | 1 | NUT | GB | |
||
| 23 | 862237-02 | 1 | COLUMN | GB | |
||
| 24 | 862241-00 | 1 | LATCH | GB | |
||
| 25 | 861295-00 | 1 | COLUMN SA | GB | |
||
| 26 | 861289-01 | 1 | ARM ELEVATING | GB | |
||
| 27 | 720959-00 | 2 | WASHER | GB | |
||
| 28 | 860301-00 | 2 | SCREW | GB | |
||
| 29 | 946469-00 | 2 | KNOB | GB | |
||
| 30 | 863724-00 | 1 | BRACKET | GB | |
||
| 31 | 863710-00 | 1 | BAR | GB | |||
| 32 | 860786-00 | 1 | STOP RUBBER | GB | |
||
| 33 | 330036-08 | 1 | PIN | GB | |
||
| 34 | 949755-03 | 2 | BEARING | GB | |
||
| 35 | 863928-00 | 1 | WASHER | GB | |
||
| 36 | 863930-00 | 2 | NUT | GB | |
||
| 37 | 862015-00 | 1 | CAP | GB | |
||
| 38 | 865647-00 | 1 | SCREW | GB | |
||
| 39 | 860079-02 | 1 | CIRCLIP | GB | |
||
| 40 | 860018-00 | 1 | KNOB | GB | |
||
| 41 | 864655-01 | 1 | HANDLE SA | GB | |
||
| 42 | 860093-21 | 2 | SCREW | GB | |
||
| 43 | 860429-00 | 1 | BUMPER | GB | |
||
| 44 | 861219-01 | 1 | END CAP | GB | |
||
| 45 | 860238-00 | 1 | SCREW | GB | |
||
| 46 | 863912-00 | 1 | SUPPORT | GB | |
||
| 47 | 860238-04 | 3 | SCREW | GB | |
||
| 48 | 860238-00 | 1 | SCREW | GB | |
||
| 49 | 860073-00 | 3 | WASHER | GB | |
||
| 50 | 860074-01 | 2 | WASHER | GB | |
||
| 51 | 949700-05 | 1 | CLAMP | GB | |
||
| 52 | 860237-00 | 1 | POINTER | GB | |
||
| 53 | 863922-01 | 1 | SCALE | GB | |
||
| 55 | 865856-00 | 2 | PLUG | GB | |
||
| 56 | 860093-05 | 1 | SCREW.TEMP | GB | |
||
| 57 | 860085-20 | 1 | SCREW | GB | |
||
| 58 | 860083-04 | 1 | NUT | GB | |
||
| 59 | 867190-01 | 1 | SPACER | GB | |
||
| 60 | 860843-01 | 1 | CLAMP | GB | |
||
| 61 | 860843-02 | 1 | BRACKET | GB | |
||
| 63 | 864101-00 | 1 | LOCK | GB | |
||
| 64 | 864566-01 | 1 | STOP | GB | |
||
| 65 | 864655-01 | 1 | HANDLE SA | GB | |
||
| 66 | 864462-03 | 1 | ELEVATING SA | GB | |
||
| 67 | 861230-00 | 1 | INLET | GB | |
||
| 68 | 860094-03 | 1 | SCREW | GB | |
||
| 69 | 860094-03 | 2 | SCREW | GB | |
||
| 70 | 861220-00 | 1 | BRACKET | GB | |
||
| 71 | 861223-00 | 1 | STOP SA | GB | |
||
| 72 | 947322-01 | 1 | INLET | GB | |
||
| 73 | 865856-00 | 1 | PLUG | GB | |
||
| 74 | 868245-00 | 1 | SWITCHBOX SA | GB | |
||
| 75 | 947322-01 | 1 | INLET | GB | |
||
| 76 | 947321-01 | 1 | NUT | GB | |
||
| 77 | 868248-00 | 1 | CABLE | GB | |
||
| 78 | 860637-00 | 1 | PLUG 3 PHASE | GB | |
||
| 79 | 868249-00 | 1 | CABLE & PLUG | GB | |
||
| 80 | 868246-00 | 1 | CABLE | GB | |
||
| 81 | 868254-00 | 1 | INLET | GB | |
||
| 82 | 868255-00 | 1 | NUT | GB | |
||
| 83 | 868247-00 | 1 | MOTOR CABLE | GB | |
||
| 84 | 949747-12 | 1 | INLET | GB | |
||
| 85 | 930224-00 | 1 | SCREW | GB | |
||
| 86 | 941633-00 | 1 | WASHER | GB | |
||
| 87 | 868251-00 | 1 | SWITCHBOX SA | GB | |
||
| 88 | 868244-00 | 1 | HOUSING & COVER | GB | |||
| 89 | 868251-00 | 1 | SWITCHBOX SA | GB | |
||
| 90 | 868239-00 | 1 | OVERLOAD PROTECTOR | GB | |
||
| 91 | 868240-00 | 1 | VOLTAGE REGULATOR | GB | |
||
| 92 | 868242-00 | 1 | CONTACT | GB | |||
| 93 | 868241-00 | 1 | SWITCH SA | GB | |
||
| 94 | 863426-04 | 1 | BRACKET | GB | |
||
| 102 | 863866-05 | 4 | LEG | GB | |
||
| 103 | 942831-00 | 12 | SCREW | GB | |
||
| 104 | 860083-05 | 12 | NUT RH | GB | |
||
| 105 | 860074-04 | 21 | WASHER | GB | |
||
| 106 | 949882-01 | 1 | WRENCH 4 MM | GB | |
||
| 107 | 949752-01 | 1 | SPANNER | GB | |
||
| 108 | 949726-07 | 9 | NUT | GB | |
||
| 109 | 860073-03 | 12 | WASHER M8 | GB | |
||
| 110 | 863880-00 | 9 | STUD | GB | |
||
| 111 | 863882-00 | 2 | SPACER | GB | |
||
| 112 | 866974-02 | 2 | KNOB | GB | |
||
| 113 | 863682-03 | 1 | BRACKET RH | GB | |
||
| 114 | 863683-03 | 1 | BRACKET LH | GB | |
||
| 115 | 863684-03 | 1 | BRACKET | GB | |
||
| 116 | 863986-06 | 1 | BASE SA | GB | |
||
| 117 | 949703-01 | 12 | SCREW | GB | |
||
| 119 | 864877-00 | 1 | BOARD | GB | |
||
| 120 | 864871-00 | 1 | GUIDE | GB | |
||
| 121 | 864964-01 | 1 | TABLE | GB | |
||
| 144 | 860073-03 | 1 | WASHER M8 | GB | |
||
| 145 | 860085-03 | 1 | BOLT | GB | |
||
| 146 | 860083-04 | 1 | NUT | GB | |
||
| 147 | 863867-03 | 1 | BRACKET | GB | |
||
| 148 | 861238-02 | 1 | BRACKET LH | GB | |
||
| 149 | 861237-02 | 1 | BRACKET RH | GB | |
||
| 150 | 861218-00 | 2 | TABLE | GB | |
||
| 200 | 864878-00 | 1 | BOARD | GB | |||
| 201 | 938539-00 | 1 | KEY | GB | |
||
| 202 | 860093-02 | 4 | SCREW | GB | |
||
| 203 | 860074-03 | 2 | WASHER | GB | |
||
| 204 | 863951-00 | 1 | SCREW | GB | |
||
| 205 | 863953-00 | 1 | LOCKING RING | GB | |
||
| 206 | 862070-00 | 1 | LEVER | GB | |
||
| 207 | 864575-01 | 1 | LOCK | GB | |
||
| 208 | 760219-00 | 2 | SCREW | GB | |
||
| 209 | 860088-27 | 4 | SCREW | GB | |
||
| 210 | 949853-03 | 4 | SCREW | GB | |
||
| 211 | 860088-10 | 2 | PIN | GB | |
||
| 212 | 860083-03 | 2 | NUT | GB | |
||
| 213 | 860083-01 | 1 | NUT | GB | |
||
| 214 | 860083-05 | 4 | NUT RH | GB | |
||
| 215 | 860074-04 | 5 | WASHER | GB | |
||
| 216 | 860073-14 | 1 | WASHER | GB | |
||
| 217 | 861721-07 | 8 | BEARING | GB | |
||
| 218 | 863971-00 | 4 | WASHER | GB | |
||
| 219 | 860226-02 | 4 | WASHER | GB | |
||
| 220 | 862148-06 | 1 | ROLLER HEAD | GB | |
||
| 221 | 862259-90 | 2 | BRACKET | GB | |
||
| 222 | 862380-00 | 2 | SHAFT | GB | |
||
| 223 | 863969-00 | 4 | SHAFT | GB | |
||
| 224 | 949886-06 | 1 | SCREW | GB | |
||
| 225 | 949886-07 | 1 | SCREW | GB | |
||
| 226 | 860650-01 | 1 | NIPPLE | GB | |
||
| 227 | 863989-00 | 1 | WASHER | GB | |
||
| 228 | 863991-00 | 1 | WASHER | GB | |
||
| 229 | 862261-90 | 1 | TRUNNION | GB | |
||
| 230 | 949702-04 | 1 | SCREW | GB | |
||
| 231 | 863978-00 | 1 | HANDLE | GB | |
||
| 232 | 862194-04 | 1 | FORK | GB | |
||
| 233 | 862260-90 | 1 | TRUNNION | GB | |
||
| 234 | 860073-03 | 2 | WASHER M8 | GB | |
||
| 235 | 946469-00 | 2 | KNOB | GB | |
||
| 236 | 860112-11 | 2 | SPRING | GB | |
||
| 237 | 863977-00 | 1 | PIN | GB | |
||
| 238 | 860835-01 | 1 | SUPPORT | GB | |
||
| 239 | 863961-00 | 1 | PIN | GB | |
||
| 240 | 860835-00 | 1 | SUPPORT | GB | |
||
| 241 | 860083-02 | 3 | NUT | GB | |
||
| 242 | 860094-03 | 1 | SCREW | GB | |
||
| 243 | 860089-39 | 2 | SCREW | GB | |
||
| 244 | 860089-17 | 1 | SCREW.TEMP | GB | |
||
| 246 | 866680-02 | 1 | HANDLE | GB | |
||
| 248 | 860238-04 | 2 | SCREW | GB | |
||
| 249 | 860205-06 | 2 | SCREW | GB | |
||
| 250 | 863964-00 | 1 | POINTER | GB | |
||
| 251 | 862721-01 | 1 | POINTER | GB | |
||
| 252 | 860829-00 | 1 | POINTER | GB | |
||
| 253 | 860538-04 | 1 | SCREW | GB | |
||
| 254 | 860238-00 | 1 | SCREW | GB | |
||
| 255 | 861016-00 | 1 | PLATE | GB | |
||
| 259 | 864839-00 | 1 | CATCH | GB | |
||
| 263 | 860843-02 | 1 | BRACKET | GB | |
||
| 264 | 860094-03 | 1 | SCREW | GB | |
||
| 271 | 861672-00 | 1 | ROLLER HEAD SA | GB | |
||
| 275 | 32647 | 1 | PLUG | GB | |
||
| 301 | 860060-01 | 2 | RIVET | GB | |
||
| 303 | 860088-10 | 2 | PIN | GB | |
||
| 304 | 860083-03 | 2 | NUT | GB | |
||
| 305 | 941880-00 | 1 | SCREW | GB | |
||
| 306 | 949889-02 | 4 | SCREW | GB | |
||
| 307 | 868768-07 | 1 | BEARING | GB | |
||
| 308 | 868768-11 | 1 | BEARING | GB | |
||
| 309 | 862003-00 | 1 | FLANGE | GB | |
||
| 310 | 868423-00 | 1 | STATOR | GB | |
||
| 312 | 868420-01 | 1 | ROTOR | GB | |
||
| 313 | 860088-27 | 1 | SCREW | GB | |
||
| 314 | 860080-02 | 1 | RING | GB | |
||
| 315 | 863410-01 | 1 | GASKET | GB | |
||
| 316 | 949870-04 | 7 | SCREW | GB | |
||
| 318 | 944653-00 | 1 | GROMMET | GB | |
||
| 319 | 862124-01 | 1 | END CAP | GB | |
||
| 320 | 862165-00 | 1 | COVER | GB | |
||
| 321 | 862126-00 | 1 | FAN | GB | |
||
| 322 | 862217-92 | 1 | HOUSING | GB | |
||
| 323 | 860094-03 | 4 | SCREW | GB | |
||
| 324 | 860094-01 | 1 | SCREW | GB | |
||
| 325 | 949747-18 | 1 | CAP | GB | |
||
| 326 | 949747-18 | 1 | CAP | GB | |
||
| 327 | 944590-00 | 2 | NUT | GB | |
||
| 328 | 864008-02 | 1 | FLANGE | GB | |||
| 329 | 944650-00 | 1 | WASHER SPRING | GB | |
||
| 332 | 863716-00 | 1 | GASKET | GB | |
||
| 333 | 860133-00 | 1 | CAP | GB | |
||
| 334 | 860692-03 | 1 | PROTECTOR | GB | |
||
| 335 | 862219-00 | 1 | COVER | GB | |
||
| 336 | 860074-04 | 1 | WASHER | GB | |
||
| 337 | 949758-02 | 1 | NUT | GB | |
||
| 338 | 860318-00 | 1 | KEY | GB | |
||
| 339 | 863526-00 | 1 | NUT | GB | |
||
| 340 | 864007-00 | 1 | COLLAR | GB | |
||
| 341 | 944590-00 | 1 | NUT | GB | |
||
| 342 | 944654-00 | 1 | RETAINER | GB | |
||
| 343 | 123106-00 | 1 | STRAP | GB | |
||
| 344 | 860843-03 | 1 | STRAP | GB | |
||
| 345 | 946085-00 | 1 | CONNECTOR | GB | |
||
| 346 | 000000-00 | 1 | NO LONGER AVAILABLE | GB | |||
| 347 | 949747-20 | 1 | CAP | GB | |
||
| 348 | 949882-02 | 1 | WRENCH | GB | |
||
| 349 | 949751-04 | 1 | SPANNER | GB | |
||
| 350 | 863259-00 | 1 | PROTECTOR | GB | |
||
| 351 | 949863-57 | 1 | CABLE | GB | |
||
| 361 | 868394-01 | 1 | MOTOR 3PH 400V | GB | |
||
| 401 | 864095-00 | 1 | TUBE EXTRACTION | GB | |
||
| 402 | 760219-00 | 1 | SCREW | GB | |
||
| 403 | 860083-04 | 2 | NUT | GB | |
||
| 404 | 249412-20 | 1 | SCREW | GB | |
||
| 405 | 949888-06 | 1 | SCREW | GB | |
||
| 406 | 860074-01 | 4 | WASHER | GB | |
||
| 407 | 860074-02 | 1 | WASHER | GB | |
||
| 408 | 860074-03 | 2 | WASHER | GB | |
||
| 409 | 943023-00 | 2 | SCREW | GB | |
||
| 410 | 861842-00 | 1 | KNOB | GB | |||
| 411 | 760273-00 | 3 | SCREW | GB | |
||
| 412 | 760998-00 | 2 | SCREW | GB | |
||
| 413 | 860094-12 | 1 | SCREW | GB | |
||
| 414 | 946469-00 | 1 | KNOB | GB | |
||
| 415 | 863703-00 | 1 | PROTECTOR | GB | |
||
| 416 | 863705-00 | 1 | BUSH | GB | |
||
| 417 | 863707-01 | 1 | BRACKET | GB | |
||
| 418 | 863708-00 | 1 | SQUARE | GB | |
||
| 419 | 863709-00 | 1 | SUPPORT | GB | |
||
| 420 | 863711-02 | 1 | PROTECTOR | GB | |
||
| 421 | 861222-00 | 1 | SPRING | GB | |
||
| 422 | 864538-02 | 1 | ELEMENT | GB | |||
| 423 | 863687-00 | 1 | KNIFE | GB | |
||
| 424 | 864037-00 | 2 | PLATE | GB | |
||
| 425 | 949892-02 | 2 | SCREW | GB | |
||
| 426 | 864053-00 | 4 | WASHER | GB | |
||
| 427 | 864054-00 | 2 | ROLLER | GB | |
||
| 428 | 860075-00 | 4 | WASHER | GB | |
||
| 429 | 863793-01 | 1 | SQUARE | GB | |
||
| 430 | N036977 | 1 | GUARD | GB | |
||
| 431 | 862087-90 | 1 | BRACKET | GB | |
||
| 432 | 869325-00 | 1 | LOWER GUARD SA | GB | |
||
| 433 | 863621-00 | 1 | GUARD | GB | |
||
| 434 | 863620-00 | 1 | BRACKET | GB | |
||
| 435 | 861840-00 | 1 | HANDLE | GB | |
||
| 436 | 860301-16 | 1 | SCREW | GB | |
||
| 437 | 941602-00 | 1 | WASHER | GB | |
||
| 438 | 860301-00 | 1 | SCREW | GB | |
||
| 439 | 930574-00 | 1 | HEX KEY 5 MM | GB | |
||
| 440 | 869235-00 | 1 | SPANNER BOX | GB | |
||
| 444 | 862089-01 | 2 | LEVER | GB | |
||
| 445 | 861221-00 | 2 | SPRING | GB | |
||
| 846 | 869322-02 | 1 | GUARD SA | GB | |
