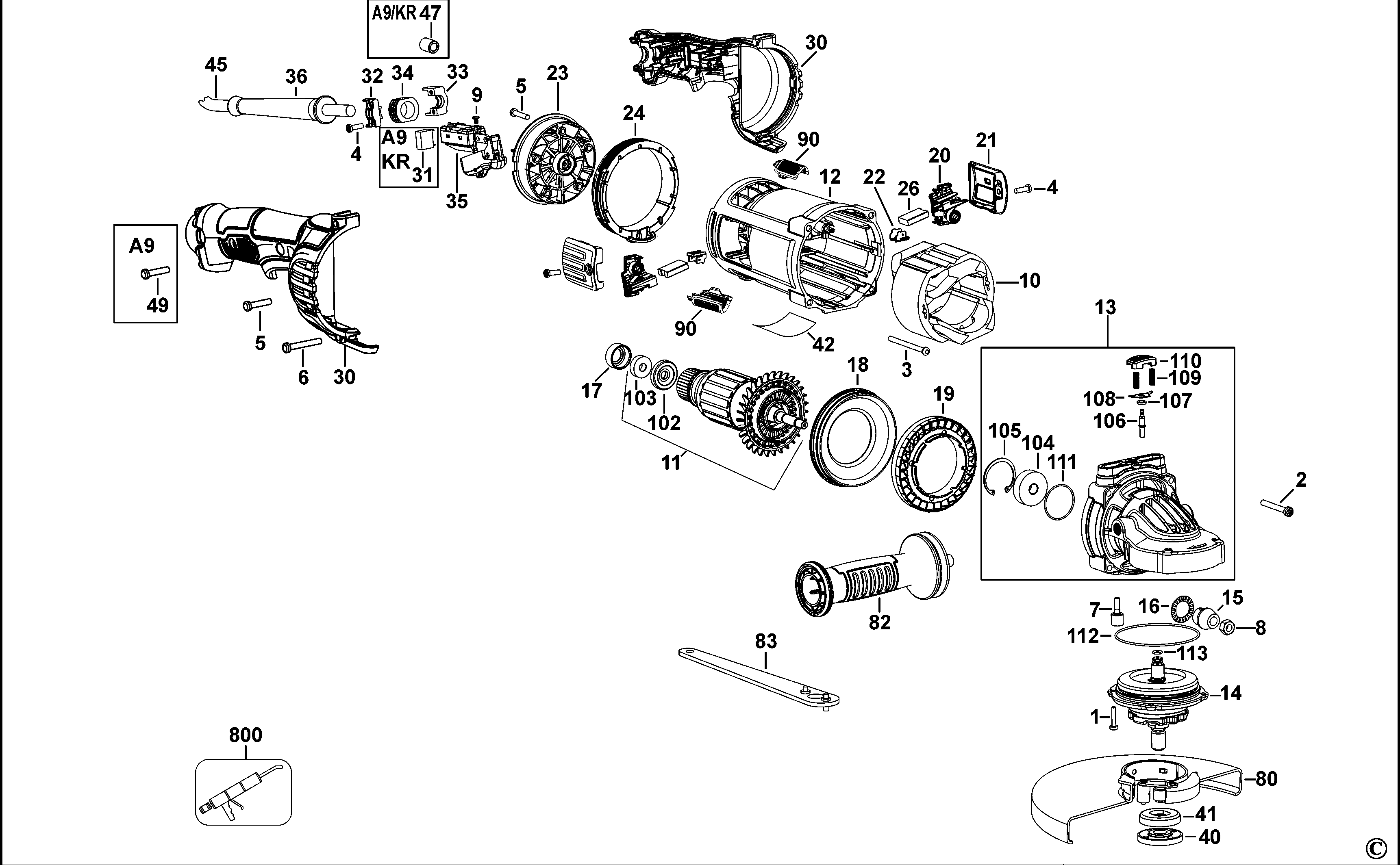

DWE8830G ANGLE GRINDER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 330045-07 | 4 | SCREW | B1 |  |
||
| 2 | 330019-26 | 4 | SCREW | B1 | |
||
| 3 | 330019-19 | 2 | SCREW | B1 | |
||
| 4 | 330019-12 | 4 | SCREW | B1 | |
||
| 5 | 330019-32 | 11 | SCREW | B1 | |
||
| 6 | 330019-15 | 2 | SCREW | B1 | |
||
| 7 | N033051 | 1 | SCREW | B1 | |
||
| 8 | 330015-03 | 1 | NUT | M8x1.25 | B1 | |
|
| 9 | N111595 | 4 | SCREW | 6-32 x 7/32 T15 | B1 | |
|
| 10 | N203633 | 1 | FIELD 230V | 230V PKGD N117162 | B1 | ||
| 11 | N203631 | 1 | ARMATURE 230V | 230V, PKG'D N114303 | B1 | ||
| 12 | N096025 | 1 | FIELDCASE | DES | B1 | |
|
| 13 | N252619 | 1 | GEARCASE SA | SPL LOCK PKDN397472 | B1 | |
|
| 14 | N203619 | 1 | GEARCASE | 8K M14 SHORT | B1 | ||
| 15 | N112754 | 1 | PINION | 8K | B1 | |
|
| 16 | N132602 | 1 | WASHER SPECIAL | PINION | B1 |  |
|
| 17 | 609970-00 | 1 | SLEEVE INSULATING | B1 | |
||
| 18 | N094853 | 1 | BAFFLE FAN | B1 | |
||
| 19 | N094854 | 1 | FAN | FAN | B1 | |
|
| 20 | N106196 | 2 | BRUSH HOLDER SA | B1 | |
||
| 21 | N111898 | 2 | BRUSH COVER | B1 | |
||
| 22 | N139735 | 2 | TERMINAL | TERMINAL | B1 | |
|
| 23 | N435947 | 1 | FAN SA | B1 | |
||
| 24 | N110984 | 1 | RING | ANTI-VIBE | B1 | |
|
| 26 | N259699 | 1 | BRUSH PAIR | T1 only for service | B1 | ||
| 30 | N145820 | 1 | HANDLE SA | LOCK-ON | B1 | |
|
| 32 | N142099 | 1 | CORD CLAMP | TOP | B1 | |
|
| 33 | N104732 | 1 | CORD CLAMP | BOTTOM | B1 | |
|
| 34 | N135624 | 1 | SHOCK ABSORBER | B1 | |
||
| 35 | N142959 | 1 | SWITCH SA | LOCK-OFF W/LOCK-ON | B1 | |
|
| 36 | 604118-00 | 1 | CORD PROTECTOR | B1 | |
||
| 40 | 401678-05 | 1 | OUTER FLANGE | B1 | |
||
| 41 | 403150-01 | 1 | INNER FLANGE | B1 | |
||
| 42 | N145085 | 1 | RATING LABEL | B1 | |||
| 45 | N144813 | 1 | CORDSET | B1 | |
||
| 80 | N036843 | 1 | GUARD SA | B1 | |
||
| 82 | N241543 | 1 | SIDE HANDLE | ANTI-VIBE | B1 | |
|
| 83 | 635261-00 | 1 | WRENCH PIN | B1 | |
||
| 102 | 393238-00 | 1 | SHIELD | B1 | |
||
| 103 | N110359 | 1 | BEARING | B1 | |
||
| 104 | N389509 | 1 | BEARING | B1 | |
||
| 105 | N173539 | 1 | RETAINER | B1 | |
||
| 106 | N173538 | 1 | LOCK PIN | SPINDLE | B1 | |
|
| 107 | N173540 | 1 | O RING | B1 | |
||
| 108 | N108422 | 1 | PLATE | B1 | |
||
| 109 | N110675 | 2 | SPRING | B1 | |
||
| 110 | N110236 | 1 | BUTTON | B1 | |
||
| 111 | N226986 | 1 | O RING | B1 | |
||
| 112 | 397031-00 | 1 | O RING | B1 | |
||
| 113 | 660143-00 | 1 | O RING | B1 | |
||
| 800 | 583534-00 | 1 | GREASE | 50 GRAMS - NYE RHEOLUB 380G1 | B1 | |
