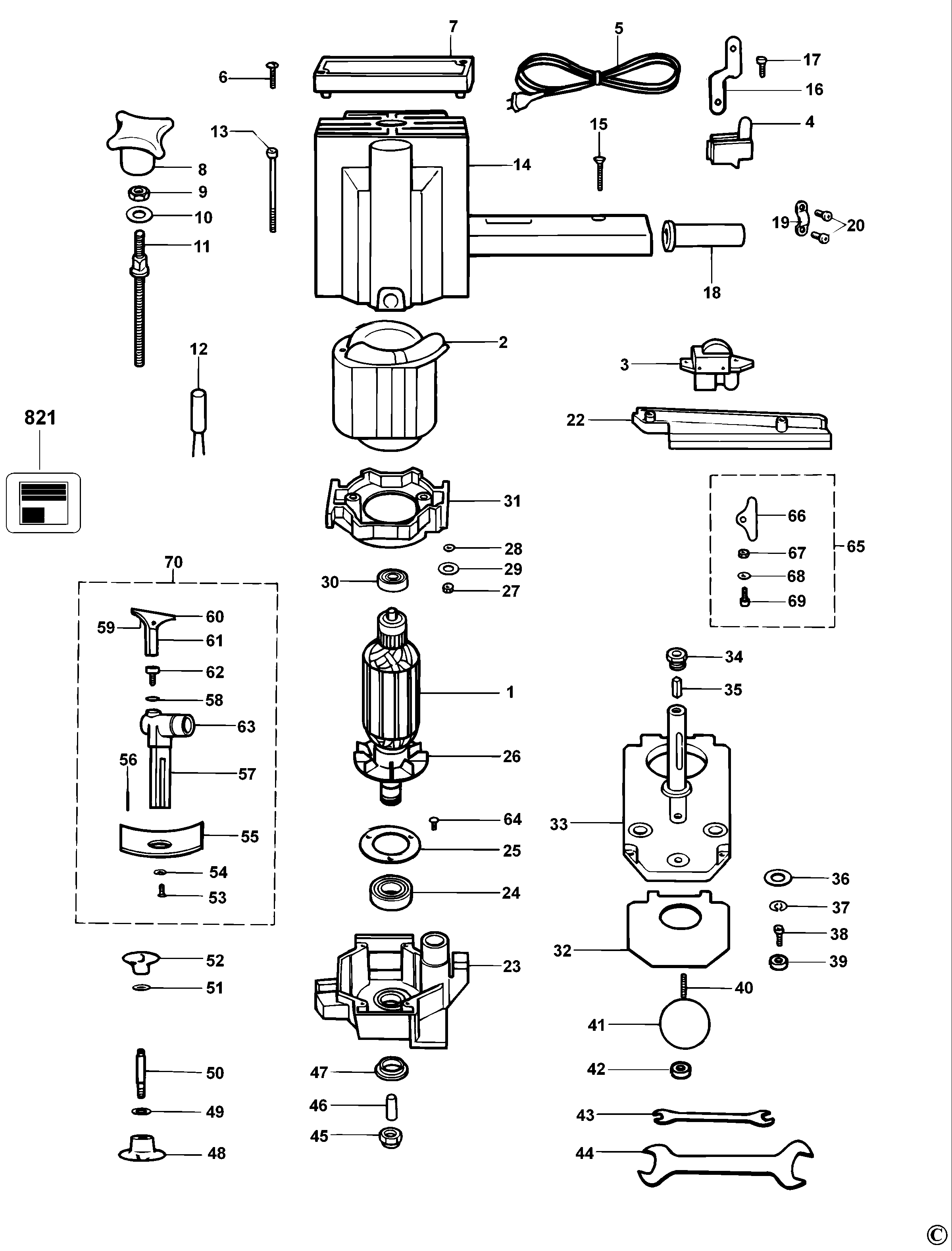

DW609 LAMINATE TRIMMER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 868389-00 | 1 | ARMATURE 230V | GB |  |
||
| 2 | 868493-00 | 1 | FIELD 230V | GB | |
||
| 3 | N566709 | 1 | SWITCH | GB | |
||
| 4 | 868054-00 | 2 | BRUSH | GB | |
||
| 5 | 325612-01 | 1 | CORDSET (M/PLUG) | GB | |
||
| 6 | 249418-00 | 2 | SCREW | GB | |
||
| 7 | 249010-01 | 1 | PLATE | GB | |
||
| 8 | 868063-01 | 1 | KNOB | GB | |
||
| 9 | 249411-10 | 1 | NUT | GB | |
||
| 10 | 868065-00 | 2 | WASHER | GB | |
||
| 11 | 868055-00 | 1 | SPINDLE | GB | |
||
| 12 | 869213-00 | 1 | SUPPRESSOR | GB | |
||
| 13 | 249424-11 | 4 | SCREW | GB | |
||
| 14 | 249008-01 | 1 | HOUSING | GB | |
||
| 15 | N456928 | 3 | SCREW | 3.9 X 22 T | GB | ||
| 16 | 868069-00 | 2 | CLAMP | GB | |
||
| 17 | 949896-12 | 2 | SCREW | GB | |
||
| 18 | 720703-00 | 1 | PROTECTOR | GB |  |
||
| 19 | 910556 | 1 | CABLE CLAMP | GB | |
||
| 20 | 931469-02 | 2 | SCREW | GB | |
||
| 22 | 249011-01 | 1 | COVER | GB | |
||
| 23 | 868058-00 | 1 | HOUSING GEAR | GB | |
||
| 24 | 868768-16 | 1 | BEARING | GB | |
||
| 25 | 868047-00 | 1 | PLATE | GB | |
||
| 26 | 868060-00 | 1 | FAN | GB | |
||
| 27 | 868062-00 | 2 | NUT | GB | |
||
| 28 | 868048-00 | 2 | WASHER | GB | |
||
| 29 | 933652-00 | 1 | WASHER | GB | |
||
| 30 | N110358 | 1 | BEARING | GB | |
||
| 31 | 868059-00 | 1 | PLATE | GB | |
||
| 32 | 868057-00 | 1 | PLATE | GB | |
||
| 33 | 868056-00 | 1 | BASEPLATE | GB | |
||
| 34 | 868045-00 | 1 | BUSH | GB | |
||
| 35 | 868046-00 | 1 | NUT | GB | |
||
| 36 | 868042-00 | 1 | WASHER | GB | |
||
| 37 | 868043-00 | 1 | SPRING | GB | |
||
| 38 | 249424-31 | 2 | SCREW | GB | |
||
| 39 | 868064-00 | 2 | WASHER | GB | |
||
| 40 | 760242-00 | 1 | SCREW | M8 x 30 | GB | |
|
| 41 | 941609-00 | 1 | KNOB | GB | |
||
| 42 | 868031-00 | 1 | ROLLER | GB | |
||
| 43 | 868032-00 | 1 | SPANNER | GB | |
||
| 44 | 941580-00 | 1 | SPANNER 13-17MM | GB | |
||
| 45 | 326249-00 | 1 | NUT | GB | |
||
| 46 | 326248-01 | 1 | COLLET | 6.35 mm | GB | |
|
| 47 | 868052-00 | 1 | NUT | GB | |
||
| 48 | 868044-01 | 1 | KNOB | GB | |
||
| 49 | 249221-00 | 1 | WASHER | GB | |
||
| 50 | 868061-00 | 1 | STUD | GB | |
||
| 51 | 860074-02 | 4 | WASHER | GB | |
||
| 52 | 941536-01 | 1 | KNOB | GB | |
||
| 53 | 860090-02 | 1 | SCREW | GB | |
||
| 54 | 249233-00 | 1 | WASHER | GB | |
||
| 55 | 868037-00 | 1 | PLEXIGUARD | GB | |
||
| 56 | 868038-00 | 2 | RIVET | GB | |
||
| 57 | 868041-00 | 1 | HOLDER GUIDE | GB | |
||
| 58 | 868033-00 | 4 | WASHER | GB | |
||
| 59 | 868034-00 | 1 | PIN | GB | |
||
| 60 | 868036-00 | 1 | FOLLOWER | GB | |
||
| 61 | 868035-00 | 1 | FOLLOWER | GB | |
||
| 62 | 868039-00 | 1 | SCREW | GB | |
||
| 63 | 868040-00 | 1 | SCREW | GB | |
||
| 64 | 860205-04 | 3 | SCREW | GB | |
||
| 65 | 868030-01 | 1 | SHOE SA | GB | |
||
| 66 | 868030-00 | 1 | SHOE | GB | |
||
| 67 | 249232-00 | 1 | NUT M4 | GB | |
||
| 68 | 249233-00 | 1 | WASHER | GB | |
||
| 69 | 249424-06 | 1 | SCREW | GB | |
||
| 70 | 869394-00 | 1 | GUIDE SA | GB | |
||
| 821 | N049821 | 1 | RATING PLATE | GB | |
