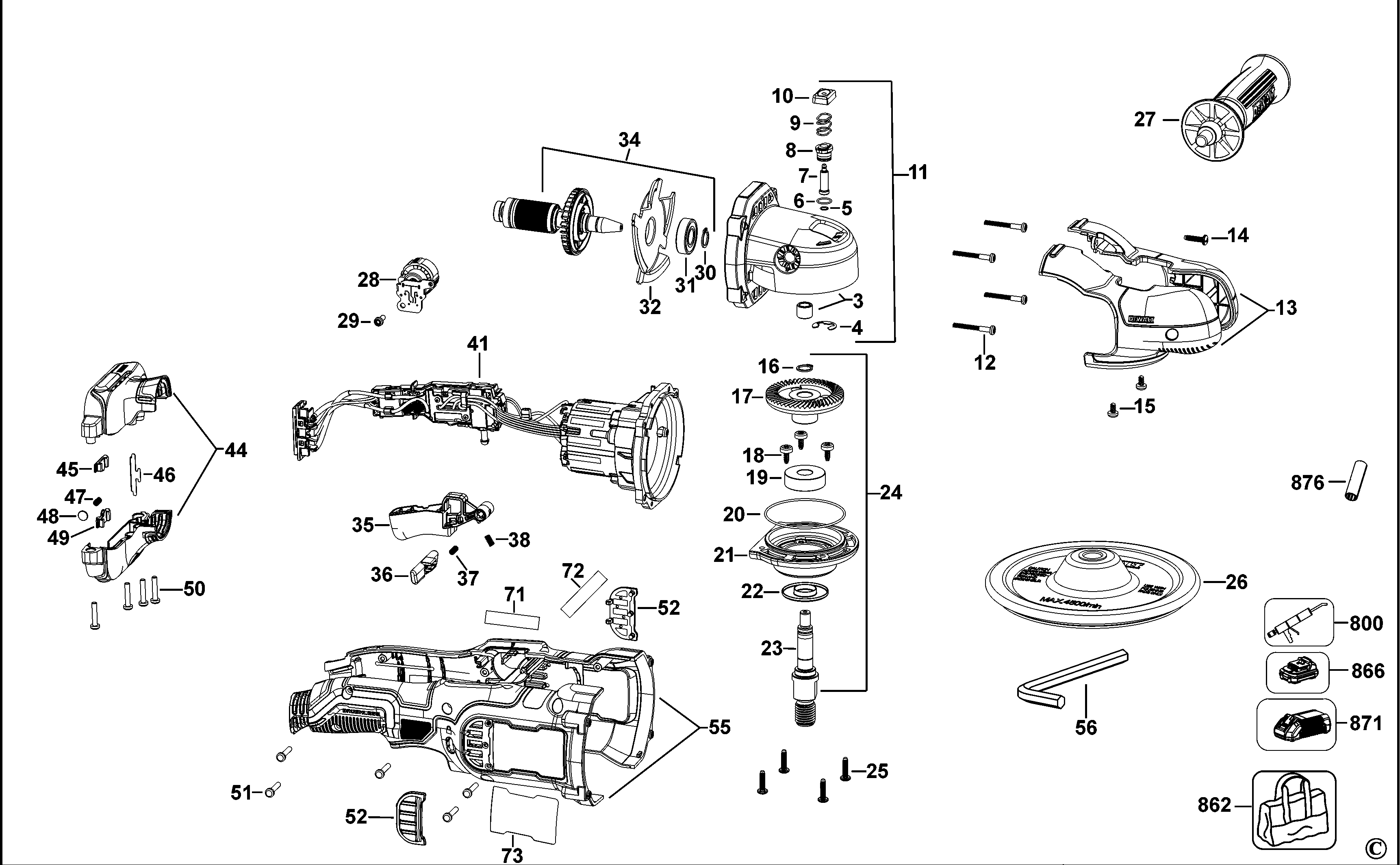

DCM849 POLISHER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 3 | N119820 | 1 | GEARCASE SA | GB |  |
||
| 4 | N100221 | 1 | RETAINER | GB |  |
||
| 5 | N119059 | 1 | O RING | GB | |
||
| 6 | N110454 | 1 | O RING | GB | |
||
| 7 | N027961 | 1 | LOCK PIN | SPINDLE | GB | |
|
| 8 | N109692 | 1 | INSERT | GB | |
||
| 9 | N073927 | 1 | SPRING | GB | |
||
| 10 | N046147 | 1 | LOCK BUTTON | SPINDLE | GB | |
|
| 11 | N107294 | 1 | GEARCASE SA | PKGD N024747 | GB | |
|
| 12 | N412210 | 4 | SCREW | M3.63 x 31.75 mm T15 | GB | |
|
| 13 | N688487 | 1 | COVER | GB | |
||
| 14 | 330045-06 | 1 | SCREW | GB | |
||
| 15 | 330045-44 | 2 | SCREW | GB | |
||
| 16 | N044709 | 1 | RETAINER | GB | |
||
| 17 | N022609 | 1 | GEAR | GB | |
||
| 18 | 330045-56 | 3 | SCREW | T25- M4X10 | GB | |
|
| 19 | 605040-23 | 1 | BEARING | GB | |
||
| 20 | N039445 | 1 | O RING | GB | |
||
| 21 | N039386 | 1 | GEARCASE COVER | GB | |
||
| 22 | N022610 | 1 | PLATE | GB | |||
| 23 | N022608 | 1 | SPINDLE | M14 | GB | |
|
| 24 | N769435 | 1 | GEARCASE COVER SA | GB | |
||
| 25 | 330045-06 | 4 | SCREW | GB | |
||
| 26 | N081419 | 1 | SANDING PAD | M14X2X6.5IN H&L | GB | |
|
| 27 | N058043 | 1 | SIDE HANDLE | GB | |
||
| 28 | N651859 | 1 | SPEED REGULATOR | GB | |||
| 29 | 330019-01 | 1 | SCREW.TEMP | M3.63 x 9.5mm T15 | GB | |
|
| 30 | N027674 | 1 | RETAINER | GB | |
||
| 31 | N079012 | 1 | BEARING | GB | |
||
| 32 | N022834 | 1 | RETAINING PLATE | GB | |
||
| 34 | N758864 | 1 | ROTOR SA | GB | |||
| 35 | N606472 | 1 | TRIGGER LOCK-ON | GB | |||
| 36 | N631848 | 1 | LOCK KNOB | GB | |||
| 37 | N165498 | 1 | SPRING | GB | |
||
| 38 | N461735 | 1 | SPRING | GB | |
||
| 41 | N758865 | 1 | MOTOR SA | GB | |
||
| 44 | N705398 | 1 | FOOT SA | GB | |
||
| 45 | N728012 | 1 | INSERT | GB | |
||
| 46 | N467560 | 1 | PLATE | GB | |
||
| 47 | N461735 | 1 | SPRING | GB | |
||
| 48 | N122099 | 1 | BLOCK | GB | |
||
| 49 | N728013 | 1 | INSERT | GB | |
||
| 50 | 90611830 | 4 | SCREW | GB | |
||
| 51 | 90611830 | 6 | SCREW | GB | |
||
| 52 | N631849 | 2 | COVER | GB | |
||
| 55 | N705392 | 1 | HANDLE SA | GB | |
||
| 56 | N080692 | 1 | HEX KEY 8 MM | 8MM x 120MM | GB | |
|
| 57 | N034970 | 1 | HANDLE UPPER | GB | |
||
| 60 | 383450-00 | 2 | SCREW | GB | |
||
| 71 | N460653 | 1 | BRAND LABEL | 18V | GB | |
|
| 72 | N696374 | 1 | LABEL | BRUSHLESS | GB | |
|
| 73 | N696349 | 1 | RATING PLATE | EURO | GB | |
|
| 800 | 583534-00 | 1 | GREASE | 50 GRAMS - NYE RHEOLUB 380G1 | GB | |
|
| 862 | 624807-01 | 1 | BAG SA | 19Lx12Wx12H | GB | |
|
| 866 | N394624 | 1 | BATTERY 18V - 5.0AH - 90WH | GB | |
||
| 871 | N450537 | 1 | CHARGER 10.8V - 18V | GB | |
||
| 876 | N091711 | 1 | TUBE | PLASTIC | GB |
