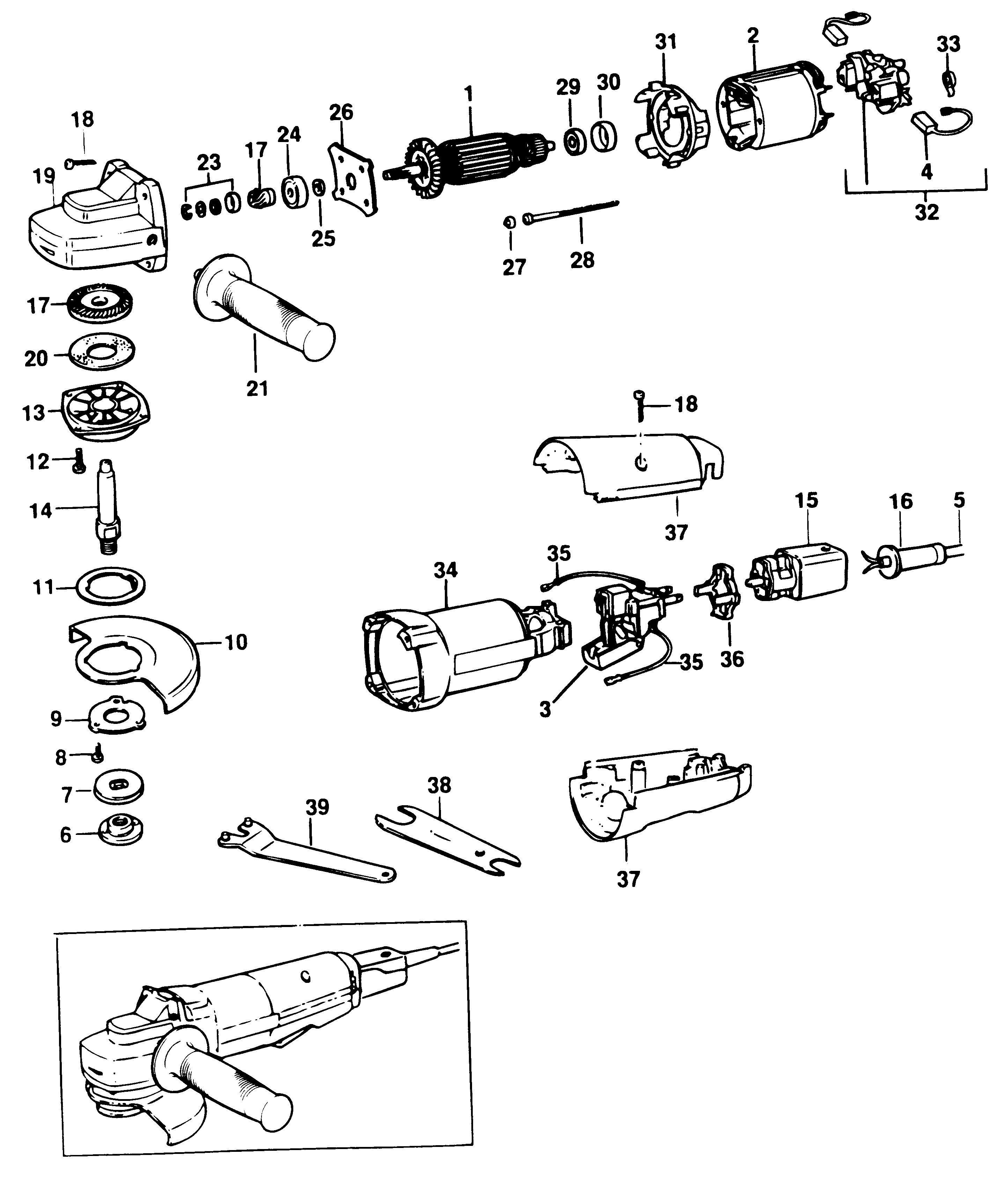

P5416 SANDER/GRINDER Type 3 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 949846-02 | 1 | ARMATURE | GB 240V | AE |  |
|
| 1 | 949846-02 | 1 | ARMATURE | AE | |
||
| 1 | 949846-03 | 1 | ARMATURE 115V | GB 115V | AE | |
|
| 1 | 949846-03 | 1 | ARMATURE 115V | AE-VE 115V | AE | |
|
| 1 | 949846-03 | 1 | ARMATURE 115V | MX-PA 115V | AE | |
|
| 2 | 949847-09 | 1 | FIELD 115V | GB 115V | AE | |
|
| 2 | 949847-09 | 1 | FIELD 115V | AE-VE 115V | AE | |
|
| 2 | 949847-09 | 1 | FIELD 115V | MX-PA 115V | AE | |
|
| 2 | 949847-08 | 1 | FIELD | AE | |
||
| 2 | 868629-02 | 1 | FIELD | GB 240V | AE | |
|
| 3 | 949822-03 | 1 | SWITCH | AE | |
||
| 3 | 949822-03 | 1 | SWITCH | GB 240V | AE | |
|
| 4 | 939539-01 | 2 | BRUSH CUT OFF | GB 240V | AE |  |
|
| 4 | 939539-01 | 2 | BRUSH CUT OFF | AE | |
||
| 4 | 939539-00 | 2 | BRUSH CUT OFF | GB 115V | AE | |
|
| 4 | 939539-00 | 2 | BRUSH CUT OFF | AE-VE 115V | AE | |
|
| 4 | 939539-00 | 2 | BRUSH CUT OFF | MX-PA 115V | AE | |
|
| 5 | 330061-14 | 1 | CORDSET | GB 115V | AE | |
|
| 5 | 949770-06 | 1 | CABLE & PLUG | GB 240V | AE | |
|
| 5 | 330120-86 | 1 | CORDSET | AE | |
||
| 5 | 330120-86 | 1 | CORDSET | AE-VE 115V | AE | |
|
| 5 | 330120-86 | 1 | CORDSET | AE-VE 115V | AE | |
|
| 5 | 330081-01 | 1 | CABLE SA | MX-PA 115V | AE | |
|
| 6 | 403430-00 | 1 | OUTER FLANGE | AE | |
||
| 7 | 930771-00 | 1 | INNER FLANGE | AE | |
||
| 8 | 930251-00 | 3 | SCREW | AE | |
||
| 10 | 937411-00 | 1 | GUARD | AE | |
||
| 11 | 938272 | 1 | RING | AE | |
||
| 12 | 930770-00 | 4 | SCREW | AE | |
||
| 13 | 944055 | 1 | GEARCASE COVER SA | AE | |
||
| 14 | 946414-00 | 1 | SPINDLE | AE | |
||
| 15 | 945899-01 | 1 | PLUG | GB 240V | AE | |
|
| 15 | 945899-01 | 1 | PLUG | AE | |
||
| 15 | 945899-00 | 1 | PLUG | GB 115V | AE | |
|
| 15 | 945899-00 | 1 | PLUG | AE-VE 115V | AE | |
|
| 15 | 945899-00 | 1 | PLUG | MX-PA 115V | AE | |
|
| 16 | N542553 | 1 | CORD PROTECTOR | AE | |
||
| 16 | N542553 | 1 | CORD PROTECTOR | MX-PA 115V | AE | |
|
| 16 | N542553 | 1 | CORD PROTECTOR | AE-VE 115V | AE | |
|
| 16 | N542553 | 1 | CORD PROTECTOR | GB 115V | AE | |
|
| 16 | N542553 | 1 | CORD PROTECTOR | GB 240V | AE | |
|
| 16 | N542553 | 1 | CORD PROTECTOR | GB 240V | AE | |
|
| 16 | N542553 | 1 | CORD PROTECTOR | GB 115V | AE | |
|
| 16 | N542553 | 1 | CORD PROTECTOR | AE-VE 115V | AE | |
|
| 16 | N542553 | 1 | CORD PROTECTOR | MX-PA 115V | AE | |
|
| 16 | N542553 | 1 | CORD PROTECTOR | AE | |
||
| 17 | 932592 | 1 | GEAR & PINION | AE | |
||
| 18 | 930079-01 | 6 | SCREW | AE | |
||
| 19 | 946570-00 | 1 | GEARBOX SA | AE | |
||
| 20 | 946418-00 | 1 | FELT | AE | |
||
| 23 | 937668 | 1 | CIRCLIP SA | AE | |
||
| 24 | 577745-00 | 1 | BEARING | AE | |
||
| 25 | 930753-00 | 1 | WASHER | AE | |
||
| 27 | 933657-00 | 2 | CAP | AE | |
||
| 28 | 930077-00 | 2 | SCREW | AE | |
||
| 29 | 330003-34 | 1 | BEARING | AE | |
||
| 30 | 930029-00 | 1 | HOLDER BEARING | AE | |
||
| 31 | 946134-00 | 1 | BAFFLE | AE | |
||
| 32 | 938856-00 | 1 | BRUSH PLATE SA | GB 115V | AE | |
|
| 32 | 938856-00 | 1 | BRUSH PLATE SA | AE-VE 115V | AE | |
|
| 32 | 938856-00 | 1 | BRUSH PLATE SA | MX-PA 115V | AE | |
|
| 32 | 930167-00 | 1 | BRUSH PLATE SA | GB 240V | AE | |
|
| 32 | 930167-00 | 1 | BRUSH PLATE SA | AE | |
||
| 33 | 930090-00 | 2 | BRUSH SPRING | AE | |||
| 35 | 930728-00 | 2 | LEAD | AE | |
||
| 36 | 930761 | 1 | RING | AE | |
||
| 38 | 931637 | 1 | SPANNER | AE | |
||
| 39 | 947830-06 | 1 | WRENCH SPECIAL | AE | |
