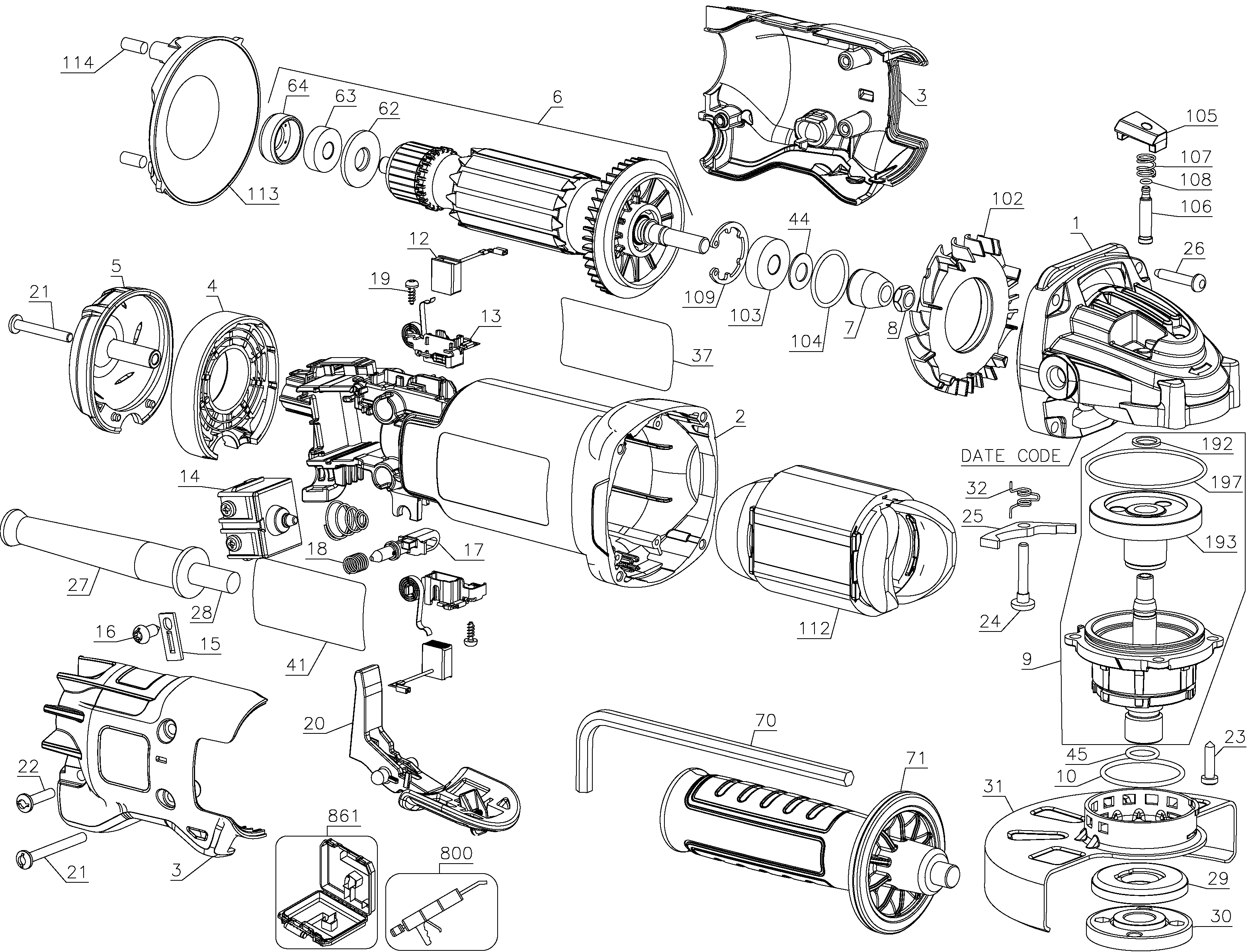

DWE4212 SMALL ANGLE GRINDER Type 3 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | N483617 | 1 | GEARCASE SA | B2 | |||
| 2 | N369341 | 1 | FIELDCASE | B2 | |||
| 3 | N393705 | 1 | END HANDLE | B2 | |||
| 4 | N401579 | 1 | DUST PORT | PARTICLE | B2 | ||
| 5 | N400902 | 1 | END CAP | B2 | |||
| 6 | N421696 | 1 | ARMATURE 220/240V | B2 | |||
| 7 | N375339 | 1 | PINION | 10T | B2 | ||
| 8 | N372039 | 1 | NUT | B2 | |||
| 9 | N493261 | 1 | GEAR CASE COVER ASSY. | B2 | |||
| 10 | N542715 | 1 | WASHER SPRING | B2 | |||
| 12 | N421362 | 1 | BRUSH PAIR 230V | EURO | B2 | ||
| 13 | N413349 | 2 | BRUSHBOX SA | B2 | |||
| 14 | N396008 | 1 | SWITCH | B2 | |||
| 15 | 619328-00 | 1 | CORD CLAMP | B2 | |||
| 16 | 330065-06 | 1 | SCREW | B2 | |||
| 17 | N290861 | 1 | BUTTON LOCK-ON | B2 | |||
| 18 | 562210-00 | 1 | SPRING | B2 | |||
| 19 | 593478-00 | 4 | SCREW | M3 X 8 | B2 | ||
| 20 | N413352 | 1 | PADDLE | B2 | |||
| 21 | N389438 | 3 | SCREW | B2 | |||
| 22 | 330065-08 | 1 | SCREW | M4x18 T20 | B2 | ||
| 23 | 330045-06 | 5 | SCREW | B2 | |||
| 24 | N297219 | 1 | SCREW | B2 | |||
| 25 | N637725 | 1 | LEVER | B2 | |||
| 26 | N371839 | 4 | SCREW | B2 | |||
| 27 | 330005-01 | 1 | CORD PROTECTOR | B2 | |||
| 28 | N382236 | 1 | CORDSET | B2 | |||
| 29 | 391969-00 | 1 | INNER FLANGE | B2 | |||
| 30 | N419748 | 1 | OUTER FLANGE | M14 | B2 | ||
| 31 | N487789 | 1 | GUARD | 5" TYPE 27 NA GUARD | B2 | ||
| 32 | N465886 | 1 | SPRING | B2 | |||
| 37 | N400392 | 1 | BRAND LABEL | B2 | |||
| 41 | N464739 | 1 | RATING LABEL | DWE4212-B2 TY3 | B2 | ||
| 44 | N213812 | 1 | WASHER | B2 | |||
| 45 | N420261 | 1 | O RING | B2 | |||
| 62 | N324400 | 1 | WASHER | B2 | |||
| 63 | N130916 | 1 | BEARING | B2 | |||
| 64 | 641823-00 | 1 | SLEEVE | B2 | |||
| 70 | N107295 | 1 | HEX KEY | 6 mm | B2 | ||
| 71 | N382311 | 1 | SIDE HANDLE | B2 | |||
| 102 | N401958 | 1 | DEFLECTOR | B2 | |||
| 103 | N175104 | 1 | BEARING | B2 | |||
| 104 | N119639 | 1 | O RING | B2 | |||
| 105 | N278899 | 1 | BUTTON | B2 | |||
| 106 | N481683 | 1 | LOCK PIN | B2 | |||
| 107 | N263579 | 1 | SPRING | B2 | |||
| 108 | N263699 | 1 | O RING | B2 | |||
| 109 | N453031 | 1 | RETAINER | B2 | |||
| 112 | N421357 | 1 | FIELD 230V | HV | B2 | ||
| 113 | N265479 | 1 | BAFFLE | B2 | |||
| 114 | 949638-02 | 2 | DAMPER | B2 | |||
| 192 | N481950 | 1 | RETAINER | B2 | |||
| 193 | N409481 | 1 | GEAR | 38T /PKG'D N375319 | B2 | ||
| 197 | N307625 | 1 | O RING | B2 | |||
| 800 | 30301914-01 | 1 | GREASE | 35LBS RHEOLUBE 380G1 | B2 | ||
| 800 | 429954-00 | 1 | GREASE | NYE RHEOLUBE 380G1, 7LBS. / 3175 GRAMS | B2 | ||
| 800 | 429954-01 | 1 | GREASE | NYE RHEOLUBE 380G1, 500grams JAR | B2 | ||
| 861 | 651196-00 | 1 | KITBOX | B2 |
