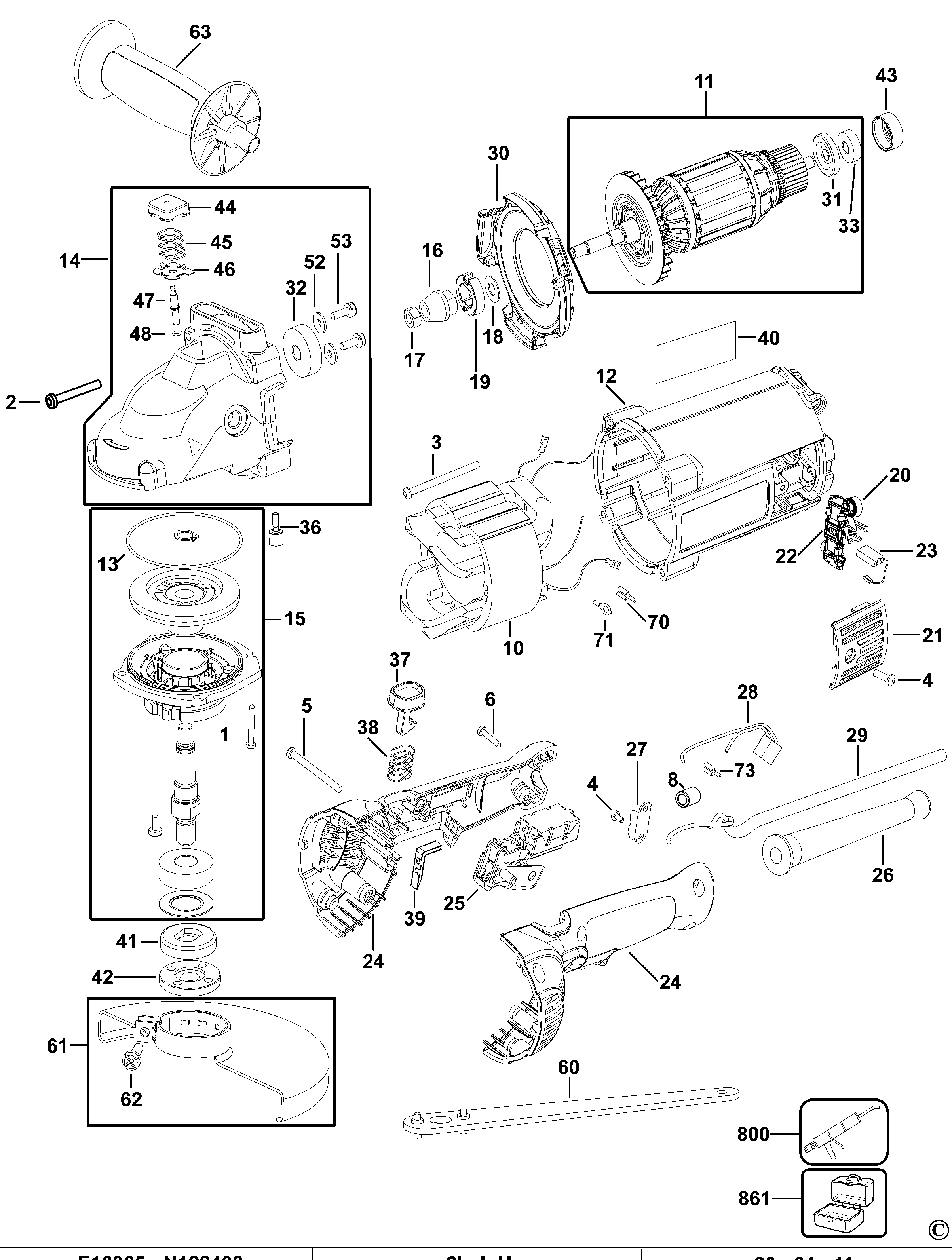

D28492 ANGLE GRINDER Type 3 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status | Guide Price |
|---|---|---|---|---|---|---|---|---|
| 1 | 330045-14 | 4 | SCREW | A9 | ||||
| 2 | 330019-26 | 4 | SCREW | A9 | ||||
| 3 | 330019-19 | 2 | SCREW | A9 | ||||
| 4 | 330019-11 | 6 | SCREW | M4.55x13 T20 | A9 | |||
| 5 | 330019-18 | 3 | SCREW | M4.55 x 50 PLASTIC THD FMG | A9 | |||
| 6 | 330019-32 | 4 | SCREW | A9 | ||||
| 12 | 393239-01 | 1 | FIELD CASE | A9 | ||||
| 13 | 397031-00 | 1 | O RING | A9 | ||||
| 15 | N074213 | 1 | GEARCASE COVER SA | A9 | ||||
| 16 | 629729-00 | 1 | PINION | 6K | A9 | |||
| 17 | 330015-03 | 1 | NUT | M8x1.25 | A9 | |||
| 18 | 639681-00 | 1 | WASHER | PINION | A9 | |||
| 19 | 632702-00 | 1 | COLLAR | A9 | ||||
| 20 | 609987-00 | 2 | BRUSH SPRING | A9 | ||||
| 21 | 394387-01 | 2 | BRUSH COVER | A9 | ||||
| 22 | N303319 | 2 | BRUSH HOLDER SA | A9 | ||||
| 24 | 636499-00 | 1 | HANDLE & COVER | A9 | ||||
| 25 | N035342 | 1 | SWITCH SA | A9 | ||||
| 26 | 604118-00 | 1 | CORD PROTECTOR | A9 | ||||
| 27 | 604119-00 | 1 | CORD CLAMP | A9 | ||||
| 28 | 632218-00 | 1 | CAPACITOR | A9 | ||||
| 30 | 631350-00 | 1 | BAFFLE | A9 | ||||
| 31 | 393238-00 | 1 | SHIELD | A9 | ||||
| 32 | N389509 | 1 | BEARING | A9 | ||||
| 33 | N110359 | 1 | BEARING | A9 | ||||
| 33 | N110359 | 1 | BEARING | A9 | ||||
| 36 | N033051 | 1 | SCREW | A9 | ||||
| 37 | 636503-00 | 1 | BUTTON LOCK-OFF | A9 | ||||
| 38 | 636502-00 | 1 | SPRING | A9 | ||||
| 39 | 641929-00 | 1 | COVER | A9 | ||||
| 41 | 403150-01 | 1 | INNER FLANGE | A9 | ||||
| 42 | 401678-05 | 1 | OUTER FLANGE | A9 | ||||
| 43 | 609970-00 | 1 | SLEEVE INSULATING | A9 | ||||
| 44 | 630553-00 | 1 | CAP | A9 | ||||
| 45 | 638328-00 | 1 | SPRING | A9 | ||||
| 46 | 635908-00 | 1 | RETAINER | A9 | ||||
| 47 | 634589-00 | 1 | PIN | A9 | ||||
| 48 | 750831 | 1 | O RING | A9 | ||||
| 52 | 640591-00 | 2 | WASHER | A9 | ||||
| 53 | 330045-67 | 2 | SCREW | A9 | ||||
| 60 | 635261-00 | 1 | WRENCH PIN | A9 | ||||
| 61 | N036839 | 1 | GUARD SA | KEYED | A9 | |||
| 62 | 330024-23 | 1 | SCREW | M8x1.25x30 | A9 | |||
| 63 | 651858-01 | 1 | SIDE HANDLE | D28492 | A9 | |||
| 70 | 612273-00 | 2 | TERMINAL | A9 | ||||
| 71 | 610057-00 | 2 | TERMINAL | RING | A9 | |||
| 73 | 53650-00 | 1 | TERMINAL | A9 | ||||
| 800 | 583534-00 | 1 | GREASE | 50 GRAMS - NYE RHEOLUB 380G1 | A9 | |||
| 800 | 583534-00 | 1 | GREASE | 50 GRAMS - NYE RHEOLUB 380G1 | A9 | |||
| 861 | 644490-00 | 1 | KITBOX | A9 |
