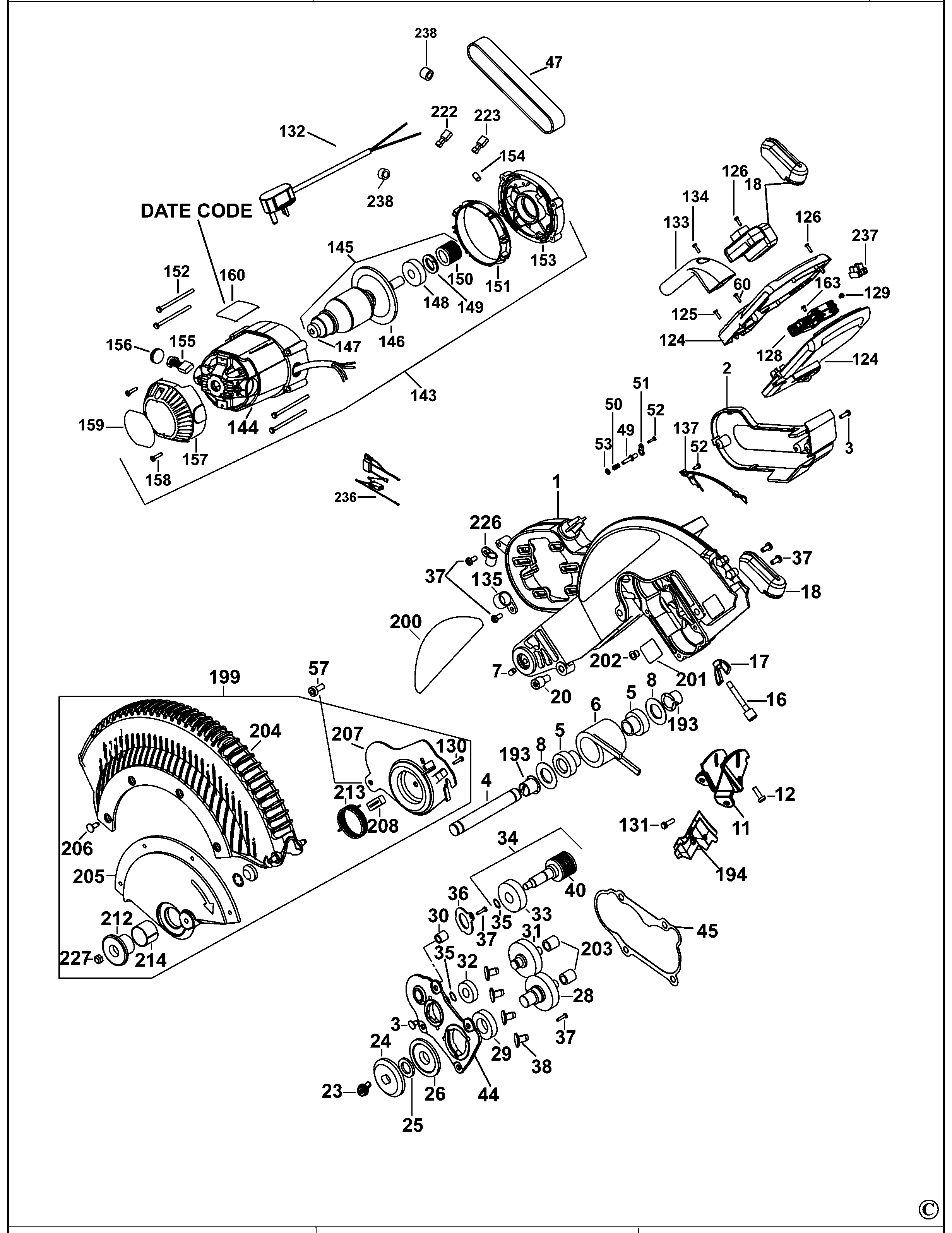

DWS780 MITRE SAW Type 21 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | N679006 | 1 | ARM | XD | |||
| 2 | N657968 | 1 | BELT COVER | XD |  |
||
| 3 | 330045-14 | 9 | SCREW | XD |  |
||
| 4 | N126153 | 1 | PIVOT SHAFT | XD | |
||
| 5 | 146732-00 | 2 | SPACER | XD | |
||
| 6 | N639013 | 1 | SPRING | XD | |||
| 7 | 150075-00 | 2 | SCREW | XD | |
||
| 9 | 387130-00 | 1 | LOCKING PIN | XD | |
||
| 10 | 034158-00 | 1 | O RING | XD | |
||
| 11 | N600556 | 1 | GUARD REAR | XD | |
||
| 12 | 330045-23 | 8 | SCREW | XD | |
||
| 13 | 153603-01 | 1 | PAWL | XD | |
||
| 14 | 153639-00 | 5 | SCREW | XD | |
||
| 15 | 153655-00 | 2 | WASHER | XD | |
||
| 16 | N185664 | 1 | SCREW | XD | |
||
| 17 | 150718-00 | 1 | NUT WING | XD | |
||
| 18 | N744417 | 1 | LED & POWER SUPPLY KIT | XD | |
||
| 20 | N460123 | 1 | SCREW | XD | |||
| 23 | N600011 | 1 | BLADE BOLT | XD | |
||
| 24 | N538823 | 1 | CLAMP OUTER | XD | |
||
| 25 | 152636-00 | 1 | BLADE HOLDER | XD | |
||
| 26 | N538855 | 1 | WASHER INNER CLAMP | XD | |||
| 28 | N141275 | 1 | SPINDLE & GEAR SA | XD | |
||
| 29 | 605040-40 | 1 | BEARING BALL | XD | |
||
| 30 | 391616-00 | 1 | BEARING NEEDLE | XD | |
||
| 31 | N139533 | 1 | GEAR SA | XD | |
||
| 32 | 605040-21 | 1 | BEARING | XD | |
||
| 33 | 605040-33 | 1 | BEARING | XD | |
||
| 34 | N203541 | 1 | SHAFT SA | XD | |
||
| 35 | 153752-00 | 2 | RETAINER | XD | |
||
| 36 | 618244-00 | 1 | RETAINING PLATE | XD | |
||
| 37 | 330045-49 | 11 | SCREW | XD | |
||
| 38 | 385915-04 | 4 | SCREW | XD | |
||
| 40 | N004511 | 1 | DRIVE PULLEY | XD | |
||
| 44 | N268679 | 1 | GEAR CASE SA | XD | |
||
| 45 | N510450 | 1 | GASKET | XD | |
||
| 47 | 153555-00 | 1 | BELT | XD | |
||
| 49 | 153561-00 | 1 | LOCKING PIN | XD | |
||
| 50 | 448176-00 | 1 | SPRING | XD | |
||
| 51 | 393071-00 | 1 | PLATE | XD | |
||
| 52 | 330045-45 | 8 | SCREW | XD | |
||
| 53 | 153559-00 | 1 | WASHER | XD | |
||
| 56 | 146740-00 | 2 | SLEEVE | XD | |
||
| 57 | 394589-01 | 6 | SCREW | XD | |
||
| 60 | 330045-15 | 7 | SCREW | M5 X 20 | XD | |
|
| 61 | N142121 | 1 | DUST PORT | XD | |
||
| 62 | N080677 | 1 | KNOB | M8x1.0 THD | XD | |
|
| 68 | N058308 | 1 | POINTER | XD | |
||
| 69 | N058309 | 1 | POINTER | XD | |
||
| 70 | N080199 | 1 | KNOB | XD | |
||
| 72 | 60325-01 | 1 | RING | XD | |||
| 74 | 330045-06 | 7 | SCREW | XD | |
||
| 75 | 330045-05 | 1 | SCREW | XD | |
||
| 76 | N585429 | 1 | BEVEL SCALE | XD | |
||
| 80 | N043045 | 2 | PAWL | XD | |
||
| 83 | N049689 | 1 | STOP RH | XD | |
||
| 85 | N051519 | 1 | STOP LH | XD | |
||
| 91 | 330015-03 | 1 | NUT | M8x1.25 | XD | |
|
| 92 | N058312 | 2 | SCREW | XD | |
||
| 93 | N655848 | 1 | BASE SA | XD | |
||
| 95 | N544383 | 1 | PLATE | XD | |
||
| 96 | N679005 | 1 | TABLE SA | XD | |||
| 97 | N401778 | 1 | COVER | XD | |
||
| 99 | 49787-00 | 1 | O RING | XD | |
||
| 100 | N058318 | 1 | SCREW | XD | |
||
| 101 | N044739 | 1 | LOCK NUT | XD | |
||
| 102 | 153792-00 | 4 | WASHER | XD | |
||
| 103 | N583416 | 1 | PLATE | XD | |||
| 104 | 604410-00 | 2 | SCREW | XD | |
||
| 105 | 391358-01 | 1 | HOLDER | XD | |
||
| 106 | N600007 | 1 | SPANNER | XD | |||
| 107 | N057963 | 1 | POINTER | XD | |
||
| 108 | N050755 | 1 | ACTUATOR | XD | |
||
| 109 | N477762 | 2 | PLATE | XD | |||
| 110 | 622396-00 | 1 | SHAFT | XD | |
||
| 111 | 622395-00 | 1 | LEVER LOCK-OFF | XD | |
||
| 112 | N488468 | 1 | DETENT | XD | |
||
| 113 | N477761 | 1 | SPRING COMPRESSION | XD | |||
| 114 | 093128-00 | 1 | BEARING NEEDLE | XD | |
||
| 115 | 618254-00 | 1 | RETAINER | XD | |
||
| 116 | N082785 | 1 | LEVER | XD | |
||
| 117 | N057386 | 1 | PIN | XD | |
||
| 118 | 624460-00 | 1 | PIN | XD | |
||
| 119 | 624461-00 | 1 | SLEEVE | XD | |
||
| 120 | 618186-00 | 1 | ROD | XD | |
||
| 121 | 618185-00 | 1 | BLOCK | XD | |
||
| 122 | 385915-03 | 1 | SCREW | XD | |
||
| 123 | 618253-00 | 1 | SPRING COMPRESSION | XD | |
||
| 124 | 624730-00 | 1 | HANDLE SA | XD | |
||
| 125 | 330045-18 | 4 | SCREW | XD | |
||
| 126 | 330019-32 | 5 | SCREW | XD | |
||
| 128 | N763827 | 1 | SWITCH SA | XD | |
||
| 129 | N763827 | 4 | SWITCH SA | XD | |
||
| 130 | 330045-23 | 3 | SCREW | XD | |
||
| 132 | N466097 | 1 | CORDSET | XD | |||
| 133 | N083060 | 1 | HANDLE | XD | |
||
| 134 | 330019-76 | 1 | SCREW | M5.74x32 | XD | |
|
| 135 | 398443-00 | 1 | CABLE CLAMP | XD | |
||
| 137 | N030322 | 1 | COVER | XD | |
||
| 138 | N597938 | 1 | FENCE | XD | |
||
| 139 | N679002 | 1 | FENCE LH | XD | |||
| 140 | N679003 | 1 | FENCE RH | XD | |||
| 141 | N480602 | 2 | KNOB SA | XD | |||
| 142 | 098105-03 | 4 | SCREW | XD | |||
| 143 | N675711 | 1 | MOTOR SA | XD | |
||
| 144 | N469232 | 1 | FIELDCASE SA | XD | |
||
| 145 | N147755 | 1 | ARMATURE SA | XD | |
||
| 146 | N147754 | 1 | ARMATURE SA | XD | |
||
| 147 | N110359 | 1 | BEARING | XD | |
||
| 149 | 144803-00 | 1 | CIRCLIP | XD | |
||
| 150 | N004510 | 1 | DRIVE PULLEY | XD | |
||
| 151 | 614366-00 | 1 | BAFFLE FAN | XD | |
||
| 152 | 614375-00 | 4 | SCREW | XD | |
||
| 153 | N137554 | 1 | MOUNTING BRACKET | XD | |||
| 154 | 394034-00 | 1 | SCREW | XD | |
||
| 155 | 623919-00 | 2 | BRUSH & LEAD | SINGLE | XD | |
|
| 156 | 614368-00 | 2 | BRUSH CAP | XD | |
||
| 157 | 391933-01 | 1 | END CAP | XD | |
||
| 158 | 330019-11 | 2 | SCREW | M4.55x13 T20 | XD | |
|
| 159 | N625165 | 2 | BRAND LABEL | XD | |
||
| 160 | N671084 | 1 | RATING LABEL | XD | |||
| 163 | 330019-12 | 1 | SCREW | XD | |
||
| 170 | N687071 | 1 | HOUSING SA | XD | |
||
| 171 | 603390-00 | 8 | SCREW | XD | |
||
| 172 | 397118-00 | 2 | GUIDE | XD | |
||
| 173 | 153576-04 | 1 | SCREW | XD | |
||
| 174 | 613497-00 | 1 | THRUST PLATE | XD | |
||
| 175 | N058314 | 4 | SCREW | XD | |
||
| 176 | 682149-00 | 1 | BUSH | XD | |
||
| 177 | N051244 | 2 | BUMPER | XD | |
||
| 178 | 659919-00 | 1 | SPRING | XD | |
||
| 179 | 612008-00 | 1 | SCREW | XD | |
||
| 180 | N531468 | 1 | HANDLE | XD | |
||
| 181 | 330016-04 | 1 | WASHER | XD | |
||
| 183 | N095579 | 1 | LEVER SA | XD | |
||
| 184 | 167785-00 | 1 | SPRING | XD | |
||
| 185 | N041865 | 1 | PIN | XD | |||
| 186 | 660786-00 | 1 | BUSHING | XD | |||
| 187 | N600059 | 2 | BOLT | XD | |
||
| 188 | N058315 | 2 | SCREW.SPECIAL | XD | |
||
| 189 | 385946-00 | 2 | WASHER SPRING | XD | |
||
| 190 | N043046 | 2 | PAWL | XD | |
||
| 192 | N600034 | 2 | SCREW | XD | |||
| 193 | N377514 | 2 | BUSHING | XD | |
||
| 194 | N630004 | 1 | DUST DEFLECTOR | XD | |
||
| 195 | N204414 | 1 | THRUST BEARING | XD | |||
| 199 | N682433 | 1 | GUARD LOWER | XD | |
||
| 200 | N457634 | 1 | BRAND LABEL | XD | |
||
| 201 | N627023 | 1 | WARNING LABEL | XD | |||
| 202 | 148608-00 | 2 | INSERT | XD | |
||
| 203 | 386780-00 | 2 | BEARING | XD | |
||
| 204 | N718590 | 1 | GUARD LOWER | XD | |
||
| 205 | N020822 | 1 | PLATE | XD | |
||
| 206 | 385915-01 | 4 | SCREW | XD | |
||
| 207 | 621037-00 | 1 | PLATE | XD | |
||
| 208 | 146768-00 | 1 | BUMPER | XD | |
||
| 209 | N142523 | 1 | LINK | XD | |
||
| 212 | 146750-01 | 1 | RETAINING PLATE | XD | |
||
| 213 | N034013 | 1 | SPRING | XD | |
||
| 214 | 148295-00 | 1 | SLEEVE | XD | |
||
| 217 | 394976-00 | 2 | LABEL | WARNING | XD | |
|
| 218 | 146760-02 | 1 | STUD | XD | |
||
| 219 | 153666-00 | 2 | SCREW | set screw M8 x 8mm long | XD | |
|
| 220 | N627022 | 1 | WARNING LABEL | XD | |||
| 222 | 450212-00 | 1 | TERMINAL | XD | |
||
| 223 | 145332-00 | 4 | TERMINAL | XD | |
||
| 226 | 153669-00 | 2 | CORD CLAMP | XD | |
||
| 227 | 330045-23 | 1 | SCREW | XD | |
||
| 228 | 397117-00 | 4 | SEAL | XD | |
||
| 229 | N049684 | 2 | COVERPLATE | XD | |
||
| 230 | 618142-00 | 1 | END CAP | XD | |||
| 231 | N069475 | 1 | TRUNNION | XD | |
||
| 232 | 330019-14 | 1 | SCREW | XD | |
||
| 236 | N463819 | 1 | LEAD SA | XD | |
||
| 237 | 393520-00 | 1 | TERMINAL BLOCK | XD | |
||
| 238 | N463817 | 1 | BRUSH | XD | |
||
| 239 | N126162 | 1 | DUST BAG SA | XD | |
||
| 240 | N142123 | 1 | CLAMP SA | XD | |
||
| 315 | N058319 | 1 | RAIL | XD | |
||
| 332 | N104494 | 1 | RAIL | XD | |
||
| 333 | N539022 | 2 | SIDE HANDLE | XD | |
||
| 334 | N611941 | 1 | WASHER | XD | |||
| 335 | N630003 | 1 | SPRING | rectangle | XD | ||
| 800 | 93488-00 | 1 | GREASE | XD | |
||
| 800 | 429698-00 | 1 | GREASE | BD-L 2 | XD | |
|
| 837 | 559626-99 | 1 | S.T.SQUARE | XD | |
