KD577RT PERCEUSE Type 1 | Plans
Documents
Liste des pièces
Consultez le menu déroulant car certains produits disposent de plusieurs plans
Impression
Vue pleine page

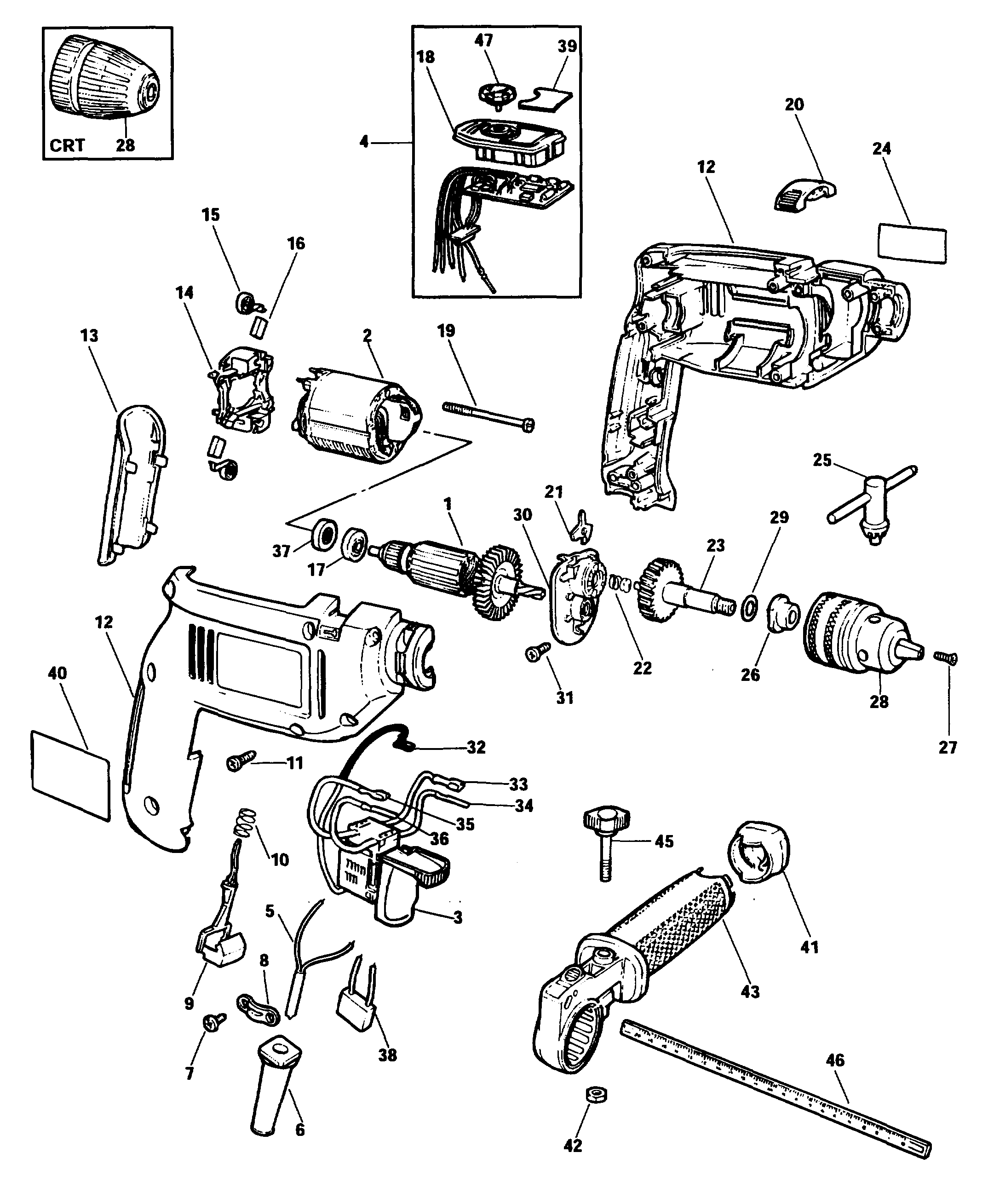

| Item No. | Product Number | Qty Per | Product Description | Desig compl | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 798863-00 | 1 | S/E ARMATURE | GB |  |
||
| 2 | 798832-01 | 1 | S/E CHAMP | GB | |
||
| 3 | 798786-01 | 1 | INTERRUPTEUR | GB | |
||
| 4 | 797621 | 1 | S/E CARTE CIRCUIT IMPRIME | GB | |
||
| 5 | 330060-53 | 1 | JEU DE CORDONS | GB | |||
| 6 | 770235 | 1 | PROTECTEUR | Keyless Chuck | GB |  |
|
| 6 | 770236 | 1 | PROTECTEUR | S2A Chuck | GB | |
|
| 7 | 821057 | 2 | VIS | No 6 x 12.7mm | GB | |
|
| 8 | 821070 | 1 | COLLIER DE CORDON | GB | |
||
| 9 | 798849 | 1 | BOUTON DE VERROUILLAGE | GB | |
||
| 10 | 748158 | 1 | RESSORT | GB | |
||
| 11 | 809961 | 9 | VIS | GB | |
||
| 12 | 370416 | 1 | COQUILLE | GB | |
||
| 13 | 807000 | 1 | PRISE | GB | |
||
| 14 | 806486-00 | 1 | PLAQUE PORTE-BALAIS | GB | |
||
| 15 | 808527-00 | 1 | RESSORT DE BALAI | GB | |
||
| 16 | 806681 | 1 | BALAI | GB | |
||
| 17 | 812970 | 1 | SUPPORT, CAOUTCHOUC | GB | |
||
| 18 | 798850 | 1 | INSERT | GB | |
||
| 19 | 812751 | 2 | SCREW.TEMP | GB | |
||
| 20 | 798788 | 1 | SELECTEUR | GB | |
||
| 21 | 798815 | 1 | PLATE THRUST | GB | |
||
| 22 | 821986 | 1 | RESSORT | GB | |
||
| 23 | 808675-49 | 1 | S/E AXE ET PIGNON | GB | |
||
| 24 | 798804-02 | 1 | ETIQUETTE MARQUE | GB | |
||
| 25 | 330034-08 | 1 | CLE DE MANDRIN | S2A Chuck | GB | |
|
| 26 | 798794 | 1 | PALIER FRITTE | GB | |
||
| 27 | 805434 | 1 | SCREW.SPECIAL | GB | |
||
| 28 | 330033-23 | 1 | CHUCK 13MM | S2A Chuck | GB | |
|
| 28 | 586589-00L | 1 | MANDRIN AUTOSERR. | Keyless Chuck | GB | |
|
| 29 | 798795 | 1 | RONDELLE D'ARRET | GB | |
||
| 30 | 372163 | 1 | S/E CARTER D'ENGRENAGES | GB | |
||
| 31 | 809961 | 2 | VIS | GB | |
||
| 32 | 809085 | 1 | LEAD RED | GB | |
||
| 33 | 809086 | 1 | LEAD BROWN | GB | |
||
| 34 | 806964 | 1 | LEAD YELLOW | GB | |
||
| 35 | 806965 | 1 | LEAD BLUE | GB | |
||
| 37 | 798813 | 1 | TRANSMETTEUR | GB | |
||
| 38 | 807745 | 1 | CONDENSATEUR | GB | |
||
| 39 | 808285 | 1 | ETIQUETTE | GB | |
||
| 41 | 798867 | 1 | BOUCHON | GB | |
||
| 42 | 807369 | 1 | ECROU | GB | |
||
| 43 | 808241 | 1 | HANDLE | GB | |
||
| 45 | 798858 | 1 | BOULON | GB | |
||
| 46 | 798846-00 | 1 | BUTEE DE PROFONDEUR | GB | |
||
| 47 | 798851-01 | 1 | BOUTON | GB | |
