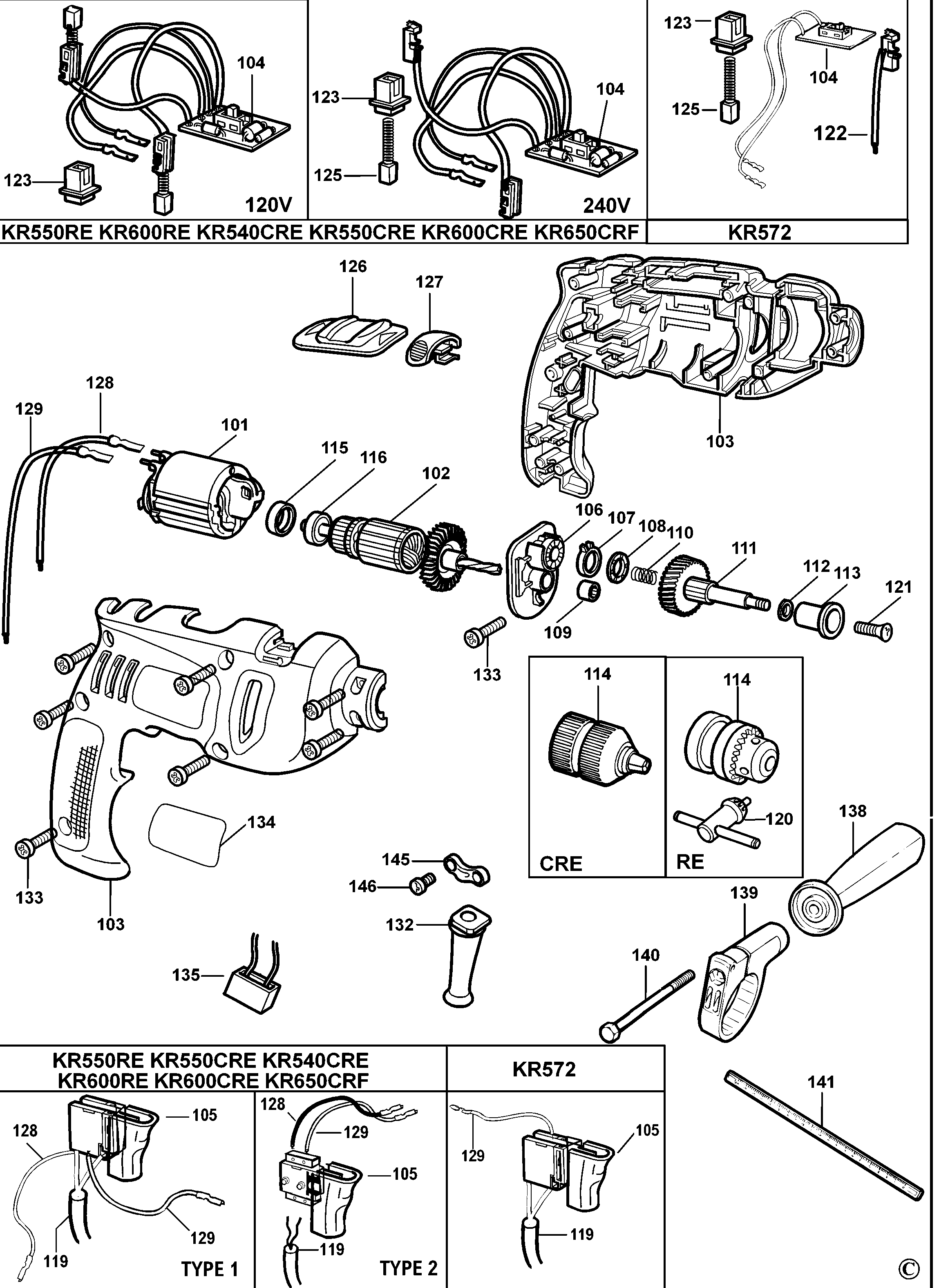

KR550RE DRILL Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 101 | 376912-40 | 1 | FIELD SA | KR600RE KR600CRE | CH | ||
| 101 | 576374-11 | 1 | FIELD 230V | KR550RE KR550CRE | CH | ||
| 101 | 576374-11 | 1 | FIELD 230V | KR540CRE | CH | ||
| 102 | 580813-02 | 1 | ARMATURE SA | KR600RE KR600CRE | CH | ||
| 102 | 374239-01 | 1 | ARMATURE SA | KR550RE KR550CRE | CH | ||
| 103 | 374190-05 | 1 | CLAMSHELL SET | CH | |||
| 103 | 374190-08 | 1 | CLAMSHELL SET | KR650CRF | CH | ||
| 104 | 374217-01 | 1 | PCB SA | CH | |||
| 105 | 375412-01 | 1 | SWITCH | CH | |||
| 106 | 374216-00 | 1 | GEARCASE SA | CH | |||
| 107 | 374189-00 | 1 | SELECTOR | CH | |||
| 108 | 892261 | 1 | BEARING | CH | |||
| 109 | 330004-18 | 1 | BEARING | CH | |||
| 110 | 821986 | 1 | SPRING | CH | |||
| 111 | 377645-00 | 1 | SPINDLE & GEAR SA | CH | |||
| 112 | 374194-00 | 1 | WASHER THRUST | CH | |||
| 113 | 374193-00 | 1 | BEARING | CH | |||
| 114 | 586589-00L | 1 | CHUCK KEYLESS | KR540CRE | CH | ||
| 114 | 586589-00L | 1 | CHUCK KEYLESS | KR600CRE | CH | ||
| 114 | 586589-00L | 1 | CHUCK KEYLESS | KR550CRE | CH | ||
| 114 | 330033-23 | 1 | CHUCK 13MM | KR550RE | CH | ||
| 114 | 330033-23 | 1 | CHUCK 13MM | KR600RE | CH | ||
| 115 | 812970 | 1 | HOLDER,RUBBER | CH | |||
| 116 | 330003-02 | 1 | BEARING | CH | |||
| 119 | 330080-03 | 1 | CORDSET | XK | CH | ||
| 119 | 330080-05 | 1 | CORDSET | CH | |||
| 120 | 330034-07 | 1 | CHUCK KEY | KR550RE | CH | ||
| 120 | 330034-07 | 1 | CHUCK KEY | KR600RE | CH | ||
| 121 | 805434 | 1 | SCREW.SPECIAL | CH | |||
| 122 | 914115 | 2 | BRUSH HOLDER | CH | |||
| 123 | 875735 | 2 | INSERT | CH | |||
| 125 | 570544-00 | 2 | BRUSH & SPRING | CH | |||
| 126 | 374218-01 | 1 | ACTUATOR | CH | |||
| 127 | 374188-00 | 1 | ACTUATOR | CH | |||
| 128 | 374213-00 | 1 | LEAD RED | CH | |||
| 129 | 374214-00 | 1 | LEAD BLACK | CH | |||
| 132 | 770236 | 1 | PROTECTOR | CH | |||
| 133 | 809961 | 2 | SCREW | CH | |||
| 134 | 374186-03 | 1 | BRAND LABEL | KR600RE | CH | ||
| 134 | 374186-04 | 1 | BRAND LABEL | KR600CRE | CH | ||
| 134 | 374186-01 | 1 | BRAND LABEL | KR550RE | CH | ||
| 134 | 374186-11 | 1 | BRAND LABEL | KR540CRE | CH | ||
| 134 | 374186-02 | 1 | BRAND LABEL | KR550CRE | CH | ||
| 135 | 807745 | 1 | CAPACITOR | CH | |||
| 138 | 376555-05 | 1 | HANDLE & CAP SA | CH | |||
| 139 | 376552-03 | 1 | CLAMP | CH | |||
| 140 | 813918 | 1 | SCREW | CH | |||
| 141 | 372814-00 | 1 | DEPTH STOP | CH | |||
| 145 | 821070 | 1 | CORD CLAMP | CH | |||
| 146 | 821057 | 1 | SCREW | No 6 x 12.7mm | CH |
