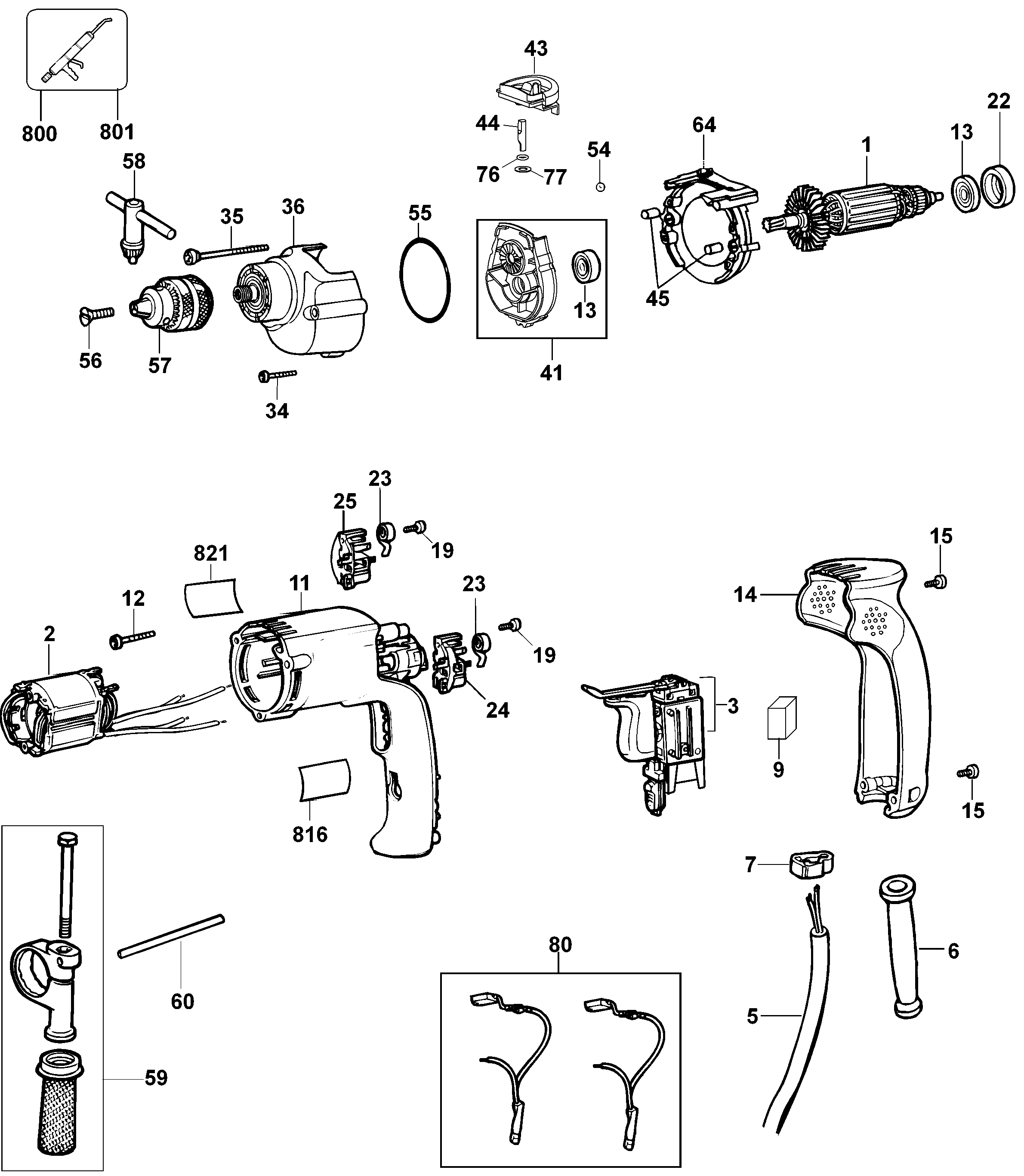

D21710 HAMMER DRILL Type 6 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 495832-01 | 1 | ARMATURE SA | 115 V | B3 | ||
| 2 | N063876 | 1 | FIELD | B3 | |||
| 3 | 1006250-01 | 1 | SWITCH 115V | Marquardt | B3 | ||
| 5 | 330072-73 | 1 | CORDSET | B3 | |||
| 6 | 401751-00 | 1 | CORD PROTECTOR | B3 | |||
| 7 | 603255-00 | 1 | CORD CLAMP | B3 | |||
| 9 | 930026-01 | 1 | BUMPER | B3 | |||
| 11 | 1007793-00 | 1 | FIELDCASE | B3 | |||
| 12 | 496932-00 | 2 | SCREW | B3 | |||
| 13 | 605040-55 | 2 | BEARING 608 | B3 | |||
| 14 | 610140-01 | 1 | HANDLE COVER | B3 | |||
| 15 | 330019-13 | 3 | SCREW | M4X19 T20 | B3 | ||
| 19 | 330065-06 | 2 | SCREW | B3 | |||
| 22 | 389824-00 | 1 | BOOT | B3 | |||
| 23 | 402759-00 | 2 | BRUSH SPRING | B3 | |||
| 24 | 401877-01 | 1 | BRUSH HOLDER SA | B3 | |||
| 25 | 401878-01 | 1 | BRUSH HOLDER SA | B3 | |||
| 34 | 330019-45 | 1 | SCREW | B3 | |||
| 35 | 330019-17 | 2 | SCREW | B3 | |||
| 36 | N063406 | 1 | HOUSING SA | B3 | |||
| 41 | 584526-02 | 1 | GEARCASE ASSY | B3 | |||
| 43 | 584538-00 | 1 | SELECTOR ASSY. | B3 | |||
| 44 | 946106-00 | 1 | PIN | B3 | |||
| 45 | 949638-02 | 2 | DAMPER | B3 | |||
| 54 | 000903-00 | 1 | BALL | B3 | |||
| 55 | 401847-00 | 1 | SEAL | B3 | |||
| 56 | 490910-00 | 1 | SCREW | B3 | |||
| 57 | 584925-02 | 1 | CHUCK 13MM | B3 | |||
| 58 | N022653 | 1 | CHUCK KEY | B3 | |||
| 59 | 939794-02 | 1 | HANDLE SIDE SA | B3 | |||
| 60 | 940357-00 | 1 | DEPTH STOP | B3 | |||
| 64 | 585994-00 | 1 | BAFFLE FAN | B3 | |||
| 76 | 050050-00 | 1 | RING | B3 | |||
| 77 | 176659-00 | 1 | WASHER | B3 | |||
| 80 | N063387 | 2 | BRUSH W/LEAD | B3 | |||
| 800 | 286436-00 | 1 | GREASE | NYE RHEOLUBE 380, 500 GRAM JAR | B3 | ||
| 801 | 761995-01 | 1 | GREASE | 180 Grams | B3 | ||
| 816 | 395047-00 | 1 | BRAND LABEL | B3 | |||
| 821 | N075988 | 1 | NAME PLATE | B3 |
