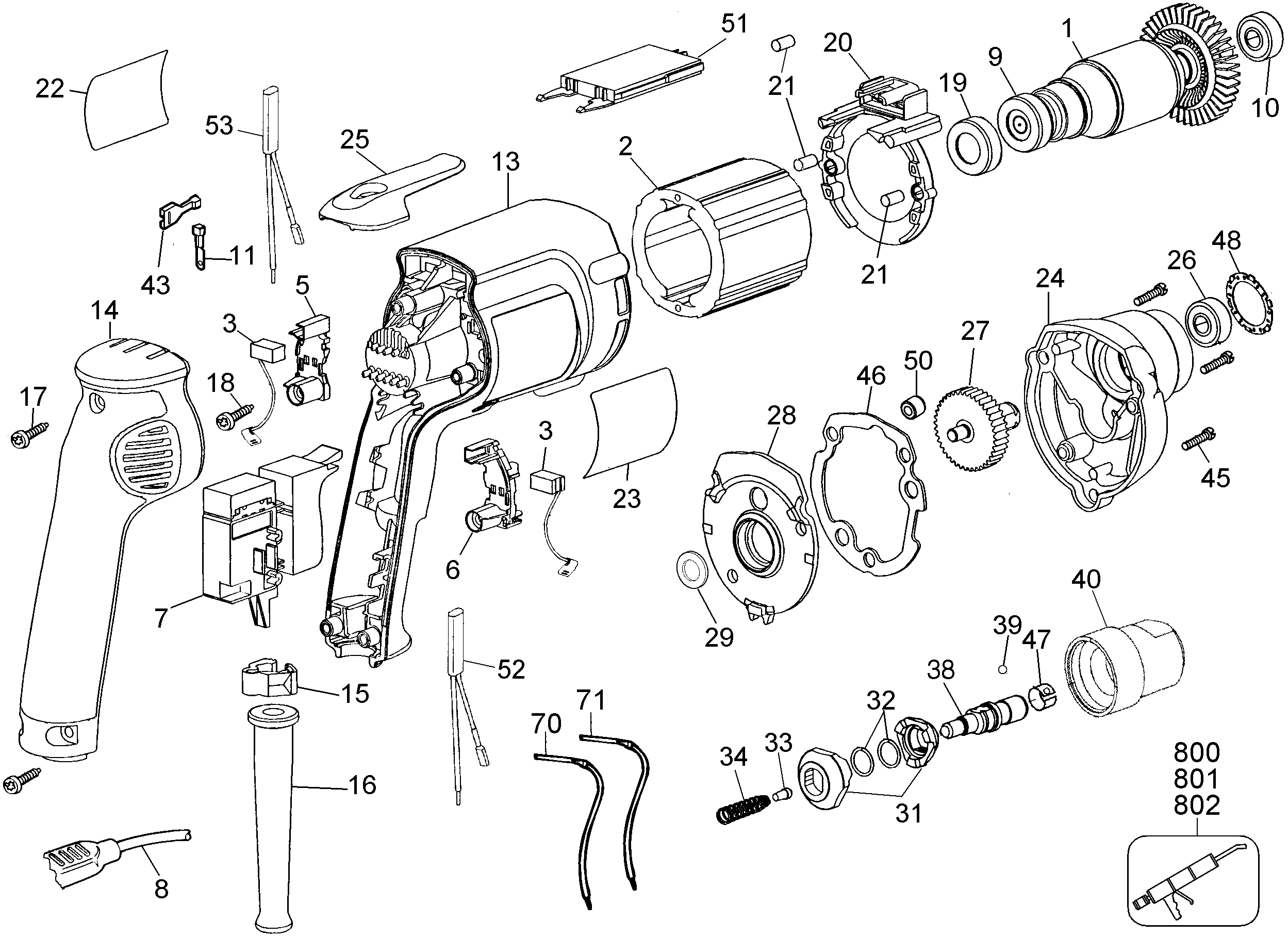

DW274SD POWER UNIT Type A1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 176851-01 | 1 | ARMATURE & FAN | CH | |||
| 2 | 176849-01SV | 1 | FIELD 230V | CH | |||
| 3 | 176949-00 | 2 | BRUSH 230V | CH | |||
| 5 | 176801-03 | 2 | BRUSH HOLDER | CH | |||
| 6 | 176800-03 | 2 | BRUSH HOLDER | CH | |||
| 7 | 176830-15 | 1 | SWITCH | Tyco | CH | ||
| 8 | 330080-40 | 1 | CORDSET | CH | |||
| 9 | 330003-04 | 2 | BEARING | CH | |||
| 11 | 449192-00 | 2 | TERMINAL | CH | |||
| 13 | 429969-04 | 1 | FIELD CASE | CH | |||
| 14 | 176816-03 | 1 | HANDLE COVER | CH | |||
| 15 | 176832-00 | 1 | CORD CLAMP | CH | |||
| 16 | 330005-01 | 1 | CORD PROTECTOR | CH | |||
| 17 | 330019-13 | 3 | SCREW | M4X19 T20 | CH | ||
| 18 | 176951-00 | 2 | SCREW | CH | |||
| 19 | 949721-03 | 1 | SLEEVE | BLACK | CH | ||
| 19 | 389824-00 | 1 | BOOT | GREY | CH | ||
| 20 | 176811-00 | 1 | BAFFLE | CH | |||
| 21 | 949638-02 | 3 | DAMPER | CH | |||
| 22 | 395047-00 | 1 | BRAND LABEL | CH | |||
| 23 | 388137-00 | 1 | NP:DW274SDCH/A1 | CH | |||
| 24 | 388562-00SV | 1 | GEARCASE | INCL. 26,48 | CH | ||
| 25 | N045425 | 1 | CLIP | CH | |||
| 26 | 605040-20 | 1 | BEARING | 12 x 28 x 8mm | CH | ||
| 27 | 638982-00SV | 1 | SPINDLE & GEAR | CH | |||
| 28 | 386622-00 | 1 | GEARCASE COVER | CH | |||
| 29 | 023813-00 | 1 | WASHER FIBRE | CH | |||
| 31 | 96558-00 | 2 | CLUTCH | INCL. 32 | CH | ||
| 32 | 089210-00 | 2 | RETAINER | CH | |||
| 33 | 021287-00 | 1 | GUIDE | CH | |||
| 34 | 86211-00 | 1 | SPRING | CH | |||
| 38 | 176697-00 | 1 | SPINDLE | CH | |||
| 39 | 696631-00 | 1 | BALL | CH | |||
| 41 | 388156-00 | 1 | CLUTCH SA | CH | |||
| 43 | 136086-02 | 2 | TERMINAL | CH | |||
| 45 | 330019-14 | 3 | SCREW | CH | |||
| 46 | 176655-00 | 1 | GASKET | CH | |||
| 47 | 094518-00 | 1 | RETAINER | CH | |||
| 48 | 176689-00 | 1 | RETAINER | CH | |||
| 50 | 093128-00 | 1 | BEARING NEEDLE | CH | |||
| 51 | 176917-00 | 1 | MODULE | CH | |||
| 52 | 176890-00 | 1 | LEAD WHITE | CH | |||
| 53 | 176890-01 | 1 | LEAD RED | CH | |||
| 70 | 176893-00 | 1 | LEAD BLACK | CH | |||
| 71 | 176834-00 | 1 | LEAD BLUE | CH | |||
| 800 | 761995-01 | 1 | GREASE | 180 Grams | CVJ GREASE | CH | |
| 801 | 283484-01 | 1 | GREASE | 32oz, EXXON CVJ | CH | ||
| 802 | N017298 | 1 | GREASE | G-2008 Molykote | CH |
