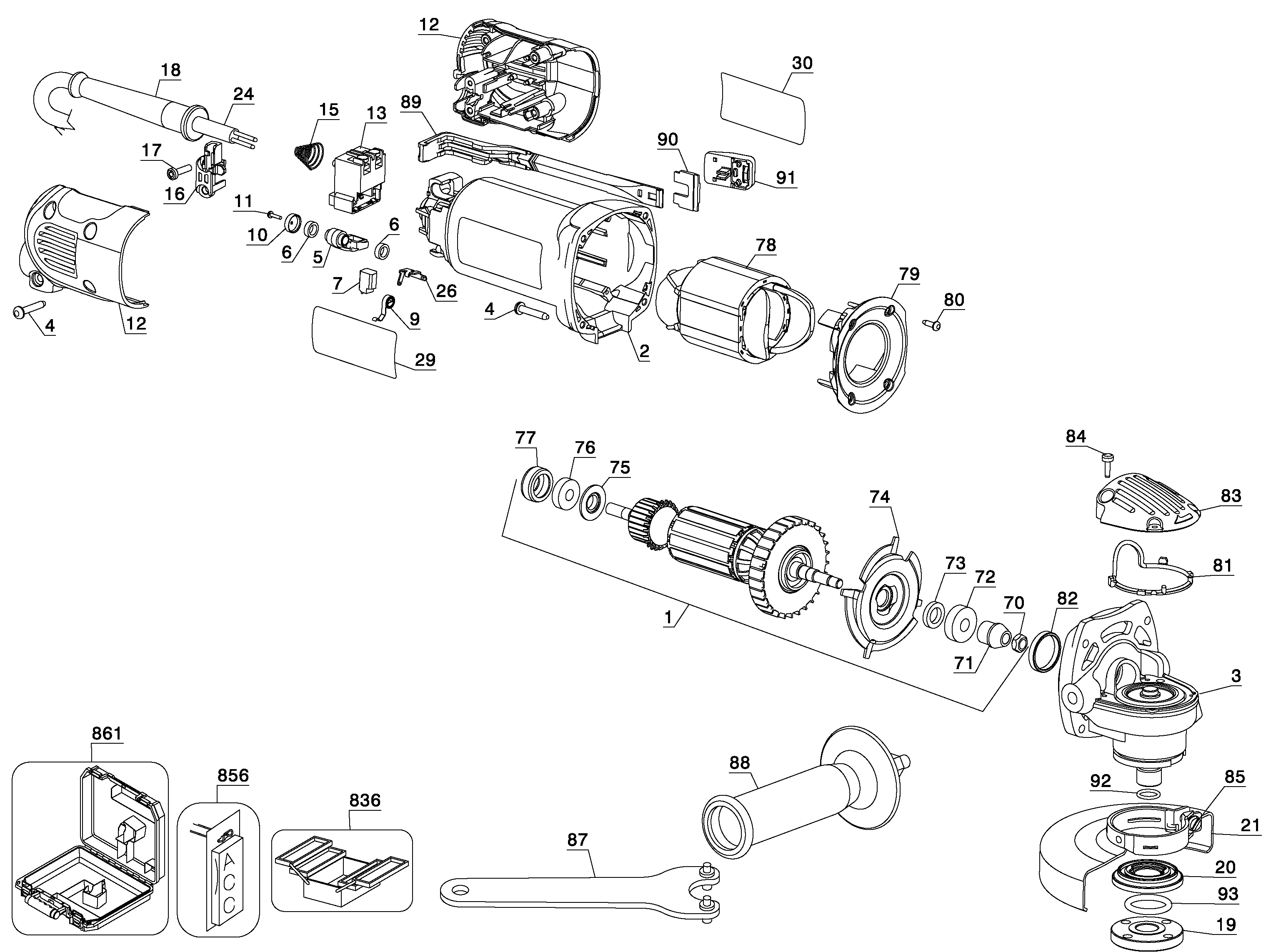

D28111 SMALL ANGLE GRINDER Type 2 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | N147110 | 1 | ARMATURE (120V) | B3 | |||
| 2 | 650994-03 | 1 | FIELD CASE | B3 | |||
| 3 | 623586-00SV | 1 | GEAR CASE SA | B3 | |||
| 3 | 659967-00 | 1 | GEAR | USE 380G1 GREASE | GEAR ONLY | B3 | |
| 4 | 330065-31 | 8 | PLASTIC SCREW | B3 | |||
| 5 | 648743-00 | 2 | ARM | BRUSH | B3 | ||
| 6 | 623592-00 | 4 | FELT SEAL | B3 | |||
| 7 | 650916-01 | 2 | BRUSH CUT OFF | 120V POP OFF | B3 | ||
| 9 | 623589-00 | 2 | BRUSH SPRING | B3 | |||
| 10 | 623591-00 | 2 | BRUSH CAP | B3 | |||
| 11 | 593685-00 | 1 | SCREW | M1.8x8 THD FRMG | B3 | ||
| 12 | 625243-01S | 1 | HANDLE SET | B3 | |||
| 13 | 641889-00SV | 1 | SWITCH | B3 | |||
| 15 | 628396-00 | 1 | SPRING | B3 | |||
| 16 | 636963-00 | 1 | CORD CLAMP | B3 | |||
| 17 | 330019-03 | 1 | SCREW | B3 | |||
| 18 | 330005-01 | 1 | CORD PROTECTOR | B3 | |||
| 19 | N134467 | 1 | NUT | B3 | |||
| 20 | 633257-00SV | 1 | INNER FLANGE SA | B3 | |||
| 21 | 629358-00 | 1 | GUARD SA | B3 | |||
| 24 | 330122-66 | 1 | CORD SET | B3 | |||
| 26 | 623593-00 | 2 | TERMINAL | B3 | |||
| 29 | 659592-03 | 1 | NAME PLATE | D28111-B3 TY.2 | B3 | ||
| 30 | 635892-00 | 1 | BRAND LABEL | B3 | |||
| 70 | 604484-00 | 1 | NUT | B3 | |||
| 71 | 623564-00 | 1 | PINION | 9 TOOTH | B3 | ||
| 72 | 605040-67 | 1 | BEARING | B3 | |||
| 73 | 623617-00 | 1 | FELT SEAL | B3 | |||
| 74 | N422242 | 1 | RETAINER | B3 | |||
| 75 | 623613-00 | 1 | WASHER | B3 | |||
| 76 | 605040-02 | 1 | BEARING | B3 | |||
| 77 | 641823-00 | 1 | SLEEVE | B3 | |||
| 78 | 188344-00 | 1 | FIELD (120V) | B3 | |||
| 79 | 650997-00 | 1 | BAFFLE FAN | B3 | |||
| 80 | 330065-25 | 4 | SCREW | B3 | |||
| 81 | 623618-00 | 1 | GASKET | B3 | |||
| 82 | 611492-00 | 1 | SLEEVE | B3 | |||
| 83 | 623562-00 | 1 | GEARCASE COVER | B3 | |||
| 84 | 385676-01 | 4 | SCREW | B3 | |||
| 85 | 631609-02 | 1 | SCREW | M5x16 SPECIAL | B3 | ||
| 87 | N079326 | 1 | WRENCH PIN | SPANNER | B3 | ||
| 88 | N239381 | 1 | SIDE HANDLE | B3 | |||
| 89 | 626999-00 | 1 | LINK | B3 | |||
| 90 | 644326-00 | 1 | BAR LOCKING | LOCK | B3 | ||
| 91 | 623608-00 | 1 | BUTTON START | B3 | |||
| 92 | 633044-00 | 1 | O RING | B3 | |||
| 93 | 633043-00 | 1 | O RING | 20.5x2.4 | B3 | ||
| 836 | 233804-36 | 1 | DRIVER | T6 | B3 |
