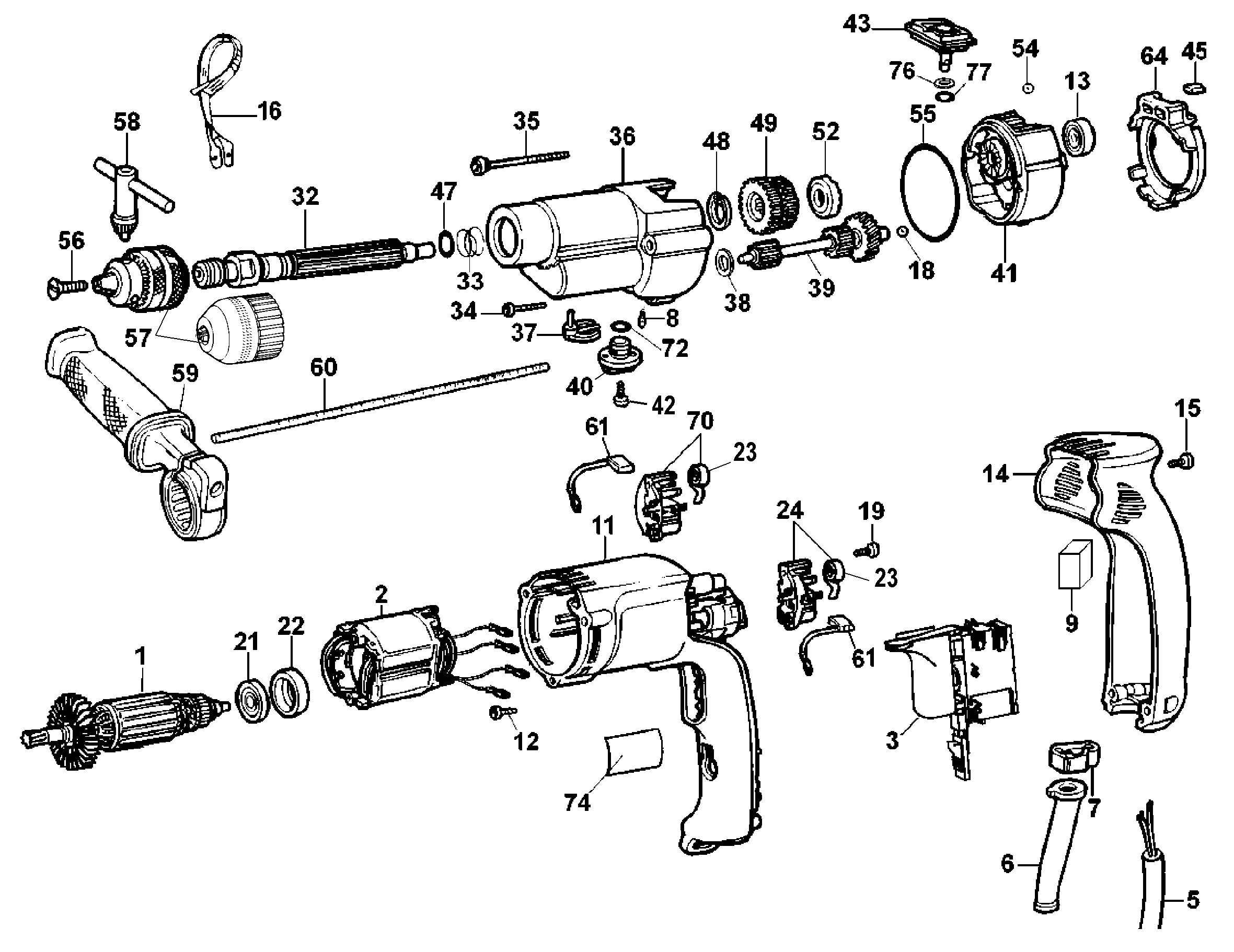

DW505 HAMMER DRILL Type 6 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | N286840 | 1 | ARMATURE ASSY. | 230V PKGD 387614-06 | AR | ||
| 2 | N084279 | 1 | FIELD | AR | |||
| 3 | 1006250-00 | 1 | SWITCH SA | AR | |||
| 5 | 330122-75 | 1 | CORD | AR | |||
| 6 | 330005-01 | 1 | CORD PROTECTOR | AR | |||
| 7 | 176832-00 | 1 | CORD CLAMP | AR | |||
| 8 | 326467-00 | 3 | DETENT | AR | |||
| 9 | 930026-01 | 1 | BUMPER | AR | |||
| 11 | 390005-08 | 1 | FIELDCASE SA | AR | |||
| 12 | 390198-00 | 2 | SCREW | AR | |||
| 13 | 605040-25 | 1 | BEARING,BALL | AR | |||
| 14 | 610142-02 | 1 | HANDLE COVER | AR | |||
| 15 | 330019-13 | 3 | SCREW | M4X19 T20 | AR | ||
| 16 | 065288-02 | 1 | HOLDER | AR | |||
| 18 | 936840-00 | 1 | BALL STEEL | AR | |||
| 19 | 330065-06 | 1 | SCREW | AR | |||
| 21 | 330003-04 | 1 | BEARING | AR | |||
| 22 | 389824-00 | 1 | BOOT | AR | |||
| 23 | 402759-00 | 2 | BRUSH SPRING | AR | |||
| 24 | N440283 | 1 | BRUSH HOLDER,L | AR | |||
| 32 | 628831-00 | 1 | SPINDLE | AR | |||
| 33 | 931890-00 | 1 | SPRING | AR | |||
| 34 | 330019-14 | 1 | SCREW | AR | |||
| 35 | 396614-00 | 2 | SCREW | AR | |||
| 36 | N407393 | 1 | GEARCASE | AR | |||
| 37 | 626218-00 | 1 | SPEED SELECTOR | AR | |||
| 38 | 932933-00 | 1 | WASHER | AR | |||
| 39 | 401741-00SV | 1 | SPINDLE&GR.ASY | AR | |||
| 40 | 626023-00 | 1 | SPEED DIAL | AR | |||
| 41 | 619562-01SV | 1 | GEAR CASE COVER | AR | |||
| 42 | 330045-07 | 1 | SCREW | AR | |||
| 43 | 401750-00SV | 1 | LEVER ASSY | AR | |||
| 45 | 949638-02 | 2 | DAMPER | AR | |||
| 47 | 930028-00 | 1 | O RING | AR | |||
| 48 | 144803-00 | 1 | CIRCLIP | AR | |||
| 49 | 397239-01 | 1 | GEAR | AR | |||
| 52 | 945706-00 | 1 | RATCHET | AR | |||
| 54 | 000903-00 | 1 | BALL | AR | |||
| 55 | 401847-00 | 1 | SEAL | AR | |||
| 56 | 605256-01 | 1 | SCREW | AR | |||
| 57 | 5140071-68 | 1 | CHUCK 13MM | AR | |||
| 58 | N022653 | 1 | CHUCK KEY | AR | |||
| 59 | N429860 | 1 | SIDE HANDLE | 939794-00 | AR | ||
| 60 | 940357-00 | 1 | DEPTH STOP | AR | |||
| 61 | 176949-21 | 2 | BRUSH | AR | |||
| 64 | 176811-00 | 1 | BAFFLE | AR | |||
| 70 | N440282 | 1 | BRUSH HOLDER,R | AR | |||
| 72 | 61145-00 | 1 | SEAL | AR | |||
| 74 | 395047-00 | 1 | BRAND LABEL | AR | |||
| 76 | 176659-00 | 1 | WASHER | AR | |||
| 77 | 050050-00 | 1 | RING | AR |
