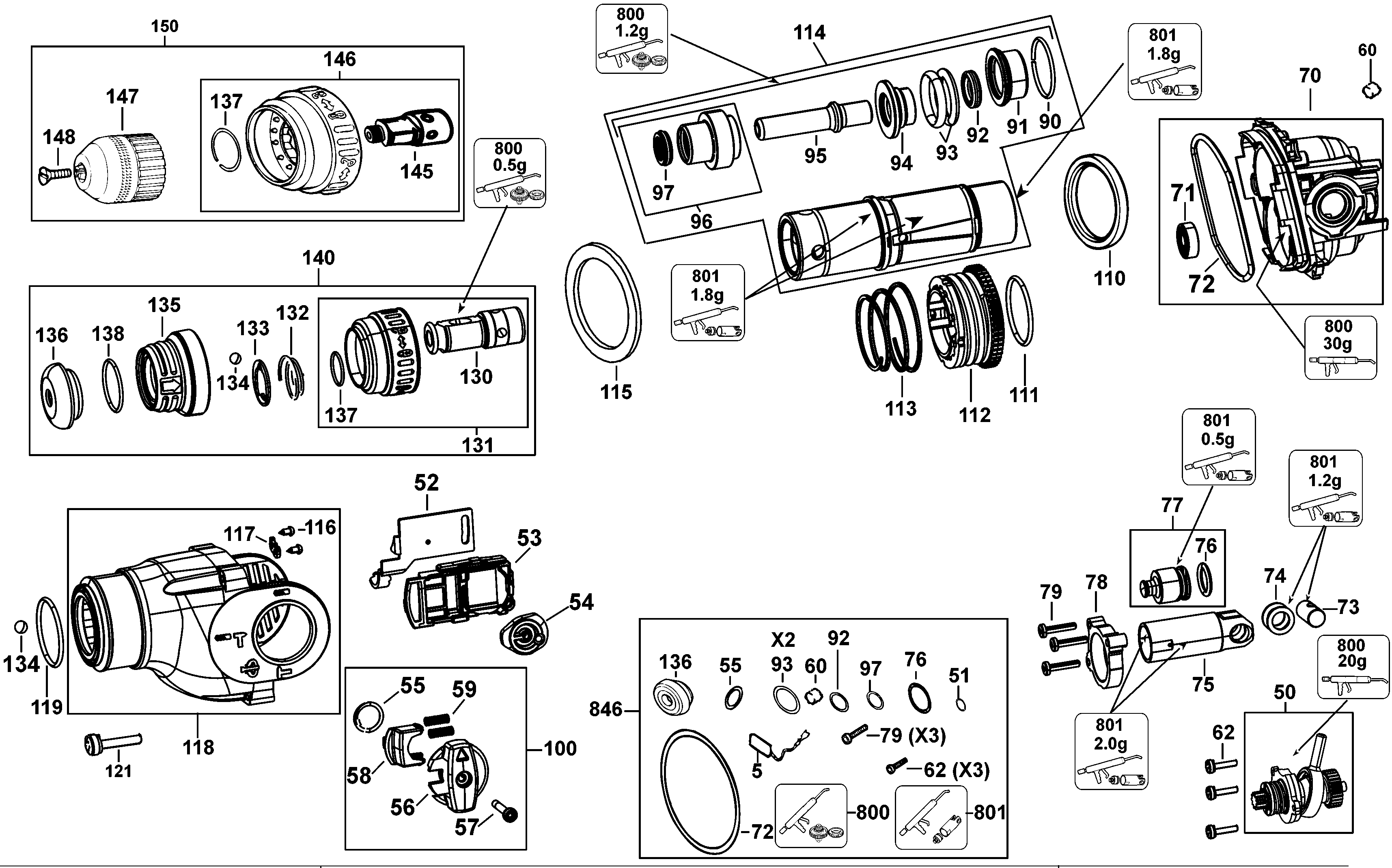

D25114K ROTARY HAMMER Type 2 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 496248-00 | 1 | ARMATURE 230V | AR | |||
| 2 | 576690-05 | 1 | FIELD 230V | AR | |||
| 3 | 583748-09 | 1 | SWITCH | AR | |||
| 4 | 577830-02 | 2 | BRUSH HOLDER SA | 230 Volt | AR | ||
| 4 | N028619 | 2 | BRUSH HOLDER SA | AR | |||
| 5 | 585475-00 | 1 | BRUSH PAIR 230V | AR | |||
| 5 | N058083 | 1 | BRUSH PAIR 230V | 230V | AR | ||
| 6 | 320842-19 | 1 | CAPACITOR | AR | |||
| 7 | 584090-00 | 1 | CORD PROTECTOR | AR | |||
| 8 | 573379-15 | 1 | CORDSET | AR | |||
| 12 | 584304-00 | 1 | LEAD WHITE | AR | |||
| 13 | 584304-10 | 1 | LEAD BLUE | AR | |||
| 14 | 584304-04 | 1 | LEAD BLACK | AR | |||
| 15 | 584304-05 | 1 | LEAD VIOLET | AR | |||
| 18 | 930026-01 | 1 | BUMPER | AR | |||
| 19 | 479818-00 | 1 | LEVER | AR | |||
| 21 | 870052 | 1 | SLEEVE | AR | |||
| 22 | 324006-14 | 2 | SCREW | AR | |||
| 23 | 326519-03 | 4 | SCREW | AR | |||
| 25 | 330003-19 | 1 | BEARING | AR | |||
| 29 | 584551-00 | 1 | INSERT | AR | |||
| 31 | 577826-00 | 1 | BAFFLE FAN | AR | |||
| 32 | 577810-00 | 1 | FIELDCASE | AR | |||
| 34 | 479817-00 | 1 | HANDLE COVER | AR | |||
| 35 | 330065-06 | 4 | SCREW | AR | |||
| 36 | 821070 | 1 | CORD CLAMP | AR | |||
| 37 | 330065-09 | 1 | SCREW | AR | |||
| 40 | 330065-25 | 2 | SCREW | AR | |||
| 50 | 585480-00 | 1 | INTERSHAFT SA | AR | |||
| 51 | 580907-00 | 1 | O RING | 5x1 | AR | ||
| 52 | 578271-00 | 1 | PLATE | AR | |||
| 53 | 579564-00 | 1 | HOLDER | AR | |||
| 54 | 1006437-00 | 1 | SELECTOR | AR | |||
| 55 | 584638-00 | 1 | O RING | 14x2 | AR | ||
| 56 | 1006434-00 | 1 | KNOB | AR | |||
| 57 | 324007-15 | 1 | SCREW | M4 X 20; M4 X 25 | AR | ||
| 58 | 1006435-00 | 1 | TRIGGER | AR | |||
| 59 | 1008957-00 | 2 | SPRING | AR | |||
| 60 | 582865-00 | 2 | FILTER | AR | |||
| 62 | 583981-00 | 3 | SCREW | 4x16 | AR | ||
| 70 | N031253 | 1 | HOUSING SA | AR | |||
| 71 | 330003-31 | 1 | BEARING | AR | |||
| 72 | 578229-00 | 1 | SEAL | AR | |||
| 73 | 577801-00 | 1 | BEARING BLOCK | AR | |||
| 74 | 577802-00 | 1 | WASHER SHIM | AR | |||
| 75 | 496246-00 | 1 | PISTON | AR | |||
| 76 | 579699-00 | 1 | O RING | AR | |||
| 77 | 496245-00 | 1 | RAM | AR | |||
| 78 | N042808 | 1 | BEARING BUSH | AR | |||
| 79 | 324006-15 | 3 | SCREW | AR | |||
| 90 | 577793-00 | 1 | CLIP | AR | |||
| 91 | 584426-00 | 1 | BUSH | AR | |||
| 92 | 580990-00 | 1 | O RING | AR | |||
| 93 | 577135-00 | 2 | O RING | AR | |||
| 94 | 584425-00 | 1 | DAMPER | AR | |||
| 95 | 584424-01 | 1 | BEAT PIECE | AR | |||
| 96 | 584423-01 | 1 | BEARING & SEAL | AR | |||
| 97 | 577139-00 | 1 | SEAL | AR | |||
| 100 | N031251 | 1 | LEVER KIT | AR | |||
| 110 | 577797-00 | 1 | WASHER | AR | |||
| 111 | 577744-00 | 1 | O RING | 25.5 X 2 | AR | ||
| 112 | 587482-00 | 1 | CLUTCH SA | AR | |||
| 113 | 579178-00 | 1 | SPRING | AR | |||
| 114 | 584422-01 | 1 | CYLINDER SA | AR | |||
| 115 | 577814-00 | 1 | WASHER | AR | |||
| 116 | 330065-05 | 2 | SCREW | AR | |||
| 117 | 580291-00 | 1 | LOCKING DEVICE | AR | |||
| 118 | 586499-00 | 1 | GEARCASE SA | AR | |||
| 119 | 577795-00 | 1 | RING | AR | |||
| 121 | 330065-13 | 4 | SCREW | AR | |||
| 130 | N031254 | 1 | SPINDLE | QCC | AR | ||
| 131 | 584431-00 | 1 | SLEEVE SA | QCC | AR | ||
| 132 | 871690 | 1 | SPRING | AR | |||
| 133 | 578387-00 | 1 | WASHER | AR | |||
| 134 | 583890-00 | 5 | BALL | AR | |||
| 135 | N542554 | 1 | TUBE | AR | |||
| 136 | 323489-00 | 1 | CAP | AR | |||
| 137 | 579212-00 | 2 | RING | AR | |||
| 138 | 579212-00 | 1 | RING | AR | |||
| 140 | N591846 | 1 | CHUCK SA | SDS PLUS | AR | ||
| 145 | 584676-00 | 1 | SPINDLE | AR | |||
| 146 | 584556-00 | 1 | SPINDLE SA | NCCC | AR | ||
| 147 | 582512-02 | 1 | CHUCK KEYLESS | AR | |||
| 148 | 605256-02 | 1 | SCREW | AR | |||
| 150 | N591847 | 1 | CHUCK & SPINDLE SA | Dewalt | AR | ||
| 160 | 589467-00 | 1 | SIDE HANDLE | AR | |||
| 170 | 495699-00 | 1 | DEPTH STOP | AR | |||
| 800 | 870889-02 | 1 | GREASE | AR | |||
| 801 | 487130-04 | 1 | GREASE | GLK FLUID 249 NLGI 000 (10G SERVICE) | AR | ||
| 817 | 496620-00 | 1 | LABEL | AR | |||
| 821 | N045679 | 1 | RATING PLATE | AR | AR | ||
| 861 | 577646-01 | 1 | KITBOX | AR |
