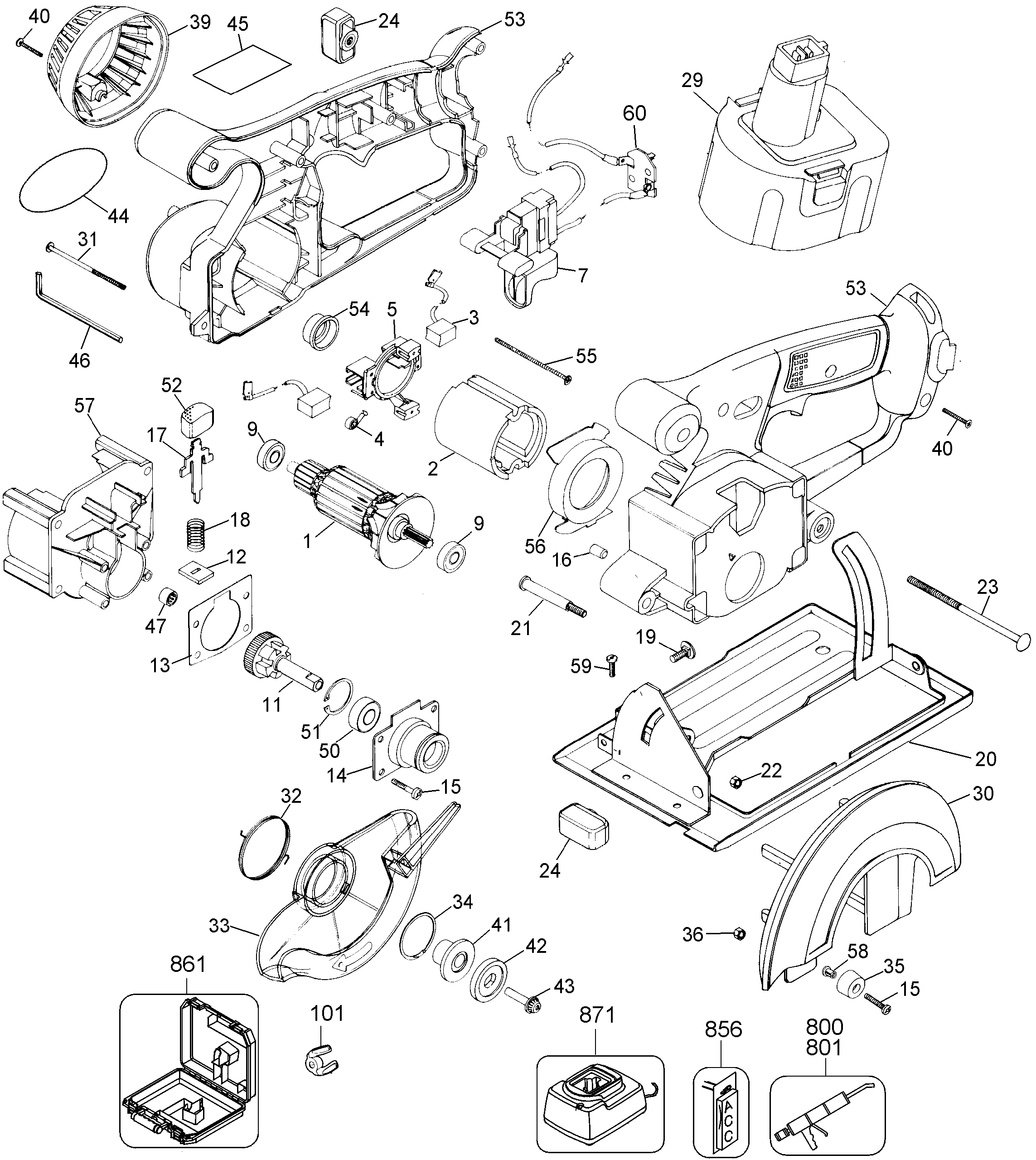

DW935K TRIM SAW Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 429906-00 | 1 | MOTOR SA | B3 | |||
| 2 | 388232-01SV | 1 | MAGNET | B3 | |||
| 3 | 387558-01 | 2 | BRUSH & LEAD | B3 | |||
| 4 | 445860-00 | 2 | BRUSH SPRING | B3 | |||
| 5 | 382178-01 | 1 | BRUSH FRAME | B3 | |||
| 7 | N062230 | 1 | SWITCH,TRIGGER | INC 60 | B3 | ||
| 9 | 330003-04 | 2 | BEARING | B3 | |||
| 11 | 384936-00SV | 1 | GEARSHAFT SA | 44 TEETH | B3 | ||
| 12 | 393004-00 | 1 | WIPER | B3 | |||
| 13 | 150181-00 | 1 | GASKET | B3 | |||
| 14 | 150392-01 | 1 | GEARCASE COVER | B3 | |||
| 15 | 330045-06 | 5 | SCREW | B3 | |||
| 16 | 032731-00 | 1 | PLUG | B3 | |||
| 17 | 150389-00 | 1 | SPINDLE LOCK | B3 | |||
| 18 | 058698-00 | 1 | SPRING | B3 | |||
| 19 | N091970 | 1 | CARRIAGE BOLT | M6x1.0x15mm NYLOK | B3 | ||
| 20 | 150371-02 | 1 | SHOE ASSY | B3 | |||
| 21 | 396631-00 | 1 | SCREW | B3 | |||
| 22 | 148641-00 | 1 | LOCK-NUT | B3 | |||
| 23 | 098128-97 | 1 | BOLT | B3 | |||
| 24 | 395889-00 | 2 | KNOB | B3 | |||
| 29 | 615824-12 | 1 | BATTERY 14.4V - 2.0AH - 29WH | DC9091, NI-CD | ACC | B3 | |
| 30 | 150083-02 | 1 | GUARD UPPER | B3 | |||
| 31 | 398987-00 | 4 | SCREW | B3 | |||
| 32 | 605014-00 | 1 | SPRING | B3 | |||
| 33 | 380969-00 | 1 | GUARD LOWER | B3 | |||
| 34 | 150383-00 | 1 | RETAINER | B3 | |||
| 35 | 445625-01 | 1 | BUMPER | B3 | |||
| 36 | 330021-00 | 1 | STOP NUT | B3 | |||
| 39 | 150386-00 | 1 | END CAP | B3 | |||
| 40 | 330019-04 | 7 | SCREW | B3 | |||
| 41 | 150369-02 | 1 | WASHER INNER CLAMP | B3 | |||
| 42 | 150376-00 | 1 | WASHER OUTER CLAMP | B3 | |||
| 43 | 150384-00 | 1 | BLADE BOLT | L.H. | B3 | ||
| 44 | 396062-00 | 1 | IDENTITY LABEL | B3 | |||
| 45 | 382847-01 | 1 | NAMEPLATE | B3 | |||
| 46 | 497570-02 | 1 | KEY | 4mm | B3 | ||
| 47 | 093128-00 | 1 | BEARING NEEDLE | B3 | |||
| 50 | 605040-15 | 1 | BEARING,BALL | NPP | B3 | ||
| 51 | 037464-00 | 1 | RETAINING RING | B3 | |||
| 52 | 145350-00 | 1 | BUTTON | B3 | |||
| 53 | 380968-01 | 1 | CLAMSHELL PAIR | B3 | |||
| 54 | 445217-02 | 1 | SLEEVE | B3 | |||
| 55 | 448269-00 | 2 | SCREW | B3 | |||
| 56 | 150370-00 | 1 | FAN | B3 | |||
| 57 | 150374-00 | 1 | GEARCASE | INC 9, 47 | B3 | ||
| 58 | 091963-13 | 1 | EYELET | B3 | |||
| 59 | 098003-11 | 1 | SCREW | B3 | |||
| 60 | 285371-00 | 1 | TERMINAL BLOCK | B3 | |||
| 101 | 084317-00 | 1 | NUT,WING | B3 | |||
| 800 | 761995-01 | 1 | GREASE | 180 Grams | 6 OZ | CVJ GREASE | B3 | |
| 801 | 283484-01 | 1 | GREASE | 32oz, EXXON CVJ | B3 | ||
| 856 | DW9055 | 1 | 5-3/8 16T CARBIDE | 16 TEETH | B3 | ||
| 861 | 380865-02 | 1 | HANDLE FRAME KIT | B3 | |||
| 861 | 395328-00 | 1 | KIT BOX | B3 | |||
| 861 | 637475-00 | 2 | LATCH ASSEMBLY | B3 | |||
| 871 | DW9107-B3 | 1 | CHARGER | B3 |
