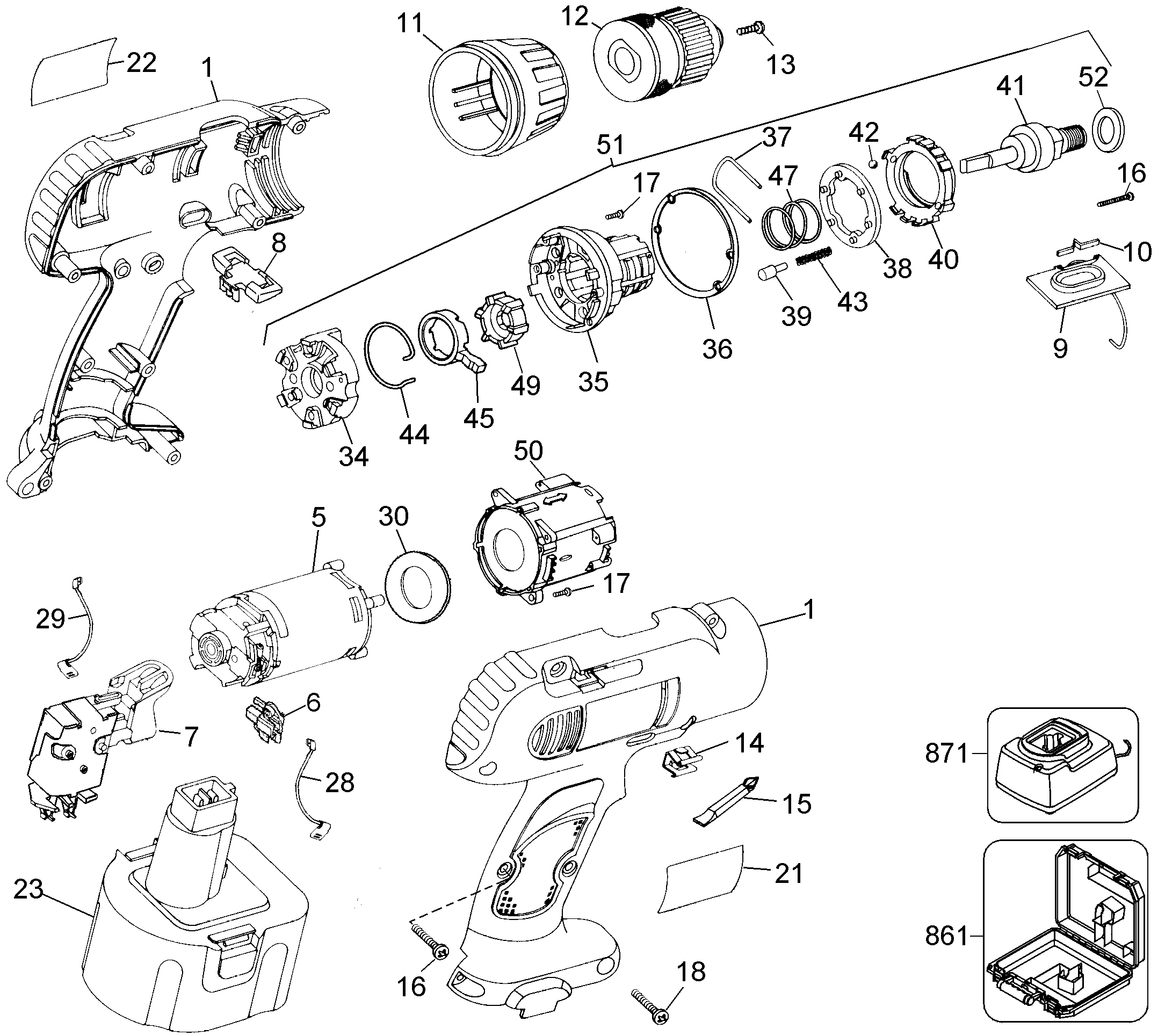

DW997K CORDLESS DRILL Type 5 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 397361-03SV | 1 | CLAMSHELL SET | B3 | |||
| 5 | 393111-15 | 1 | MOTOR & PINION | B3 | |||
| 6 | 389025-00SV | 2 | BRUSH PAIR KIT | CONTAINS ITEMS 28 & 29 | B3 | ||
| 7 | 152274-19SV | 1 | SWITCH | B3 | |||
| 8 | 391114-00 | 1 | BUTTON | B3 | |||
| 9 | 153281-03 | 1 | SLIDER SA | B3 | |||
| 10 | 144658-00 | 1 | SPRING | B3 | |||
| 11 | 799013-01 | 1 | RING | B3 | |||
| 12 | 330075-45 | 1 | CHUCK KEYLESS | 1/2 IN. CAPACITY | B3 | ||
| 13 | 605256-01 | 1 | SCREW | LH | B3 | ||
| 14 | 148354-03 | 2 | HOLDER | B3 | |||
| 15 | 607918-41 | 1 | BIT SCREWDRIVER | B3 | |||
| 16 | 330019-00 | 5 | SCREW | M3x16 T10 PLASTITE | B3 | ||
| 17 | 98091-11 | 6 | SCREW | B3 | |||
| 18 | 330019-04 | 7 | SCREW | B3 | |||
| 22 | 395657-00 | 1 | BRAND LABEL | B3 | |||
| 23 | DW9095 | 1 | 18V BATTERY PACK | ACC | B3 | ||
| 28 | 388913-00 | 1 | LEAD RED | B3 | |||
| 29 | 388914-00 | 1 | LEAD BLACK | B3 | |||
| 30 | 152482-00 | 1 | SEAL | B3 | |||
| 34 | 370506-03 | 1 | END CAP | B3 | |||
| 35 | 798966-01 | 1 | HOUSING SA | B3 | |||
| 36 | 805004-00 | 1 | WASHER | B3 | |||
| 37 | 798959-00 | 1 | CLIP | B3 | |||
| 38 | 380792-00 | 1 | PLATE | B3 | |||
| 39 | 387058-00 | 6 | PIN | B3 | |||
| 40 | 798709-00 | 1 | NUT | B3 | |||
| 41 | 391486-00 | 1 | SPINDLE SA | 1/2-20 THREAD | B3 | ||
| 42 | 386690-00 | 6 | BALL | STEEL, 5MM | B3 | ||
| 43 | 152347-00 | 6 | SPRING | B3 | |||
| 44 | 395300-00 | 1 | SPRING | B3 | |||
| 45 | 384917-00 | 1 | CAM | B3 | |||
| 47 | 799981-00 | 1 | SPRING | B3 | |||
| 49 | 384919-00 | 1 | RATCHET FIXED | B3 | |||
| 50 | 390629-01SV | 1 | TRANSMISSION | B3 | |||
| 51 | 391106-12 | 1 | COMBI MODULE | 16, 17, 34-45, 47,49 | B3 | ||
| 52 | 395468-00 | 1 | WASHER | B3 | |||
| 861 | 660141-00 | 1 | KITBOX | B3 |
