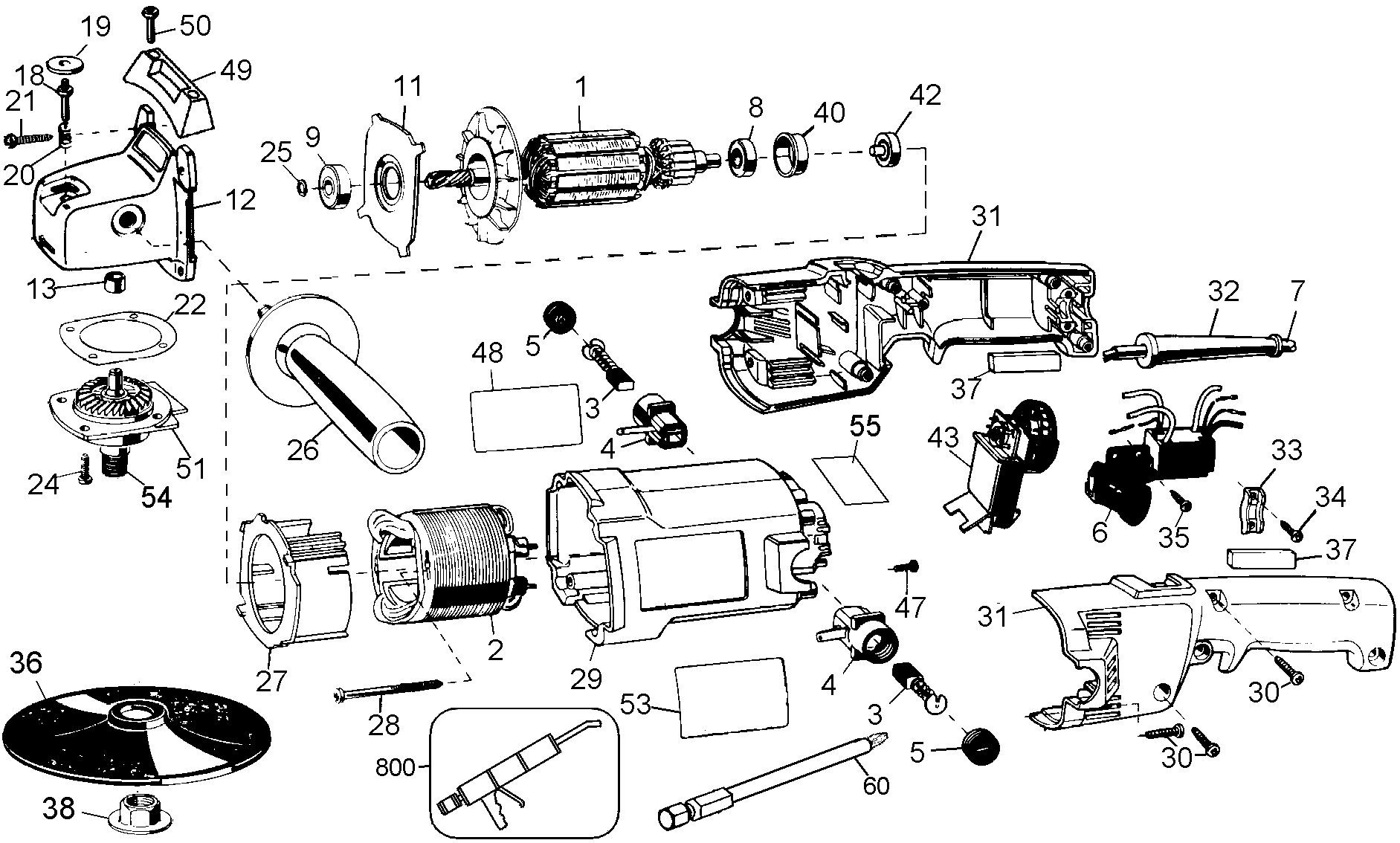

DW849 POLISHER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 448519-08SV | 1 | ARMATURE & FAN | 6 TETH;INC 8,9,11,25 | AR | ||
| 2 | 448171-75SV | 1 | FIELD | AR | |||
| 3 | 450374-12 | 2 | BRUSH & SPRING | AR | |||
| 4 | 448083-01 | 2 | BRUSHBOX SA | AR | |||
| 5 | 448084-01 | 2 | BRUSH CAP | AR | |||
| 6 | 450892-03 | 1 | SWITCH 115V | AR | |||
| 7 | 330080-91 | 1 | CORD & PLUG | AR | |||
| 8 | 330003-04 | 1 | BEARING | AR | |||
| 9 | 605040-20 | 1 | BEARING | 12 x 28 x 8mm | AR | ||
| 11 | 448079-00 | 1 | PLATE | AR | |||
| 12 | 448506-07SV | 1 | CASE-GEAR | INC 13 | AR | ||
| 13 | 449852-00 | 1 | SLEEVE BEARING | AR | |||
| 18 | 447827-00 | 1 | PIN | AR | |||
| 19 | 448127-01 | 1 | WASHER | AR | |||
| 20 | 448136-00 | 1 | SPRING | AR | |||
| 21 | 330019-15 | 4 | SCREW | AR | |||
| 22 | 5140120-49 | 1 | GASKET | PCKG'D 143106-00 | AR | ||
| 24 | 158472-00 | 4 | SCREW | AR | |||
| 25 | 696060-00 | 1 | RETAINER | AR | |||
| 26 | 086319-19 | 1 | SIDE HANDLE | AR | |||
| 27 | 447786-00 | 1 | BAFFLE FAN | AR | |||
| 28 | 330044-23 | 2 | SCREW | AR | |||
| 29 | 447799-08 | 1 | FIELDCASE | AR | |||
| 30 | 330019-13 | 8 | SCREW | M4X19 T20 | AR | ||
| 31 | 632220-01 | 1 | CONVERSION KIT | AR | |||
| 32 | 330005-01 | 1 | CORD PROTECTOR | AR | |||
| 33 | 86634-00 | 1 | CORD CLAMP | AR | |||
| 34 | 330019-03 | 2 | SCREW | AR | |||
| 35 | 330019-01 | 1 | SCREW | AR | |||
| 36 | 146546-01 | 1 | PAD | 6.5 INCH, RUBBER | AR | ||
| 37 | 150844-00 | 2 | PAD | AR | |||
| 38 | 636574-00 | 1 | WASHER CLAMP | AR | |||
| 40 | 445217-02 | 1 | SLEEVE | AR | |||
| 42 | 148210-01 | 1 | MAGNET | AR | |||
| 43 | 381848-01 | 1 | MODULE | AR | |||
| 47 | 330019-02 | 1 | SCREW | AR | |||
| 48 | 614748-00 | 1 | NAMEPLATE | AR | |||
| 49 | 148622-00 | 1 | BUMPER | AR | |||
| 50 | 133895-00 | 2 | SCREW | AR | |||
| 51 | 449706-09SV | 1 | SPINDLE & GEAR | M14x2 | M14 x 2 THREAD | AR | |
| 53 | 627212-00 | 1 | BRAND LABEL | DEWALT | AR | ||
| 54 | 150087-01 | 1 | SPINDLE | M14 | AR | ||
| 55 | 604971-00 | 1 | LABEL, CAUTION | AR | |||
| 60 | 233720-02 | 1 | BIT SCREWDRIVER | AR | |||
| 800 | 429698-00 | 1 | GREASE | BD-L 2 | AR |
