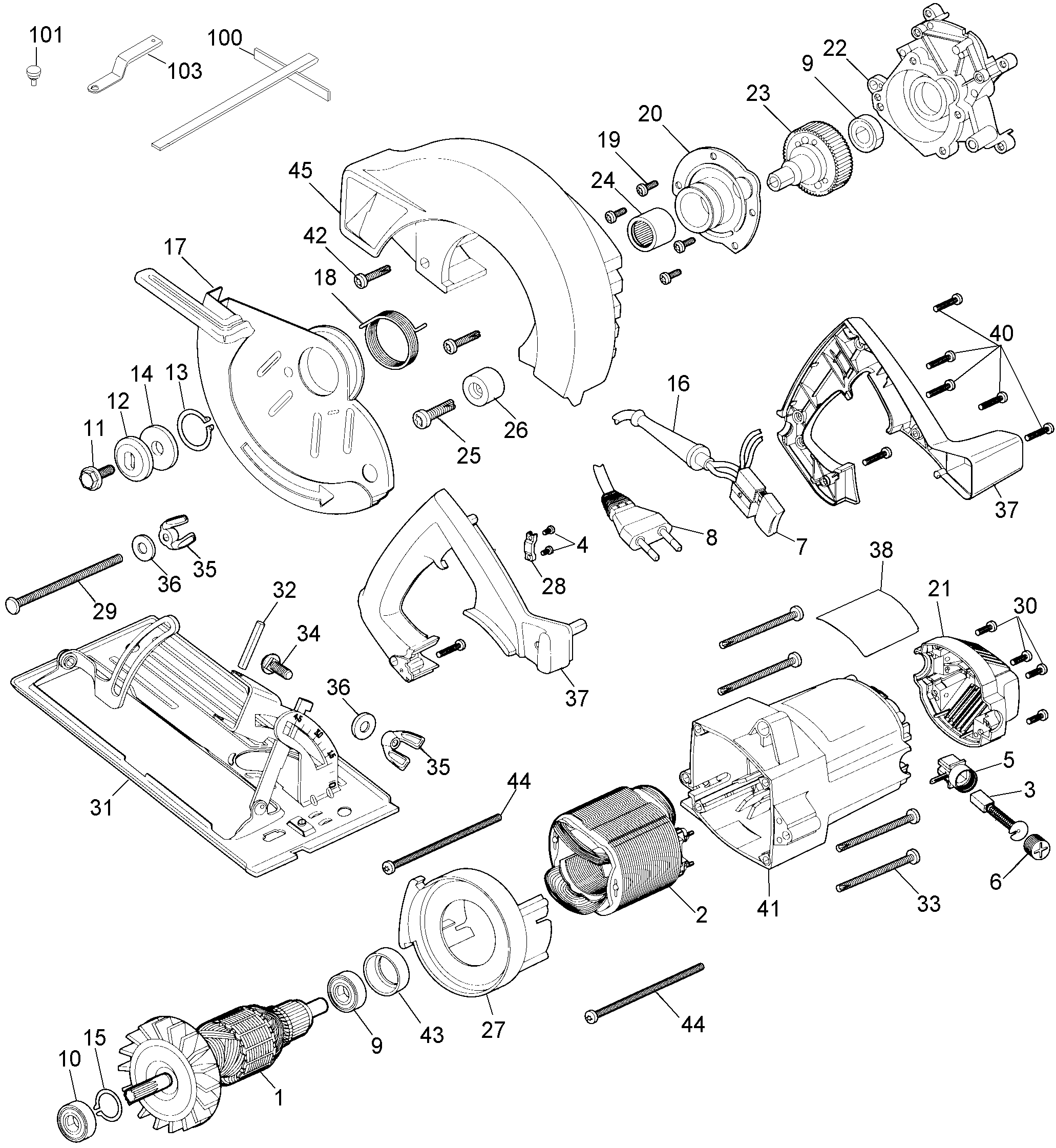

DW352 CIRCULAR SAW Type 2 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 186395-00 | 1 | ARMATURE KIT | 120V | BR | ||
| 2 | 185438-00 | 1 | FIELD | 120V | BR | ||
| 3 | 450374-12 | 2 | BRUSH & SPRING | BR | |||
| 4 | 562097-00 | 2 | SCREW | BR | |||
| 5 | 448083-01 | 2 | BRUSHBOX SA | BR | |||
| 6 | 448084-01 | 2 | BRUSH CAP | BR | |||
| 7 | 380772-00 | 1 | SWITCH | BR | |||
| 8 | 185713-00 | 1 | CORD | BR | |||
| 9 | 330003-04 | 2 | BEARING | BR | |||
| 10 | 605040-20 | 1 | BEARING | 12 x 28 x 8mm | BR | ||
| 11 | 70907-00 | 1 | SCREW | BR | |||
| 12 | 142950-00 | 1 | WASHER OUTER CLAMP | BR | |||
| 13 | 133876-00 | 1 | RETAINER | BR | |||
| 14 | 142949-00 | 1 | BLADE CLAMP | BR | |||
| 15 | 696060-00 | 1 | RETAINER | BR | |||
| 16 | 330005-01 | 1 | CORD PROTECTOR | BR | |||
| 17 | 646470-00 | 1 | GUARD LOWER | BR | |||
| 18 | 187610-00 | 1 | SPRING | BR | |||
| 19 | 158472-00 | 4 | SCREW | BR | |||
| 20 | 155455-00 | 1 | GEARCASE COVER | INC 24 | BR | ||
| 21 | 449460-01 | 1 | END CAP | BR | |||
| 22 | 153170-00 | 1 | GEARCASE | BR | |||
| 23 | 155461-02 | 1 | SPINDLE & GEAR | 48 TEETH | BR | ||
| 24 | 70473-00 | 1 | BEARING | BR | |||
| 25 | 131890-00 | 1 | SCREW | BR | |||
| 26 | 131982-00 | 1 | BUMPER | BR | |||
| 27 | 155453-00 | 1 | BAFFLE | BR | |||
| 28 | 185328-00 | 1 | CORD CLAMP | BR | |||
| 29 | 679139-00 | 1 | SCREW | BR | |||
| 30 | 330013-13 | 4 | SCREW | BR | |||
| 31 | 95100-19 | 1 | SHOE | BR | |||
| 32 | 695197-00 | 1 | ROLLPIN | BR | |||
| 33 | 142881-00 | 4 | SCREW | BR | |||
| 34 | 38910-00 | 1 | SCREW | BR | |||
| 35 | 090914-00 | 2 | WING NUT | BR | |||
| 36 | 5130830-00 | 2 | WASHER | BR | |||
| 37 | 385668-07 | 1 | HANDLE SA | BR | |||
| 38 | 185215-00 | 1 | NAME PLATE | BR | |||
| 40 | 330019-14 | 6 | SCREW | BR | |||
| 41 | 155452-00 | 1 | FIELD CASE | BR | |||
| 42 | 399729-00 | 2 | SCREW | BR | |||
| 43 | 445217-02 | 1 | SLEEVE | BR | |||
| 44 | 144461-00 | 2 | SCREW.TEMP | BR | |||
| 45 | 188515-00 | 1 | GUARD UPPER | BR | |||
| 100 | 87118-00 | 1 | RIP FENCE | BR | |||
| 101 | 73199-00 | 1 | SCREW | BR | |||
| 103 | N035355 | 1 | SPANNER | BR |
