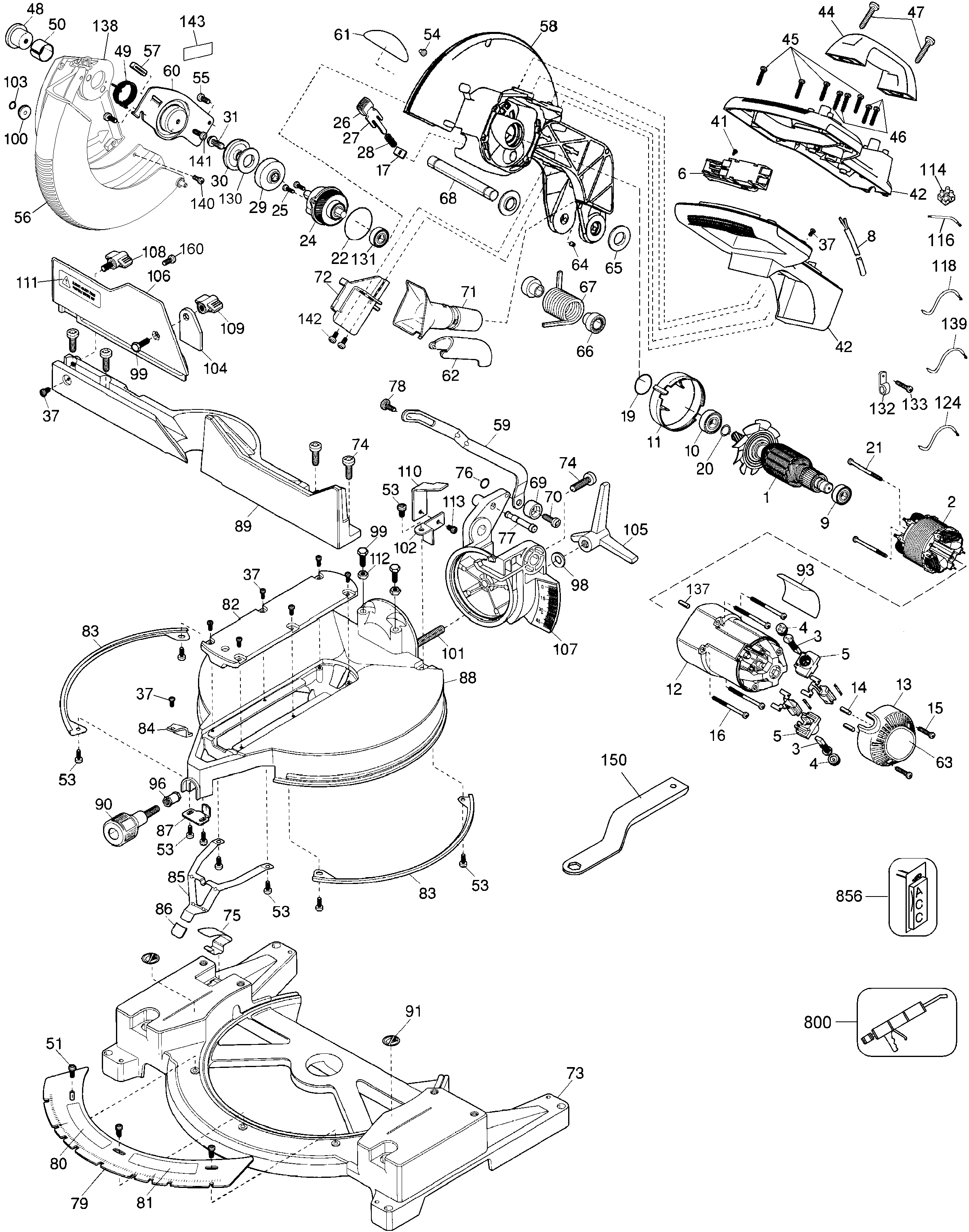

DW705 MITRE SAW Type 6 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 397200-04SV | 1 | ARMATURE SA | AR | |||
| 2 | N078041SV | 1 | FIELD | 230/240V | AR | ||
| 3 | 145323-06 | 2 | BRUSH SA | AR | |||
| 4 | 448084-01 | 2 | BRUSH CAP | AR | |||
| 5 | 147097-09 | 2 | BRUSH HOLDER SA | INC. 4 | AR | ||
| 6 | 383965-03 | 1 | SWITCH | Tyco | AR | ||
| 8 | 330080-90 | 1 | CORD & PLUG | AR | |||
| 9 | N110359 | 1 | BEARING | AR | |||
| 10 | 605040-27 | 1 | BEARING | AR | |||
| 11 | 146723-01 | 1 | BAFFLE | AR | |||
| 12 | 389786-06 | 1 | FIELD CASE | AR | |||
| 13 | 387678-00 | 1 | END CAP | AR | |||
| 14 | 87205-00 | 2 | PLUG | AR | |||
| 15 | 330019-20 | 2 | SCREW | AR | |||
| 16 | 98094-55 | 4 | SCREW | M5 X 55mm T25 | AR | ||
| 17 | 387732-00 | 1 | FELT | AR | |||
| 19 | 701297-00 | 1 | SEAL | AR | |||
| 20 | 144803-00 | 1 | CIRCLIP | AR | |||
| 21 | 330019-19 | 2 | SCREW | AR | |||
| 22 | 616961-00 | 1 | O RING | AR | |||
| 24 | 386824-03SV | 1 | GEAR & SPINDLE SA | 51T | AR | ||
| 25 | 330045-14 | 3 | SCREW | AR | |||
| 26 | 145350-00 | 1 | BUTTON | AR | |||
| 27 | 146714-00 | 1 | LOCK | AR | |||
| 28 | 058698-00 | 1 | SPRING | AR | |||
| 29 | 141987-04 | 1 | WASHER INNER CLAMP | AR | |||
| 30 | 151962-01 | 1 | CLAMP OUTER | AR | |||
| 31 | 145344-01 | 1 | BLADE BOLT | M8 X 20 LH | AR | ||
| 37 | 330045-05 | 8 | SCREW | AR | |||
| 41 | 330019-12 | 1 | SCREW | AR | |||
| 42 | 395674-02 | 1 | HANDLE & COVER | AR | |||
| 44 | 396375-00 | 1 | Handle | AR | |||
| 45 | 330019-32 | 4 | SCREW | AR | |||
| 46 | 330045-08 | 4 | SCREW | AR | |||
| 47 | 330019-22 | 2 | SCREW | M5.74x32 | AR | ||
| 48 | 146750-03 | 1 | RETAINING PLATE | AR | |||
| 49 | N034013 | 1 | SPRING | AR | |||
| 50 | 148295-00 | 1 | SLEEVE | AR | |||
| 51 | 153778-02 | 3 | SCREW | AR | |||
| 53 | 151891-00 | 9 | SCREW | AR | |||
| 54 | 148608-00 | 2 | INSERT | AR | |||
| 55 | 394589-01 | 2 | SCREW | AR | |||
| 56 | 391285-00 | 1 | GUARD LOWER | AR | |||
| 57 | 146768-00 | 1 | BUMPER | AR | |||
| 58 | 387695-02SV | 1 | ARM | AR | |||
| 59 | 146752-02 | 1 | LINK | AR | |||
| 60 | 429986-00 | 1 | PLATE | INCL. 55 | AR | ||
| 61 | 605188-00 | 1 | LABEL, IDENT | AR | |||
| 62 | 148520-00 | 1 | DEFLECTOR | AR | |||
| 63 | 605189-00 | 1 | NAMEPLATE | AR | |||
| 64 | 150075-00 | 2 | SCREW | AR | |||
| 65 | 148296-00 | 2 | WASHER | AR | |||
| 66 | 146732-00 | 2 | SPACER | AR | |||
| 67 | N039404 | 1 | SPRING | AR | |||
| 68 | 146751-00 | 1 | SHAFT | AR | |||
| 69 | 146753-00 | 1 | BUSHING | AR | |||
| 70 | 330045-32 | 1 | SCREW | AR | |||
| 71 | 146717-00 | 1 | DUCT | AR | |||
| 72 | 146772-03 | 1 | GUARD REAR | AR | |||
| 73 | 152036-02 | 1 | BASE | AR | |||
| 74 | 330045-33 | 5 | SCREW | AR | |||
| 75 | 146758-00 | 1 | SPRING | AR | |||
| 76 | 034158-00 | 1 | O RING | AR | |||
| 77 | 387130-00 | 1 | LOCKING PIN | AR | |||
| 78 | 610598-00 | 1 | SCREW | AR | |||
| 79 | 150054-09 | 1 | DETENT PLATE | INCL. 80, 81 | AR | ||
| 80 | 155446-00 | 1 | LABEL,WARNING | AR | |||
| 81 | 155447-00 | 1 | LABEL,WARNING | AR | |||
| 82 | 146726-02 | 1 | PLATE | AR | |||
| 83 | 146773-01 | 2 | PLATE | AR | |||
| 84 | 398693-00 | 1 | POINTER | AR | |||
| 85 | 146745-01 | 1 | DETENT | SPRING | AR | ||
| 86 | 148611-00 | 1 | COVER | AR | |||
| 87 | 148297-00 | 1 | CLAMP | AR | |||
| 88 | 429987-00 | 1 | TABLE KIT | INCL. 37, 84 | AR | ||
| 89 | 5140030-20 | 1 | FENCE SA | UNITS BUILT BEFORE 200328 | AR | ||
| 89 | 605292-01 | 1 | FENCE | UNITS BUILT 200328 AND LATER | AR | ||
| 90 | 145439-09 | 1 | KNOB | AR | |||
| 91 | 394976-00 | 2 | LABEL | WARNING | AR | ||
| 93 | 605176-01 | 1 | NAME PLATE | AR | |||
| 96 | 146733-00 | 1 | CLAMP | AR | |||
| 98 | 330016-04 | 1 | WASHER | AR | |||
| 99 | 149368-00 | 3 | SCREW | AR | |||
| 100 | 146774-00 | 1 | ROLLER | AR | |||
| 101 | 146760-01 | 1 | STUD | AR | |||
| 102 | 148292-00 | 1 | BRACKET | AR | |||
| 103 | 142273-00 | 1 | RING | AR | |||
| 104 | 146737-00 | 1 | CLAMP | UNITS BUILT BEFORE 200328 | AR | ||
| 105 | 392422-00 | 1 | Handle | AR | |||
| 106 | 605259-02 | 1 | FENCE LEFT | UNITS BUILT 200328 AND LATER | AR | ||
| 106 | 146739-00 | 1 | FENCE | UNITS BUILT BEFORE 200328 | AR | ||
| 107 | 146731-01 | 1 | TRUNNION | AR | |||
| 108 | 147107-02 | 1 | KNOB LOWER | AR | |||
| 109 | 147107-01 | 1 | KNOB UPPER | UNITS BUILT BEFORE 200328 | AR | ||
| 110 | 148299-00 | 1 | POINTER | AR | |||
| 111 | 605192-00 | 1 | LABEL,WARNING | AR | |||
| 112 | 99368-04 | 2 | NUT | AR | |||
| 113 | 151895-00 | 1 | SCREW | AR | |||
| 114 | 393520-00 | 1 | TERMINAL BLOCK | AR | |||
| 116 | 398563-00 | 1 | LEAD BLACK | BLACK | AR | ||
| 118 | 398581-00 | 1 | TERMINAL & LEAD | AR | |||
| 124 | 398565-00 | 1 | LEAD WHITE | WHITE | AR | ||
| 130 | 152636-00 | 1 | BLADE HOLDER | AR | |||
| 131 | 386780-00 | 1 | BEARING | AR | |||
| 132 | 153669-00 | 1 | CORD CLAMP | AR | |||
| 133 | 330045-13 | 1 | SCREW | AR | |||
| 137 | 145312-00 | 1 | PLUG | AR | |||
| 138 | 391286-00 | 1 | GUARD PLATE | AR | |||
| 139 | 398568-00 | 1 | LEAD WHITE | AR | |||
| 140 | 394211-00 | 4 | SCREW | AR | |||
| 141 | 330045-23 | 1 | SCREW | AR | |||
| 142 | 330045-24 | 2 | SCREW | AR | |||
| 143 | 151976-00 | 1 | WARNING LABEL | AR | |||
| 150 | 145378-01 | 1 | WRENCH | AR | |||
| 160 | 330045-06 | 1 | SCREW | AR | |||
| 800 | 5140061-28 | 1 | GREASE | AR | |||
| 800 | 93488-00 | 1 | GREASE | AR | |||
| 856 | DW7050 | 1 | EXTENSION SYST. | AR | |||
| 856 | DW3123 | 1 | 32T SAW BLADE | AR | |||
| 856 | DW7052 | 1 | CLAMP | AR | |||
| 856 | 148681-00 | 1 | CROWN STOP | AR | |||
| 856 | 5140050-83 | 1 | LENGTH STOP | WAS ACCY DW7051 | AR | ||
| 856 | DW7053 | 1 | DUST BAG SA | AR |
