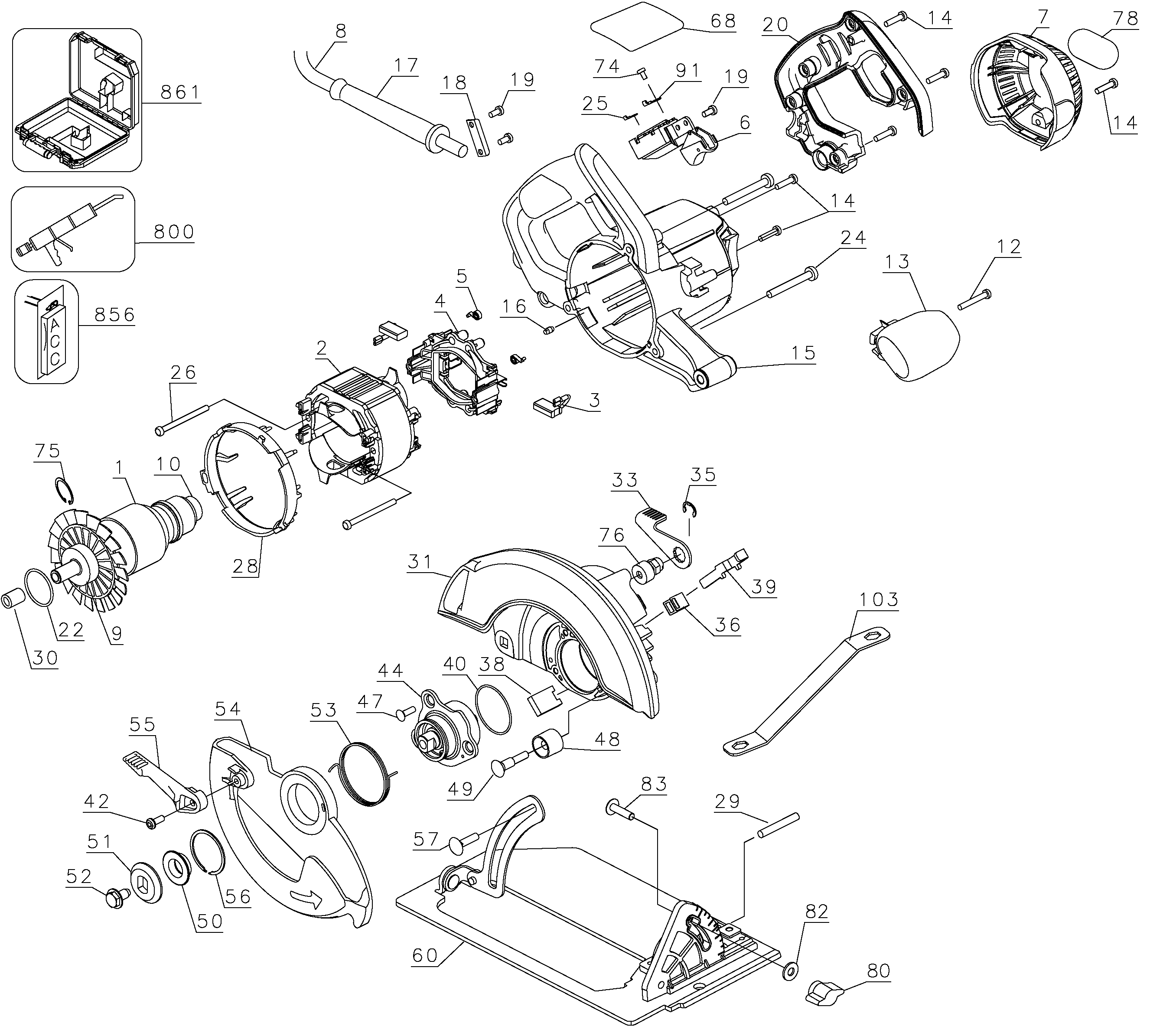

DW366 CIRCULAR SAW Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 389530-05 | 1 | ARMATURE 240V | AR | |||
| 2 | N062909 | 1 | FIELD | 230V, PACKAGED | AR | ||
| 3 | N032830 | 2 | BRUSH & LEAD | AR | |||
| 4 | N065058 | 1 | BRUSH HOLDER SA | AR | |||
| 5 | 398943-00 | 2 | BRUSH SPRING | AR | |||
| 6 | 389524-00 | 1 | SWITCH | AR | |||
| 7 | 389510-00 | 1 | END CAP | AR | |||
| 8 | 330080-94 | 1 | CORD & PLUG | AR | |||
| 9 | 605040-27 | 1 | BEARING | AR | |||
| 10 | N110359 | 1 | BEARING | AR | |||
| 12 | 330019-15 | 1 | SCREW | AR | |||
| 13 | 389553-00 | 1 | HANDLE | AR | |||
| 14 | 330019-13 | 9 | SCREW | M4X19 T20 | AR | ||
| 15 | 389511-01 | 1 | FIELD CASE | AR | |||
| 16 | 145312-00 | 1 | PLUG | AR | |||
| 17 | 330005-02 | 1 | CORD PROTECTOR | AR | |||
| 18 | 381065-00 | 1 | CORD CLAMP | AR | |||
| 19 | 330019-10 | 3 | SCREW | AR | |||
| 20 | 389519-01 | 1 | HANDLE COVER | AR | |||
| 22 | 701297-00 | 1 | SEAL | AR | |||
| 24 | 330045-21 | 3 | SCREW | AR | |||
| 25 | 053650-00 | 2 | TERMINAL | AR | |||
| 26 | 330019-30 | 2 | SCREW | AR | |||
| 28 | 389507-00 | 1 | BAFFLE | AR | |||
| 29 | 389562-00 | 1 | PIN | AR | |||
| 30 | 330004-06 | 1 | BEARING NEEDLE | AR | |||
| 31 | N036345 | 1 | GUARD UPPER | INCL. ITEM 22,30 | AR | ||
| 33 | 145347-00 | 1 | LEVER | AR | |||
| 35 | 152211-00 | 1 | RING | AR | |||
| 36 | 389506-00 | 1 | SPRING | AR | |||
| 38 | 389563-00 | 1 | SEAL | AR | |||
| 39 | 612472-00 | 1 | SPINDLE LOCK | AR | |||
| 40 | 647099-00 | 1 | O RING | AR | |||
| 42 | 098094-13 | 1 | SCREW | M5 x 13mm, Pan Hd | AR | ||
| 44 | 648222-01SV | 1 | SPINDLE & GEAR SA | AR | |||
| 47 | 647098-00 | 3 | SCREW | AR | |||
| 48 | 381066-00 | 1 | BUMPER | AR | |||
| 49 | 381075-00 | 1 | SCREW | AR | |||
| 50 | 389504-00 | 1 | WASHER INNER CLAMP | AR | |||
| 51 | 145343-01 | 1 | WASHER OUTER CLAMP | AR | |||
| 52 | 145344-00 | 1 | SCREW.SPECIAL | AR | |||
| 53 | 389501-01 | 1 | SPRING | AR | |||
| 54 | N025950 | 1 | GUARD LOWER | AR | |||
| 55 | 389572-00 | 1 | LEVER | AR | |||
| 56 | 388496-03 | 1 | RING | AR | |||
| 57 | 098128-90 | 1 | CARRIAGE BOLT | AR | |||
| 60 | N035992 | 1 | SHOE SA | AR | |||
| 68 | N051400 | 1 | NAMEPLATE | DW366-AR TY1 | AR | ||
| 74 | 384127-01 | 4 | SCREW | AR | |||
| 75 | 144803-00 | 1 | CIRCLIP | AR | |||
| 76 | 610744-00 | 1 | NUT | AR | |||
| 78 | 389549-00 | 1 | LABEL | AR | |||
| 80 | 638063-00 | 1 | KNOB | AR | |||
| 82 | 657027-00 | 1 | WASHER | AR | |||
| 83 | N038133 | 1 | BOLT | AR | |||
| 91 | 395716-00 | 2 | TERMINAL | RING | AR | ||
| 103 | N035355 | 1 | SPANNER | AR | |||
| 800 | 429698-00 | 1 | GREASE | BD-L 2 | AR | ||
| 856 | B7254524-10 | 1 | 7-1/4 24T BLADE | Not Included with unit | AR | ||
| 861 | N044228 | 1 | KITBOX | Not Included with unit | AR |
