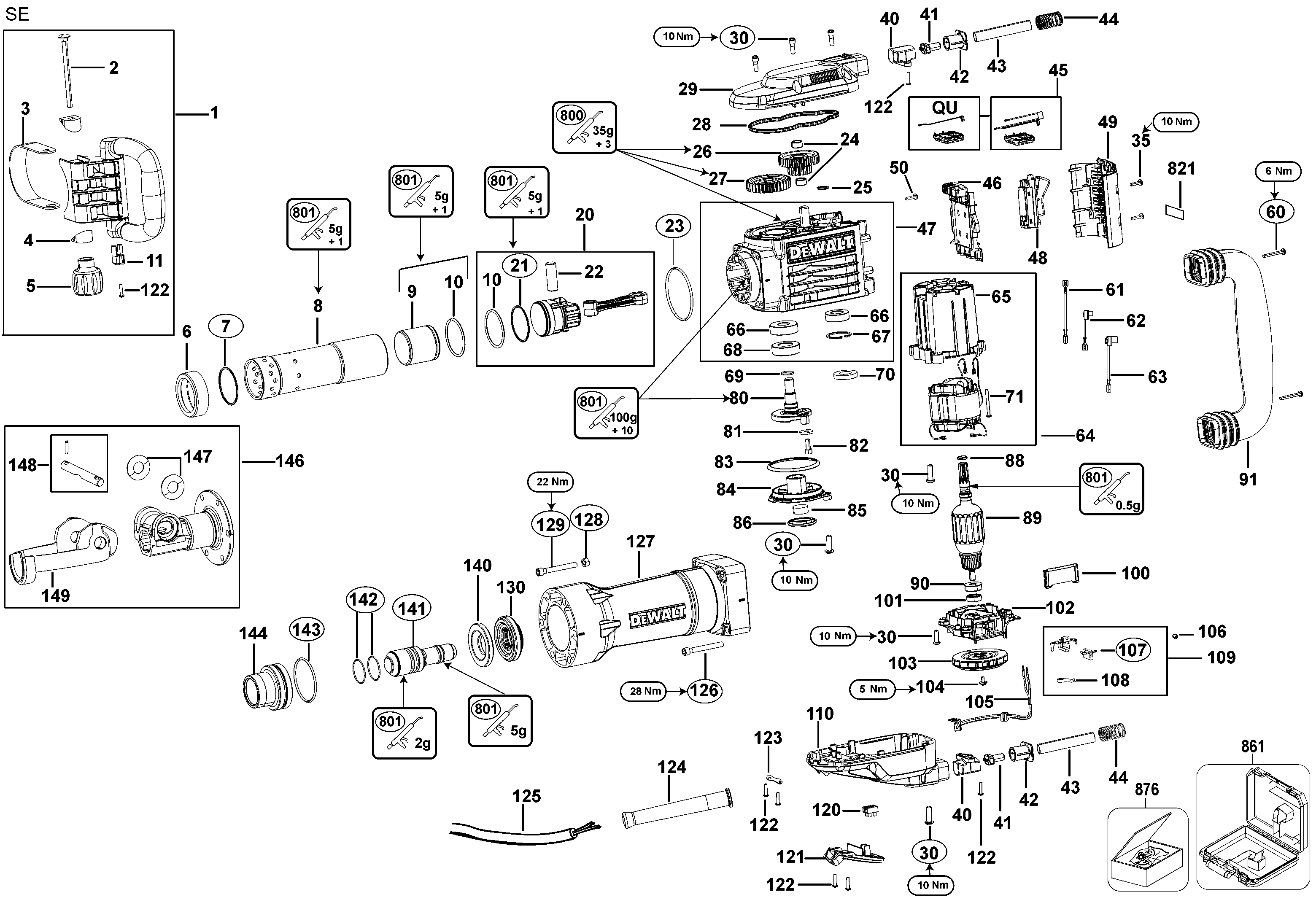

D25960K DEMOLITION HAMMER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | N087487 | 1 | HANDLE SA | AR | |||
| 2 | N044219 | 1 | BOLT | AR | |||
| 3 | N044098 | 1 | CLAMP | AR | |||
| 4 | N044099 | 1 | INSERT | AR | |||
| 5 | N086186 | 1 | Handle | AR | |||
| 6 | N087359 | 1 | RING | AR | |||
| 7 | N069978 | 1 | O RING | AR | |||
| 8 | N087327 | 1 | CYLINDER | AR | |||
| 9 | N087416 | 1 | RAM | AR | |||
| 10 | N088404 | 2 | PISTON RING | AR | |||
| 11 | N044100 | 2 | CAP | AR | |||
| 20 | N161207 | 1 | FSO REPAIR KIT | Inc. 10,21,22 | AR | ||
| 21 | N056464 | 1 | O RING | AR | |||
| 22 | N087484 | 1 | BOLT | AR | |||
| 23 | N050696 | 1 | O RING | AR | |||
| 24 | 494549-00 | 1 | BEARING SET | AR | |||
| 25 | N071623 | 1 | CIRCLIP | AR | |||
| 26 | 494573-00 | 1 | GEAR SA | AR | |||
| 27 | N087483 | 1 | GEAR | AR | |||
| 28 | N043534 | 1 | SEAL | AR | |||
| 29 | N026222 | 1 | COVER | AR | |||
| 30 | 493968-00 | 18 | SCREW | AR | |||
| 35 | 330045-23 | 4 | SCREW | AR | |||
| 40 | N043530 | 2 | BUSH | AR | |||
| 41 | N043533 | 1 | STOP | AR | |||
| 42 | N043529 | 1 | GUIDE BUSH | AR | |||
| 43 | N043532 | 1 | TUBE METAL | AR | |||
| 44 | N069674 | 1 | SPRING | AR | |||
| 45 | N108386 | 1 | GACC MODULE 230V | AR | |||
| 46 | N043527 | 1 | HOUSING SWITCH | AR | |||
| 47 | N088431 | 1 | HOUSING SA | AR | |||
| 48 | N485854 | 1 | SWITCH | AR | |||
| 49 | N031170 | 1 | COVER REAR | AR | |||
| 50 | 326619-00 | 1 | SCREW | AR | |||
| 60 | 1005672-01 | 2 | SCREW | AR | |||
| 61 | N106177 | 1 | LEAD WHITE | AR | |||
| 62 | N103817 | 1 | LEAD BLUE | AR | |||
| 63 | N106096 | 1 | LEAD YELLOW | AR | |||
| 64 | N087485 | 1 | FIELD SA 230V | AR | |||
| 65 | N020776 | 1 | HOUSING MOTOR | AR | |||
| 66 | 330003-69 | 2 | BEARING | AR | |||
| 67 | 616726-00 | 1 | RETAINER | AR | |||
| 68 | 577745-03 | 1 | BEARING,BALL | AR | |||
| 69 | N049232 | 1 | O RING | AR | |||
| 70 | N050316 | 1 | FELT | AR | |||
| 71 | 330019-27 | 2 | SCREW | AR | |||
| 80 | N161207 | 1 | FSO REPAIR KIT | AR | |||
| 81 | 330016-21 | 1 | WASHER | AR | |||
| 82 | 494356-00 | 1 | SCREW | AR | |||
| 83 | N075322 | 1 | O RING | AR | |||
| 84 | N030647 | 1 | COVER | AR | |||
| 85 | 487229-00 | 1 | FILTER | AR | |||
| 86 | 487438-00 | 1 | CAP | AR | |||
| 88 | 577746-01 | 1 | RING | AR | |||
| 89 | N087478 | 1 | ARMATURE 230V | AR | |||
| 90 | 577745-00 | 1 | BEARING | AR | |||
| 91 | N031103 | 1 | Handle | AR | |||
| 100 | N038446 | 2 | BRUSH COVER | AR | |||
| 101 | N167638 | 1 | SLEEVE INSULATING | AR | |||
| 102 | N020777 | 1 | BRUSHPLATE | AR | |||
| 103 | 586611-00 | 1 | FAN SA | AR | |||
| 104 | 324119-02 | 1 | SCREW | AR | |||
| 105 | N062068-00 | 1 | SET OF LEAD WIRES | AR | |||
| 106 | 330065-06 | 2 | SCREW | AR | |||
| 107 | 1005550-02 | 1 | BRUSH PAIR 230V | AR | |||
| 108 | 487377-00 | 2 | BRUSH SPRING | AR | |||
| 109 | N184445 | 1 | BRUSH PAIR 230V | AR | |||
| 110 | N026214-00 | 1 | MOTOR COVER | AR | |||
| 120 | 1006389-00 | 1 | TERMINAL BLOCK | AR | |||
| 121 | N030582 | 1 | COVER | AR | |||
| 122 | 330065-08 | 10 | SCREW | M4x18 T20 | AR | ||
| 123 | 821070 | 1 | CORD CLAMP | AR | |||
| 124 | 947964-01 | 1 | CORD PROTECTOR | AR | |||
| 125 | 573379-21 | 1 | CORDSET | AR | |||
| 126 | 949886-40 | 4 | SCREW | AR | |||
| 127 | N161206 | 1 | HOUSING FRONT | AR | |||
| 128 | N074448 | 6 | NUT | AR | |||
| 129 | 949886-39 | 6 | SCREW | AR | |||
| 130 | N100041 | 1 | DAMPER | AR | |||
| 140 | N087384 | 1 | WASHER | AR | |||
| 141 | N087403 | 1 | BEAT PIECE | 28mm inc 2x142 | AR | ||
| 142 | 487213-00 | 2 | O RING | AR | |||
| 143 | N069976 | 1 | O RING | AR | |||
| 144 | N142417 | 1 | HOLDER SA | Inc 143,144 | AR | ||
| 146 | N142417 | 1 | HOLDER SA | Inc 143,144 | AR | ||
| 147 | 478063-00 | 2 | DAMPER | AR | |||
| 148 | N500415 | 1 | REPAIR KIT | AR | |||
| 149 | 478066-00 | 1 | RETAINER | 28mm Hex | AR | ||
| 800 | 870889-03 | 2 | GREASE | RENOLIT PARAGON EP ½ - 20 GRAMS | AR | ||
| 801 | 578970-06 | 1 | GREASE 150 GMS | AR | |||
| 821 | N106555 | 1 | RATING PLATE | AR | |||
| 861 | N074467 | 1 | KITBOX | AR | |||
| 876 | N127075 | 1 | SERVICE KIT 230V | AR |
