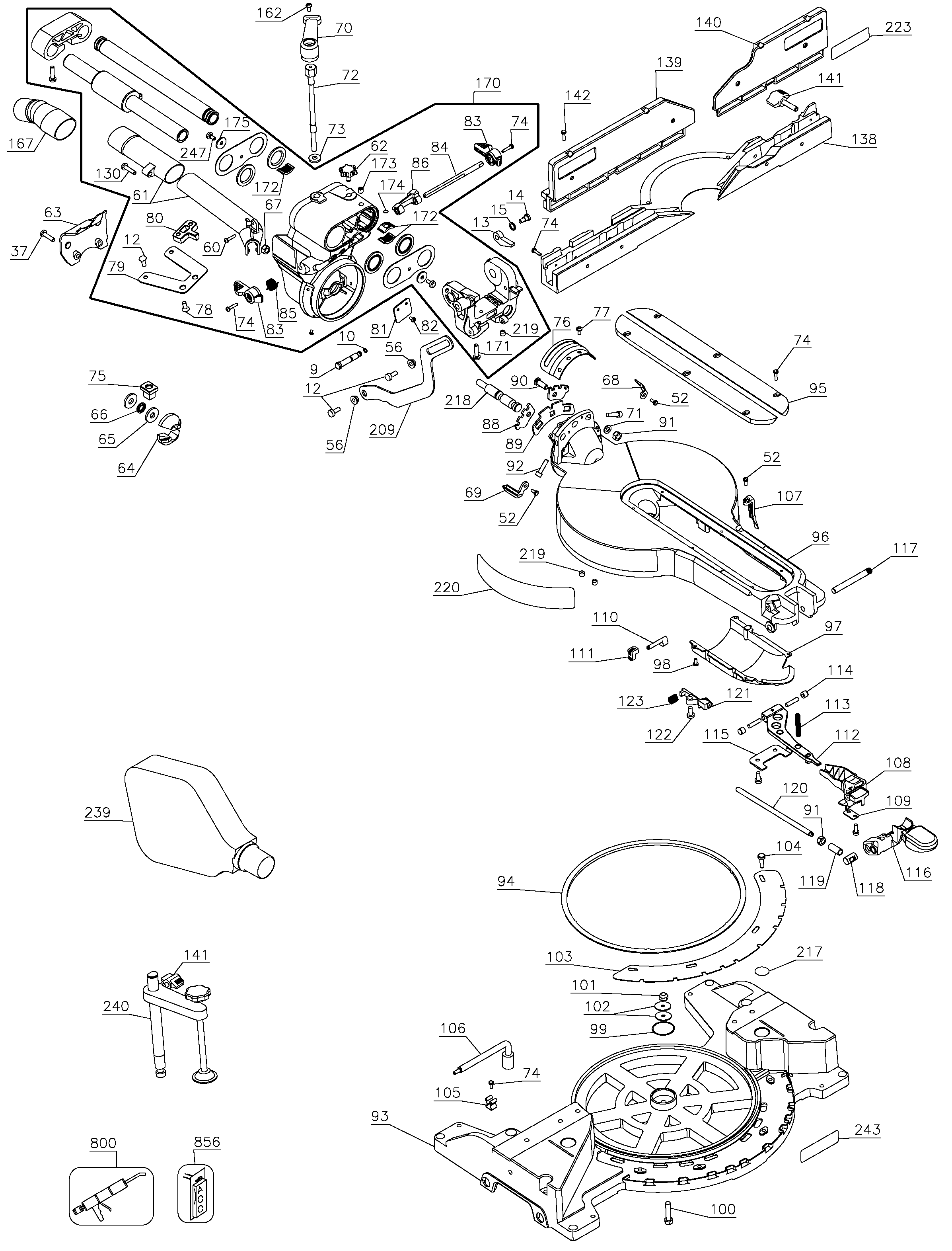

DW718 MITRE SAW Type 4 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 618175-02SV | 1 | ARM ASSEMBLY | AR | |||
| 2 | 618193-00 | 1 | BELT COVER | AR | |||
| 3 | 330045-14 | 13 | SCREW | AR | |||
| 4 | 146751-00 | 1 | SHAFT | AR | |||
| 5 | 146732-00 | 2 | SPACER | AR | |||
| 6 | N039404 | 1 | SPRING | AR | |||
| 7 | 150075-00 | 2 | SCREW | AR | |||
| 8 | 148296-00 | 2 | WASHER | AR | |||
| 9 | 387130-00 | 1 | LOCKING PIN | AR | |||
| 10 | 034158-00 | 1 | O RING | AR | |||
| 11 | 618189-00 | 1 | GUARD REAR | AR | |||
| 12 | 330045-23 | 6 | SCREW | AR | |||
| 13 | 153603-01 | 1 | PAWL | AR | |||
| 14 | 153639-00 | 1 | SCREW | AR | |||
| 15 | 153655-00 | 1 | WASHER | AR | |||
| 16 | N185664 | 1 | SCREW | AR | |||
| 17 | 150718-00 | 1 | NUT WING | AR | |||
| 18 | N026930 | 1 | COVER | LASER CAVITY | AR | ||
| 19 | 385915-02 | 4 | SCREW | AR | |||
| 20 | 618198-00 | 1 | SCREW | AR | |||
| 21 | 624195-00 | 1 | BRACKET | AR | |||
| 22 | 33821-00 | 1 | BUSHING | AR | |||
| 23 | 145344-01 | 1 | BLADE BOLT | M8 X 20 LH | AR | ||
| 24 | 151962-01 | 1 | CLAMP OUTER | AR | |||
| 25 | 152636-00 | 1 | BLADE HOLDER | AR | |||
| 26 | 644999-00 | 1 | WASHER INNER CLAMP | AR | |||
| 26 | 644999-00 | 1 | WASHER INNER CLAMP | AR | |||
| 28 | 393702-00SV | 1 | SPINDLE & GEAR | AR | |||
| 29 | 330003-66 | 1 | BEARING,BALL | AR | |||
| 30 | 391616-00 | 1 | BEARING NEEDLE | AR | |||
| 31 | 393703-00SV | 1 | GEAR SA | AR | |||
| 32 | 605040-20 | 1 | BEARING | 12 x 28 x 8mm | AR | ||
| 33 | 605040-33 | 1 | BEARING | AR | |||
| 34 | N105443 | 1 | PULLEY SA | inc 33,35 | Inc.40 | AR | |
| 35 | 153752-00 | 2 | RETAINER | AR | |||
| 36 | 618244-00 | 1 | RETAINING PLATE | AR | |||
| 37 | 330045-49 | 6 | SCREW | AR | |||
| 38 | 391310-00 | 1 | BEARING PLATE | AR | |||
| 39 | 098094-13 | 3 | SCREW | M5 x 13mm, Pan Hd | AR | ||
| 40 | N004511 | 1 | DRIVE PULLEY | AR | |||
| 44 | 393935-00SV | 1 | GEARCASE COVER SA | AR | |||
| 45 | 391315-00 | 1 | GASKET | AR | |||
| 47 | 153555-00 | 1 | BELT | AR | |||
| 48 | N004510 | 1 | DRIVE PULLEY | AR | |||
| 49 | 153561-00 | 1 | LOCKING PIN | AR | |||
| 50 | 448176-00 | 1 | SPRING | AR | |||
| 51 | 393071-00 | 1 | PLATE | AR | |||
| 52 | 330045-45 | 4 | SCREW | AR | |||
| 53 | 153559-00 | 1 | WASHER | AR | |||
| 56 | 146740-00 | 2 | SLEEVE | AR | |||
| 57 | 394589-01 | 2 | SCREW | AR | |||
| 60 | 330045-15 | 8 | SCREW | AR | |||
| 61 | 624719-00 | 1 | DUCT | AR | |||
| 62 | 618156-00 | 1 | LOCK KNOB | AR | |||
| 63 | 618238-00 | 1 | SUPPORT PLATE | SUPPORT HOUSING | AR | ||
| 64 | 618145-00 | 2 | BUSHING | TAPERED | AR | ||
| 65 | 153769-01 | 2 | WASHER THRUST | AR | |||
| 66 | 153451-00 | 1 | BEARING THRUST | AR | |||
| 67 | 625393-00 | 1 | LOCK NUT | PREVAILING TORQUE | AR | ||
| 68 | 618211-00 | 1 | POINTER | RIGHT | AR | ||
| 69 | 618235-00 | 1 | POINTER | LEFT | AR | ||
| 70 | 618236-00 | 1 | HANDLE | BEVEL LOCK | AR | ||
| 71 | 330016-24 | 3 | WASHER | AR | |||
| 72 | 618148-00 | 1 | ROD | BEVEL | AR | ||
| 73 | 603636-00 | 1 | WASHER THRUST | AR | |||
| 74 | 330045-06 | 11 | SCREW | AR | |||
| 75 | 618160-00 | 1 | BLOCK | BEVEL CLAMP | AR | ||
| 76 | 626440-00 | 1 | SPRING | AR | |||
| 77 | 098103-18 | 4 | SCREW | AR | |||
| 78 | 098104-19 | 2 | SCREW | M6x1.0x16 T30 | AR | ||
| 79 | 641466-00 | 1 | SPRING | AR | |||
| 80 | 641467-00 | 1 | PAWL | BEVEL DETENT | AR | ||
| 81 | 618162-00 | 1 | COVER | BEVEL DETENT | AR | ||
| 82 | 330045-44 | 2 | SCREW | AR | |||
| 83 | N019349 | 2 | LEVER SA | BEVEL DETENT | AR | ||
| 84 | 618153-00 | 1 | ROD | DETENT ACTUATION | AR | ||
| 85 | 618259-00 | 1 | SPRING TORSION | AR | |||
| 86 | N059591 | 1 | CAM | BEVEL ACTUATION | AR | ||
| 88 | 641471-00 | 2 | PLATE | BEVEL | AR | ||
| 89 | 641468-00 | 1 | PLATE | BEVEL | AR | ||
| 90 | 98130-25 | 3 | CARRIAGE BOLT | AR | |||
| 91 | 330015-03 | 4 | NUT | M8x1.25 | AR | ||
| 92 | 391346-00 | 2 | SCREW | AR | |||
| 93 | 645751-00SV | 1 | BASE SA | AR | |||
| 94 | 618192-00 | 1 | PLATE | AR | |||
| 95 | 618199-00 | 2 | PLATE | AR | |||
| 96 | 630711-02SV | 1 | TABLE ASSY | Inc. 218,219 | AR | ||
| 97 | N401778 | 1 | COVER | AR | |||
| 98 | 330045-05 | 6 | SCREW | AR | |||
| 99 | 049787-00 | 1 | O RING | AR | |||
| 100 | 098025-35 | 1 | SCREW | M8x1.25x35 HEX | AR | ||
| 101 | N044739 | 1 | LOCK NUT | AR | |||
| 102 | 153792-00 | 2 | WASHER | AR | |||
| 103 | N021944 | 1 | PLATE | AR | |||
| 104 | 604410-00 | 4 | SCREW | AR | |||
| 105 | 391358-01 | 1 | HOLDER | AR | |||
| 106 | 608563-01 | 1 | WRENCH SPECIAL | M13 - T30 | AR | ||
| 107 | N026650 | 1 | POINTER | MITER | AR | ||
| 108 | 618169-00 | 1 | ACTUATOR | DETENT SPRING | AR | ||
| 109 | 618243-00 | 1 | PLATE | AR | |||
| 110 | 622396-00 | 1 | SHAFT | AR | |||
| 111 | 622395-00 | 1 | LEVER LOCK-OFF | AR | |||
| 112 | N488468 | 1 | DETENT | AR | |||
| 114 | 093128-00 | 2 | BEARING NEEDLE | AR | |||
| 115 | 618254-00 | 1 | RETAINER | AR | |||
| 116 | N082785 | 1 | LEVER | AR | |||
| 117 | 618187-00 | 1 | PIN | MITER DRIVE | AR | ||
| 118 | 624460-00 | 1 | PIN | AR | |||
| 119 | 624461-00 | 1 | SLEEVE | AR | |||
| 120 | 618186-00 | 1 | ROD | AR | |||
| 121 | 618185-00 | 1 | BLOCK | AR | |||
| 122 | 385915-03 | 1 | SCREW | AR | |||
| 123 | 618253-00 | 1 | SPRING COMPRESSION | AR | |||
| 124 | 624730-00 | 1 | HANDLE SA | AR | |||
| 125 | 330045-18 | 4 | SCREW | AR | |||
| 126 | 330019-32 | 5 | SCREW | AR | |||
| 127 | 618270-00 | 1 | COVER | HANDLE CAVITY | AR | ||
| 128 | 606056-00 | 1 | SWITCH | AR | |||
| 129 | 384127-01 | 4 | SCREW | AR | |||
| 130 | 330045-25 | 3 | SCREW.TEMP | M6x25 MTL THD FMG | AR | ||
| 131 | N114499 | 1 | MOTOR CORD | AR | |||
| 133 | N083060 | 1 | HANDLE | AR | |||
| 134 | 330019-22 | 1 | SCREW | M5.74x32 | AR | ||
| 135 | 398443-00 | 1 | CABLE CLAMP | AR | |||
| 136 | N467585 | 1 | CABLE SA | CORD, LASER | AR | ||
| 137 | 618269-00 | 1 | COVER | LASER WIRE | AR | ||
| 138 | 618202-01 | 1 | FENCE | AR | |||
| 139 | 618208-02 | 1 | FENCE LH | ALSO ORDER ITEM 223 | AR | ||
| 140 | N022399 | 1 | RIGHT FENCE | ALSO ORDER ITEM 223 | AR | ||
| 141 | 147107-02 | 2 | KNOB LOWER | AR | |||
| 142 | 098105-03 | 4 | SCREW | AR | |||
| 143 | 391317-05 | 1 | FIELDCASE | AR | |||
| 144 | N093107 | 1 | ARMATURE 230V | inc 48,149,150,160 | AR | ||
| 145 | 391318-01SV | 1 | FIELD | 230V | AR | ||
| 146 | 391282-00 | 1 | MOUNTING BRACKET | AR | |||
| 147 | 394034-00 | 1 | SCREW | AR | |||
| 148 | N127530 | 1 | BEARING BALL | AR | |||
| 149 | N110359 | 1 | BEARING | AR | |||
| 150 | 144803-00 | 1 | CIRCLIP | AR | |||
| 151 | 145312-00 | 1 | PLUG | AR | |||
| 152 | 98094-55 | 4 | SCREW | M5 X 55mm T25 | AR | ||
| 153 | 391933-01 | 1 | END CAP | AR | |||
| 154 | 330019-13 | 4 | SCREW | M4X19 T20 | AR | ||
| 155 | 330019-19 | 2 | SCREW | AR | |||
| 156 | 391375-00 | 1 | BAFFLE FAN | AR | |||
| 157 | 389512-01 | 1 | BRUSH PLATE | AR | |||
| 158 | 391325-00 | 1 | IDENTITY LABEL | AR | |||
| 160 | 153783-00 | 1 | RING | AR | |||
| 161 | 605155-00 | 1 | BUSHING | AR | |||
| 162 | 330045-13 | 1 | SCREW | M5x0.8x10 MTL THDFMG | AR | ||
| 163 | 330019-12 | 1 | SCREW | AR | |||
| 167 | 618240-00 | 1 | ADAPTOR | BAG | AR | ||
| 170 | 650852-00SV | 1 | TRUNNION ASSY | AR | |||
| 171 | 603390-00 | 8 | SCREW | AR | |||
| 172 | 397118-00 | 3 | GUIDE | AR | |||
| 173 | 153576-04 | 1 | SCREW | DATE CODE 2007-11 AND LATER | AR | ||
| 174 | 613497-00 | 1 | THRUST PLATE | AR | |||
| 175 | 153586-00 | 2 | WASHER | AR | |||
| 193 | N377514 | 2 | BUSHING | AR | |||
| 200 | 393706-00 | 1 | LABEL | AR | |||
| 201 | 630403-00 | 1 | WARNING LABEL | AR | |||
| 202 | 148608-00 | 2 | INSERT | AR | |||
| 203 | 386780-00 | 2 | BEARING | AR | |||
| 204 | 618230-01 | 1 | LOWER GUARD | AR | |||
| 205 | N020822 | 1 | PLATE | AR | |||
| 206 | 385915-01 | 4 | SCREW | AR | |||
| 207 | 621037-00 | 1 | PLATE | AR | |||
| 208 | 146768-00 | 1 | BUMPER | AR | |||
| 209 | N142523 | 1 | LINK | AR | |||
| 212 | N391680 | 1 | RETAINER | AR | |||
| 213 | N034013 | 1 | SPRING | AR | |||
| 214 | 148295-00 | 1 | SLEEVE | AR | |||
| 215 | 625825-00 | 2 | ROLLER | AR | |||
| 216 | 142273-00 | 2 | RING | AR | |||
| 217 | 394976-00 | 2 | LABEL | WARNING | AR | ||
| 218 | 618234-00 | 1 | STUD | AR | |||
| 219 | 153666-00 | 2 | SCREW | set screw M8 x 8mm long | AR | ||
| 220 | N640285 | 1 | WARNING LABEL | AR | |||
| 221 | 145332-00 | 4 | TERMINAL | AR | |||
| 222 | 450212-01 | 1 | TERMINAL,MALE | AR | |||
| 223 | 630416-00 | 2 | WARNING LABEL | AR | |||
| 224 | 381028-08 | 2 | BRUSH & LEAD | AR | |||
| 225 | 395716-00 | 3 | TERMINAL | RING | AR | ||
| 227 | N391680 | 1 | RETAINER | AR | |||
| 239 | 147734-06 | 1 | DUSTBAG | AR | |||
| 240 | 630065-00 | 1 | CLAMP SA | AR | |||
| 243 | 630414-00 | 2 | WARNING LABEL | AR | |||
| 247 | 616001-00 | 1 | SCREW | AR | |||
| 800 | 93488-00 | 1 | GREASE | AR | |||
| 800 | 429698-00 | 1 | GREASE | BD-L 2 | AR | ||
| 856 | 153650-00 | 1 | CLAMP | AR | |||
| 856 | DW3126 | 1 | BLADE | AR |
