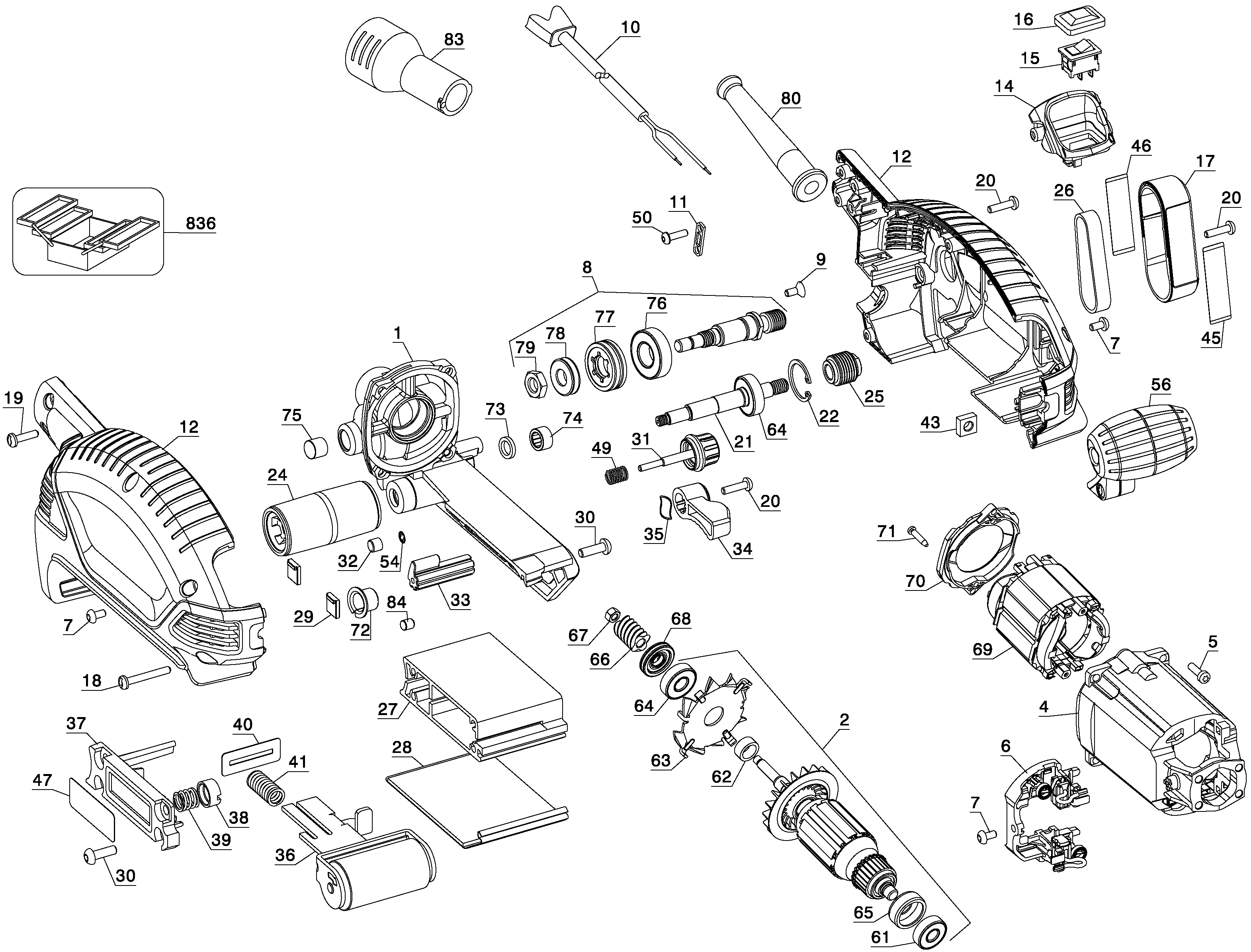

D26480 BELT SANDER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | A13901 | 1 | HOUSING SA | Incl. 72-74 | AR | ||
| 2 | A18240SV | 1 | ARMATURE 230V | AR | |||
| 4 | A11941 | 1 | FIELDCASE | AR | |||
| 5 | A14536 | 4 | SCREW | M4x14 FILLISTER HD | AR | ||
| 6 | A13899SV | 1 | BRUSH & HOLDER SA | AR | |||
| 7 | 330065-04 | 3 | SCREW | AR | |||
| 8 | N250999 | 1 | JACKSHAFT ASSEMBLY | PKGD A13902 | Incl. 76-79 | AR | |
| 9 | 098102-10 | 2 | SCREW.TEMP | M4x10 FLATHD TAPTITE | AR | ||
| 10 | A19478 | 1 | CORD SET | AR | |||
| 11 | 329301-00 | 1 | CORD CLAMP | AR | |||
| 12 | A17201 | 1 | CLAMSHELL SET | AR | |||
| 14 | A14300 | 1 | MOUNT | AR | |||
| 15 | 887453 | 1 | SWITCH | AR | |||
| 16 | A16075 | 1 | SWITCH COVER | AR | |||
| 17 | A14399 | 1 | BELT COVER | AR | |||
| 18 | 330065-13 | 3 | SCREW | AR | |||
| 19 | 330065-07 | 2 | SCREW | AR | |||
| 20 | 330045-06 | 3 | SCREW | AR | |||
| 21 | A11864 | 1 | SHAFT SA | REAR PULLEY | AR | ||
| 22 | A15981 | 1 | RETAINER | AR | |||
| 24 | A16439SV | 1 | DRIVE WHEEL | AR | |||
| 25 | A11865 | 1 | DRIVE PULLEY | AR | |||
| 26 | A13907 | 1 | BELT DRIVE | POLY - V | AR | ||
| 27 | A12758 | 1 | BOX | AR | |||
| 28 | A13906SV | 1 | PLATEN | AR | |||
| 29 | A15353 | 2 | PLATE | AR | |||
| 30 | 330045-14 | 8 | SCREW | AR | |||
| 31 | A11876 | 1 | KNOB SA | AR | |||
| 32 | A11878 | 1 | CAP | SMALL SLIDER CAP | AR | ||
| 33 | A13912 | 1 | CAM | BELT RELEASE | AR | ||
| 34 | A12767 | 1 | KNOB | BELT TENSION | AR | ||
| 35 | A13054 | 1 | WASHER SPECIAL | AR | |||
| 36 | A24622SV | 1 | YOKE ASSY | AR | |||
| 37 | A12761 | 1 | COVER | TRACKING BOX | AR | ||
| 38 | A11875 | 1 | CAP | LARGE SLIDER CAP | AR | ||
| 39 | A13329 | 1 | SPRING COMPRESSION | AR | |||
| 40 | A13338 | 1 | SPRING | WEAR PLATE | AR | ||
| 41 | A09069 | 1 | SPRING COMPRESSION | AR | |||
| 43 | 81999-00 | 1 | NUT | AR | |||
| 45 | A23723 | 1 | NAMEPLATE | D26480-AR TY1 | AR | ||
| 46 | A20755 | 1 | WARNING LABEL | AR | |||
| 47 | A17205 | 1 | IDENTITY LABEL | AR | |||
| 49 | A23672 | 1 | COMPRESSION SPRING | AR | |||
| 50 | 330019-02 | 2 | SCREW | AR | |||
| 54 | A18107 | 1 | RETAINER | AR | |||
| 56 | A14526SV | 1 | AUXILIARY HANDLE | AR | |||
| 61 | N110359 | 1 | BEARING | AR | |||
| 62 | A17028 | 1 | FELT SEAL | AR | |||
| 63 | A15326 | 1 | PLATE | STATOR | AR | ||
| 64 | 330003-81 | 2 | BEARING | AR | |||
| 65 | 389824-00 | 1 | BOOT | AR | |||
| 66 | A14576 | 1 | GEAR | AR | |||
| 67 | 330015-04 | 1 | NUT | AR | |||
| 68 | A15268 | 1 | SEAL | INCL. HOLDER | AR | ||
| 69 | A19468SV | 1 | FIELD | AR | |||
| 70 | A15198 | 1 | BAFFLE FAN | RADIAL | AR | ||
| 71 | 390198-00 | 2 | SCREW | AR | |||
| 72 | A12765 | 1 | SLEEVE BEARING | AR | |||
| 73 | A13070 | 1 | FELT SEAL | AR | |||
| 74 | 684188 | 1 | BEARING | AR | |||
| 75 | 391616-00 | 1 | BEARING NEEDLE | AR | |||
| 76 | 605040-25 | 1 | BEARING,BALL | AR | |||
| 77 | A13903 | 1 | SEAL | & HOLDER | AR | ||
| 78 | A26818 | 1 | GEAR | AR | |||
| 79 | 330015-08 | 1 | NUT | M10x1.5 | AR | ||
| 80 | 330005-01 | 1 | CORD PROTECTOR | AR | |||
| 83 | A13918 | 1 | VACUUM ADAPTOR | AR | |||
| 84 | A11935 | 1 | PIN | AR | |||
| 836 | A19549 | 1 | SCREW | M4 X 50 | USED W/ A19540 | AR | |
| 836 | A19540 | 1 | SERVICE TOOL | BELT REMOVAL TOOL | AR |
