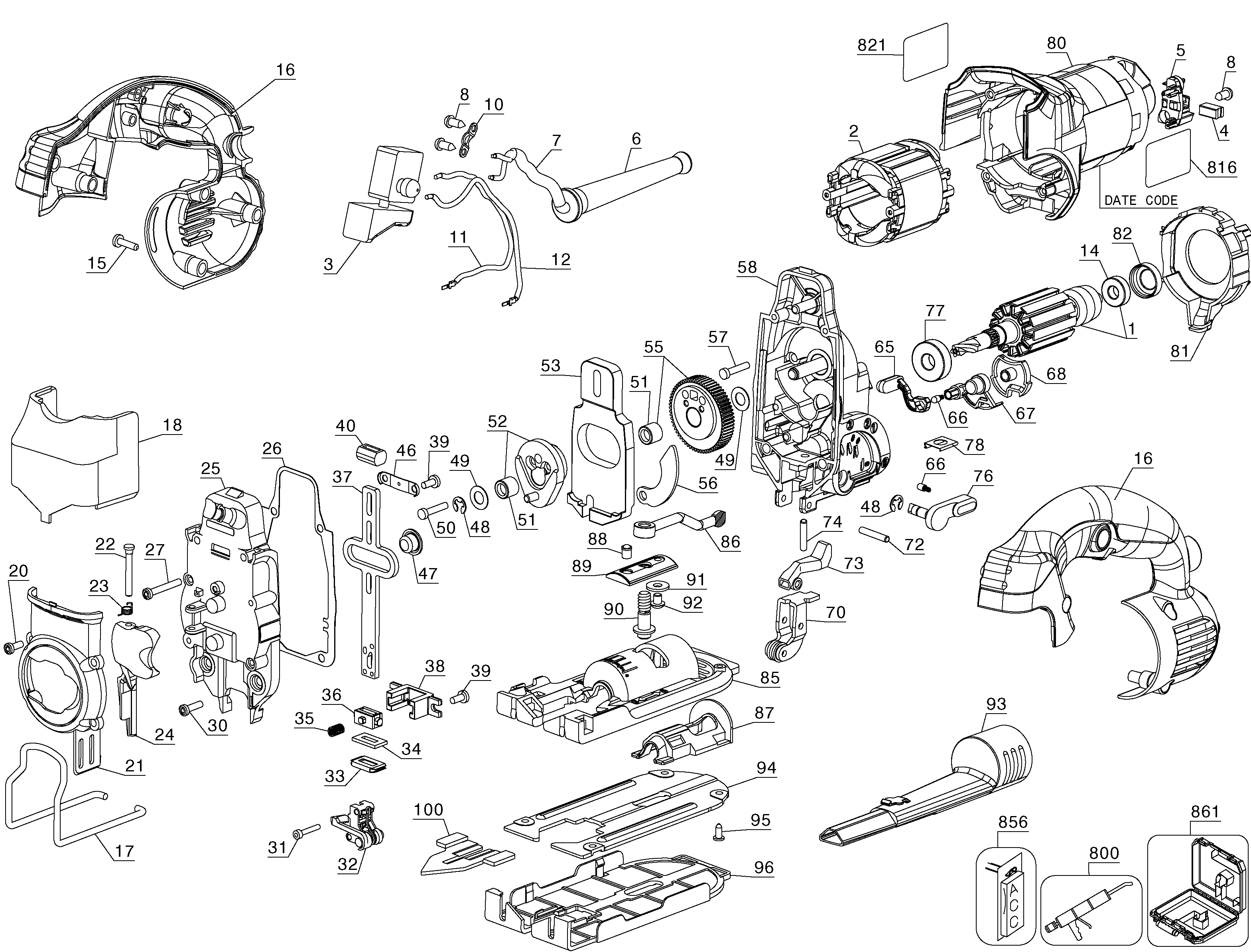

DW331K Jig Saw Type 11 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 582811-02SV | 1 | ARMATURE & BRG. | 120V | BR | ||
| 2 | N378010 | 1 | FIELD | 120V PKGD 477653-00 | BR | ||
| 3 | 582822-01 | 1 | SWITCH 115V | BR | |||
| 4 | 589016-01 | 1 | BRUSH PAIR 115V | BR | |||
| 5 | 583696-01 | 2 | BRUSH HOLDER SA | BR | |||
| 6 | 330005-01 | 1 | CORD PROTECTOR | BR | |||
| 7 | 330122-20 | 1 | CORD | BR | |||
| 8 | 330065-06 | 4 | SCREW | BR | |||
| 10 | 821070 | 1 | CORD CLAMP | BR | |||
| 11 | 628274-00 | 1 | LEAD WIRE | Red | BR | ||
| 12 | 628274-01 | 1 | LEAD WIRE | Black | BR | ||
| 14 | 330003-56 | 1 | BEARING | BR | |||
| 15 | 330065-07 | 6 | SCREW | BR | |||
| 16 | 588997-00 | 1 | HANDLE SA | BR | |||
| 17 | 581269-00 | 1 | GUARD | BR | |||
| 18 | 581239-01 | 1 | SCREEN | BR | |||
| 20 | 324006-00 | 4 | SCREW | BR | |||
| 21 | 581577-00 | 1 | CASTING | BR | |||
| 22 | 584627-00 | 1 | PIN | BR | |||
| 23 | 581418-00 | 1 | SPRING | BR | |||
| 24 | 589055-00 | 1 | ACTUATOR | BR | |||
| 25 | N142823 | 1 | GEARCASE SA | BR | |||
| 26 | 581244-00 | 1 | GASKET | BR | |||
| 27 | 330045-09 | 2 | SCREW | BR | |||
| 30 | 330065-11 | 2 | SCREW | BR | |||
| 31 | 582837-00 | 2 | BOLT | BR | |||
| 32 | N072135SV | 1 | BLADE CLAMP | BR | |||
| 33 | 582262-00 | 1 | HOLDER | BR | |||
| 34 | 582263-00 | 1 | FELT SEAL | BR | |||
| 35 | 586646-00 | 1 | SPRING | BR | |||
| 36 | 582259-00 | 1 | BEARING | BR | |||
| 37 | 581274-00 | 1 | RECIPROCATOR | BR | |||
| 38 | 582260-00 | 1 | SUPPORT BEARING | BR | |||
| 39 | 324006-00 | 4 | SCREW | BR | |||
| 40 | 490329-00 | 1 | BEARING | BR | |||
| 46 | 582261-00 | 1 | CLAMP | BR | |||
| 47 | 582257-00 | 1 | DRIVE ROLLER | BR | |||
| 48 | 571181-00 | 2 | CLIP | BR | |||
| 49 | 582829-00 | 2 | WASHER | BR | |||
| 50 | N466547 | 2 | SCREW | BR | |||
| 51 | 330004-02 | 2 | BEARING NEEDLE | BR | |||
| 52 | N607672 | 1 | CRANK KIT | INCL. 51 | BR | ||
| 53 | N034837 | 1 | COUNTERWEIGHT | BR | |||
| 55 | N607675 | 1 | GEAR ASSEMBLY | Helical PKGD N451256 | INCL. 51 | BR | |
| 56 | 581247-00 | 1 | ACTUATOR | BR | |||
| 57 | 330019-15 | 2 | SCREW | BR | |||
| 58 | 589011-00 | 1 | GEARCASE SA | BR | |||
| 65 | 581255-05 | 1 | LEVER | BR | |||
| 66 | 326467-00 | 2 | DETENT | BR | |||
| 67 | 582830-05 | 1 | BODY | BR | |||
| 68 | 582831-00 | 1 | BAFFLE | BR | |||
| 70 | 589056-00 | 1 | SUPPORT BRACKET | BR | |||
| 72 | 330041-29 | 1 | PIN | BR | |||
| 73 | 584450-00 | 1 | NOZZLE | BR | |||
| 74 | 330041-49 | 1 | PIN | BR | |||
| 76 | 581257-00 | 1 | LEVER | BR | |||
| 77 | 330003-96 | 1 | BEARING BALL | BR | |||
| 78 | N089310 | 1 | SPRING CLIP | BR | |||
| 80 | 581241-01 | 1 | MOTOR HOUSING | BR | |||
| 81 | 581240-00 | 1 | BAFFLE FAN | BR | |||
| 82 | 930029-00 | 1 | HOLDER BEARING | BR | |||
| 85 | 581263-00 | 1 | SHOE | BR | |||
| 86 | 493248-00 | 1 | LEVER | BR | |||
| 87 | 581266-00 | 1 | ADAPTOR | BR | |||
| 88 | 584686-00 | 1 | PLUNGER | BR | |||
| 89 | 496996-00 | 1 | CLAMP | BR | |||
| 90 | 582826-00 | 1 | BOLT | BR | |||
| 91 | 582828-00 | 1 | WASHER | BR | |||
| 92 | 582827-00 | 1 | BOLT | BR | |||
| 93 | 581281-00 | 1 | VACUUM ADAPTOR | BR | |||
| 94 | 581264-00 | 1 | SOLE PLATE | BR | |||
| 95 | 389235-00 | 4 | SCREW | BR | |||
| 96 | 581268-00 | 1 | SOLE PLATE | BR | |||
| 100 | 402140-00 | 1 | ANTI SPLINTER DEVICE | BR | |||
| 800 | 283484-01 | 1 | GREASE | 32oz, EXXON CVJ | BR | ||
| 816 | 587464-01 | 1 | ID LABEL | BR | |||
| 821 | N416577 | 1 | RATING LABEL | DW331-BR TYPE 11 | BR | ||
| 856 | N515525 | 1 | JIG SAW BLADE | DW3770 | BR | ||
| 856 | N536023 | 1 | BLADE PACK | 3 blades FC,MC,WC | BR | ||
| 856 | 1004501-00 | 1 | FENCE | DE3241-XJ | BR | ||
| 861 | 393455-00 | 1 | KITBOX | BR |
