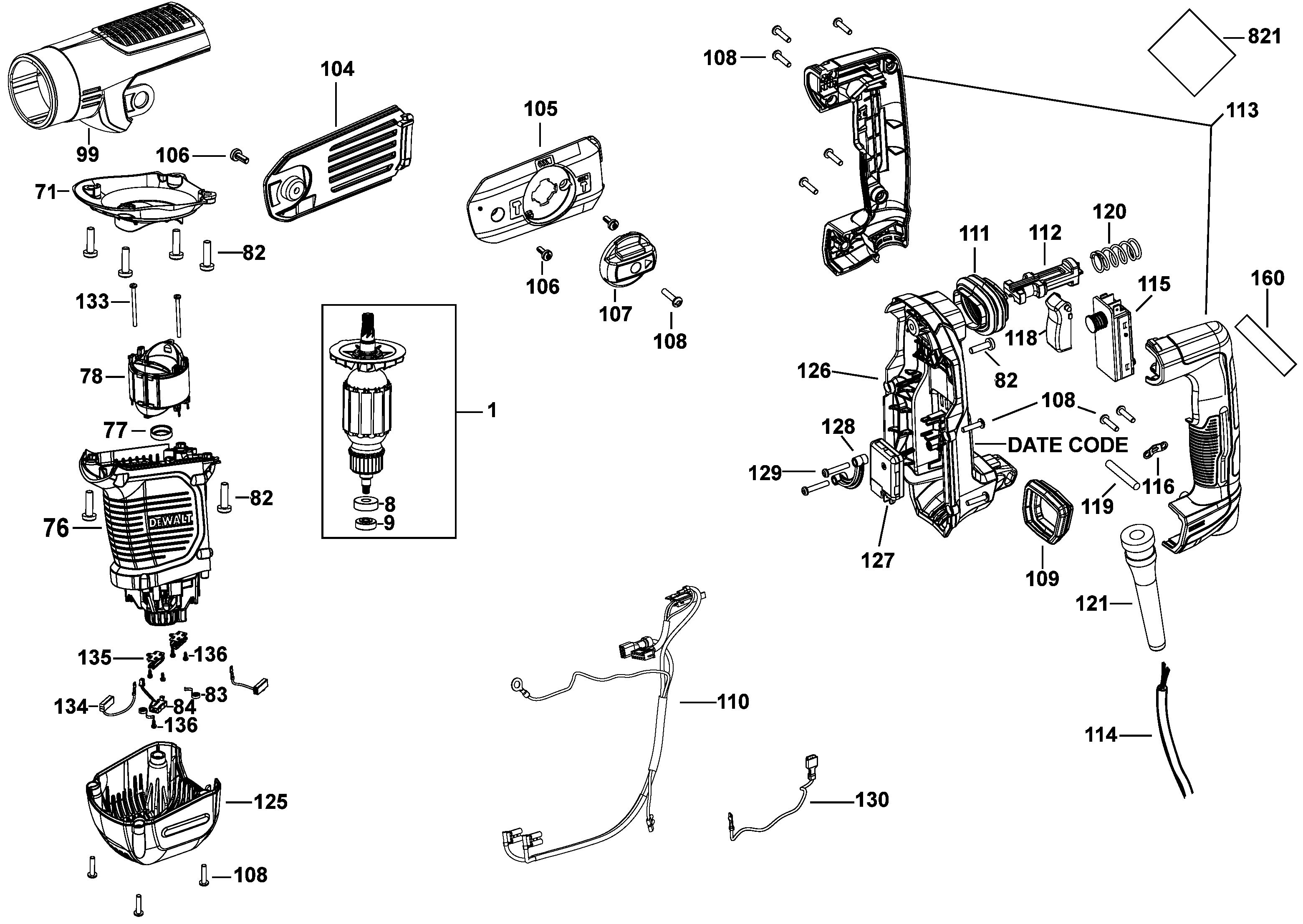

D25481K ROTARY HAMMER Type 1 | Drawings
Documents
| Item No. |
Product Number |
Qty Per |
Product Description |
General Description |
Other Info |
Markets |
Product Status |
| 1 |
N491963
|
1 |
ARMATURE 230V |
|
Inc. 8,9 |
AR |
![]() |
| 2 |
N491979
|
1 |
PISTON SA |
|
|
AR |
![]() |
| 8 |
N110359
|
1 |
BEARING |
|
|
AR |
![]() |
| 9 |
N466979
|
1 |
MAGNET |
|
|
AR |
![]() |
| 11 |
327575-00
|
1 |
SLEEVE |
|
|
AR |
![]() |
| 12 |
330003-05
|
2 |
BEARING |
|
|
AR |
![]() |
| 13 |
N495599
|
1 |
SEAL |
|
|
AR |
![]() |
| 14 |
577745-01
|
1 |
BEARING,BALL |
|
|
AR |
![]() |
| 15 |
488147-01
|
1 |
CIRCLIP |
|
|
AR |
![]() |
| 26 |
N446701
|
1 |
PISTON RING |
|
|
AR |
![]() |
| 27 |
N487314
|
3 |
O RING |
|
|
AR |
![]() |
| 28 |
N491986
|
1 |
RAM SA |
26MM |
|
AR |
![]() |
| 30 |
N571895
|
1 |
SPINDLE SA |
5KG SDS MAX |
D/C 2018-01 AND LATER |
AR |
![]() |
| 30 |
N571916
|
1 |
SPINDLE SA |
|
D/C 2017-52 & EARLIER-CONVERTS TO 2018-01 DESIGN |
AR |
![]() |
| 31 |
N410350
|
1 |
O RING |
|
|
AR |
![]() |
| 32 |
N431706
|
1 |
BUSH |
|
|
AR |
![]() |
| 33 |
N410349
|
1 |
O RING |
16ID x 8 |
|
AR |
![]() |
| 34 |
N431708
|
1 |
WASHER |
REBOUND |
|
AR |
![]() |
| 35 |
N545367
|
1 |
SPACER |
|
D/C 2018-01 AND LATER |
AR |
![]() |
| 35 |
N440708
|
2 |
WASHER |
|
D/C 2017-52 AND EARLIER |
AR |
![]() |
| 36 |
N504457
|
1 |
DAMPER |
|
D/C 2018-01 AND LATER |
AR |
![]() |
| 36 |
N504216
|
1 |
DAMPER |
35x4.3 |
D/C 2017-52 AND EARLIER |
AR |
![]() |
| 37 |
N446368
|
1 |
BEARING |
|
D/C 2017-52 AND EARLIER |
AR |
![]() |
| 37 |
N536109
|
1 |
BEARING |
|
D/C 2018-01 AND LATER |
AR |
![]() |
| 38 |
N492498
|
1 |
BEAT PIECE |
5KG |
|
AR |
![]() |
| 39 |
N244259
|
1 |
SEAL |
|
|
AR |
![]() |
| 41 |
N571895
|
1 |
SPINDLE SA |
5KG SDS MAX |
D/C 2018-01 AND LATER |
AR |
![]() |
| 41 |
N571916
|
1 |
SPINDLE SA |
|
D/C 2017-52 & EARLIER-CONVERTS TO 2018-01 DESIGN |
AR |
![]() |
| 42 |
N506088
|
1 |
HOUSING SA |
PKG'D N406216 |
|
AR |
![]() |
| 44 |
N410187
|
1 |
BEVEL GEAR |
|
|
AR |
![]() |
| 45 |
N410188
|
1 |
SLEEVE |
|
|
AR |
![]() |
| 46 |
N433094
|
1 |
SLEEVE |
|
|
AR |
![]() |
| 47 |
N437808
|
1 |
SPRING |
|
|
AR |
![]() |
| 48 |
N437814
|
1 |
SPRING |
|
|
AR |
![]() |
| 49 |
N460603
|
1 |
SUPPORT |
|
|
AR |
![]() |
| 51 |
N432556
|
1 |
O RING |
|
|
AR |
![]() |
| 52 |
N526257
|
1 |
SLEEVE |
|
|
AR |
![]() |
| 53 |
327141-00
|
1 |
SEAL |
|
|
AR |
![]() |
| 54 |
N532870
|
1 |
CIRCLIP |
|
|
AR |
![]() |
| 55 |
N439579
|
1 |
CAP |
|
|
AR |
![]() |
| 56 |
N492496
|
1 |
CRANKSHAFT |
PKG'D N406217 |
|
AR |
![]() |
| 57 |
323711-26
|
1 |
O RING |
|
|
AR |
![]() |
| 59 |
N432869
|
1 |
CIRCLIP |
JS40 |
|
AR |
![]() |
| 60 |
N571701
|
1 |
SPRING |
|
|
AR |
![]() |
| 61 |
N406228
|
1 |
SLEEVE |
CRANK |
|
AR |
![]() |
| 62 |
N450900
|
1 |
PIN |
3x40 |
|
AR |
![]() |
| 63 |
N422799
|
1 |
SELECTOR FORK |
|
|
AR |
![]() |
| 64 |
N553858
|
1 |
O RING |
|
|
AR |
![]() |
| 65 |
N435997
|
1 |
ECCENTRIC |
|
|
AR |
![]() |
| 66 |
N422798
|
1 |
PLATE |
|
|
AR |
![]() |
| 67 |
N422797
|
1 |
PLATE |
|
|
AR |
![]() |
| 68 |
N445171
|
4 |
SCREW |
|
|
AR |
![]() |
| 70 |
N492837
|
1 |
CLUTCH SA |
PKG'D N410179 |
|
AR |
![]() |
| 71 |
N435623
|
1 |
BAFFLE FAN |
|
|
AR |
![]() |
| 76 |
N433780
|
1 |
HOUSING MOTOR |
|
|
AR |
![]() |
| 77 |
N449094
|
1 |
COVER BEARING |
|
|
AR |
![]() |
| 78 |
N492847
|
1 |
FIELD 230V |
|
|
AR |
![]() |
| 79 |
N492874
|
1 |
GEAR |
PKGD N406225 |
|
AR |
![]() |
| 80 |
N422796
|
1 |
GASKET |
|
|
AR |
![]() |
| 81 |
N491766
|
1 |
HOUSING GEAR SA |
PKGD N410355 |
|
AR |
![]() |
| 82 |
324007-11
|
14 |
SCREW |
M5 X 18 |
|
AR |
![]() |
| 83 |
N444425
|
2 |
BRUSH SPRING |
|
|
AR |
![]() |
| 84 |
N448156
|
1 |
COIL |
|
|
AR |
![]() |
| 85 |
N504436
|
1 |
O RING |
|
|
AR |
![]() |
| 86 |
N452721
|
1 |
CAP |
|
|
AR |
![]() |
| 87 |
N395554
|
1 |
FELT |
|
|
AR |
![]() |
| 89 |
325878-00
|
2 |
ROLLER |
|
|
AR |
![]() |
| 90 |
N038151
|
1 |
FELT |
|
|
AR |
![]() |
| 91 |
N465749
|
1 |
WASHER |
|
|
AR |
![]() |
| 92 |
323395-06
|
1 |
SPRING |
|
|
AR |
![]() |
| 93 |
487118-00
|
1 |
SPRING |
|
|
AR |
![]() |
| 94 |
N464690
|
1 |
GUIDE |
|
|
AR |
![]() |
| 95 |
N468172
|
2 |
LOCKING PIN |
|
|
AR |
![]() |
| 96 |
N464913
|
1 |
SLEEVE |
|
|
AR |
![]() |
| 97 |
326575-01
|
1 |
COLLAR |
|
|
AR |
![]() |
| 98 |
N465586
|
1 |
LIP SEAL |
|
|
AR |
![]() |
| 99 |
N429783
|
1 |
COVER |
|
|
AR |
![]() |
| 104 |
N431333
|
1 |
SIDE RH |
|
|
AR |
![]() |
| 105 |
N877353
|
1 |
SIDE LH |
|
|
AR |
![]() |
| 106 |
N445171
|
3 |
SCREW |
|
|
AR |
![]() |
| 107 |
N464282
|
1 |
SELECTOR SA |
|
|
AR |
![]() |
| 108 |
330065-08
|
14 |
SCREW |
M4x18 T20 |
|
AR |
![]() |
| 109 |
N452043
|
1 |
BELLOWS |
|
|
AR |
![]() |
| 110 |
N452385
|
1 |
SET OF LEAD WIRES |
|
|
AR |
![]() |
| 111 |
N452042
|
1 |
BELLOWS |
|
|
AR |
![]() |
| 112 |
N152623
|
1 |
STOP |
|
|
AR |
![]() |
| 113 |
N492860
|
1 |
CLAMSHELL SET |
|
|
AR |
![]() |
| 114 |
1005760-00
|
1 |
CORDSET |
|
|
AR |
![]() |
| 115 |
N467530
|
1 |
SWITCH |
|
|
AR |
![]() |
| 116 |
329301-00
|
1 |
CORD CLAMP |
|
|
AR |
![]() |
| 118 |
587114-01
|
1 |
TRIGGER |
|
|
AR |
![]() |
| 119 |
N159443
|
1 |
AXIS |
|
|
AR |
![]() |
| 120 |
N106188
|
1 |
SPRING COMPRESSION |
|
|
AR |
![]() |
| 121 |
323091-01
|
1 |
CORD PROTECTOR |
|
|
AR |
![]() |
| 125 |
N438602
|
1 |
END CAP |
|
|
AR |
![]() |
| 126 |
N438601
|
1 |
CLAMSHELL |
|
|
AR |
![]() |
| 127 |
N492852
|
1 |
CONTROL MODULE SA |
230V |
|
AR |
![]() |
| 128 |
N449848
|
1 |
BRACKET |
|
|
AR |
![]() |
| 129 |
N371839
|
2 |
SCREW |
|
|
AR |
![]() |
| 130 |
N450546
|
1 |
LEAD SA |
|
|
AR |
![]() |
| 133 |
330065-10
|
2 |
SCREW |
|
|
AR |
![]() |
| 134 |
N492849
|
2 |
BRUSH PAIR 230V |
|
|
AR |
![]() |
| 135 |
N450097
|
2 |
BRUSHBOX SA |
|
|
AR |
![]() |
| 136 |
N086775
|
5 |
SCREW |
|
|
AR |
![]() |
| 150 |
N535058
|
1 |
HANDLE SA |
|
|
AR |
![]() |
| 160 |
N196274
|
1 |
LABEL |
PERFORM & PROTECT |
|
AR |
![]() |
| 800 |
578970-04
|
1 |
GREASE |
80g |
|
AR |
![]() |
| 821 |
N495349
|
1 |
RATING LABEL |
D25481-AR TY1 |
|
AR |
![]() |
| 837 |
1003964-99
|
1 |
S.T.SEAL FITTING TOOL |
|
TO ASSIST ASSEMBLY OF BEAT PIECE (ITEM 38) |
AR |
![]() |
| 837 |
1003965-99
|
1 |
S.T.SEAL FITTING TOOL |
|
TO ASSIST ASSEMBLY OF BEAT PIECE (ITEM 38) |
AR |
![]() |
| 837 |
1003962-99
|
1 |
S.T.DIS-ASSEMBLY JIG |
|
|
AR |
![]() |
| 837 |
1003961-99
|
1 |
S.T.SUPPORT PLATE |
|
|
AR |
![]() |
| 837 |
1003966-99
|
1 |
S.T.LIP SEAL REMOVER |
|
|
AR |
![]() |
| 847 |
N513606
|
1 |
SERVICE KIT 230V |
HV |
INCL. 27,31,33,36,39,51,53,57,64,(2)134 |
AR |
![]() |
| 861 |
N469730
|
1 |
KITBOX |
|
NOT INCLUDED |
AR |
![]() |
