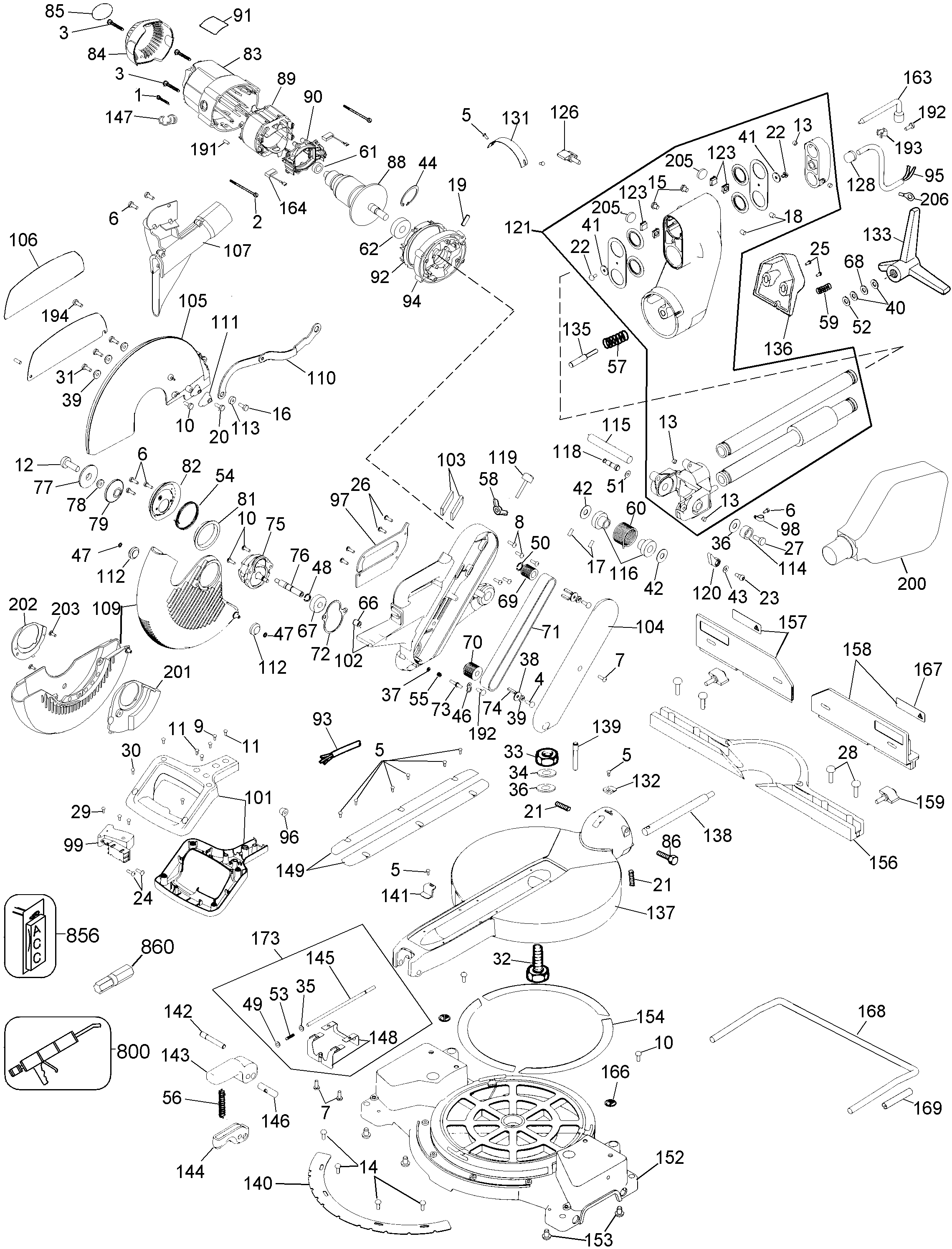

DW708 MITRE SAW Type 2 | Drawings
Documents
| Item No. |
Product Number |
Qty Per |
Product Description |
General Description |
Other Info |
Markets |
Product Status |
| 1 |
98094-55
|
4 |
SCREW
|
M5 X 55mm T25 |
|
BR |
![]() |
| 2 |
330019-19
|
2 |
SCREW
|
|
|
BR |
![]() |
| 3 |
330019-13
|
4 |
SCREW |
M4X19 T20 |
|
BR |
![]() |
| 4 |
153778-00
|
2 |
SCREW
|
M6x20, NYLON PATCH |
|
BR |
![]() |
| 5 |
330045-05
|
8 |
SCREW
|
|
|
BR |
![]() |
| 6 |
330045-13
|
6 |
SCREW
|
M5x0.8x10 MTL THDFMG |
|
BR |
![]() |
| 7 |
330045-14
|
3 |
SCREW
|
|
|
BR |
![]() |
| 8 |
330045-15
|
6 |
SCREW
|
|
|
BR |
![]() |
| 9 |
330045-18
|
1 |
SCREW
|
|
|
BR |
![]() |
| 10 |
330045-23
|
5 |
SCREW
|
|
|
BR |
![]() |
| 11 |
330045-20
|
3 |
SCREW
|
M5*45 T25 |
|
BR |
![]() |
| 12 |
145344-01
|
1 |
BLADE BOLT
|
M8 X 20 LH |
|
BR |
![]() |
| 13 |
153666-00
|
4 |
SCREW
|
set screw M8 x 8mm long |
|
BR |
![]() |
| 14 |
604410-01
|
4 |
SCREW |
M6, 1.0 X16, MACHINE |
|
BR |
![]() |
| 15 |
153637-02
|
2 |
SCREW
|
|
|
BR |
![]() |
| 16 |
330045-23
|
1 |
SCREW
|
|
D/C 200241 AND LATER |
BR |
![]() |
| 17 |
150075-00
|
2 |
SCREW
|
|
|
BR |
![]() |
| 18 |
153576-00
|
2 |
SCREW
|
|
|
BR |
![]() |
| 19 |
394034-00
|
1 |
SCREW
|
|
|
BR |
![]() |
| 20 |
144949-00
|
1 |
SCREW.SPECIAL |
|
|
BR |
![]() |
| 21 |
386112-00
|
2 |
SCREW |
|
|
BR |
![]() |
| 22 |
151799-00
|
2 |
SCREW
|
|
|
BR |
![]() |
| 23 |
153639-00
|
1 |
SCREW
|
|
|
BR |
![]() |
| 24 |
384127-01
|
4 |
SCREW
|
|
|
BR |
![]() |
| 25 |
147791-00
|
2 |
SCREW |
|
|
BR |
![]() |
| 26 |
330045-06
|
4 |
SCREW
|
|
|
BR |
![]() |
| 27 |
330045-47
|
1 |
SCREW
|
|
|
BR |
![]() |
| 28 |
330045-33
|
4 |
SCREW
|
|
|
BR |
![]() |
| 29 |
330019-03
|
1 |
SCREW
|
|
|
BR |
![]() |
| 30 |
330019-14
|
4 |
SCREW
|
|
|
BR |
![]() |
| 31 |
330045-24
|
3 |
SCREW
|
|
|
BR |
![]() |
| 32 |
5140117-87
|
1 |
SCREW |
5/16-24x2.0in |
|
BR |
![]() |
| 33 |
153794-00
|
1 |
NUT |
|
|
BR |
![]() |
| 34 |
153792-00
|
1 |
WASHER |
|
|
BR |
![]() |
| 35 |
062487-00
|
1 |
WASHER |
|
|
BR |
![]() |
| 36 |
153781-00
|
2 |
WASHER |
|
|
BR |
![]() |
| 37 |
153559-00
|
1 |
WASHER |
|
|
BR |
![]() |
| 38 |
153782-00
|
2 |
WASHER |
|
|
BR |
![]() |
| 39 |
098198-05
|
5 |
WASHER |
LOCK, M6 |
|
BR |
![]() |
| 40 |
153769-01
|
2 |
WASHER THRUST |
|
|
BR |
![]() |
| 41 |
153586-00
|
2 |
WASHER |
|
|
BR |
![]() |
| 42 |
148296-00
|
2 |
WASHER |
|
|
BR |
![]() |
| 43 |
153655-00
|
1 |
WASHER |
|
|
BR |
![]() |
| 44 |
144803-00
|
1 |
CIRCLIP |
|
|
BR |
![]() |
| 46 |
393071-00
|
1 |
PLATE |
|
|
BR |
![]() |
| 47 |
142273-00
|
2 |
RING |
|
|
BR |
![]() |
| 48 |
153752-00
|
1 |
RETAINER |
|
|
BR |
![]() |
| 49 |
153763-00
|
1 |
RING |
|
|
BR |
![]() |
| 50 |
153783-00
|
1 |
RING |
|
|
BR |
![]() |
| 51 |
034158-00
|
1 |
O RING |
|
|
BR |
![]() |
| 52 |
39945-00
|
1 |
RING |
|
|
BR |
![]() |
| 53 |
140733-00
|
1 |
SPRING
|
|
|
BR |
![]() |
| 54 |
606888-00
|
1 |
SPRING |
|
|
BR |
![]() |
| 55 |
448176-00
|
1 |
SPRING |
|
|
BR |
![]() |
| 56 |
096723-00
|
1 |
SPRING |
|
|
BR |
![]() |
| 57 |
88165-00
|
1 |
SPRING |
|
|
BR |
![]() |
| 58 |
150718-00
|
1 |
NUT WING |
|
|
BR |
![]() |
| 59 |
167785-00
|
1 |
SPRING |
|
|
BR |
![]() |
| 60 |
153596-01
|
1 |
SPRING |
|
|
BR |
![]() |
| 61 |
N110359
|
1 |
BEARING |
|
|
BR |
![]() |
| 62 |
N127530
|
1 |
BEARING BALL |
|
|
BR |
![]() |
| 66 |
330004-02
|
1 |
BEARING NEEDLE |
|
|
BR |
![]() |
| 67 |
330003-47
|
1 |
BEARING |
12 x 37 x 12 - 6301 |
|
BR |
![]() |
| 68 |
065786-00
|
1 |
BEARING |
|
|
BR |
![]() |
| 69 |
153554-00
|
1 |
DRIVE PULLEY |
|
|
BR |
![]() |
| 70 |
153796-00
|
1 |
PULLEY |
|
|
BR |
![]() |
| 71 |
153555-00
|
1 |
BELT
|
|
|
BR |
![]() |
| 72 |
153560-00
|
1 |
GASKET |
|
|
BR |
![]() |
| 73 |
153561-00
|
1 |
LOCKING PIN |
|
|
BR |
![]() |
| 74 |
153638-00
|
3 |
KEY |
|
|
BR |
![]() |
| 75 |
5140000-28
|
1 |
GEARCASE SA |
INCL. GR CS / BRG |
|
BR |
![]() |
| 76 |
5140000-28
|
1 |
GEARCASE SA |
INCL. GR CS / BRG |
|
BR |
![]() |
| 77 |
604765-00
|
1 |
CLAMP OUTER |
|
|
BR |
![]() |
| 78 |
152636-00
|
1 |
BLADE HOLDER |
|
|
BR |
![]() |
| 79 |
604768-00
|
1 |
BLADE CLAMP |
|
|
BR |
![]() |
| 81 |
153649-00
|
1 |
SLEEVE |
|
|
BR |
![]() |
| 82 |
153563-00
|
1 |
COVER |
|
|
BR |
![]() |
| 83 |
391317-00
|
1 |
FIELDCASE |
|
|
BR |
![]() |
| 84 |
391933-01
|
1 |
END CAP |
|
|
BR |
![]() |
| 85 |
391325-00
|
1 |
IDENTITY LABEL |
|
|
BR |
![]() |
| 86 |
153797-00
|
1 |
BOLT |
5/16-18 x 35mm |
|
BR |
![]() |
| 88 |
N225698
|
1 |
ARMATURE ASSEMBLY |
|
INCL. 44,61,62,64,69 |
BR |
![]() |
| 89 |
391318-00SV
|
1 |
FIELD 115V |
|
|
BR |
![]() |
| 90 |
389512-01
|
1 |
BRUSH PLATE |
|
|
BR |
![]() |
| 91 |
616467-00
|
1 |
NAME PLATE |
DW708-BR TY.2 |
|
BR |
![]() |
| 92 |
391375-00
|
1 |
BAFFLE FAN |
|
|
BR |
![]() |
| 93 |
397931-00
|
1 |
MOTOR CORD |
|
|
BR |
![]() |
| 94 |
394036-00
|
1 |
PLATE |
|
|
BR |
![]() |
| 95 |
615828-02
|
1 |
CORDSET |
|
|
BR |
![]() |
| 96 |
5140125-81
|
1 |
CONNECTOR |
|
|
BR |
![]() |
| 97 |
395624-00
|
1 |
COVERPLATE |
|
|
BR |
![]() |
| 98 |
153669-00
|
1 |
CORD CLAMP |
|
|
BR |
![]() |
| 99 |
153609-00
|
1 |
SWITCH |
Tyco |
|
BR |
![]() |
| 101 |
153755-01
|
1 |
CLAMSHELL PAIR |
|
|
BR |
![]() |
| 102 |
429932-00
|
1 |
ARM LINK |
|
INCL 46, 66, 192 |
BR |
![]() |
| 103 |
153721-00
|
2 |
FOAM |
|
|
BR |
![]() |
| 104 |
153562-00
|
1 |
BELT COVER |
|
|
BR |
![]() |
| 105 |
153648-06
|
1 |
UPPER GUARD ASY |
|
|
BR |
![]() |
| 106 |
605188-00
|
1 |
LABEL, IDENT |
|
|
BR |
![]() |
| 107 |
605408-00
|
1 |
DUST PORT |
|
|
BR |
![]() |
| 109 |
606883-02
|
1 |
GUARD |
LOWER |
|
BR |
![]() |
| 110 |
153719-01
|
1 |
LINK |
|
|
BR |
![]() |
| 111 |
145318-00
|
1 |
BUMPER |
|
|
BR |
![]() |
| 112 |
146774-00
|
2 |
ROLLER |
|
|
BR |
![]() |
| 113 |
146740-00
|
1 |
SLEEVE |
|
|
BR |
![]() |
| 114 |
385756-00
|
1 |
BUSH |
|
|
BR |
![]() |
| 115 |
146751-00
|
1 |
SHAFT
|
|
|
BR |
![]() |
| 116 |
153593-01
|
2 |
SPACER |
|
|
BR |
![]() |
| 118 |
387131-00
|
1 |
LOCKING PIN |
|
|
BR |
![]() |
| 119 |
397000-00
|
1 |
SCREW.SPECIAL |
|
|
BR |
![]() |
| 120 |
153603-01
|
1 |
PAWL |
|
|
BR |
![]() |
| 121 |
429941-00
|
1 |
TRUNNION |
|
INCL. 13,15,18,22,41 |
BR |
![]() |
| 123 |
153582-00
|
4 |
GUIDE |
|
|
BR |
![]() |
| 126 |
147107-03
|
1 |
KNOB |
|
|
BR |
![]() |
| 128 |
605155-00
|
1 |
BUSHING |
|
|
BR |
![]() |
| 131 |
153578-00
|
1 |
SCALE
|
|
|
BR |
![]() |
| 132 |
153575-00
|
1 |
POINTER
|
|
|
BR |
![]() |
| 133 |
392422-00
|
1 |
HANDLE |
|
|
BR |
![]() |
| 135 |
386757-01
|
1 |
PIN
|
|
|
BR |
![]() |
| 136 |
153574-00
|
1 |
BUTTON RELEASE |
|
|
BR |
![]() |
| 137 |
615045-00
|
1 |
TABLE |
|
|
BR |
![]() |
| 138 |
5140006-45
|
1 |
PIVOT SHAFT |
|
|
BR |
![]() |
| 139 |
153640-00
|
1 |
PIN
|
|
|
BR |
![]() |
| 140 |
153620-04
|
1 |
PLATE,MITER DET
|
|
|
BR |
![]() |
| 141 |
153624-00
|
1 |
POINTER
|
|
|
BR |
![]() |
| 142 |
153632-00
|
1 |
PIN
|
|
|
BR |
![]() |
| 143 |
153621-00
|
1 |
HANDLE
|
|
|
BR |
![]() |
| 144 |
153722-01
|
1 |
TRIGGER |
|
|
BR |
![]() |
| 145 |
153622-00
|
1 |
LOCKING PIN
|
|
|
BR |
![]() |
| 146 |
153626-00
|
1 |
LEVER |
|
|
BR |
![]() |
| 147 |
682149-00
|
1 |
BUSH |
|
|
BR |
![]() |
| 148 |
153768-00
|
1 |
SPRING SA
|
|
|
BR |
![]() |
| 149 |
395672-00
|
2 |
PLATE SA
|
|
|
BR |
![]() |
| 152 |
153765-03
|
1 |
BASE |
|
|
BR |
![]() |
| 153 |
153612-00
|
4 |
FOOT |
|
D/C 200309 AND EARLIER |
BR |
![]() |
| 154 |
153614-01
|
3 |
THRUST PLATE |
|
|
BR |
![]() |
| 156 |
153627-00
|
1 |
FENCE SA |
|
|
BR |
![]() |
| 157 |
153766-06
|
1 |
FENCE, LEFT |
|
INC. 166 |
BR |
![]() |
| 158 |
153767-07
|
1 |
FENCE,RIGHT |
|
INC. 167 |
BR |
![]() |
| 159 |
147107-02
|
2 |
KNOB LOWER |
|
|
BR |
![]() |
| 163 |
608563-01
|
1 |
WRENCH SPECIAL |
M13 - T30 |
|
BR |
![]() |
| 164 |
381028-08
|
2 |
BRUSH & LEAD |
|
|
BR |
![]() |
| 166 |
606512-00
|
2 |
WARNING LABEL |
|
|
BR |
![]() |
| 167 |
616674-00
|
2 |
LABEL,WARNING |
|
|
BR |
![]() |
| 168 |
390905-00
|
1 |
SUPPORT BRACKET |
|
|
BR |
![]() |
| 169 |
609003-00
|
2 |
WARNING LABEL |
|
|
BR |
![]() |
| 173 |
385652-00SV
|
1 |
LOCK SA |
|
INC 35,49,53,145,148 |
BR |
![]() |
| 191 |
145312-00
|
1 |
PLUG |
|
|
BR |
![]() |
| 192 |
330045-45
|
2 |
SCREW |
|
|
BR |
![]() |
| 193 |
391358-01
|
1 |
HOLDER |
|
|
BR |
![]() |
| 194 |
398367-00
|
1 |
SCREW |
M6 x 16 Patchlock |
|
BR |
![]() |
| 200 |
147734-06
|
1 |
DUSTBAG |
|
|
BR |
![]() |
| 201 |
606886-00
|
1 |
GUARD PLATE |
|
D/C 200241 AND LATER |
BR |
![]() |
| 202 |
607137-00
|
1 |
COVER |
|
D/C 200241 AND LATER |
BR |
![]() |
| 203 |
385915-01
|
2 |
SCREW |
|
D/C 200241 AND LATER |
BR |
![]() |
| 205 |
613497-00
|
2 |
THRUST PLATE |
|
|
BR |
![]() |
| 206 |
395716-00
|
1 |
TERMINAL |
RING |
|
BR |
![]() |
| 800 |
5140061-28
|
1 |
GREASE |
|
|
BR |
![]() |
| 800 |
93488-00
|
1 |
GREASE |
|
1.75 OZ |
BR |
![]() |
| 856 |
624616-00
|
1 |
BLADE |
12 IN / 60T (DW3126) |
|
BR |
![]() |
| 856 |
5140050-83
|
1 |
LENGTH STOP |
WAS ACCY DW7051 |
|
BR |
![]() |
| 856 |
DW7053
|
1 |
DUST BAG SA |
|
INCLUDED |
BR |
![]() |
| 856 |
DW7080
|
1 |
EXTENSION SYSTEM |
ACCESSORY |
|
BR |
![]() |
| 856 |
DW7084
|
1 |
STOP PLATE |
|
|
BR |
![]() |
| 856 |
153650-00
|
1 |
CLAMP |
|
|
BR |
![]() |
| 860 |
340992-08
|
1 |
BIT
|
T40 |
|
BR |
![]() |
