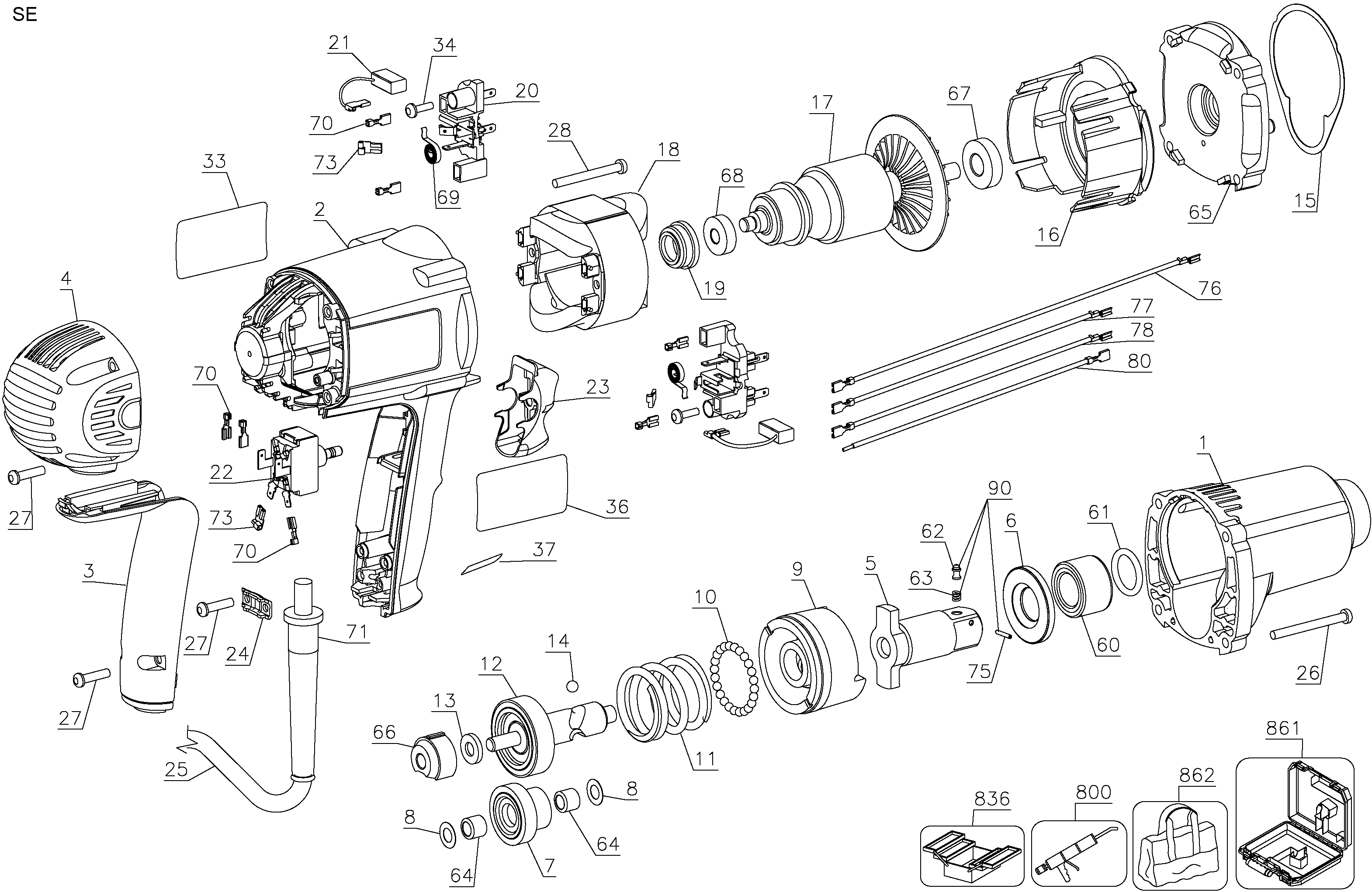

DW292 IMPACT WRENCH Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | N822135 | 1 | GEARCASE SA | PKGD 616822-00 | Incl. 60,61 | AR | |
| 2 | 616828-01 | 1 | FIELDCASE | ROCKER | AR | ||
| 3 | 616829-00 | 1 | HANDLE COVER | ROCKER | AR | ||
| 4 | 616830-00 | 1 | END CAP | AR | |||
| 5 | 627238-00SV | 1 | ANVIL ASSEMBLY | Incl. 62,63,75 | AR | ||
| 6 | 616859-00 | 1 | WASHER THRUST | AR | |||
| 7 | 135093-01SV | 1 | GEAR & PINION | AR | |||
| 8 | 135089-00 | 2 | WASHER | AR | |||
| 9 | 628129-00 | 1 | IMPACTOR | AR | |||
| 10 | 000475-00 | 25 | BALL STEEL | AR | |||
| 11 | 618843-00 | 1 | SPRING | AR | |||
| 12 | 659923-00SV | 1 | GEAR & CAM SA | AR | |||
| 13 | 450667-00 | 1 | WASHER | NOT USED AFTER DATE CODE 2008-26 - SEE REPAIR NOTE | AR | ||
| 14 | 618844-00 | 2 | BALL STEEL | 1/4 INCH | AR | ||
| 15 | 616847-00 | 1 | GASKET | AR | |||
| 16 | 655537-00 | 1 | BAFFLE FAN | AR | |||
| 17 | 5140071-79 | 1 | ARMATURE KIT 220 | 230V | AR | ||
| 18 | 617862-01SV | 1 | FIELD | 230v | AR | ||
| 19 | 445217-01 | 1 | SLEEVE | AR | |||
| 20 | 616857-00 | 2 | BRUSH HOLDER | AR | |||
| 21 | 617848-03 | 2 | BRUSH 230V | AR | |||
| 22 | 616848-00 | 1 | SWITCH | ROCKER | AR | ||
| 23 | 617846-00 | 1 | TRIGGER | ROCKER | AR | ||
| 24 | 450877-00 | 1 | CORD CLAMP | AR | |||
| 26 | 330019-18 | 4 | SCREW | M4.55 x 50 PLASTIC THD FMG | AR | ||
| 27 | 330019-13 | 8 | SCREW | M4X19 T20 | AR | ||
| 28 | 330019-17 | 2 | SCREW | AR | |||
| 33 | 605523-00 | 1 | IDENTITY LABEL | AR | |||
| 34 | 176951-00 | 2 | SCREW | AR | |||
| 36 | 628893-00 | 1 | NAMEPLATE | DW292-AR TY1 | AR | ||
| 37 | 000000-00 | 1 | NO LONGER AVAILABLE | AR | |||
| 60 | N863052 | 1 | SERVICE KIT | INCL. SEAL | AR | ||
| 61 | N863052 | 1 | SERVICE KIT | INCL. SEAL | UP TO D/C 2020-30. ITEM 60 BEARING KIT INCL. SEAL | AR | |
| 62 | N020802 | 1 | DETENT | AR | |||
| 63 | 038769-00 | 1 | SPRING | AR | |||
| 64 | 330004-02 | 2 | BEARING NEEDLE | AR | |||
| 65 | 616823-00SV | 1 | GEARCASE COVER SA | Incl. 66,67 | AR | ||
| 66 | 616841-00 | 1 | BEARING BLOCK | AR | |||
| 67 | 616823-00SV | 1 | GEARCASE COVER SA | AR | |||
| 68 | 330003-04 | 1 | BEARING | AR | |||
| 69 | 383387-00 | 2 | BRUSH SPRING | AR | |||
| 70 | 137646-00 | 8 | TERMINAL | AR | |||
| 71 | 330005-01 | 1 | CORD PROTECTOR | AR | |||
| 73 | 445964-00 | 2 | TERMINAL | AR | |||
| 75 | 099205-07 | 1 | ROLL PIN | AR | |||
| 76 | 616851-01 | 1 | LEAD | RED, 235MM | AR | ||
| 77 | 616851-02 | 1 | LEAD | BLACK, 140MM | AR | ||
| 78 | 616851-03 | 1 | LEAD | YELLOW, 140MM | AR | ||
| 80 | 616851-00 | 1 | LEAD BLUE | BLUE, 105MM | AR | ||
| 90 | 94783-00 | 1 | KIT,1/2 DET.PIN | AR | |||
| 800 | 429698-00 | 1 | GREASE | BD-L 2 | AR | ||
| 836 | 233804-32 | 1 | SERVICE TOOL | 626571-00 | FOR ARMATURE FAN END BRG. | AR | |
| 861 | 630094-00 | 1 | KITBOX | OPTIONAL | AR | ||
| 862 | N037466 | 1 | BAG | OPTIONAL | AR |
