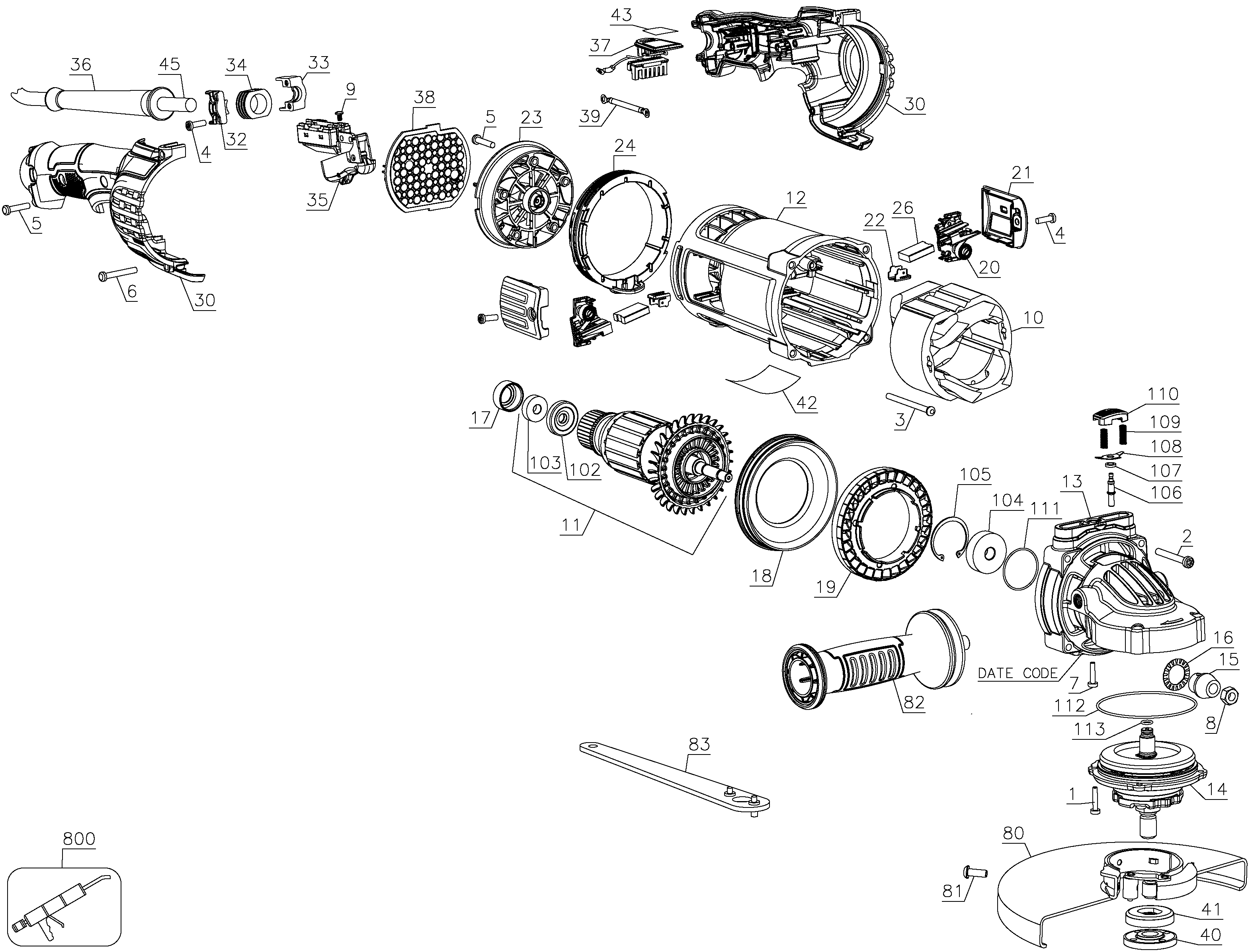

DWE4579 ANGLE GRINDER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 330045-07 | 4 | SCREW | B3 | |||
| 2 | 330019-26 | 4 | SCREW | B3 | |||
| 3 | 330019-19 | 2 | SCREW | B3 | |||
| 4 | 330019-12 | 4 | SCREW | B3 | |||
| 5 | 330019-32 | 11 | SCREW | B3 | |||
| 6 | 330019-15 | 2 | SCREW | B3 | |||
| 7 | 330045-14 | 1 | SCREW | B3 | |||
| 8 | 330015-03 | 1 | NUT | M8x1.25 | B3 | ||
| 9 | N111595 | 4 | SCREW | 6-32 x 7/32 T15 | B3 | ||
| 10 | N203635 | 1 | FIELD | 120V PKGD N117163 | B3 | ||
| 11 | N203632 | 1 | ARMATURE 120V | 120V PKGD N111896 | INCL. 102,103 | B3 | |
| 12 | N096025 | 1 | FIELDCASE | DES | B3 | ||
| 13 | N252619 | 1 | GEARCASE SA | SPL LOCK PKDN397472 | B3 | ||
| 14 | N203622 | 1 | GEAR CASE COVER ASSY. | B3 | |||
| 15 | N099841 | 1 | PINION | 6K | B3 | ||
| 16 | N132602 | 1 | WASHER SPECIAL | PINION | B3 | ||
| 17 | 609970-00 | 1 | SLEEVE INSULATING | B3 | |||
| 18 | N094853 | 1 | BAFFLE FAN | B3 | |||
| 19 | N094854 | 1 | FAN | FAN | B3 | ||
| 20 | N106196 | 2 | BRUSH HOLDER SA | B3 | |||
| 21 | N111898 | 2 | BRUSH COVER | B3 | |||
| 22 | N139735 | 2 | TERMINAL | TERMINAL | B3 | ||
| 23 | N252621 | 1 | FAN SA | DES, PKG'D N147921 | B3 | ||
| 24 | N110984 | 1 | RING | ANTI-VIBE | B3 | ||
| 26 | N259979 | 1 | BRUSH PAIR KIT | 115/120V COATED | B3 | ||
| 30 | N145822 | 1 | HANDLE SA | LOCK-ON, GACC | B3 | ||
| 32 | N138812 | 1 | CORD CLAMP | TOP | B3 | ||
| 33 | N104732 | 1 | CORD CLAMP | BOTTOM | B3 | ||
| 34 | N135624 | 1 | SHOCK ABSORBER | B3 | |||
| 35 | N142959 | 1 | SWITCH SA | LOCK-OFF W/LOCK-ON | B3 | ||
| 36 | 330005-11 | 1 | CORD PROTECTOR | B3 | |||
| 37 | N103805 | 1 | LED | B3 | |||
| 38 | N173924 | 1 | GACC MODULE 115V | 120V GACC | B3 | ||
| 39 | N106622 | 1 | LEAD SA | RED, 165MM | B3 | ||
| 40 | 401678-06 | 1 | WASHER | OUTER CLAMP, 5/8 | B3 | ||
| 41 | N218833 | 1 | INNER FLANGE | B3 | |||
| 42 | N145076 | 1 | NAMEPLATE | B3 | |||
| 43 | N181266 | 1 | LABEL | E-CLUTCH | B3 | ||
| 45 | N116820 | 1 | CORDSET | 14-2S 8FT | B3 | ||
| 80 | N036837 | 1 | GUARD SA | B3 | |||
| 81 | 606863-00 | 1 | SCREW | B3 | |||
| 82 | N241543 | 1 | SIDE HANDLE | ANTI-VIBE | B3 | ||
| 83 | 635261-00 | 1 | WRENCH PIN | B3 | |||
| 102 | 393238-00 | 1 | SHIELD | B3 | |||
| 103 | N110359 | 1 | BEARING | B3 | |||
| 104 | N389509 | 1 | BEARING | B3 | |||
| 105 | N173539 | 1 | RETAINER | B3 | |||
| 106 | N173538 | 1 | LOCK PIN | SPINDLE | B3 | ||
| 107 | N173540 | 1 | O RING | B3 | |||
| 108 | N108422 | 1 | PLATE | B3 | |||
| 109 | N110675 | 2 | SPRING | B3 | |||
| 110 | N110236 | 1 | BUTTON | B3 | |||
| 111 | N226986 | 1 | O RING | B3 | |||
| 112 | 397031-00 | 1 | O RING | B3 | |||
| 113 | 660143-00 | 1 | O RING | B3 | |||
| 800 | 429954-01 | 1 | GREASE | NYE RHEOLUBE 380G1, 500grams JAR | B3 | ||
| 800 | 429954-00 | 1 | GREASE | NYE RHEOLUBE 380G1, 7LBS. / 3175 GRAMS | B3 | ||
| 800 | 30301914-01 | 1 | GREASE | 35LBS RHEOLUBE 380G1 | B3 |
