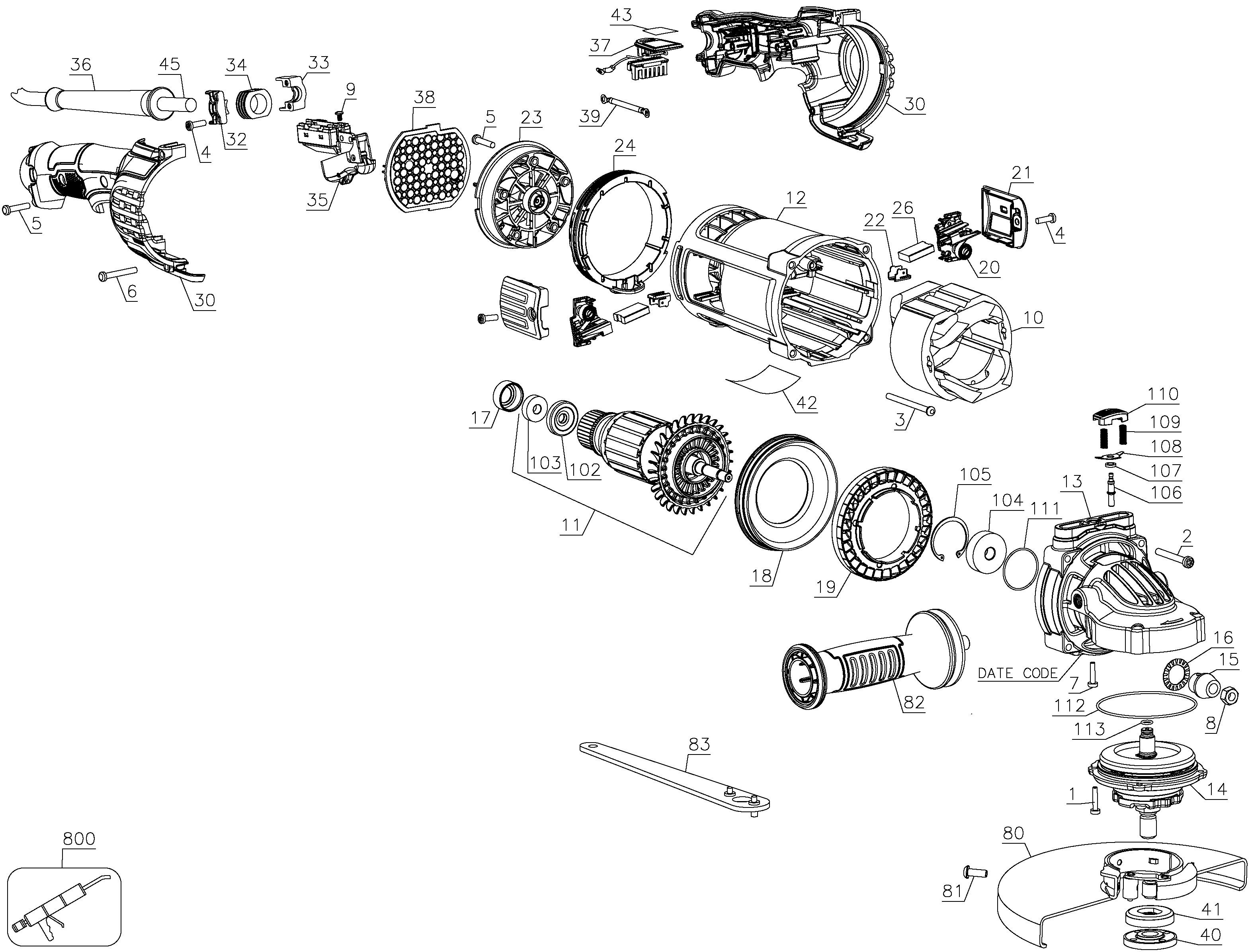

DWE4599 ANGLE GRINDER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 330045-07 | 4 | SCREW | BR | |||
| 2 | 330019-26 | 4 | SCREW | BR | |||
| 3 | 330019-19 | 2 | SCREW | BR | |||
| 4 | 330019-12 | 4 | SCREW | BR | |||
| 5 | 330019-32 | 11 | SCREW | BR | |||
| 6 | 330019-15 | 2 | SCREW | BR | |||
| 7 | 330045-14 | 1 | SCREW | BR | |||
| 8 | 330015-03 | 1 | NUT | M8x1.25 | BR | ||
| 9 | N111595 | 4 | SCREW | 6-32 x 7/32 T15 | BR | ||
| 10 | N203635 | 1 | FIELD | 120V PKGD N117163 | BR | ||
| 11 | N203632 | 1 | ARMATURE 120V | 120V PKGD N111896 | BR | ||
| 12 | N096025 | 1 | FIELDCASE | DES | BR | ||
| 13 | N252619 | 1 | GEARCASE SA | SPL LOCK PKDN397472 | BR | ||
| 14 | N203628 | 1 | GEAR CASE COVER ASSY | 8K 5/8-11 CLTCH SHRT | Incl. 113 | BR | |
| 15 | N099841 | 1 | PINION | 6K | BR | ||
| 16 | N132602 | 1 | WASHER SPECIAL | PINION | BR | ||
| 17 | 609970-00 | 1 | SLEEVE INSULATING | BR | |||
| 18 | N094853 | 1 | BAFFLE FAN | BR | |||
| 19 | N094854 | 1 | FAN | FAN | BR | ||
| 20 | N106196 | 2 | BRUSH HOLDER SA | BR | |||
| 21 | N111898 | 2 | BRUSH COVER | BR | |||
| 22 | N139735 | 2 | TERMINAL | TERMINAL | BR | ||
| 23 | N252621 | 1 | FAN SA | DES, PKG'D N147921 | BR | ||
| 24 | N110984 | 1 | RING | ANTI-VIBE | BR | ||
| 26 | N259979 | 1 | BRUSH PAIR KIT | 115/120V COATED | BR | ||
| 30 | N145822 | 1 | HANDLE SA | LOCK-ON, GACC | BR | ||
| 32 | N142099 | 1 | CORD CLAMP | TOP | BR | ||
| 33 | N104732 | 1 | CORD CLAMP | BOTTOM | BR | ||
| 34 | N135624 | 1 | SHOCK ABSORBER | BR | |||
| 35 | N142959 | 1 | SWITCH SA | LOCK-OFF W/LOCK-ON | BR | ||
| 36 | 604118-00 | 1 | CORD PROTECTOR | BR | |||
| 37 | N103805 | 1 | LED | BR | |||
| 38 | N173924 | 1 | GACC MODULE 115V | 120V GACC | BR | ||
| 39 | N150481 | 1 | LEAD SA | YELLOW | BR | ||
| 40 | 401678-05 | 1 | OUTER FLANGE | BR | |||
| 41 | 403150-01 | 1 | INNER FLANGE | BR | |||
| 42 | N145081 | 1 | NAMEPLATE | DWE4599-BR TY1 | BR | ||
| 43 | N181267 | 1 | LABEL | LED | BR | ||
| 45 | N144810 | 1 | CORD | BR | BR | ||
| 80 | N036837 | 1 | GUARD SA | BR | |||
| 81 | 606863-00 | 1 | SCREW | BR | |||
| 82 | N241543 | 1 | SIDE HANDLE | ANTI-VIBE | BR | ||
| 83 | 635261-00 | 1 | WRENCH PIN | BR | |||
| 102 | 393238-00 | 1 | SHIELD | BR | |||
| 103 | N110359 | 1 | BEARING | BR | |||
| 104 | N389509 | 1 | BEARING | BR | |||
| 105 | N173539 | 1 | RETAINER | BR | |||
| 106 | N173538 | 1 | LOCK PIN | SPINDLE | BR | ||
| 107 | N173540 | 1 | O RING | BR | |||
| 108 | N108422 | 1 | PLATE | BR | |||
| 109 | N110675 | 2 | SPRING | BR | |||
| 110 | N110236 | 1 | BUTTON | BR | |||
| 111 | N226986 | 1 | O RING | BR | |||
| 112 | 397031-00 | 1 | O RING | BR | |||
| 113 | 660143-00 | 1 | O RING | BR | |||
| 800 | 429954-01 | 1 | GREASE | NYE RHEOLUBE 380G1, 500grams JAR | BR | ||
| 800 | 429954-00 | 1 | GREASE | NYE RHEOLUBE 380G1, 7LBS. / 3175 GRAMS | BR | ||
| 800 | 30301914-01 | 1 | GREASE | 35LBS RHEOLUBE 380G1 | BR |
