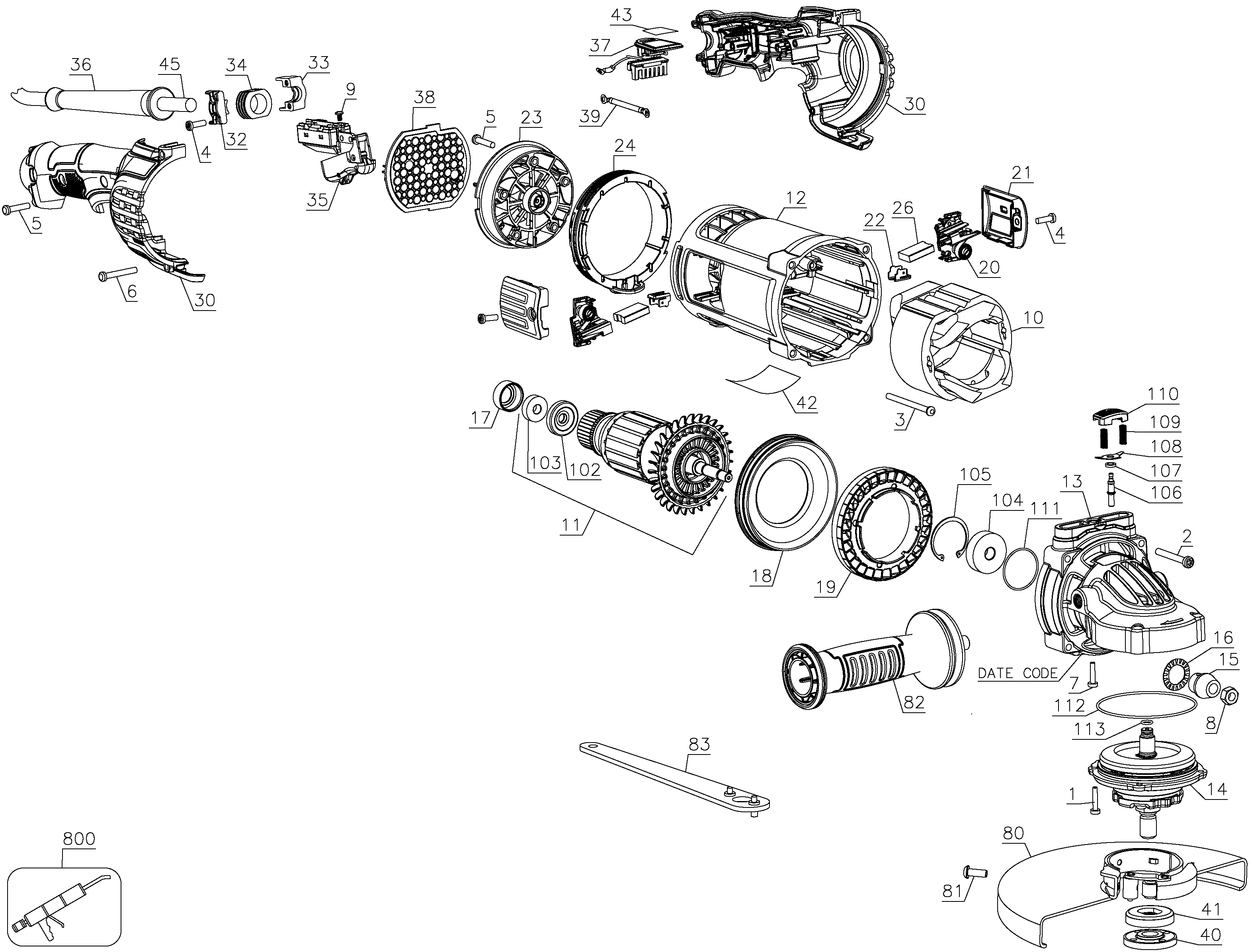

DWE4579 ANGLE GRINDER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 330045-07 | 4 | SCREW | AR | |||
| 2 | 330019-26 | 4 | SCREW | AR | |||
| 3 | 330019-19 | 2 | SCREW | AR | |||
| 4 | 330019-12 | 4 | SCREW | AR | |||
| 5 | 330019-32 | 11 | SCREW | AR | |||
| 6 | 330019-15 | 2 | SCREW | AR | |||
| 7 | 330045-14 | 1 | SCREW | AR | |||
| 8 | 330015-03 | 1 | NUT | M8x1.25 | AR | ||
| 9 | N111595 | 4 | SCREW | 6-32 x 7/32 T15 | AR | ||
| 10 | N203633 | 1 | FIELD 230V | 230V PKGD N117162 | AR | ||
| 11 | N203630 | 1 | ARMATURE SA | 230V PKGD N114305 | AR | ||
| 12 | N096025 | 1 | FIELDCASE | DES | AR | ||
| 13 | N252619 | 1 | GEARCASE SA | SPL LOCK PKDN397472 | AR | ||
| 14 | N203620 | 1 | GEARCASE COVER SA | AR | |||
| 15 | N099841 | 1 | PINION | 6K | AR | ||
| 16 | N132602 | 1 | WASHER SPECIAL | PINION | AR | ||
| 17 | 609970-00 | 1 | SLEEVE INSULATING | AR | |||
| 18 | N094853 | 1 | BAFFLE FAN | AR | |||
| 19 | N094854 | 1 | FAN | FAN | AR | ||
| 20 | N106196 | 2 | BRUSH HOLDER SA | AR | |||
| 21 | N111898 | 2 | BRUSH COVER | AR | |||
| 22 | N139735 | 2 | TERMINAL | TERMINAL | AR | ||
| 23 | N252621 | 1 | FAN SA | DES, PKG'D N147921 | AR | ||
| 24 | N110984 | 1 | RING | ANTI-VIBE | AR | ||
| 26 | N253999 | 2 | BRUSH PAIR 230V | 230V COATED | AR | ||
| 30 | N145822 | 1 | HANDLE SA | LOCK-ON, GACC | AR | ||
| 32 | N142099 | 1 | CORD CLAMP | TOP | AR | ||
| 33 | N104732 | 1 | CORD CLAMP | BOTTOM | AR | ||
| 34 | N135624 | 1 | SHOCK ABSORBER | AR | |||
| 35 | N142959 | 1 | SWITCH SA | LOCK-OFF W/LOCK-ON | AR | ||
| 36 | 604118-00 | 1 | CORD PROTECTOR | AR | |||
| 37 | N103805 | 1 | LED | AR | |||
| 38 | N173925 | 1 | GACC MODULE 230V | 230V, GACC | AR | ||
| 39 | N150481 | 1 | LEAD SA | YELLOW | AR | ||
| 40 | 401678-05 | 1 | OUTER FLANGE | AR | |||
| 41 | 403150-01 | 1 | INNER FLANGE | AR | |||
| 42 | N145078 | 1 | NAMEPLATE | AR | |||
| 43 | N181267 | 1 | LABEL | LED | AR | ||
| 45 | N144798 | 1 | CORD | AR | |||
| 80 | N036837 | 1 | GUARD SA | AR | |||
| 81 | 606863-00 | 1 | SCREW | AR | |||
| 82 | N241543 | 1 | SIDE HANDLE | ANTI-VIBE | AR | ||
| 83 | 635261-00 | 1 | WRENCH PIN | AR | |||
| 102 | 393238-00 | 1 | SHIELD | AR | |||
| 103 | N110359 | 1 | BEARING | AR | |||
| 104 | N389509 | 1 | BEARING | AR | |||
| 105 | N173539 | 1 | RETAINER | AR | |||
| 106 | N173538 | 1 | LOCK PIN | SPINDLE | AR | ||
| 107 | N173540 | 1 | O RING | AR | |||
| 108 | N108422 | 1 | PLATE | AR | |||
| 109 | N110675 | 2 | SPRING | AR | |||
| 110 | N110236 | 1 | BUTTON | AR | |||
| 111 | N226986 | 1 | O RING | AR | |||
| 112 | 397031-00 | 1 | O RING | AR | |||
| 113 | 660143-00 | 1 | O RING | AR | |||
| 800 | 429954-01 | 1 | GREASE | NYE RHEOLUBE 380G1, 500grams JAR | AR | ||
| 800 | 30301914-01 | 1 | GREASE | 35LBS RHEOLUBE 380G1 | AR | ||
| 800 | 429954-00 | 1 | GREASE | NYE RHEOLUBE 380G1, 7LBS. / 3175 GRAMS | AR |
