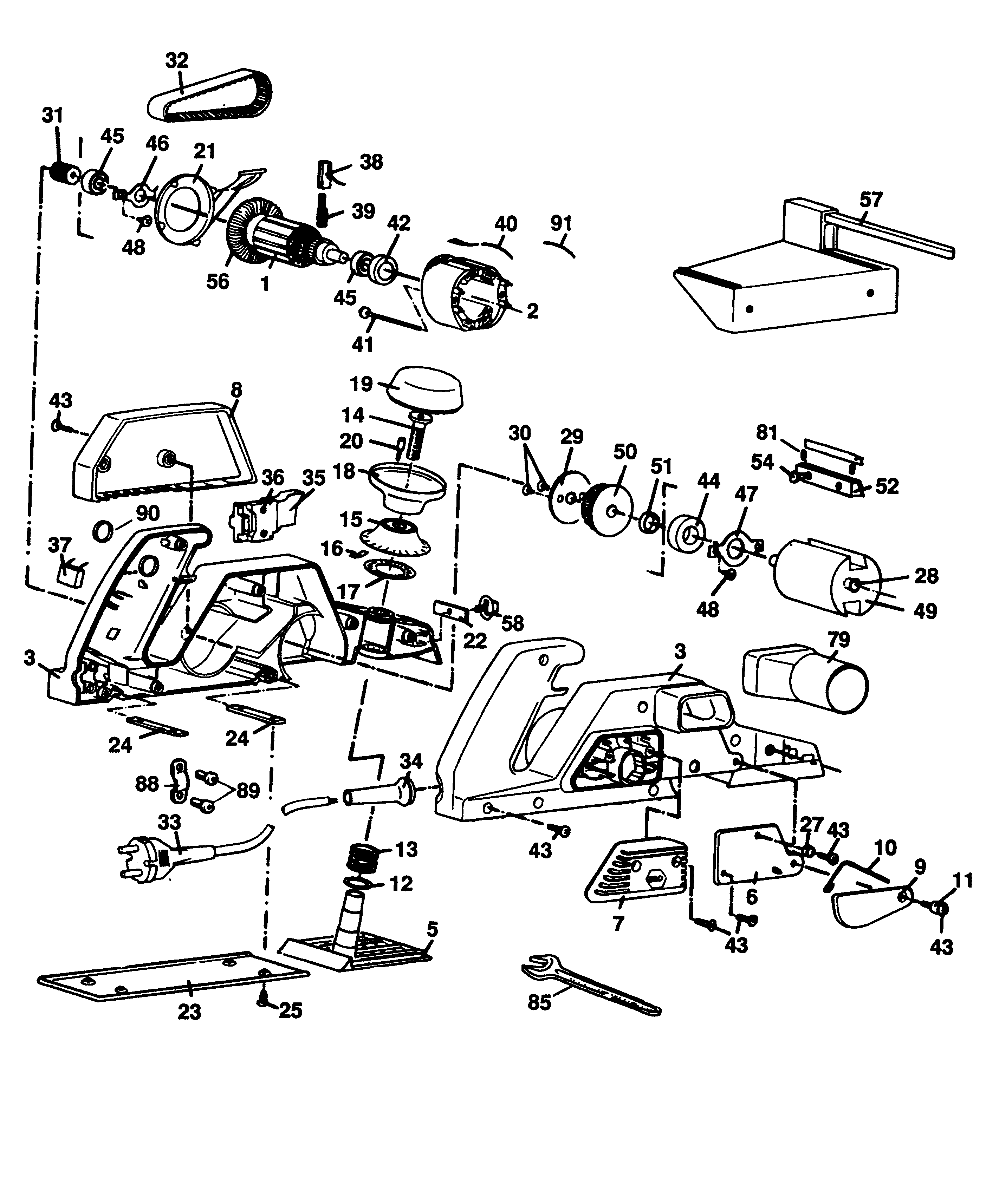

BD750 PLANER Type 1 | Drawings

Documents

Item No.	Product Number	Qty Per	Product Description	General Description	Markets
2	879731	1	FIELD		CH
3	320598	1	HOUSING		CH
5	878174	1	SHOE		CH
6	878215	1	BRACKET		CH
7	322429	1	COVER		CH
8	873550	1	COVER BELT		CH
9	916974	1	GUARD		CH
10	917368	1	SPRING		CH
11	918481	1	BUSH		CH
12	916950	1	WASHER		CH
13	916951	1	SPRING		CH
14	916952	1	SCREW		CH
15	322427	1	INSERT		CH
16	916954	2	SPRING		CH
17	916955	1	PLATE		CH
18	916956	1	KNOB		CH
19	916957	1	KNOB		CH
20	918482	2	PIN		CH
21	372782	1	BAFFLE FAN		CH
22	918405	1	PLATE		CH
23	321050	1	PLATE		CH
25	911216	4	SCREW		CH
27	917140	1	BUSH		CH
28	330004-04	1	BEARING NEEDLE		CH
29	321564	1	PLATE		CH
30	911246	2	SCREW		CH
31	916967	1	PULLEY		CH
32	914592	1	BELT		CH
34	916969	1	PROTECTOR		CH
35	322002	1	SWITCH		CH
37	321384	1	CAPACITOR		CH
38	877898	2	BRUSH HOLDER		CH
39	915068-01	2	BRUSH & SPRING	SINGULAR	CH
40	878277	1	LEAD 280MM		CH
41	911250	2	SCREW.TEMP		CH
42	911897	1	HOLDER		CH
43	911325	12	SCREW		CH
44	915541	1	BEARING		CH
45	330003-31	2	BEARING		CH
46	916980	1	PLATE		CH
47	916971	1	PLATE		CH
48	911388	4	SCREW		CH
49	872367	1	BLADEDRUM		CH
50	913968	1	PULLEY		CH
51	916758	1	SPACER		CH
52	322725-49	2	BLADE HOLDER		CH
54	322553	2	SCREW.TEMP		CH
56	917752	1	FAN		CH
81	911391-01	4	SCREW		CH
85	917132	1	WRENCH		CH
88	910556	1	CABLE CLAMP		CH
89	911059	2	SCREW		CH
91	878846	1	LEAD 360MM		CH
