STST1825 SAW TABLE Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 5140147-55 | 1 | SCREW | BR | |||
| 2 | 5140167-70 | 1 | PRESSURE BOARD | BR | |||
| 3 | 5140167-71 | 1 | SWITCH BOX | BR | |||
| 4 | 5140147-58 | 8 | SCREW | BR | |||
| 5 | 5140147-59 | 1 | SWITCH | BR | |||
| 6 | 5140167-90 | 1 | SWITCH | BR | |||
| 7 | 5140147-61 | 2 | SCREW | BR | |||
| 8 | 5140167-73 | 1 | NAME PLATE | STST1825-BR TY1 | BR | ||
| 9 | 5140147-63 | 2 | LOCK NUT | BR | |||
| 10 | 5140147-64 | 1 | WHEEL | BR | |||
| 11 | 5140146-75 | 13 | WASHER | BR | |||
| 12 | 5140147-65 | 1 | Handle | BR | |||
| 13 | 5140147-66 | 2 | WASHER | BR | |||
| 14 | 5140167-74 | 1 | SCREW | BR | |||
| 15 | 5140167-75 | 1 | COILING HOOK | BR | |||
| 16 | 5140147-69 | 2 | ANGLE | BR | |||
| 17 | 5140146-50 | 2 | SCREW | BR | |||
| 19 | 5140147-71 | 4 | SCREW | BR | |||
| 20 | 5140147-72 | 1 | RACK | BR | |||
| 21 | 5140147-73 | 3 | SCREW | BR | |||
| 22 | 5140147-36 | 11 | SCREW | BR | |||
| 23 | 5140147-74 | 1 | POINTER | BR | |||
| 24 | 5140146-14 | 5 | WASHER SPRING | BR | |||
| 25 | 5140147-75 | 7 | NUT M4 | BR | |||
| 26 | 5140147-76 | 4 | WASHER | BR | |||
| 27 | 5140160-23 | 1 | BODY | BR | |||
| 28 | 5140147-78 | 1 | SCREW | BR | |||
| 29 | 5140147-79 | 8 | SCREW | BR | |||
| 30 | 5140147-80 | 4 | WASHER | BR | |||
| 31 | 5140147-81 | 1 | BLOCK | BR | |||
| 32 | 5140147-82 | 2 | WASHER | BR | |||
| 33 | 5140147-83 | 1 | NUT M6 | BR | |||
| 34 | 5140147-84 | 1 | SPRING TORSION | BR | |||
| 35 | 5140147-85 | 1 | PIN | BR | |||
| 36 | 5140151-45 | 1 | AXIS | BR | |||
| 37 | 5140167-76 | 1 | SCREW | BR | |||
| 38 | 5140151-46 | 1 | Handle | BR | |||
| 39 | 5140147-89 | 1 | RING | BR | |||
| 40 | 5140147-90 | 1 | WASHER | BR | |||
| 41 | 5140147-91 | 1 | SCREW | BR | |||
| 42 | 5140147-92 | 1 | SLEEVE | BR | |||
| 43 | 5140147-93 | 1 | BLOCK | BR | |||
| 44 | 5140147-94 | 1 | SLEEVE | BR | |||
| 45 | 5140147-95 | 1 | BAR | BR | |||
| 46 | 5140147-96 | 10 | SCREW | BR | |||
| 47 | 5140147-97 | 2 | GEAR | BR | |||
| 48 | 5140147-98 | 2 | SCREW | BR | |||
| 49 | 5140147-99 | 1 | SEAT | BR | |||
| 50 | 5140148-00 | 1 | SUPPORT | BR | |||
| 51 | 5140151-47 | 3 | SCREW | BR | |||
| 52 | 5140148-01 | 1 | BAR | BR | |||
| 53 | 5140148-02 | 1 | BLOCK | BR | |||
| 54 | 5140148-03 | 8 | WASHER | BR | |||
| 55 | 5140148-04 | 4 | SCREW | M6x16 | BR | ||
| 56 | 5140148-05 | 1 | BAR | BR | |||
| 58 | 5140148-07 | 1 | GUARD | BR | |||
| 59 | 5140148-08 | 2 | BOARD | BR | |||
| 60 | 5140148-09 | 4 | WASHER | BR | |||
| 61 | 5140148-10 | 1 | SUPPORT | BR | |||
| 62 | 5140151-48 | 1 | BAR | BR | |||
| 63 | 5140148-12 | 1 | BLOCK | BR | |||
| 64 | 5140148-13 | 4 | WASHER SPRING | BR | |||
| 65 | 5140148-14 | 2 | SCREW | BR | |||
| 66 | 5140146-24 | 2 | LOCK NUT | BR | |||
| 67 | 5140148-15 | 3 | WASHER | BR | |||
| 68 | 5140148-16 | 1 | BLOCK | BR | |||
| 69 | 5140148-17 | 1 | COVER | BR | |||
| 70 | 5140151-49 | 1 | NUT | BR | |||
| 71 | 5140148-19 | 1 | OUTER FLANGE | BR | |||
| 73 | 5140151-51 | 1 | INNER FLANGE | BR | |||
| 74 | 5140148-21 | 1 | BEARING HOLDER | BR | |||
| 75 | 5140148-22 | 1 | BEARING | BR | |||
| 76 | 5140148-23 | 1 | SPRING | BR | |||
| 77 | 5140148-24 | 1 | OUTPUT SHAFT | BR | |||
| 78 | 5140148-25 | 1 | KEY | BR | |||
| 79 | 5140167-77 | 1 | GEAR WHEEL | BR | |||
| 80 | 5140148-27 | 1 | CIRCLIP | BR | |||
| 81 | 5140148-28 | 1 | BEARING,NEEDLE | BR | |||
| 82 | 5140148-29 | 1 | COVER | BR | |||
| 83 | 5140146-31 | 1 | LOCK NUT | BR | |||
| 84 | 5140148-30 | 3 | WASHER | BR | |||
| 85 | 5140148-31 | 1 | BEARING 6202 | ID: 15MM OD: 35MM | BR | ||
| 86 | 5140148-32 | 1 | BAR | BR | |||
| 87 | 5140148-33 | 1 | ARMATURE | BR | |||
| 88 | 5140148-34 | 1 | BEARING | BR | |||
| 89 | 5140148-35 | 2 | SCREW | BR | |||
| 90 | 5140148-36 | 1 | FIELD | BR | |||
| 91 | 5140148-37 | 1 | SHROUD | BR | |||
| 92 | 5140148-38 | 1 | HOUSING MOTOR | BR | |||
| 93 | 5140148-39 | 2 | BRUSH HOLDER 230V | BR | |||
| 94 | 5140167-78 | 2 | BRUSH | BR | |||
| 95 | 5140148-39 | 2 | BRUSH HOLDER 230V | BR | |||
| 96 | 5140148-42 | 3 | SCREW | BR | |||
| 97 | 5140145-99 | 3 | WASHER SPRING | BR | |||
| 98 | 5140148-43 | 3 | WASHER | BR | |||
| 99 | 5140148-44 | 1 | KNOB | BR | |||
| 100 | 5140148-45 | 2 | WASHER | BR | |||
| 101 | 5140148-46 | 1 | BOARD | BR | |||
| 102 | 5140148-47 | 1 | PIN | BR | |||
| 103 | 5140148-48 | 1 | NUT | BR | |||
| 104 | 5140148-49 | 1 | COVER | BR | |||
| 105 | 5140148-50 | 1 | Handle | BR | |||
| 106 | 5140148-51 | 1 | PLATE | BR | |||
| 107 | 5140148-52 | 1 | COVER | BR | |||
| 108 | 5140148-53 | 1 | FENCE | BR | |||
| 109 | 5140148-54 | 1 | PIN | BR | |||
| 110 | 5140148-55 | 1 | SPRING | BR | |||
| 111 | 5140148-56 | 2 | CIRCLIP | BR | |||
| 112 | 5140148-57 | 3 | SCREW | BR | |||
| 113 | 5140148-58 | 1 | SCREW | BR | |||
| 114 | 5140148-59 | 1 | BOARD | BR | |||
| 115 | 5140148-60 | 1 | SEAT | BR | |||
| 116 | 5140148-61 | 2 | COLUMN | BR | |||
| 117 | 5140148-62 | 1 | SPRING TORSION | BR | |||
| 118 | 5140148-63 | 1 | BOARD | BR | |||
| 119 | 5140148-64 | 1 | GUARD | BR | |||
| 120 | 5140148-65 | 1 | COVER | BR | |||
| 121 | 5140148-66 | 1 | WASHER | BR | |||
| 122 | 5140167-91 | 1 | GUARD | BR | |||
| 123 | 5140148-68 | 1 | BOARD | BR | |||
| 124 | 5140167-79 | 1 | SPACER | BR | |||
| 125 | 5140167-80 | 1 | GUARD | BR | |||
| 126 | 5140167-81 | 1 | SPRING | BR | |||
| 127 | 5140167-82 | 1 | PIN | BR | |||
| 128 | 5140148-73 | 1 | RIVING KNIFE | BR | |||
| 129 | 5140148-74 | 4 | SCREW | BR | |||
| 130 | 5140148-75 | 1 | PUSH BLOCK | BR | |||
| 131 | 5140148-76 | 1 | BOARD | BR | |||
| 132 | 5140148-77 | 1 | BOARD | BR | |||
| 133 | 5140148-78 | 1 | SCREW | BR | |||
| 134 | 5140146-38 | 1 | PIN | BR | |||
| 135 | 5140148-79 | 1 | KNOB SA | BR | |||
| 136 | 5140146-89 | 1 | FLAT WASHER | BR | |||
| 137 | 5140148-80 | 1 | LOCK HANDLE | BR | |||
| 138 | 5140148-81 | 1 | NUT | BR | |||
| 139 | 5140148-82 | 1 | PIN | BR | |||
| 140 | 5140148-83 | 1 | WHEEL | BR | |||
| 141 | 5140148-84 | 1 | BOARD | BR | |||
| 142 | 5140167-92 | 1 | TABLE | BR | |||
| 143 | 5140148-86 | 1 | SCALE | BR | |||
| 144 | 5140167-93 | 1 | LOCKING PLATE | BR | |||
| 145 | 5140148-88 | 1 | PIN | BR | |||
| 146 | 5140148-89 | 1 | BAR | BR | |||
| 147 | 5140148-90 | 1 | PIN | BR | |||
| 148 | 5140148-91 | 1 | NUT M6 | BR | |||
| 149 | 5140148-92 | 1 | MIRROR | BR | |||
| 150 | 5140148-93 | 1 | FENCE | BR | |||
| 151 | 5140167-83 | 1 | WASHER BOARD | BR | |||
| 152 | 5140148-95 | 1 | WASHER 6 | BR | |||
| 153 | 5140148-96 | 1 | SCREW | BR | |||
| 154 | 5140148-97 | 1 | FENCE | BR | |||
| 155 | 5140148-98 | 1 | BOARD | BR | |||
| 156 | 5140148-99 | 1 | SPRING | BR | |||
| 157 | 5140167-84 | 1 | STEEL PLATE | BR | |||
| 158 | 5140149-01 | 1 | WASHER | BR | |||
| 159 | 5140167-85 | 1 | KERF PLATE | BR | |||
| 160 | 5140149-03 | 1 | CLAMP | BR | |||
| 161 | 5140149-04 | 1 | CLAMP | BR | |||
| 162 | 5140147-33 | 4 | SCREW | BR | |||
| 163 | 5140149-05 | 4 | SCREW | BR | |||
| 164 | 5140149-06 | 1 | PIECE | BR | |||
| 165 | 5140149-07 | 1 | BOARD | BR | |||
| 166 | 5140167-86 | 1 | CORD PROTECTOR | BR | |||
| 167 | 5140147-13 | 1 | CORDSET | BR | |||
| 168 | 5140149-09 | 1 | NUT M5 | BR | |||
| 169 | 5140149-10 | 4 | CIRCLIP | BR | |||
| 170 | 5140149-11 | 4 | SCREW | BR | |||
| 171 | 5140149-12 | 4 | BOARD | BR | |||
| 172 | 5140149-13 | 2 | SHAFT | BR | |||
| 173 | 5140149-14 | 2 | WHEEL | BR | |||
| 174 | 5140149-15 | 1 | CONNECTING WIRE | BR | |||
| 180 | 5140153-01 | 1 | RING | BR | |||
| 181 | 5140153-02 | 1 | WRENCH SPECIAL | BR | |||
| 182 | 5140153-03 | 1 | WRENCH SPECIAL | BR | |||
| 183 | 5140153-04 | 1 | WRENCH SPECIAL | BR | |||
| 184 | 5140160-24 | 1 | BRAND LABEL | BR | |||
| 190 | 5170019-06 | 1 | BLOCK SA | BR | |||
| 191 | 5170019-07 | 1 | COVER SA | BR | |||
| 192 | 5170019-08 | 1 | BOARD | BR | |||
| 193 | 5170019-09 | 1 | FENCE | BR | |||

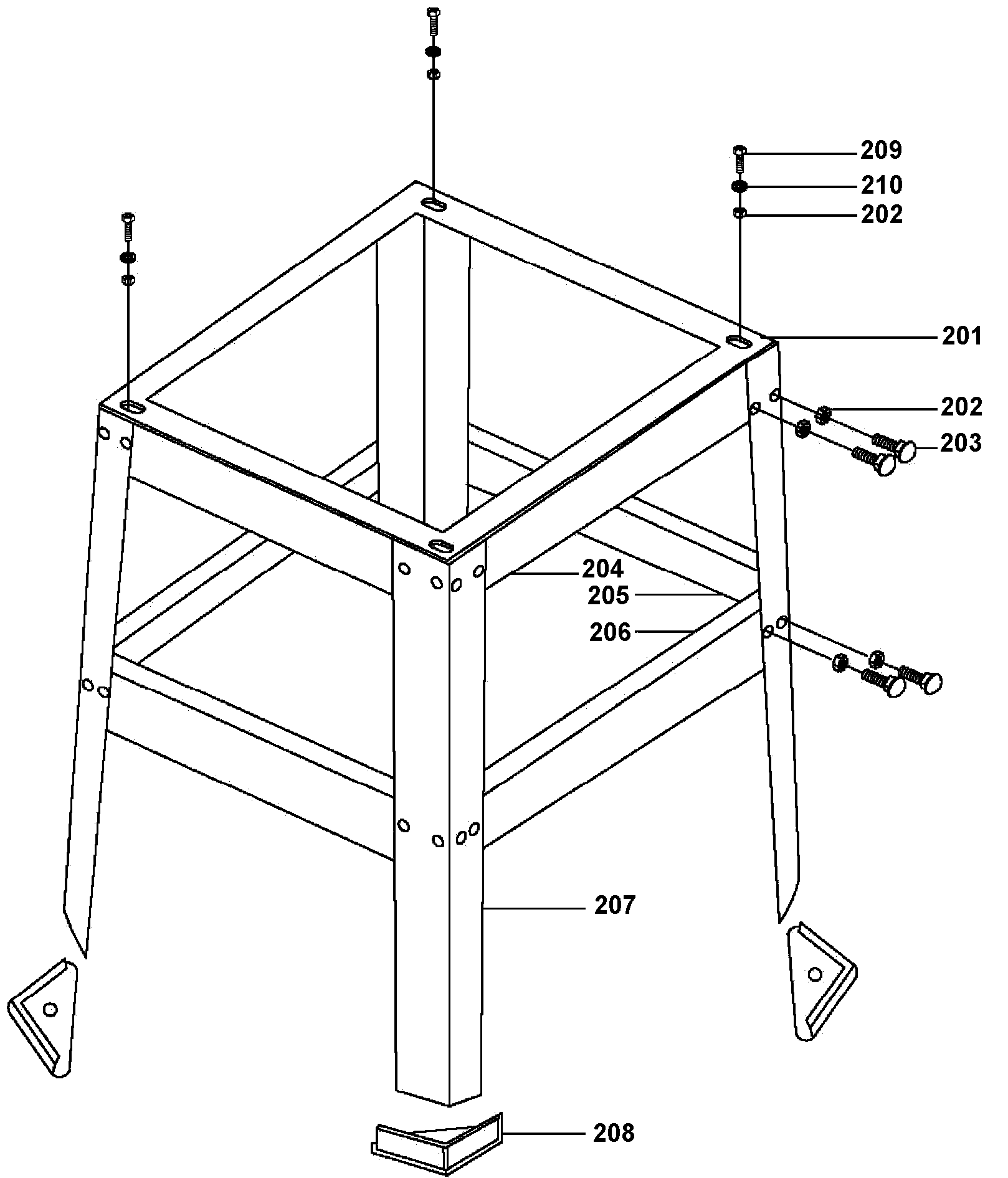

| 201 | 5140151-52 | 2 | PIECE | BR | |||
| 202 | 5140149-17 | 28 | NUT M6 | BR | |||
| 203 | 5140149-18 | 24 | BOLT | BR | |||
| 204 | 5140151-53 | 2 | PIECE | BR | |||
| 205 | 5140151-54 | 2 | PIECE | BR | |||
| 206 | 5140151-55 | 1 | PIECE | BR | |||
| 207 | 5140151-56 | 4 | BAR | BR | |||
| 208 | 5140149-23 | 4 | FOOT | BR | |||
| 209 | 5140149-24 | 4 | BOLT | BR | |||
| 210 | 5140149-25 | 4 | WASHER | BR | |||
| 211 | 5140148-81 | 4 | NUT | BR | |||
| 301 | 5140149-26 | 6 | SCREW | BR | |||
| 302 | 5140167-87 | 2 | BAR | BR | |||
| 303 | 5140146-84 | 8 | SCREW | BR | |||
| 304 | 5140149-28 | 8 | SPRING WASHER | BR | |||
| 305 | 5140146-06 | 4 | SCREW | BR | |||
| 306 | 5140167-88 | 4 | GUIDE | BR | |||
| 307 | 5140149-31 | 1 | SCALE | BR | |||
| 308 | 5140167-89 | 1 | EXTENSION TABLE | BR | |||
| 309 | 5140149-33 | 2 | SCREW | BR | |||
| 310 | 5140149-34 | 1 | Handle | BR | |||
| 312 | 5140153-06 | 2 | BAR | BR | |||
| 313 | 5140148-27 | 4 | CIRCLIP | BR | |||
| 314 | 5140149-27 | 1 | PLATE | BR | |||
| 315 | 5140147-80 | 8 | WASHER | BR |
