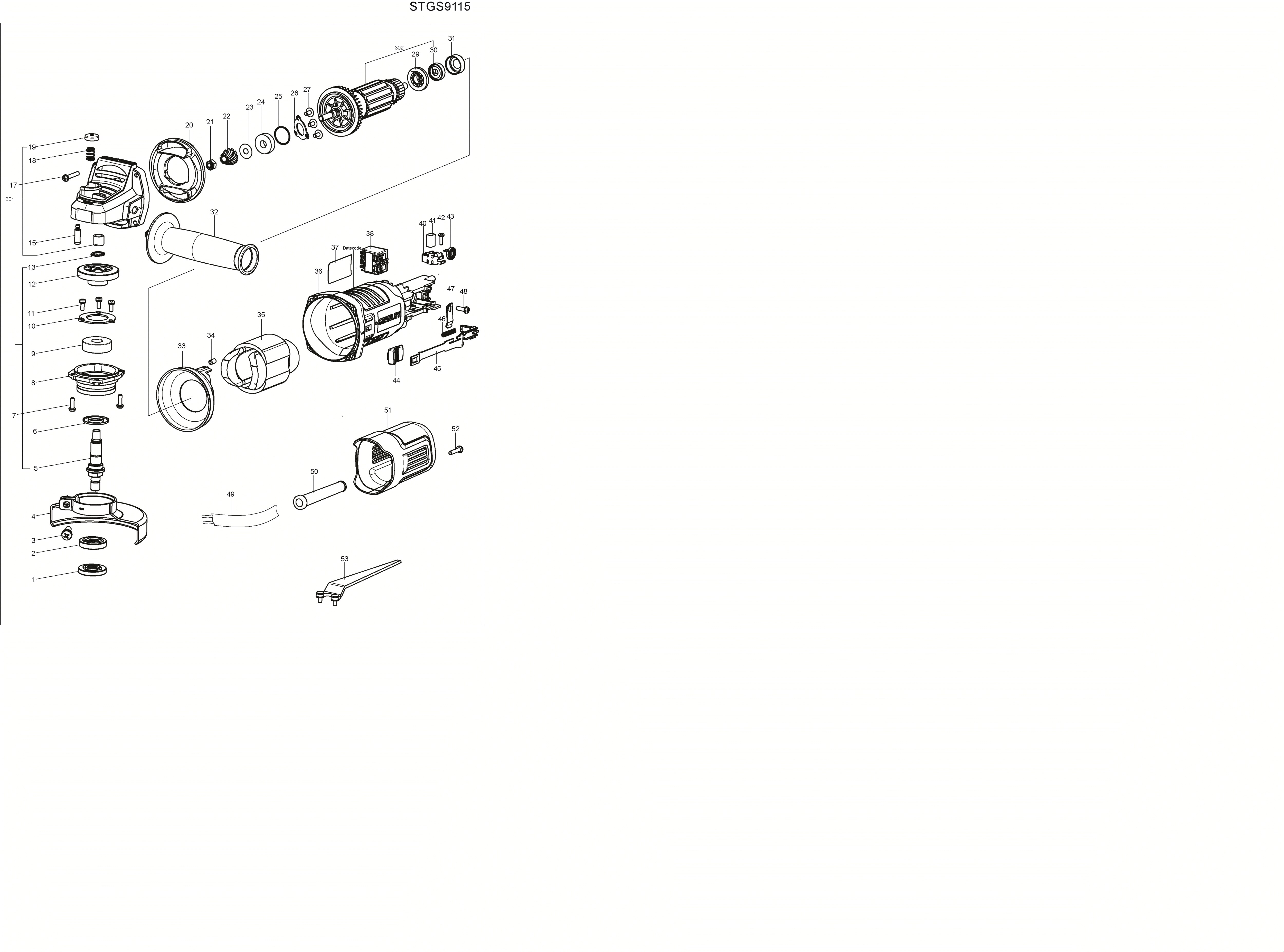

STGS9115 ANGLE GRINDER Type 3 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | N862877 | 1 | OUTER FLANGE | BR | |||
| 2 | N803471 | 1 | INNER FLANGE | BR | |||
| 3 | N866043 | 1 | SCREW | BR | |||
| 4 | 5140164-83 | 1 | GUARD | BR | |||
| 5 | N746578 | 1 | SPINDLE | BR | |||
| 6 | N494772 | 1 | COVER | BR | |||
| 7 | 5140164-85 | 4 | SCREW | BR | |||
| 8 | N866050 | 1 | GEARCASE COVER | BR | |||
| 9 | 5140164-87 | 1 | BEARING | BR | |||
| 10 | N787677 | 1 | BEARING PLATE | BR | |||
| 11 | 5140165-35 | 3 | SCREW | BR | |||
| 12 | N802377 | 1 | GEAR | BR | |||
| 13 | N851381 | 1 | CIRCLIP | BR | |||
| 15 | N743788 | 1 | LOCK PIN | BR | |||
| 17 | N802853 | 4 | SCREW | BR | |||
| 18 | 5140164-94 | 1 | SPRING | BR | |||
| 19 | 5140164-95 | 1 | LOCK BUTTON | BR | |||
| 20 | N726572 | 1 | BAFFLE | BR | |||
| 21 | N867028 | 1 | NUT | BR | |||
| 22 | N802378 | 1 | PINION | BR | |||
| 23 | 5140164-99 | 1 | WASHER | BR | |||
| 24 | N793193 | 1 | BEARING | BR | |||
| 25 | N880529 | 1 | O RING | BR | |||
| 26 | N826429 | 1 | BEARING PLATE | BR | |||
| 27 | N826930 | 3 | SCREW | BR | |||
| 29 | 5140246-78 | 1 | INSULATOR | BR | |||
| 30 | N793199 | 1 | BEARING | BR | |||
| 31 | 5140165-05 | 1 | SLEEVE BEARING | BR | |||
| 32 | N865425 | 1 | SIDE HANDLE | BR | |||
| 33 | N757714 | 1 | BAFFLE | BR | |||
| 34 | 5140246-79 | 2 | RUBBER PIN | BR | |||
| 35 | N794279 | 1 | FIELD SA | BR | |||
| 36 | N703582 | 1 | FIELD CASE | BR | |||
| 37 | N845763 | 1 | RATING LABEL | STGS9115-BR TYPE 3 | BR | ||
| 38 | N622597 | 1 | SWITCH | BR | |||
| 40 | N767128 | 2 | BRUSH HOLDER | BR | |||
| 41 | N910754 | 1 | BRUSH PAIR | BR | |||
| 42 | N810030 | 2 | SCREW | BR | |||
| 43 | 5140165-16 | 1 | BRUSH SPRING | BR | |||
| 44 | 5140165-67 | 1 | BUTTON | BR | |||
| 45 | N745222 | 1 | ARM LINK | BR | |||
| 46 | 5140165-10 | 1 | SPRING | BR | |||
| 47 | 5140165-14 | 1 | CORD CLAMP | BR | |||
| 48 | 5140156-10 | 1 | SCREW | BR | |||
| 49 | 5140173-35 | 1 | CORD SET | BR | |||
| 50 | N802854 | 1 | CORD PROTECTOR | BR | |||
| 51 | N703584 | 1 | END CAP | BR | |||
| 52 | 5140155-81 | 1 | SCREW | BR | |||
| 53 | 5140179-53 | 1 | WRENCH | BR | |||
| 301 | N875885 | 1 | GEARCASE SA | BR | |||
| 302 | N910747 | 1 | ARMATURE SA | LV | BR |
