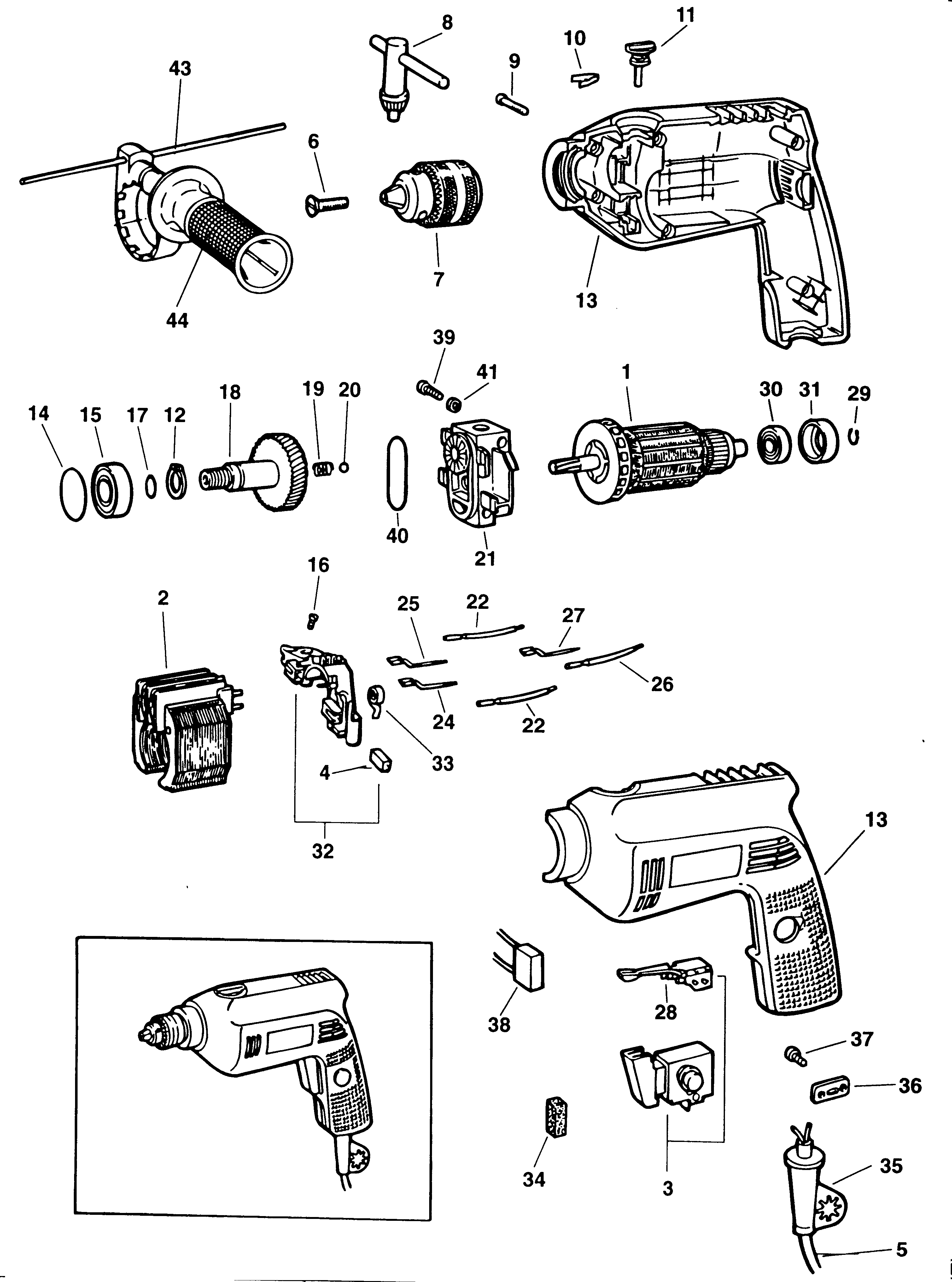

SB11E HAMMER DRILL Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 946557-00 | 1 | ARMATURE | GB 115v | CH | ||
| 1 | 946557-01 | 1 | ARMATURE | GB 240v | CH | ||
| 1 | 946557-01 | 1 | ARMATURE | CH | |||
| 2 | 939818-02 | 1 | FIELD | GB 115v | CH | ||
| 2 | 939818-00 | 1 | FIELD | GB 240v | CH | ||
| 2 | 939818-00 | 1 | FIELD | GB 240v | CH | ||
| 2 | 939818-00 | 1 | FIELD | CH | |||
| 3 | 949732-02 | 1 | SWITCH SA TYPE 1 | TYPE A1 | CH | ||
| 3 | 949732-05 | 1 | SWITCH SA | GB 115v | CH | ||
| 3 | 949732-03 | 1 | SWITCH SA 230V | GB 240v | CH | ||
| 3 | 949732-03 | 1 | SWITCH SA 230V | GB 240v | CH | ||
| 3 | 949732-03 | 1 | SWITCH SA 230V | CH | |||
| 4 | 932047 | 2 | BRUSH | GB 115v | CH | ||
| 4 | N088941 | 1 | BRUSH PAIR 230V | CH | |||
| 4 | 931235-00 | 2 | BRUSH 230V | GB 240v | CH | ||
| 5 | 330061-04 | 1 | CORDSET (M/PLUG) | GB 115v | CH | ||
| 5 | 330060-03 | 1 | CABLE & PLUG | GB 240v | CH | ||
| 5 | 330080-40 | 1 | CORDSET | CH | |||
| 6 | 949890-01 | 1 | SCREW | CH | |||
| 6 | 949889-05 | 1 | SCREW.TEMP | GB 115v | CH | ||
| 6 | 949889-05 | 1 | SCREW.TEMP | GB 240v | CH | ||
| 7 | 5140071-68 | 1 | CHUCK 13MM | GB 115v | CH | ||
| 7 | 5140071-68 | 1 | CHUCK 13MM | GB 240v | CH | ||
| 7 | 330033-18 | 1 | CHUCK 10MM | CH | |||
| 8 | 330034-07 | 1 | CHUCK KEY | CH | |||
| 9 | 930079-01 | 6 | SCREW | CH | |||
| 10 | 933021 | 1 | SPRING | CH | |||
| 11 | 937775-01 | 1 | SELECTOR SA | CH | |||
| 12 | 930098-00 | 1 | RETAINER | CH | |||
| 13 | 945939-03 | 1 | CLAMSHELL SA | CH | |||
| 14 | 938133-00 | 1 | O RING | CH | |||
| 15 | 605040-25 | 1 | BEARING,BALL | CH | |||
| 16 | 930284-01 | 1 | SCREW | CH | |||
| 17 | 930028-00 | 1 | O RING | CH | |||
| 18 | 946731-02 | 1 | GEAR SA | CH | |||
| 19 | 934962 | 1 | SPRING | CH | |||
| 20 | 930012 | 1 | BALL | CH | |||
| 21 | 946663-00 | 1 | BLOCK SA | CH | |||
| 22 | 949801-59 | 2 | LEAD | CH | |||
| 24 | 945402-09 | 1 | LEAD | GB 115v | CH | ||
| 24 | 945402-09 | 1 | LEAD | GB 240v | CH | ||
| 24 | 945402-09 | 1 | LEAD | CH | |||
| 25 | 945402-08 | 1 | LEAD | GB 115v | CH | ||
| 25 | 945402-08 | 1 | LEAD | GB 240v | CH | ||
| 25 | 945402-08 | 1 | LEAD | CH | |||
| 26 | 949801-58 | 1 | LEAD | CH | |||
| 27 | 949801-42 | 1 | LEAD SA | CH | |||
| 28 | 938497 | 1 | SWITCH REVERSE | CH | |||
| 29 | 939624-00 | 1 | RING | CH | |||
| 30 | 330003-02 | 1 | BEARING | CH | |||
| 31 | 930029-00 | 1 | HOLDER BEARING | CH | |||
| 32 | 949730-02 | 1 | BRUSH HOLDER SA | GB 115v | CH | ||
| 32 | 949730-01 | 1 | BRUSH HOLDER SA | GB 240v | CH | ||
| 32 | 949730-01 | 1 | BRUSH HOLDER SA | CH | |||
| 33 | 931221-00 | 2 | SPRING | CH | |||
| 34 | 930026 | 1 | FOAM | CH | |||
| 35 | 934961-00 | 1 | CORD PROTECTOR | GB 115v | CH | ||
| 35 | 934961-00 | 1 | CORD PROTECTOR | GB 240v | CH | ||
| 35 | 934961-01 | 1 | CORD PROTECTOR | CH | |||
| 36 | 930103-00 | 1 | CORD CLAMP | CH | |||
| 37 | 930276 | 2 | SCREW | CH | |||
| 38 | 930030-01 | 1 | CAPACITOR | GB 115v | CH | ||
| 38 | 930030-01 | 1 | CAPACITOR | GB 240v | CH | ||
| 38 | 930030-01 | 1 | CAPACITOR | CH | |||
| 39 | 938140 | 2 | SCREW | CH | |||
| 40 | 932426-00 | 1 | O RING | CH | |||
| 41 | 932839-00 | 2 | WASHER | CH | |||
| 43 | 940357-00 | 1 | DEPTH STOP | GB 115v | CH | ||
| 43 | 940357-00 | 1 | DEPTH STOP | GB 240v | CH | ||
| 44 | 939794-02 | 1 | HANDLE SIDE SA | GB 115v | CH | ||
| 44 | 939794-02 | 1 | HANDLE SIDE SA | GB 240v | CH |
