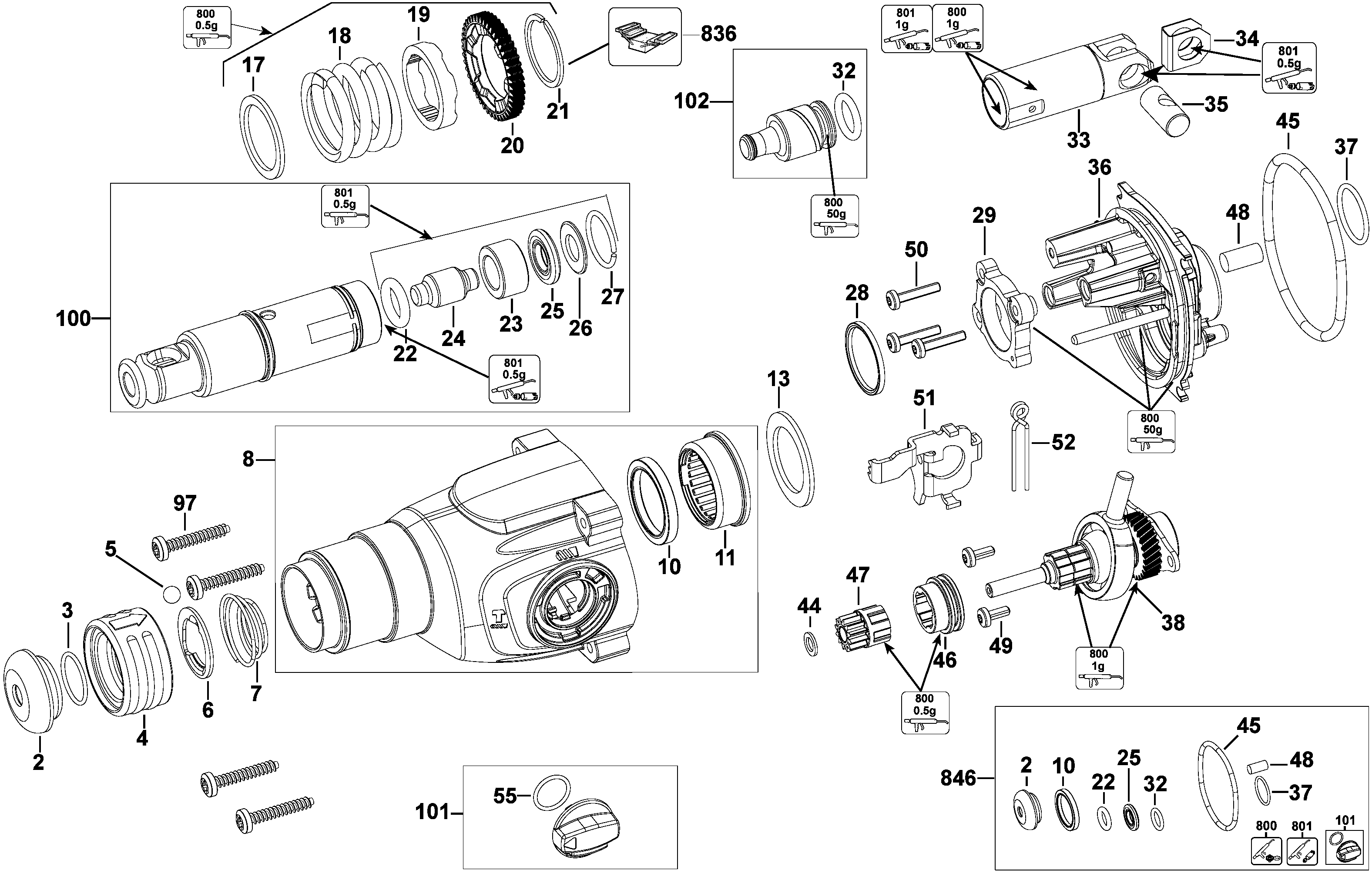

DCH133M2 CORDLESS HAMMER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 2 | 323489-00 | 1 | CAP | B3 | |||
| 3 | 579212-00 | 1 | RING | B3 | |||
| 4 | N720573 | 1 | TUBE | B3 | |||
| 5 | 583890-00 | 1 | BALL | B3 | |||
| 6 | 578387-00 | 1 | WASHER | B3 | |||
| 7 | 871690 | 1 | SPRING | B3 | |||
| 8 | N417731 | 1 | HOUSING SA | B3 | |||
| 10 | N496180 | 1 | SEAL | B3 | |||
| 11 | N020023 | 1 | BEARING SPINDLE | B3 | |||
| 13 | 1005788-00 | 1 | WASHER | B3 | |||
| 17 | 589350-00 | 1 | WASHER | B3 | |||
| 18 | N264677 | 1 | SPRING | B3 | |||
| 19 | N427169 | 1 | RING | B3 | |||
| 20 | N417737 | 1 | GEAR | B3 | |||
| 21 | N504141 | 1 | LOCKING RING | B3 | |||
| 22 | N394276 | 1 | O RING | B3 | |||
| 23 | N470388 | 1 | TUBE GUIDE | B3 | |||
| 24 | N417744 | 1 | BEAT PIECE | B3 | |||
| 25 | 1005808-00 | 1 | RING | B3 | |||
| 26 | 327087-00 | 1 | WASHER | B3 | |||
| 27 | N294259 | 1 | RING | B3 | |||
| 28 | N267565 | 1 | RING | B3 | |||
| 29 | N417745 | 1 | BEARING | B3 | |||
| 32 | N264642 | 1 | O RING | B3 | |||
| 33 | N425231 | 1 | PISTON | B3 | |||
| 34 | 1005842-00 | 1 | WASHER | B3 | |||
| 35 | N325041 | 1 | BEARING SPINDLE | B3 | |||
| 36 | N495931 | 1 | HOUSING BEARING | B3 | |||
| 37 | N264673 | 1 | O RING | B3 | |||
| 38 | N418018 | 1 | INTERSHAFT SA | B3 | |||
| 44 | 1005844-00 | 1 | WASHER | B3 | |||
| 45 | N264672 | 1 | O RING | B3 | |||
| 46 | N417853 | 1 | COLLAR | B3 | |||
| 47 | N417859 | 1 | GEAR | B3 | |||
| 48 | 1005812-00 | 1 | FELT | B3 | |||
| 49 | 324006-14 | 2 | SCREW | B3 | |||
| 50 | 324006-15 | 3 | SCREW | B3 | |||
| 51 | N493869 | 1 | PLATE | B3 | |||
| 52 | 1005795-00 | 1 | SPRING | B3 | |||
| 53 | N485568 | 1 | ARMATURE SA | B3 | |||
| 54 | N467131 | 1 | COVER BEARING | B3 | |||
| 55 | N091381-00 | 1 | O RING | B3 | |||
| 56 | 330065-06 | 2 | SCREW | B3 | |||
| 57 | 330065-09 | 2 | SCREW | B3 | |||
| 58 | 330065-07 | 6 | SCREW | B3 | |||
| 59 | 90615426 | 1 | CONTROL MODULE ASSY | B3 | |||
| 60 | N328740 | 2 | RUBBER PAD | B3 | |||
| 61 | N728013 | 1 | INSERT | B3 | |||
| 62 | N487311 | 3 | RUBBER | B3 | |||
| 63 | N465408 | 1 | ACTUATOR FWD/REV | B3 | |||
| 64 | N728012 | 1 | INSERT | B3 | |||
| 65 | N091479 | 1 | MOUNT | B3 | |||
| 66 | N102647 | 1 | SPRING | B3 | |||
| 67 | N467560 | 1 | PLATE | B3 | |||
| 69 | N476687 | 1 | LABEL | B3 | |||
| 78 | 1005896-00 | 1 | SIDE HANDLE | B3 | |||
| 79 | 798846-02 | 1 | DEPTH STOP | B3 | |||
| 97 | 330065-13 | 4 | SCREW | B3 | |||
| 100 | N424934 | 1 | SPINDLE SA | B3 | |||
| 101 | N417861 | 1 | SELECTOR SA | B3 | |||
| 102 | N418035 | 1 | RAM SA | B3 | |||
| 147 | N356759 | 1 | BAFFLE | B3 | |||
| 148 | N485558 | 1 | MOTOR & SWITCH SA | B3 | |||
| 149 | N554533 | 1 | WASHER | B3 | |||
| 150 | N110359 | 1 | BEARING | B3 | |||
| 151 | 1005895-00 | 1 | BEARING | B3 | |||
| 152 | N467767 | 1 | NUT | B3 | |||
| 155 | N261987 | 1 | CAP | B3 | |||
| 800 | 870889-02 | 1 | GREASE | B3 | |||
| 801 | 487130-04 | 1 | GREASE | GLK FLUID 249 NLGI 000 (10G SERVICE) | B3 | ||
| 836 | 596005-99 | 1 | S.T.CIRCLIP REMOVER | B3 | |||
| 836 | 1003959-99 | 1 | S.T.CIRCLIP REMOVER | B3 | |||
| 836 | 1003960-99 | 1 | S.T.CIRCLIP REMOVER | B3 | |||
| 846 | N491563 | 1 | SERVICE KIT | B3 | |||
| 862 | N184943 | 1 | TOOL BAG | 19 x 8-3/4 x 4 | B3 | ||
| 866 | DCB204-B3 | 1 | BATTERY PACK | 20V MAX 4.0Ah SOC | B3 | ||
| 871 | N406051 | 1 | CHARGER | DCB115 | B3 |
