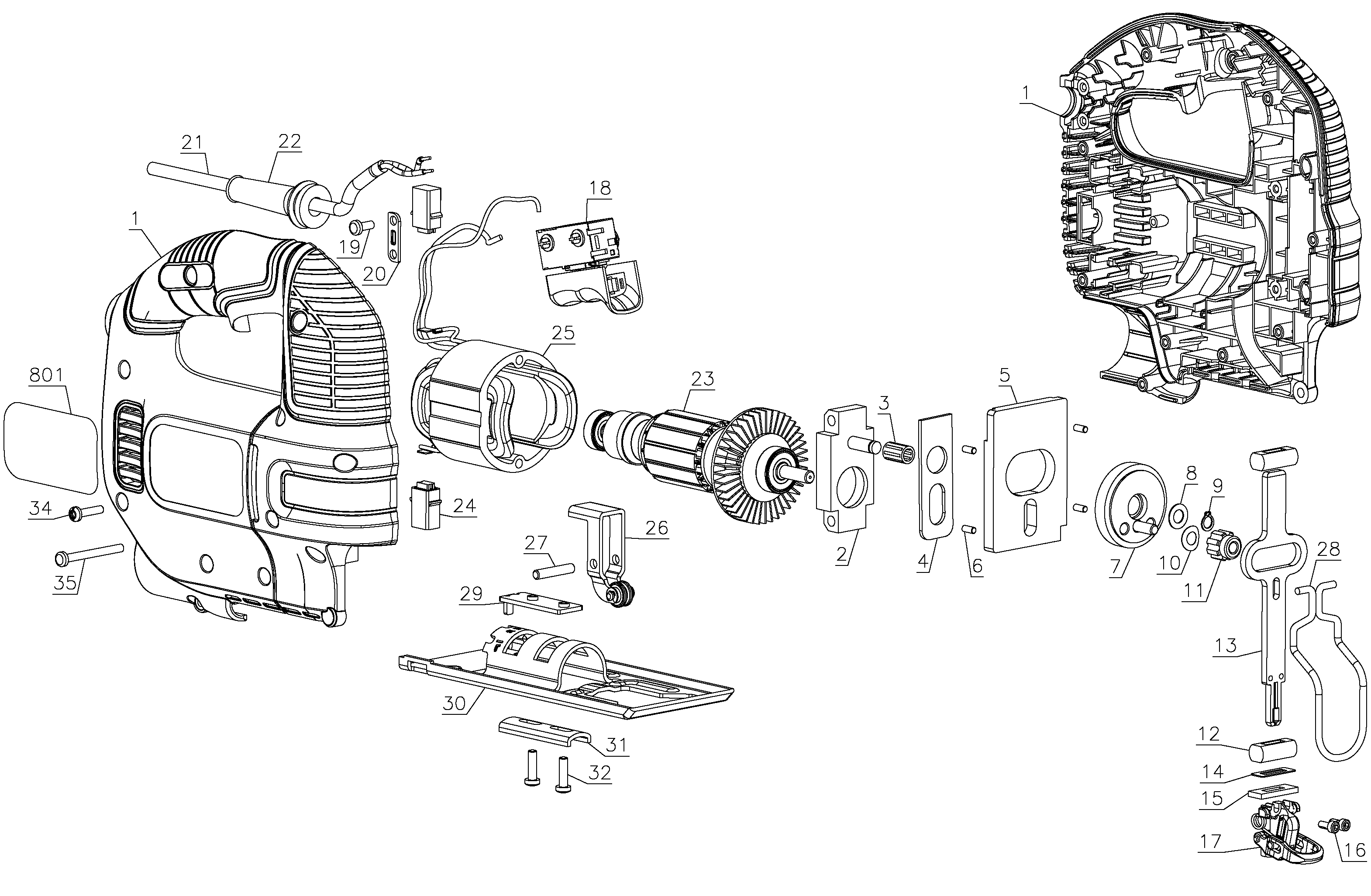

KS701E JIGSAW Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 90610691 | 1 | CLAMSHELL SET | BR | |||
| 2 | 90510498 | 1 | BEARING BLOCK | BR | |||
| 3 | 90512896 | 1 | BEARING NEEDLE | BR | |||
| 4 | 90525758 | 1 | FORK | BR | |||
| 5 | 90525759 | 1 | COUNTERWEIGHT | BR | |||
| 6 | 90517281 | 4 | PIN | BR | |||
| 7 | 90526099 | 1 | GEAR | BR | |||
| 8 | 582717-00 | 1 | WASHER | BR | |||
| 9 | 90510502 | 1 | RETAINER | BR | |||
| 10 | 823954 | 1 | WASHER | BR | |||
| 11 | 795688-00 | 1 | ROLLER | BR | |||
| 12 | 810893-00 | 2 | BEARING,SLEEVE | BR | |||
| 13 | 90514115 | 1 | RECIPROCATOR | BR | |||
| 14 | 582948-00 | 1 | PLATE | BR | |||
| 15 | 90532150 | 1 | FELT SEAL | BR | |||
| 16 | 583173-00 | 2 | SCREW | BR | |||
| 17 | 582593-00 | 1 | BLADE CLAMP | BR | |||
| 18 | 90603224-03 | 1 | SWITCH SA 230V | VARIABLE SPEED | BR | ||
| 19 | 330019-01 | 2 | SCREW.TEMP | M3.63 x 9.5mm T15 | BR | ||
| 20 | 329301-00 | 1 | CORD CLAMP | BR | |||
| 21 | 90634680 | 1 | CORDSET | BR | |||
| 22 | 148481-00 | 1 | CORD PROTECTOR | BR | |||
| 23 | 90610693 | 1 | ARMATURE & BEARING | BR | |||
| 24 | 90525450 | 1 | BRUSHBOX SA | BR | |||
| 25 | 90610694 | 1 | FIELD ASSEMBLY | BR | |||
| 26 | 90584992 | 1 | SUPPORT SA | BR | |||
| 27 | 90586527 | 1 | PIN | HEADLESS | BR | ||
| 28 | 90605828 | 1 | GUARD | BR | |||
| 29 | 90512885 | 1 | PLATE LOCK | BR | |||
| 30 | 90603421 | 1 | SHOE | BR | |||
| 31 | 90512886 | 1 | PLATE | BR | |||
| 32 | 90519315 | 2 | SCREW | BR | |||
| 34 | 330019-03 | 9 | SCREW | BR | |||
| 35 | 330019-59 | 2 | SCREW | M3.5x35 PLSTC THDFMG | BR | ||
| 801 | 90630856 | 1 | RATING LABEL | KS701E-BR TY1 | BR |
