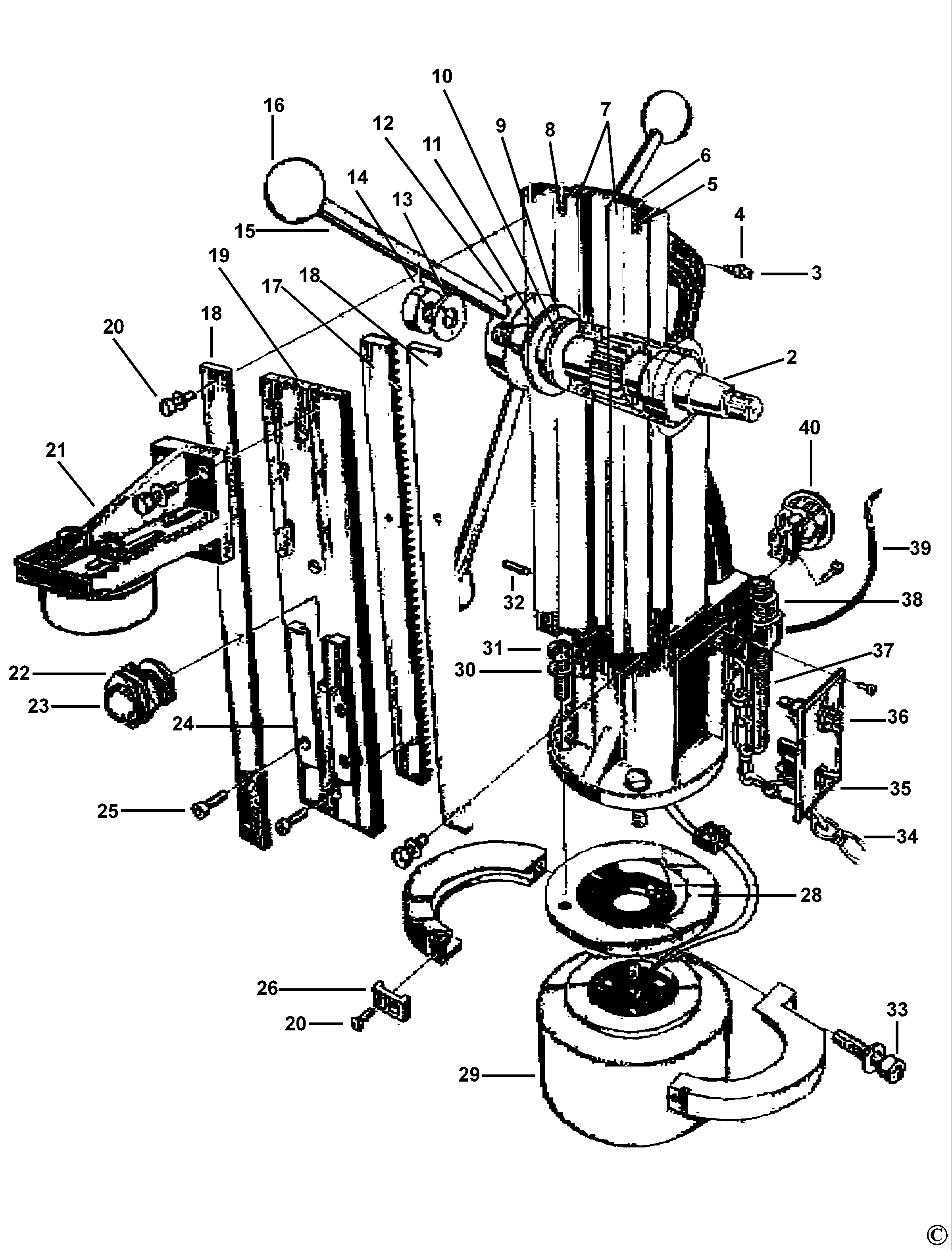

DW9112 MAG DRILL STAND Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 2 | 6010125-02 | 1 | PINION | BEVEL PINION | ELMAS/2 | XJ | |
| 3 | 6010125-03 | 1 | GRUB SCREW | ELMAS/3 | XJ | ||
| 4 | 6010125-04 | 1 | NUT M5 | ELMAS/4 | XJ | ||
| 5 | 6010125-05 | 2 | PLATE | BRASS PLATE | ELMAS/5 | XJ | |
| 6 | 6010125-06 | 2 | SPARE PART | SMALL BRASS GIB | ELMAS/6 | XJ | |
| 7 | 6010125-07 | 2 | SPARE PART | BRASS GIB | ELMAS/7 | XJ | |
| 8 | 6010125-08 | 6 | SCREW | ELMAS/8 | XJ | ||
| 9 | 6010125-09 | 1 | GRUB SCREW | ELMAS/9 | XJ | ||
| 10 | 6010125-10 | 1 | RING | DISTANCE RING NYLON | ELMAS/10 | XJ | |
| 11 | 6010125-11 | 1 | BUSH | BUSH RECORDING PIN | ELMAS/11 | XJ | |
| 12 | 6010125-12 | 1 | WHEEL | PIOLT WHEEL | ELMAS/12 | XJ | |
| 13 | 6010125-13 | 1 | WASHER | ELMAS STAND | ELMAS/13 | XJ | |
| 14 | 6010125-14 | 1 | NUT | ELMAS/14 | XJ | ||
| 15 | 6010125-15 | 1 | LEVER | ELMAS/15 | XJ | ||
| 16 | 6010125-16 | 1 | BALL | ELMAS/16 | XJ | ||
| 17 | 6010125-17 | 2 | RACK | ELMAS/17 | XJ | ||
| 18 | 6010125-18 | 2 | SPARE PART | GIB | ELMAS/18 | XJ | |
| 19 | 6010125-19 | 1 | PLATE | SLIDING PLATE | ELMAS/19 | XJ | |
| 20 | 6010125-20 | 2 | SCREW | ELMAS/20 | XJ | ||
| 21 | 6010125-21 | 1 | MOUNT SA | LITTLE MOUNTING | ELMAS/21 | XJ | |
| 22 | 6010125-22 | 2 | NUT | ELMAS/22 | XJ | ||
| 23 | 6010125-23 | 1 | BOLT | ELMAS/23 | XJ | ||
| 24 | 6010125-24 | 2 | SPARE PART | SMALL GIB | ELMAS/24 | XJ | |
| 25 | 6010125-25 | 2 | SCREW | ELMAS/25 | XJ | ||
| 26 | 6010125-26 | 1 | BOSS | FIXINF BOSS | ELMAS/26 | XJ | |
| 28 | 6010125-28 | 1 | RING | CLAMPING RING | ELMAS/28 | XJ | |
| 29 | 6010125-29 | 1 | BASE | ELECTROMTC BASE 230V | ELMAS/29 | XJ | |
| 30 | 6010125-30 | 4 | WASHER | ELMAS/30 | XJ | ||
| 31 | 6010125-31 | 4 | SCREW | M10X25 UNI | ELMAS/31 | XJ | |
| 32 | 6010125-32 | 1 | PIN | CYLINDRICAL PIN | ELMAS/32 | XJ | |
| 33 | 6010125-33 | 1 | SCREW | ELMAS/33 | XJ | ||
| 34 | 6010125-34 | 1 | CHAIN | SECURITY CHAIN | ELMAS/34 | XJ | |
| 35 | 6010125-35 | 1 | PANEL | ELECTRICAL PANEL | ELMAS/35 | XJ | |
| 36 | 6010125-36 | 1 | FUSE | ELMAS/36 | XJ | ||
| 37 | 000000-00 | 1 | NO LONGER AVAILABLE | XJ | |||
| 38 | 6010125-38 | 1 | PIN | LOCK NUT PIN | ELMAS/38 | XJ | |
| 39 | 6010125-39 | 1 | CABLE | ELMAS/39 | XJ | ||
| 40 | 6010125-40 | 1 | SOCKET | ELMAS/40 | XJ |
