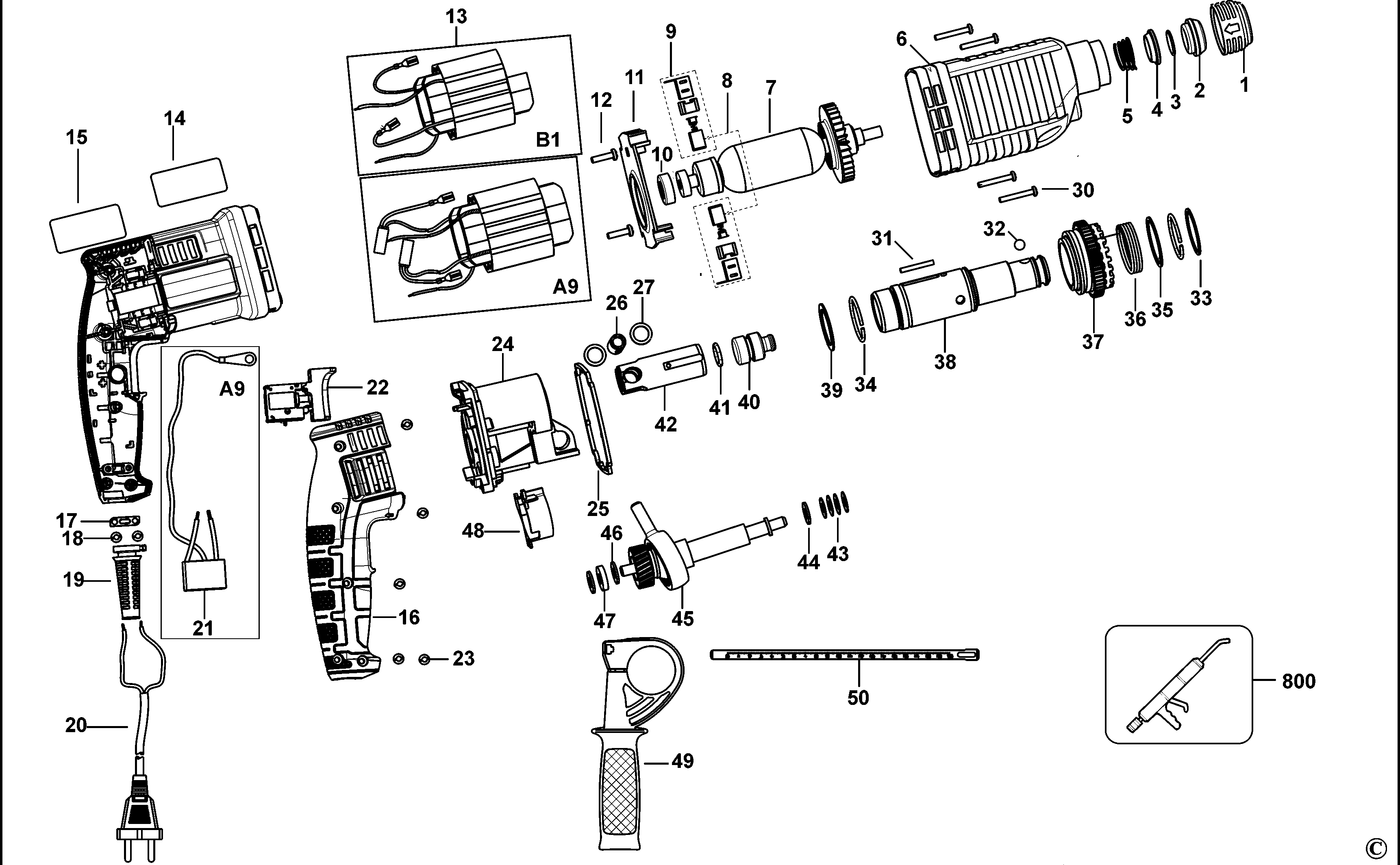

STEL501 ROTARY HAMMER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 90524565 | 1 | COLLAR | B1 |  |
||
| 2 | 90524563 | 1 | TIP | B1 | |
||
| 3 | 90558298 | 1 | CIRCLIP | B1 | |
||
| 4 | 90594643 | 1 | HOLDER | B1 | |
||
| 5 | 90549908 | 1 | SPRING | B1 | |
||
| 6 | 90592423 | 1 | GEARCASE SA | B1 |  |
||
| 7 | 90592489 | 1 | ARMATURE SA | B1 | |
||
| 8 | 90592455 | 1 | BRUSH SA | B1 | |
||
| 9 | 90587066 | 2 | BRUSH HOLDER SA | B1 | |
||
| 10 | 90549817 | 1 | SLEEVE BEARING | B1 | |
||
| 11 | 90584579 | 1 | BOARD | B1 | |
||
| 12 | 330065-05 | 2 | SCREW | B1 | |
||
| 13 | 90592492 | 1 | FIELD SA | B1 | |||
| 14 | 90588282 | 1 | RATING LABEL | B1 | |||
| 15 | 90588277 | 1 | LABEL | ID | B1 | ||
| 16 | 90592862 | 1 | HOUSING SA | B1 | |||
| 17 | 329301-00 | 1 | CORD CLAMP | B1 | |
||
| 18 | 330065-05 | 2 | SCREW | B1 | |
||
| 19 | 629648-00 | 1 | CORD PROTECTOR | B1 | |
||
| 20 | 90578995-40 | 1 | CORDSET | B1 | |
||
| 22 | 90583141 | 1 | SWITCH | B1 | |||
| 23 | 330065-07 | 5 | SCREW | B1 | |
||
| 24 | 90567050 | 1 | SUPPORT PLATE | B1 | |
||
| 25 | 90550379 | 1 | GASKET | B1 | |
||
| 26 | 90549488 | 1 | PIN | B1 | |
||
| 27 | 90549884 | 2 | WASHER | B1 | |
||
| 30 | 330065-14 | 4 | SCREW | M4X30 T20 | B1 | |
|
| 31 | 90550377 | 1 | PIN | B1 | |
||
| 32 | 90550363 | 1 | BALL STEEL | B1 | |
||
| 33 | 90558481 | 1 | GASKET | B1 | |
||
| 34 | 90558296 | 2 | CIRCLIP | B1 | |
||
| 35 | 90549885 | 1 | WASHER | B1 | |
||
| 36 | 90550375 | 1 | SPRING | B1 | |
||
| 37 | 90567045 | 1 | CLUTCH SA | B1 | |
||
| 38 | 90592404 | 1 | SHAFT | B1 | |
||
| 39 | 90549888 | 1 | WASHER | B1 | |
||
| 40 | 90549635 | 1 | RAM | B1 | |
||
| 41 | 90558558 | 1 | O RING | B1 | |
||
| 42 | 90549489 | 1 | CYLINDER | B1 | |
||
| 43 | 90549946 | 4 | WASHER SPRING | B1 | |
||
| 44 | 90558300 | 1 | GASKET | B1 | |
||
| 45 | 90585158 | 1 | INTERSHAFT SA | B1 | |
||
| 46 | 90558664 | 2 | GASKET | B1 | |
||
| 47 | 90550384 | 1 | BEARING AXIAL | B1 | |
||
| 48 | 90585594 | 1 | BAFFLE | B1 | |
||
| 49 | 376556-11 | 1 | HANDLE SA | B1 | |
||
| 50 | 372814-00 | 1 | DEPTH STOP | B1 | |
||
| 800 | 870889-02 | 1 | GREASE | B1 | |
