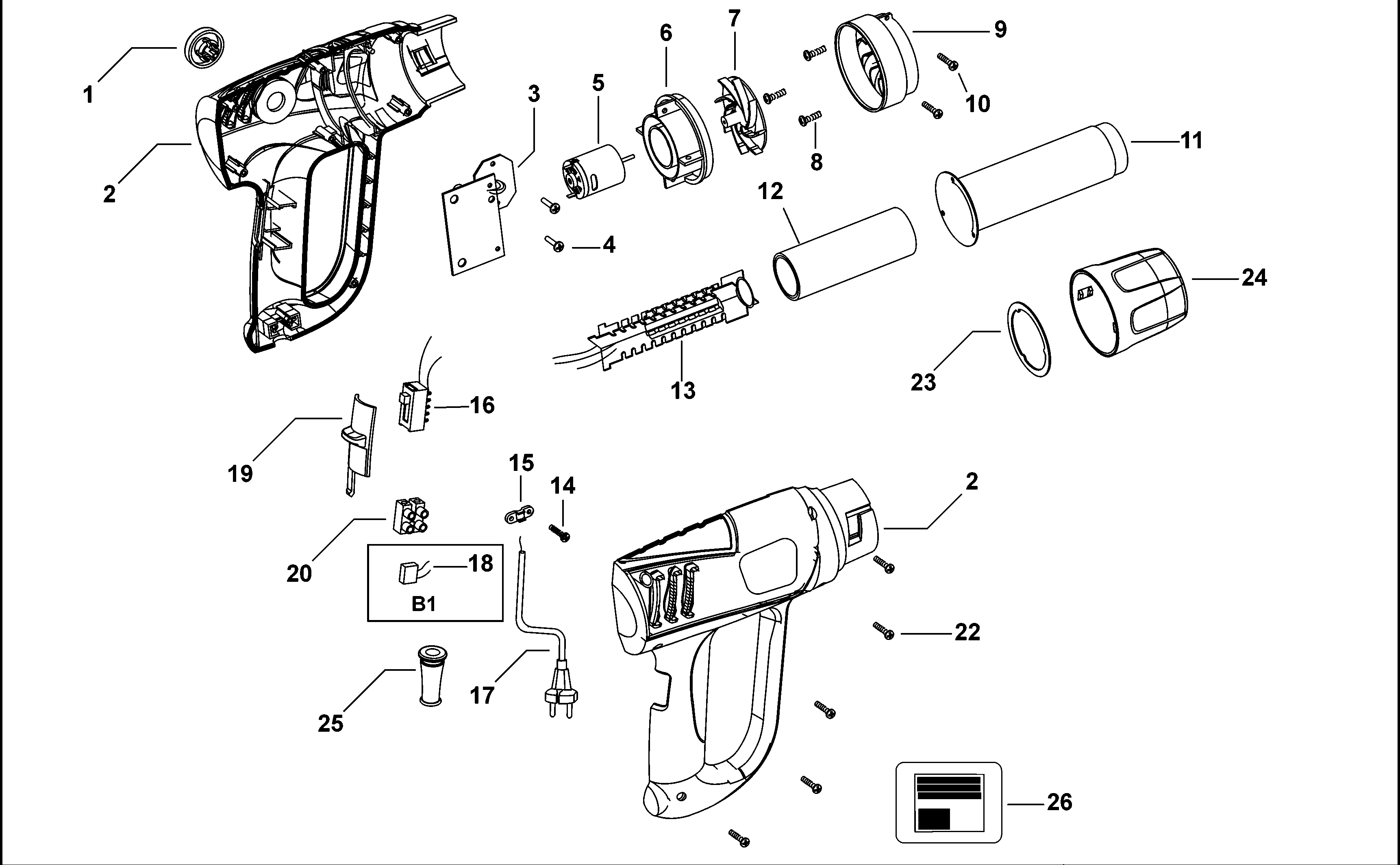

STEL670 HEATGUN Type 2 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 1004559-00 | 1 | BUTTON | XD |  |
||
| 2 | 5140154-26 | 1 | CLAMSHELL SET | XD | |
||
| 3 | 1004086-01 | 1 | PCB | XD | |
||
| 4 | 1004087-00 | 3 | SCREW | XD | |
||
| 5 | 1004088-00 | 1 | MOTOR | XD |  |
||
| 6 | 1004089-00 | 1 | SUPPORT | XD | |||
| 7 | 1004090-00 | 1 | FAN | XD | |
||
| 8 | 1004091-00 | 3 | SCREW | XD | |
||
| 9 | 1004092-00 | 1 | FAN COVER | XD | |
||
| 10 | 1004093-00 | 2 | SCREW | XD | |
||
| 11 | 1004094-00 | 1 | TUBE INSULATED | XD | |
||
| 12 | 1004095-00 | 1 | HOUSING | XD | |
||
| 13 | 1004096-00 | 1 | HEATING ELEMENT | XD | |
||
| 14 | 1004099-00 | 1 | SCREW | XD | |
||
| 15 | 1004100-00 | 1 | CORD CLAMP | XD | |
||
| 16 | 1004101-00 | 1 | SWITCH | XD | |
||
| 17 | 5170001-05 | 1 | CORDSET | XD | |
||
| 18 | 1004106-00 | 1 | CAPACITOR | XD | |
||
| 19 | 5170006-75 | 1 | SWITCH COVER | XD | |||
| 20 | 1004109-00 | 1 | TERMINAL BLOCK | XD | |
||
| 22 | 1004110-00 | 5 | SCREW | XD | |
||
| 23 | 1004111-00 | 1 | RING | XD | |
||
| 24 | 1004581-00 | 1 | COVER | XD | |
||
| 25 | 1004113-00 | 1 | CORD PROTECTOR | XD | |
||
| 26 | 5170006-76 | 1 | RATING PLATE | XD |
