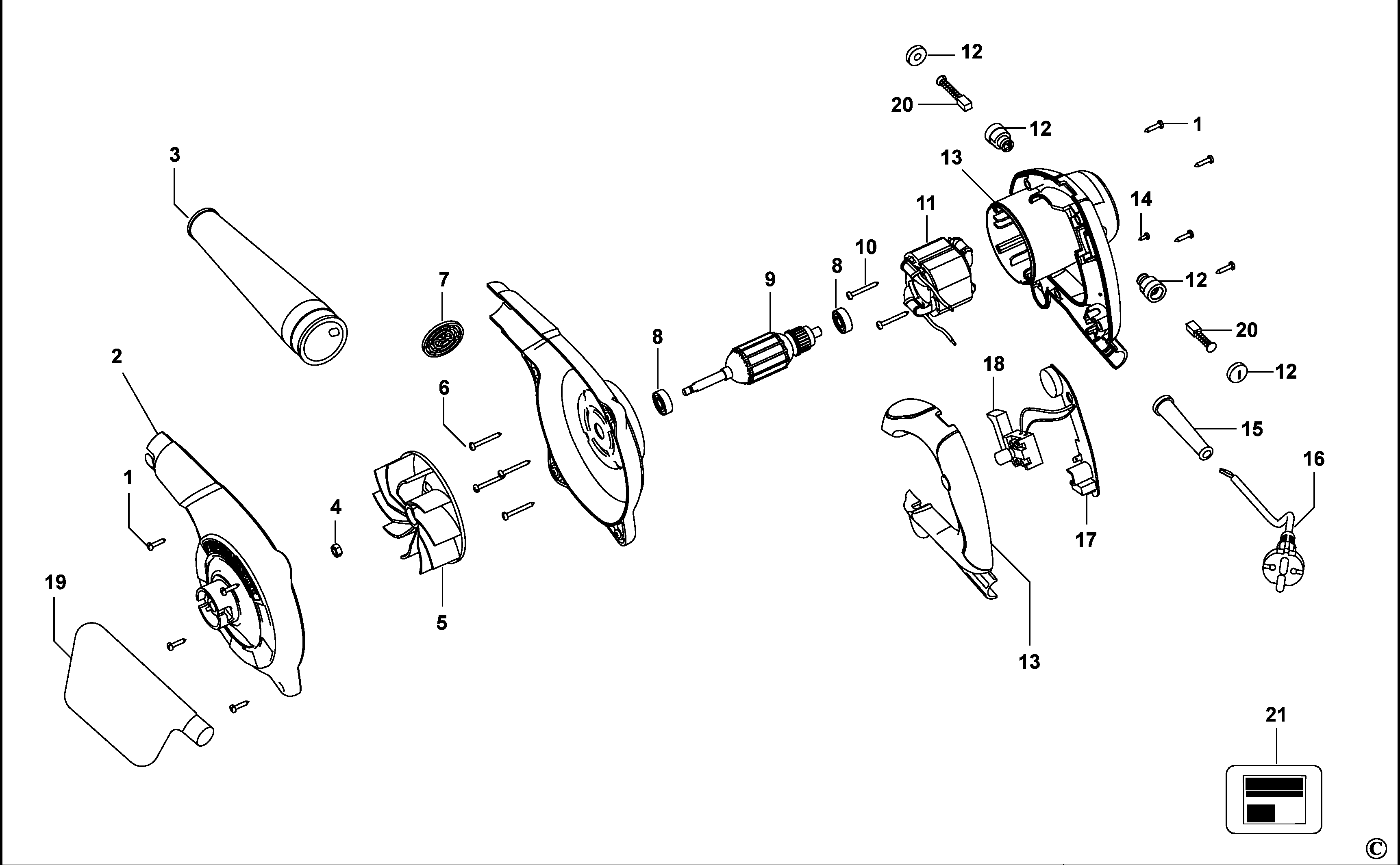

STEL680 BLOWER VAC Type 2 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 1004118-00 | 8 | SCREW | XD |  |
||
| 2 | 5170006-56 | 1 | CLAMSHELL SET | XD | |||
| 3 | 1004120-00 | 1 | TUBE | XD | |||
| 4 | 1004121-00 | 1 | NUT | XD | |
||
| 5 | 1004122-00 | 1 | FAN | XD | |
||
| 6 | 1004123-00 | 4 | SCREW | XD | |
||
| 7 | 1004124-00 | 1 | BAFFLE | XD | |
||
| 8 | 1004125-00 | 2 | BEARING | XD | |
||
| 9 | 1004126-00 | 1 | ARMATURE | XD | |
||
| 10 | 1004127-00 | 2 | SCREW | XD | |
||
| 11 | 1004128-00 | 2 | FIELD | XD | |
||
| 12 | 1004129-00 | 1 | BRUSH HOLDER SA | XD | |||
| 13 | 5170006-57 | 1 | HANDLE | XD | |||
| 14 | 1004131-00 | 1 | SCREW | XD | |
||
| 15 | 1004132-00 | 1 | CORD PROTECTOR | XD | |
||
| 16 | 5170001-07 | 1 | CORDSET | XD | |||
| 17 | 5170006-59 | 1 | PCB SA | XD | |||
| 18 | 1004136-00 | 1 | SWITCH | XD |  |
||
| 18 | 5170006-61 | 1 | SWITCH | XD | |||
| 19 | 5170006-62 | 1 | DUSTBAG | XD | |||
| 20 | 1004138-00 | 1 | BRUSH | SINGULAR | XD | |
|
| 21 | 5170006-64 | 1 | RATING PLATE | XD |
