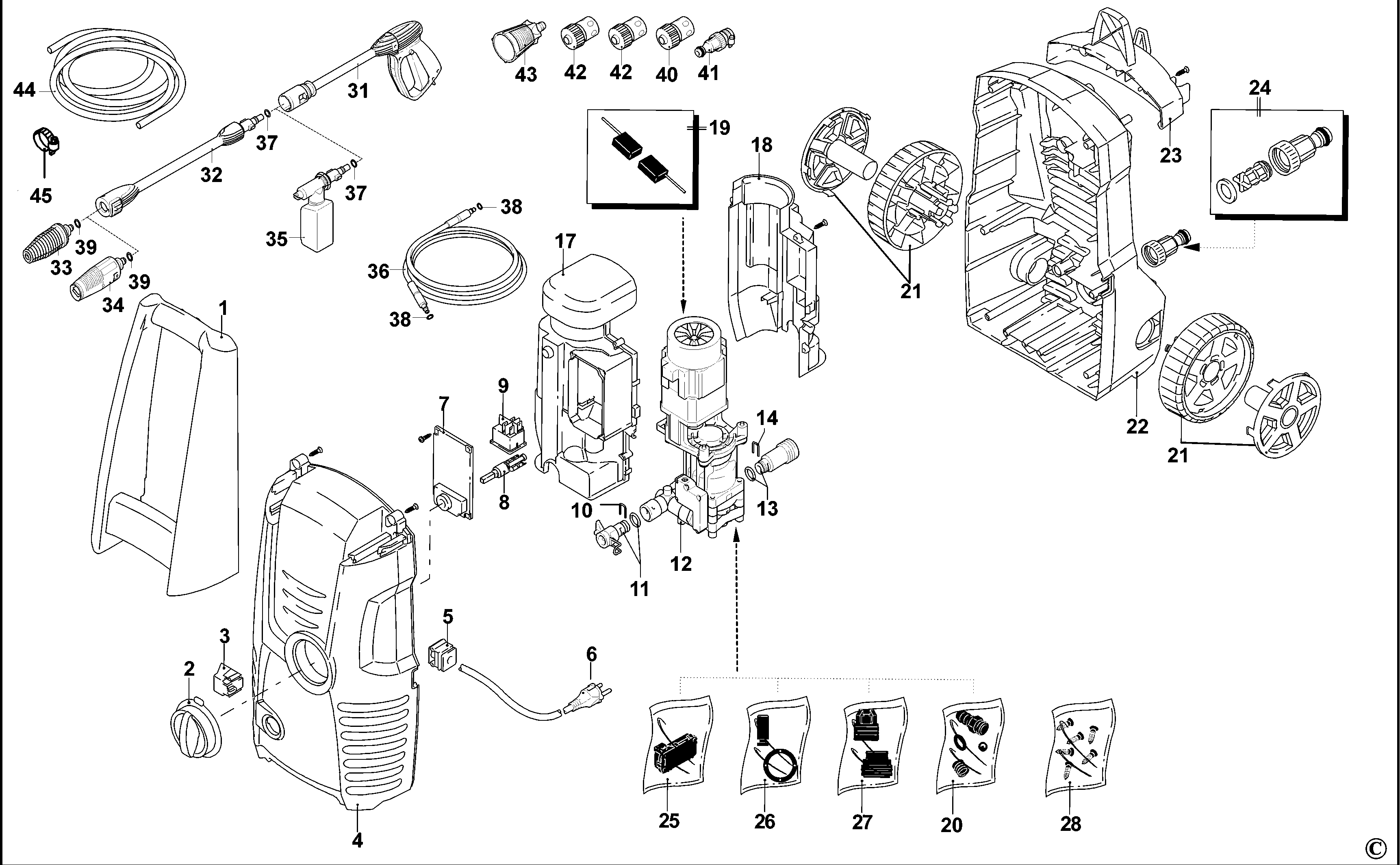

PW1500S PRESSURE WASHER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 1004700-84 | 1 | Handle | A9 | |||
| 2 | 1004700-62 | 1 | KNOB | A9 | |||
| 3 | 1004700-63 | 1 | LEVER | A9 | |||
| 4 | 1004700-64 | 1 | CLAMSHELL | A9 | |||
| 5 | 1004455-07 | 1 | GLAND | A9 | |||
| 6 | 5170034-46 | 1 | CORDSET | A9 | |||
| 7 | 1004700-65 | 1 | COVER | A9 | |||
| 8 | 1004700-66 | 1 | PIN | A9 | |||
| 9 | 1004700-67 | 1 | SWITCH SA | A9 | |||
| 10 | 1004512-08 | 1 | FORK | A9 | |||
| 11 | 5170033-17 | 1 | COUPLING SA | A9 | |||
| 12 | 5170033-18 | 1 | PUMP SA | A9 | |||
| 13 | 1004512-17 | 1 | SUCTION GROUP | A9 | |||
| 14 | 1004512-19 | 1 | FORK | A9 | |||
| 15 | 5140126-09 | 1 | VALVE AND SEAL KIT | A9 | |||
| 15 | 5140137-89 | 1 | SWITCH | A9 | |||
| 17 | 1004700-72 | 1 | CONVEYOR | A9 | |||
| 18 | 1004700-73 | 1 | CONVEYOR | A9 | |||
| 19 | 1004512-06 | 1 | BRUSH KIT | A9 | |||
| 20 | 1004700-80 | 1 | SUCTION GROUP | A9 | |||
| 21 | 1004700-87 | 2 | WHEEL | A9 | |||
| 22 | 1004700-75 | 1 | CLAMSHELL | A9 | |||
| 23 | 1004700-76 | 1 | GUARD | A9 | |||
| 24 | 1004455-15 | 1 | FILTER & INLET KIT | A9 | |||
| 25 | 5140126-27 | 1 | TSS KIT | A9 | |||
| 25 | 5140138-00 | 1 | PISTON SEAL KIT | A9 | |||
| 26 | 1004512-11 | 1 | PISTONS & SEALS KIT | A9 | |||
| 27 | 5140126-09 | 1 | VALVE AND SEAL KIT | A9 | |||
| 27 | 5140137-89 | 1 | SWITCH | A9 | |||
| 28 | 1004700-79 | 1 | SCREW KIT | A9 | |||
| 31 | 5170024-33 | 1 | ADJUSTER HANDLE | A9 | |||
| 32 | 1004700-82 | 1 | EXTENSION | A9 | |||
| 33 | 5140205-98 | 1 | LANCE HEAD | A9 | |||
| 34 | 1004700-83 | 1 | HEAD | A9 | |||
| 35 | 5170024-34 | 1 | TANK | A9 | |||
| 36 | 1004512-26 | 1 | HOSE SA | A9 | |||
| 37 | 5140193-41 | 2 | O-RING | A9 | |||
| 37 | 5140175-93 | 2 | NUT | A9 | |||
| 38 | 5170024-37 | 2 | O RING | A9 | |||
