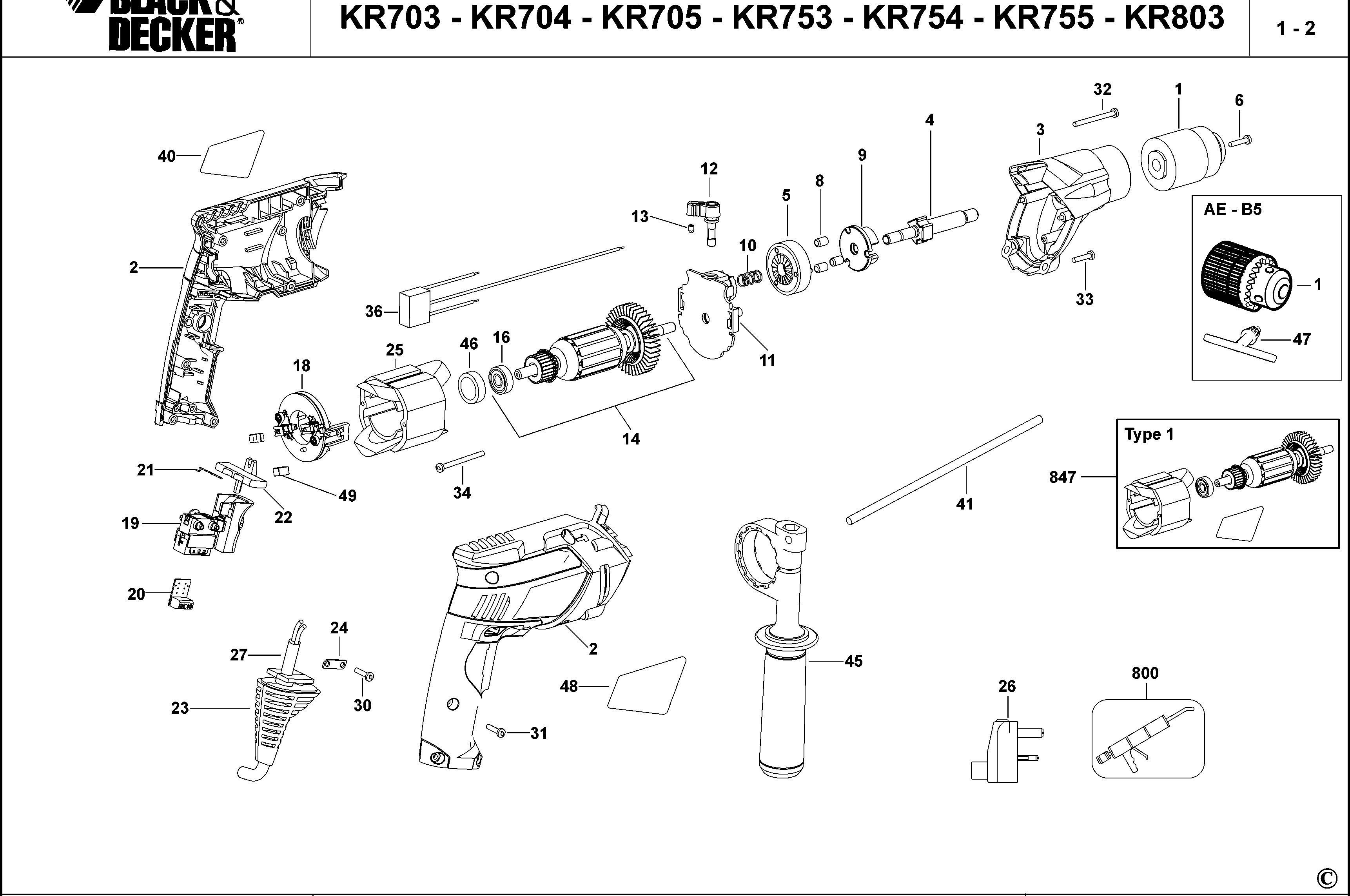

KR703 HAMMER DRILL Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 629530-01 | 1 | CHUCK KEYLESS | 13MM (3/8 x 24) | TW | ||
| 1 | 330033-23 | 1 | CHUCK 13MM | TW | |||
| 2 | 490560-00 | 1 | CLAMSHELL | TW | |||
| 3 | 490559-00 | 1 | GEARCASE SA | TW | |||
| 4 | 488643-00 | 1 | SPINDLE SA | TW | |||
| 5 | 488642-00 | 1 | GEAR | TW | |||
| 6 | 805434 | 1 | SCREW.SPECIAL | TW | |||
| 8 | 478752-00 | 3 | ROLLER | TW | |||
| 9 | 478748-00 | 1 | CARRIER | OUTPUT GEAR | TW | ||
| 10 | 491055-00 | 1 | SPRING | TW | |||
| 11 | 488624-00 | 1 | BEARING HOUSING | TW | |||
| 12 | 490715-00 | 1 | SELECTOR SA | TW | |||
| 13 | N403227 | 1 | DETENT | TW | |||
| 14 | 000000-00 | 1 | NO LONGER AVAILABLE | TW | |||
| 14 | 000000-06 | 1 | NO LONGER AVAILABLE - REF ITEM 847 | TW | |||
| 16 | 606290-01 | 1 | BEARING | TW | |||
| 18 | 000000-00 | 1 | NO LONGER AVAILABLE | TW | |||
| 19 | 000000-00 | 1 | NO LONGER AVAILABLE | TW | |||
| 20 | 615538-01 | 1 | PCB SA | TW | |||
| 21 | 629167-00 | 1 | SPRING | TW | |||
| 22 | 629168-00 | 1 | LEVER | TW | |||
| 23 | 635395-00 | 1 | CORD PROTECTOR | TW | |||
| 24 | 329301-00 | 1 | CORD CLAMP | TW | |||
| 25 | 000000-00 | 1 | NO LONGER AVAILABLE | TW | |||
| 26 | 588384-00 | 1 | ADAPTOR SA | TW | |||
| 27 | 589164-00 | 1 | CORDSET | 5A | INCL 26 | TW | |
| 27 | 330113-05 | 1 | CORDSET | TW | |||
| 30 | 330019-38 | 2 | SCREW | TW | |||
| 31 | 330019-04 | 8 | SCREW | TW | |||
| 32 | 330019-50 | 2 | SCREW | M4.55x50 PLASTIC THD FMG | TW | ||
| 33 | 330019-32 | 2 | SCREW | TW | |||
| 34 | 330019-63 | 2 | SCREW | TW | |||
| 36 | 492231-00 | 1 | CAPACITOR | TW | |||
| 40 | 493395-00 | 1 | LABEL | TW | |||
| 41 | 580787-00 | 1 | DEPTH STOP | TW | |||
| 45 | 939794-02 | 1 | HANDLE SIDE SA | TW | |||
| 46 | 635176-00 | 1 | SLEEVE | TW | |||
| 47 | 330034-07 | 1 | CHUCK KEY | TW | |||
| 48 | 000000-00 | 1 | NO LONGER AVAILABLE | TW | |||
| 48 | 493396-00 | 1 | RATING PLATE | TW | |||
| 48 | 493396-07 | 1 | RATING PLATE | TW | |||
| 49 | 90587238 | 2 | BRUSH PAIR 230V | TW | |||
| 800 | 870889-02 | 1 | GREASE | TW | |||
| 847 | 90569806 | 1 | SERVICE KIT | Type 1 ----> Type 2 | TW |
