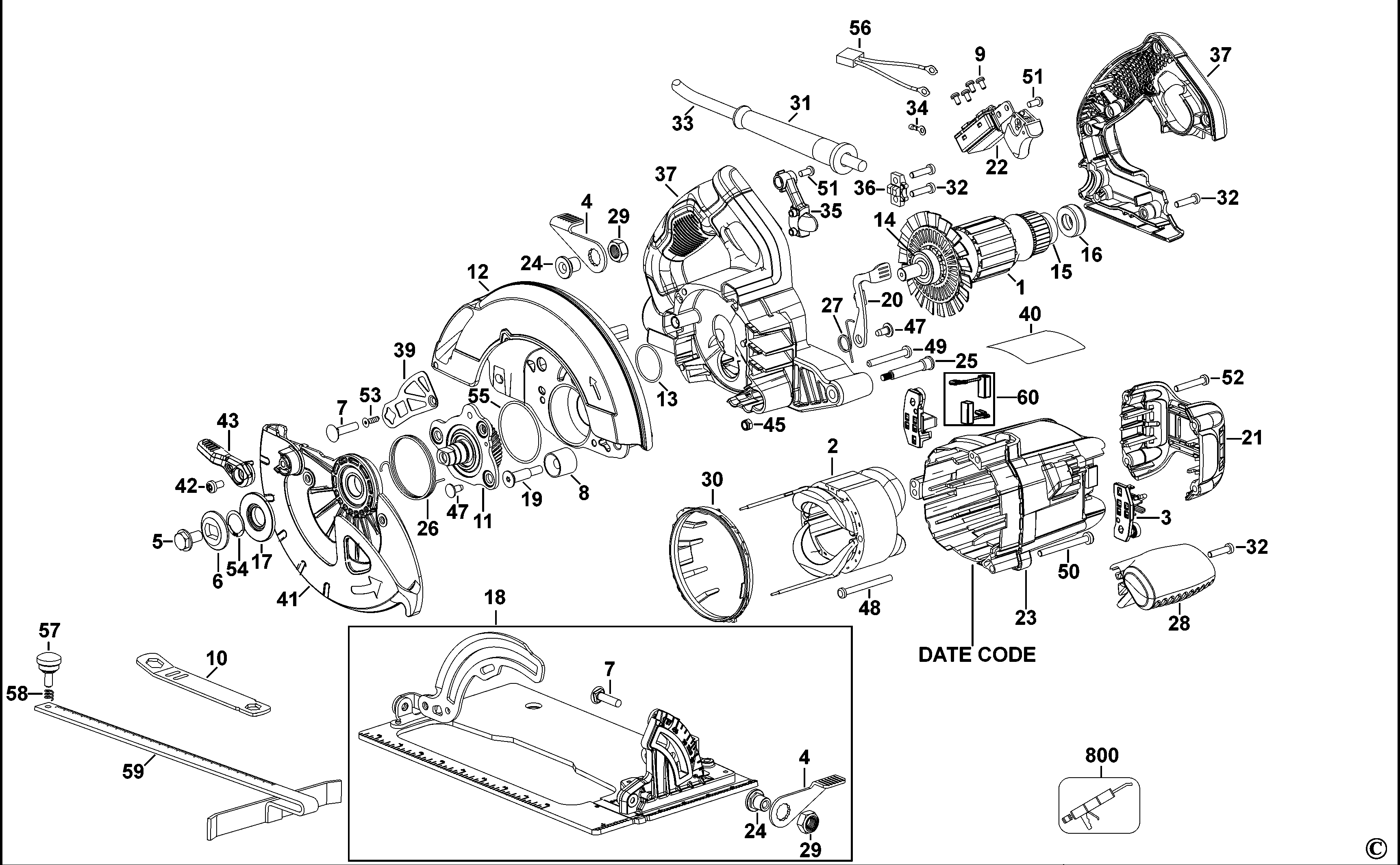

DWE575 CIRCULAR SAW Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | N227898 | 1 | ARMATURE 230V | KR | |||
| 2 | N225796 | 1 | FIELD SA 230V | KR | |||
| 3 | N335459 | 1 | BRUSH HOLDER 230V | KR | |||
| 4 | 145347-00 | 1 | LEVER | KR | |||
| 5 | 145344-00 | 1 | SCREW | KR | |||
| 6 | N120427 | 1 | OUTER FLANGE | KR | |||
| 7 | 098128-90 | 2 | CARRIAGE BOLT | KR | |||
| 8 | 381066-00 | 1 | BUMPER | KR | |||
| 9 | 384127-01 | 4 | SCREW | KR | |||
| 10 | N420180 | 1 | SPANNER | KR | |||
| 11 | N219393 | 1 | SPINDLE SA | KR | |||
| 12 | N083673 | 1 | GEARCASE SA | KR | |||
| 13 | N100358 | 1 | O RING | KR | |||
| 14 | 330003-64 | 1 | BEARING | KR | |||
| 15 | N110359 | 1 | BEARING | KR | |||
| 16 | N136311 | 1 | RUBBER BOOT | KR | |||
| 17 | N084137 | 1 | WASHER INNER CLAMP | KR | |||
| 18 | N246999 | 1 | SHOE SA | KR | |||
| 19 | N086135 | 1 | SCREW | KR | |||
| 20 | N090570 | 1 | LEVER LOCK | KR | |||
| 21 | N090678 | 1 | END CAP | KR | |||
| 22 | N120421 | 1 | SWITCH SA | KR | |||
| 23 | N090889 | 1 | FIELDCASE | KR | |||
| 24 | N094731 | 1 | SCREW | KR | |||
| 25 | N099101 | 1 | BOLT | KR | |||
| 26 | N100006 | 1 | SPRING | KR | |||
| 27 | N100123 | 1 | SPRING | KR | |||
| 28 | N510174 | 1 | Handle | KR | |||
| 29 | N117921 | 1 | STOP NUT | KR | |||
| 30 | N287072 | 1 | BAFFLE FAN | KR | |||
| 31 | 330005-02 | 1 | CORD PROTECTOR | KR | |||
| 32 | 330019-13 | 9 | SCREW | M4X19 T20 | KR | ||
| 33 | N142648 | 1 | CORDSET | KR | |||
| 34 | 395716-00 | 2 | TERMINAL | KR | |||
| 35 | N095539 | 1 | CORD CLAMP | KR | |||
| 36 | N127730 | 1 | CORD CLAMP | KR | |||
| 37 | N168105 | 1 | HANDLE SA | KR | |||
| 39 | N135988 | 1 | STRAP | KR | |||
| 40 | N451640 | 1 | RATING LABEL | KR | |||
| 41 | N125106 | 1 | GUARD LOWER | KR | |||
| 42 | 098094-13 | 1 | SCREW | KR | |||
| 43 | N094953 | 1 | LEVER | KR | |||
| 45 | N123103 | 1 | STOP NUT | KR | |||
| 47 | 385915-04 | 4 | SCREW | KR | |||
| 48 | 330019-18 | 2 | SCREW | M4.55 x 50 PLASTIC THD FMG | KR | ||
| 49 | 330045-19 | 1 | SCREW | KR | |||
| 50 | 330045-21 | 3 | SCREW | KR | |||
| 51 | 330019-10 | 2 | SCREW | KR | |||
| 52 | 330019-45 | 4 | SCREW | KR | |||
| 53 | 593515-00 | 1 | SCREW | KR | |||
| 54 | N120426 | 1 | RETAINER | KR | |||
| 55 | N361499 | 1 | O RING | KR | |||
| 56 | N448254 | 1 | CAPACITOR | KR | |||
| 57 | N287119 | 1 | SCREW | KR | |||
| 58 | 058287-00 | 1 | SPRING | KR | |||
| 59 | N074939 | 1 | FENCE | KR | |||
| 60 | N335460 | 1 | BRUSH PAIR SA | KR | |||
| 800 | 583534-00 | 1 | GREASE | 50 GRAMS - NYE RHEOLUB 380G1 | KR |
