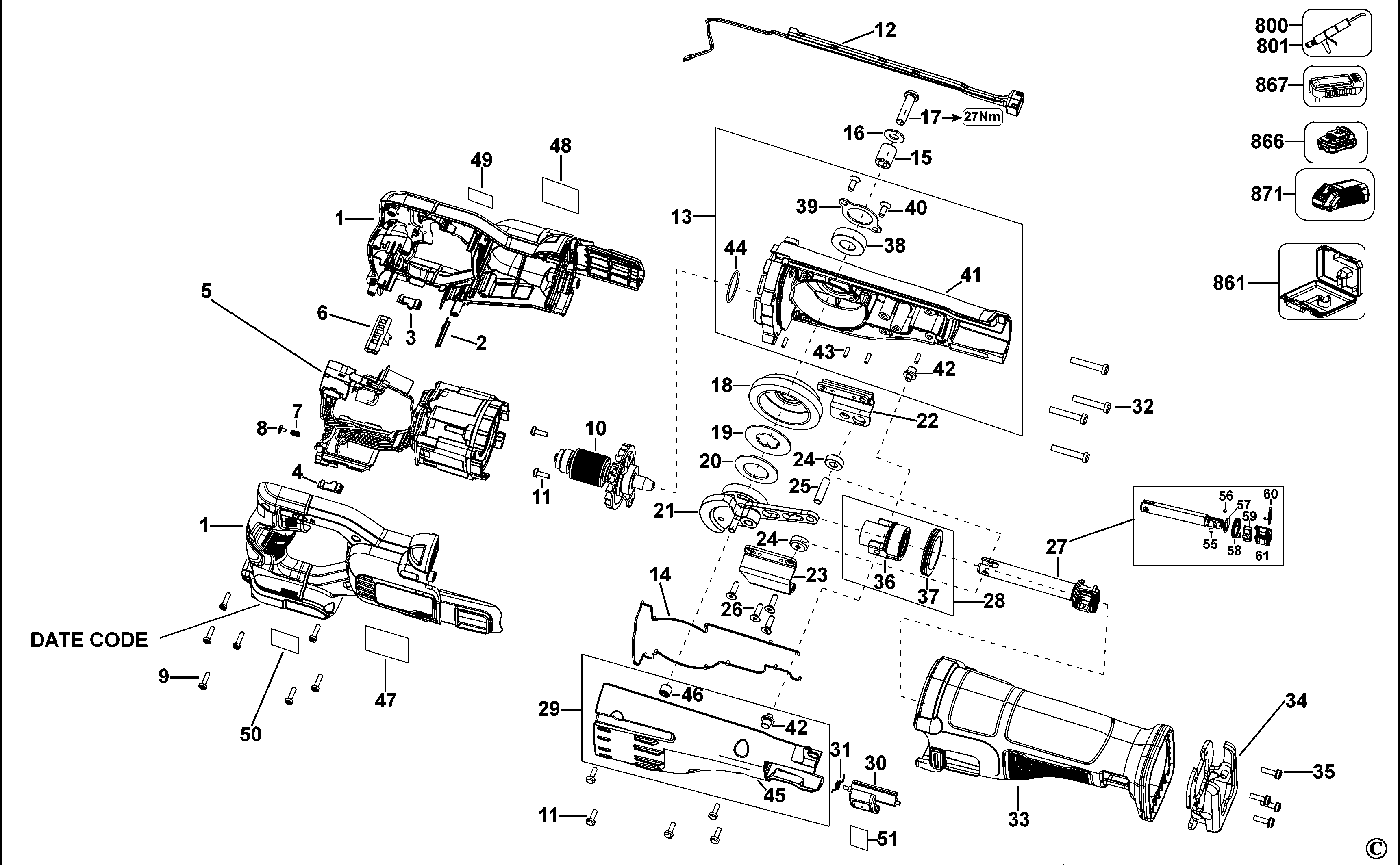

DCS388 CORDLESS RECIPROCATING SAW Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | N456253 | 1 | CLAMSHELL SET | JP | |||
| 2 | N466021 | 1 | PLATE | JP | |||
| 3 | N728012 | 1 | INSERT | JP | |||
| 4 | N728013 | 1 | INSERT | JP | |||
| 5 | N808739 | 1 | MOTOR SA | JP | |||
| 6 | N425240 | 1 | BUTTON LOCK-OFF | DCS388 | JP | ||
| 7 | N461735 | 1 | SPRING | JP | |||
| 8 | N122099 | 1 | BLOCK | JP | |||
| 9 | 330019-03 | 7 | SCREW | JP | |||
| 10 | N469235 | 1 | ROTOR SA | DCS388 | JP | ||
| 11 | 330045-45 | 7 | SCREW | JP | |||
| 12 | N469234 | 1 | LED LIGHT | DCS388 | JP | ||
| 13 | N463923 | 1 | GEARCASE SA | DCS388/DCS389 | JP | ||
| 14 | N451939 | 1 | GASKET | DCS388 | JP | ||
| 15 | N410605 | 1 | BEARING | DCS388 Gear Hub | JP | ||
| 16 | N431139 | 1 | WASHER | ID 8.5 OD 19 x 1.5mm | JP | ||
| 17 | N410607 | 1 | SCREW | M8 x 30mm LH | JP | ||
| 18 | N463922 | 1 | GEAR | JP | |||
| 19 | N410604 | 1 | WASHER SPECIAL | SPLINE | JP | ||
| 20 | N410595 | 1 | WASHER | JP | |||
| 21 | N463918 | 1 | CRANKSHAFT | JP | |||
| 22 | N451098 | 1 | GUIDE | JP | |||
| 23 | N451099 | 1 | GUIDE | JP | |||
| 24 | N410597 | 2 | ROLLER | JP | |||
| 25 | N422091 | 1 | PIN | JP | |||
| 26 | N465031 | 4 | SCREW | M5 x 16.5 mm | JP | ||
| 27 | N463921 | 1 | SHAFT SA | JP | |||
| 28 | N469236 | 1 | BUSHING | JP | |||
| 29 | N463925 | 1 | GEARCASE COVER SA | JP | |||
| 30 | N450135 | 1 | LEVER RELEASE | BLADE CLAMP | JP | ||
| 31 | N455745 | 1 | SPRING | BLADE CLAMP | JP | ||
| 32 | 330019-21 | 4 | SCREW.TEMP | JP | |||
| 33 | N422455 | 1 | RUBBER BOOT | JP | |||
| 34 | N436884 | 1 | SHOE SA | JP | |||
| 35 | 142940-00 | 4 | SCREW | JP | |||
| 36 | N475464 | 1 | BUSHING | JP | |||
| 37 | N410601 | 1 | SEAL | SHAFT | JP | ||
| 38 | 605040-25 | 1 | BEARING,BALL | JP | |||
| 39 | N424451 | 1 | BEARING HOLDER | JP | |||
| 40 | N482531 | 1 | SCREW | M5 x 0.8P x 13mm T20 | JP | ||
| 41 | N502344 | 1 | GEARCASE | JP | |||
| 42 | N421926 | 2 | PIN | JP | |||
| 43 | 330041-04 | 4 | PIN | D3 x 9.69 +/- 0.11mm | JP | ||
| 44 | N100358 | 1 | O RING | JP | |||
| 45 | N502346 | 1 | GEARCASE COVER | JP | |||
| 46 | 330004-20 | 1 | BEARING NEEDLE | JP | |||
| 47 | N559540 | 1 | RATING LABEL | JP | |||
| 48 | N458863 | 1 | BRAND LABEL | BRUSHLESS | JP | ||
| 49 | N459248 | 1 | LABEL | XR Flexvot L/H | JP | ||
| 50 | N459249 | 1 | LABEL | XR Flex Volt RH | JP | ||
| 51 | N468143 | 1 | LABEL | BLADE LEVER | JP | ||
| 55 | 903-00 | 1 | BALL | JP | |||
| 56 | 386786-00 | 1 | PIN | JP | |||
| 57 | N473286 | 1 | WASHER SPECIAL | JP | |||
| 58 | 623343-00 | 1 | SPRING | JP | |||
| 59 | N133647 | 1 | SLIDER | JP | |||
| 60 | 620663-00 | 1 | LOCK PIN | JP | |||
| 61 | 604731-00 | 1 | BLADE CLAMP | JP | |||
| 800 | 583534-00 | 1 | GREASE | 50 GRAMS - NYE RHEOLUB 380G1 | JP | ||
| 801 | 487130-04 | 1 | GREASE | GLK FLUID 249 NLGI 000 (10G SERVICE) | JP | ||
| 861 | N443156 | 1 | KITBOX | JP | |||
| 866 | DCB547-JP | 1 | BATTERY PACK | JP | |||
| 867 | N462141 | 1 | SAFETY CAP | JP | |||
| 871 | DCB118-JP | 1 | CHARGER SA | JP |
