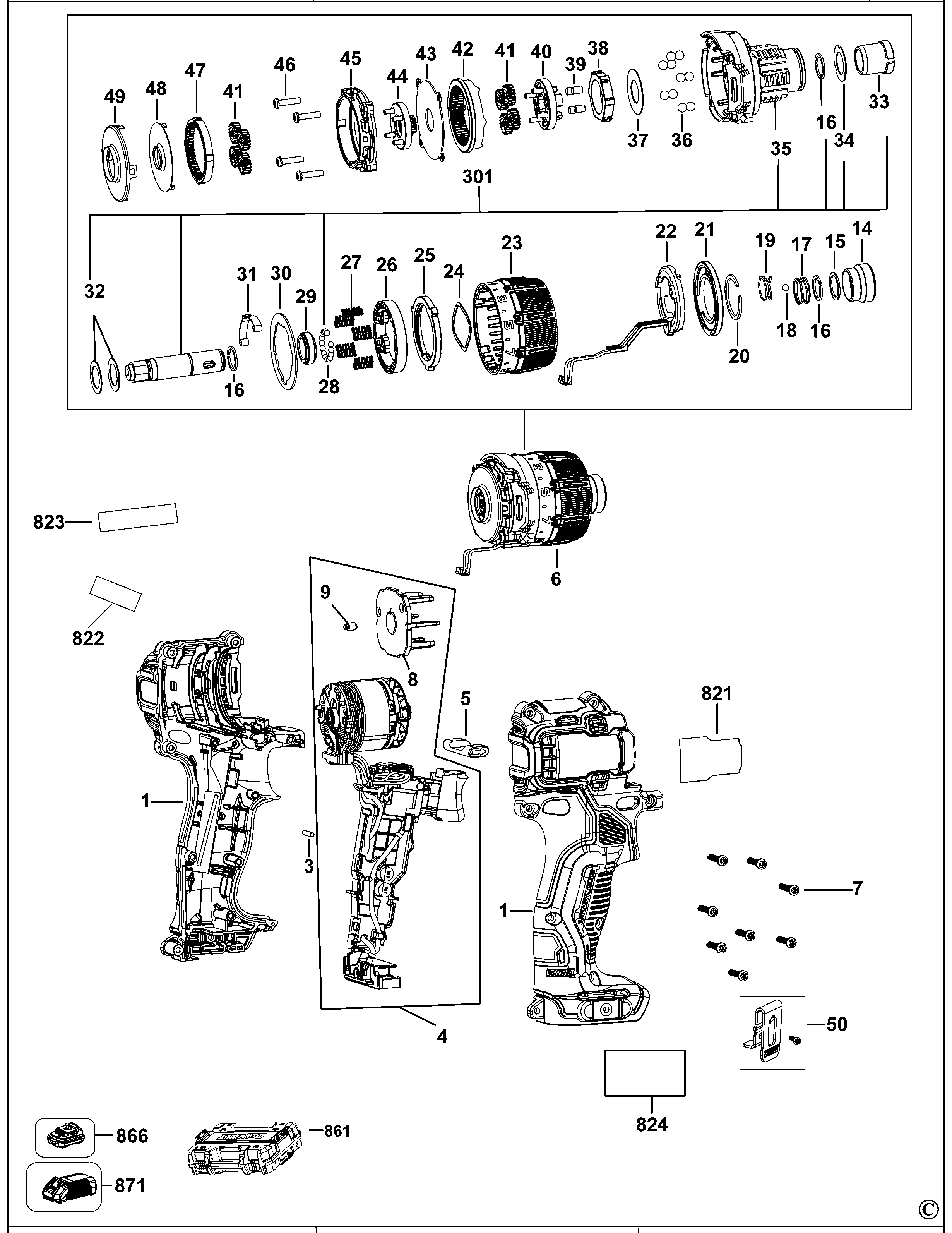

DCF601 SCREWDRIVER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | N612202 | 1 | CLAMSHELL SET | TW | |||
| 3 | N071836 | 1 | ROLL PIN | TW | |||
| 4 | N735657 | 1 | MOTOR & SWITCH SA | TW | |||
| 5 | N399342 | 1 | ACTUATOR FWD/REV | TW | |||
| 6 | N742084 | 1 | TRANSMISSION SA | TW | |||
| 7 | N463678 | 8 | SCREW | TW | |||
| 8 | N552144 | 1 | PLASTIC ADAPTOR | TW | |||
| 9 | N593131 | 1 | PLUG | TW | |||
| 14 | N612522 | 1 | SLEEVE | TW | |||
| 15 | N453417 | 1 | WASHER | TW | |||
| 16 | N421245 | 1 | RING | TW | |||
| 17 | N019351 | 1 | SPRING | TW | |||
| 18 | N089668 | 1 | BALL STEEL | TW | |||
| 19 | N437890 | 1 | SPRING | TW | |||
| 20 | N597957 | 1 | RETAINER | TW | |||
| 21 | N607311 | 1 | LENS | TW | |||
| 22 | N628717 | 1 | LED LIGHT | TW | |||
| 23 | N612584 | 1 | COLLAR | TW | |||
| 24 | N597958 | 1 | WASHER BOW | TW | |||
| 25 | N527880 | 1 | ADJUSTER TORQUE | TW | |||
| 26 | N618199 | 1 | HOLDER | TW | |||
| 27 | N527878 | 1 | SPRING | TW | |||
| 28 | 389317-00 | 16 | BALL STEEL | TW | |||
| 29 | N597951 | 1 | SPACER | TW | |||
| 30 | N595962 | 1 | WASHER SPECIAL | CLUTCH | TW | ||
| 31 | N597954 | 1 | DETENT | TW | |||
| 32 | N595963 | 2 | WASHER THRUST | TW | |||
| 33 | N593028 | 1 | BUSHING | TW | |||
| 34 | N614470 | 1 | WASHER | TW | |||
| 35 | N615587 | 1 | HOUSING | CLUTCH | TW | ||
| 36 | N510716 | 10 | BALL | STEEL, 5MM | TW | ||
| 37 | N527659 | 1 | WASHER LOCK | TW | |||
| 38 | N543525 | 1 | LOCKING RING | TW | |||
| 39 | N647513 | 4 | PIN | TW | |||
| 40 | N682495 | 1 | CARRIER SA | SA 2ND CARRIER | TW | ||
| 41 | N531637 | 8 | GEAR | TW | |||
| 42 | N629339 | 1 | GEAR | 2ND RING GEAR | TW | ||
| 43 | N595966 | 1 | PLATE | TW | |||
| 44 | N682496 | 1 | CARRIER SA | SA 1ST CARRIER | TW | ||
| 45 | N618176 | 1 | HOUSING | TW | |||
| 46 | N075506 | 4 | SCREW | TW | |||
| 47 | N549298 | 1 | GEAR | TW | |||
| 48 | N550764 | 1 | WASHER | TW | |||
| 49 | N602246 | 1 | PLATE | TW | |||
| 50 | N735595 | 1 | HOOK SA | TW | |||
| 301 | N742089 | 1 | CLUTCH HOUSING KIT | TW | |||
| 822 | N658202 | 1 | LABEL | TW | |||
| 823 | N447515 | 1 | BRAND LABEL | TW | |||
| 824 | N704655 | 1 | LABEL | FOOT | TW | ||
| 861 | N614791 | 1 | KITBOX | DCF601D2,DCF601L2 | TW | ||
| 866 | DCB124-TW | 1 | BATTERY | TW | |||
| 871 | DCB112-TW | 1 | CHARGER 10.8V | TW |
