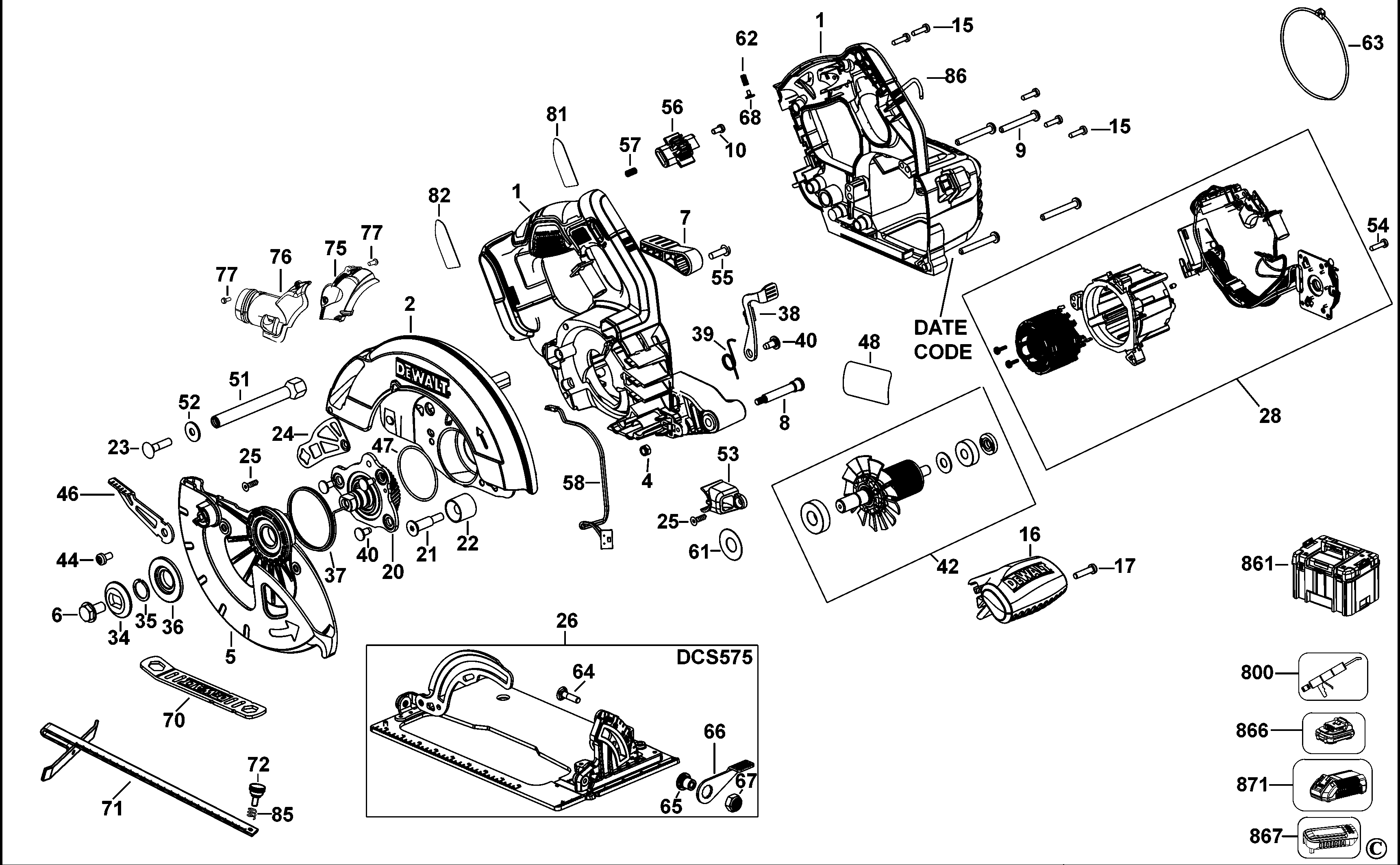

DCS575 CORDLESS CIRCULAR SAW Type 2 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | N519971 | 1 | HOUSING SA | KR | |||
| 2 | N484889 | 1 | GEARCASE SA | KR | |||
| 4 | N461154 | 1 | NUT | KR | |||
| 5 | N461005 | 1 | LOWER GUARD SA | KR | |||
| 6 | 145344-00 | 1 | SCREW | KR | |||
| 7 | N419350 | 1 | LEVER | KR | |||
| 8 | N461157 | 1 | BOLT | KR | |||
| 9 | 330045-19 | 4 | SCREW | KR | |||
| 10 | 330019-10 | 1 | SCREW | KR | |||
| 15 | 330019-03 | 7 | SCREW | KR | |||
| 16 | N510174 | 1 | Handle | KR | |||
| 17 | 330019-13 | 1 | SCREW | M4X19 T20 | KR | ||
| 20 | N472351 | 1 | SPINDLE SA | KR | |||
| 21 | N086135 | 1 | SCREW | KR | |||
| 22 | 381066-00 | 1 | BUMPER | KR | |||
| 23 | 98128-90 | 1 | CARRIAGE BOLT | KR | |||
| 24 | N461456 | 1 | PLATE | KR | |||
| 25 | N461159 | 2 | SCREW | M4 x 0.7P, Black | KR | ||
| 26 | N472353 | 1 | SHOE SA | METRIC | KR | ||
| 28 | NA029576 | 1 | MOTOR SA | KR | |||
| 34 | N120427 | 1 | OUTER FLANGE | KR | |||
| 35 | N120426 | 1 | RETAINER | KR | |||
| 36 | N084137 | 1 | WASHER INNER CLAMP | KR | |||
| 37 | N100006 | 1 | SPRING | KR | |||
| 38 | N090570 | 1 | LEVER LOCK | KR | |||
| 39 | N100123 | 1 | SPRING | KR | |||
| 40 | 385915-04 | 4 | SCREW | KR | |||
| 42 | N468098 | 1 | ARMATURE SA | KR | |||
| 44 | 098094-13 | 1 | SCREW | KR | |||
| 46 | N086628 | 1 | LEVER | KR | |||
| 47 | N361499 | 1 | O RING | KR | |||
| 48 | N529994 | 1 | RATING LABEL | KR | |||
| 51 | N420031 | 1 | SHAFT | KR | |||
| 52 | N434869 | 1 | WASHER | ID M6 OD 17, 1.5 Thk | KR | ||
| 53 | N421358 | 1 | COVER | KR | |||
| 54 | N034545 | 4 | SCREW | KR | |||
| 55 | 330045-14 | 1 | SCREW | KR | |||
| 56 | N422878 | 1 | BUTTON LOCK-OFF | KR | |||
| 57 | N433343 | 1 | SPRING | KR | |||
| 58 | N363247 | 1 | LED LIGHT | KR | |||
| 61 | N447499 | 1 | WASHER FIBRE | KR | |||
| 62 | N461735 | 1 | SPRING | KR | |||
| 63 | 90504014 | 1 | CABLE TIE | KR | |||
| 64 | 98128-90 | 1 | CARRIAGE BOLT | KR | |||
| 65 | N094731 | 1 | SCREW | KR | |||
| 66 | 145347-00 | 1 | LEVER | KR | |||
| 67 | N117921 | 1 | STOP NUT | KR | |||
| 68 | N091479 | 1 | MOUNT | KR | |||
| 70 | N420180 | 1 | SPANNER | KR | |||
| 71 | N074939 | 1 | FENCE | KR | |||
| 72 | N287119 | 1 | SCREW | KR | |||
| 75 | N168420 | 1 | DUST PORT | KR | |||
| 76 | N108974 | 1 | DUST PORT | KR | |||
| 77 | 562097-00 | 2 | SCREW | KR | |||
| 81 | N459249 | 1 | LABEL | XR Flex Volt RH | KR | ||
| 82 | N459248 | 1 | LABEL | XR Flexvot L/H | KR | ||
| 85 | 058287-00 | 1 | SPRING | KR | |||
| 86 | N560335 | 1 | HOOK | KR | |||
| 800 | 583534-00 | 1 | GREASE | 50 GRAMS - NYE RHEOLUB 380G1 | KR | ||
| 861 | N429655 | 1 | KITBOX | KR | |||
| 866 | DCB546-KR | 2 | BATTERY PACK | 54V 2.0Ah&18V 6.0Ah | KR | ||
| 867 | N462141 | 1 | SAFETY CAP | KR | |||
| 871 | DCB118-KR | 1 | CHARGER SA | 54V 8A | KR |
