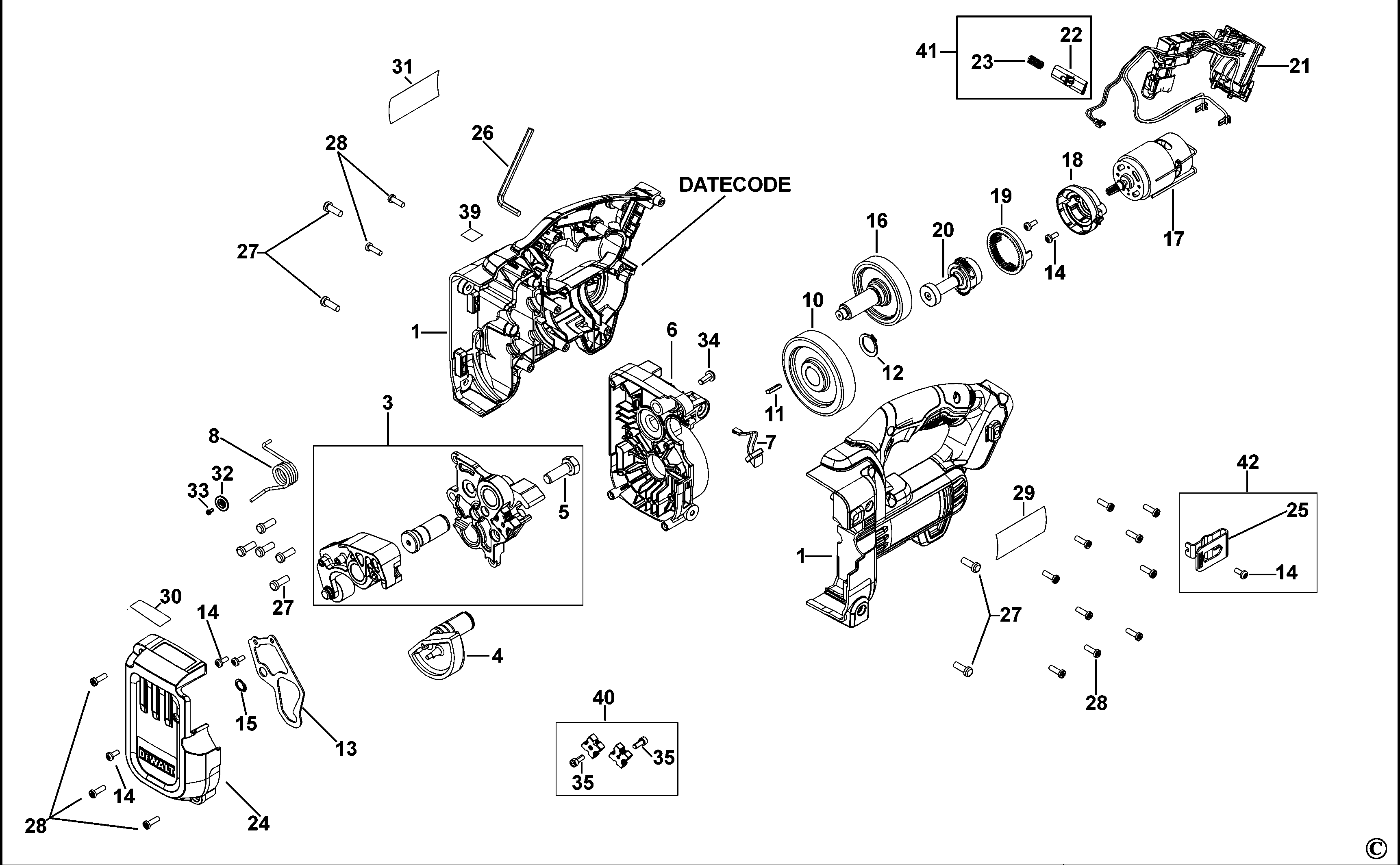

DCS350N THREADED ROD CUTTER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | N420220 | 1 | CLAMSHELL SET | KR | |||
| 3 | N471685 | 1 | VICE JAW MOVEABLE | METRIC | incl 40 | KR | |
| 4 | N441241 | 1 | CAM | KR | |||
| 5 | N433562 | 1 | BOLT | M10 | KR | ||
| 6 | N441237 | 1 | GEARCASE | KR | |||
| 7 | N420221 | 1 | LED LIGHT | KR | |||
| 8 | N453041 | 1 | SPRING | KR | |||
| 10 | N441238 | 1 | GEAR | KR | |||
| 11 | N400513 | 1 | KEY | 3 X 5 X 16 | KR | ||
| 12 | 861349-00 | 1 | CIRCLIP | KR | |||
| 13 | N441239 | 1 | PLATE | KR | |||
| 14 | 330045-69 | 6 | SCREW | M4 X 10 T20 | KR | ||
| 15 | 860079-02 | 1 | CIRCLIP | KR | |||
| 16 | N427318 | 1 | GEAR SA | 1ST REDUCTION | KR | ||
| 17 | N427320 | 1 | MOTOR SA | KR | |||
| 18 | N390059 | 1 | MOUNT | MOTOR | KR | ||
| 19 | N441240 | 1 | GEAR SA | KR | |||
| 20 | N427319 | 1 | GEAR SA | 2ND REDUCTION | KR | ||
| 21 | N420219 | 1 | ELECTRONIC & SWITCH | EURO | KR | ||
| 22 | N400521 | 1 | ACTUATOR FWD/REV | KR | |||
| 23 | N411702 | 1 | SPRING | KR | |||
| 24 | N454243 | 1 | COVER | KR | |||
| 25 | N086039 | 1 | HOOK | KR | |||
| 26 | 098000-11 | 1 | HEX KEY | KR | |||
| 27 | 330019-37 | 9 | SCREW | KR | |||
| 28 | 330019-12 | 15 | SCREW | KR | |||
| 29 | N423498 | 1 | BRAND LABEL | 18 VOLT | KR | ||
| 30 | N442483 | 1 | LABEL | KR | |||
| 31 | N475808 | 1 | RATING PLATE | KR | DCS350N | KR | |
| 32 | N447901 | 1 | WASHER SPRING | KR | |||
| 33 | 330019-01 | 1 | SCREW | KR | |||
| 34 | N453340 | 1 | SCREW | M5 X 0.8 | KR | ||
| 35 | 911281 | 2 | SCREW | KR | |||
| 39 | N437589 | 1 | LABEL | FRD - REV | KR | ||
| 40 | N473494 | 1 | CUTTER BLOCK SA | METRIC | KR | ||
| 41 | N420224 | 1 | ACTUATOR FWD/REV | KR | |||
| 42 | N420222 | 1 | HOOK SA | KR |
